FLOODLIGHT MAX 900W LUMINAIRE HEAD

FLOODLIGHT MAX 900W LUMINAIRE HEAD

Choose your product version

757 SYM 10 WAL

757 SYM 60 WAL

757 SYM 30 WAL

757 ASYM50x110WAL

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL MAX LUM P 900W 757 SYM 10 WAL 900.00 W 100000 10 ° 117000 lm No
FL MAX LUM P 900W 757 SYM 60 WAL 900.00 W 100000 60 ° 120000 lm No
FL MAX LUM P 900W 757 SYM 30 WAL 900.00 W 100000 30 ° 121000 lm No
FL MAX LUM P 900W 757 ASYM50x110WAL 900.00 W 100000 50 ° x 110 ° 123000 lm No


FL MAX LUM P 900W 757 SYM 10 WAL

Product benefits
  • Very bright, robust and durable
  • Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
  • Easy dimming to 33% by wiring
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • Low flicker light
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 900.00 W
Nominal voltage 180 V
Nominal current 4740 mA
Operating mode External LED driver

Photometrical data

Luminous flux 117000 lm
Luminous efficacy 130 lm/W
Color temperature 5700 K
Light color (designation) Cool Daylight
Color rendering index Ra ≥70
Standard deviation of color matching < 5 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG2
Beam angle 10 °

Dimensions & Weight

Length 660.00 mm
Height 279.00 mm
Width 591.00 mm
Product weight 20800.00 g
Cable length 1300 mm

Materials & Colors

Product color White aluminum
Housing color White aluminum
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall, Pole, Floor
Application environment Outdoor
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 75000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, ENEC, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Very bright, robust and durable
  • Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
  • Easy dimming to 33% by wiring
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • Low flicker light
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • Lighting of large areas
  • Sports facilities
  • Construction areas
  • Direct replacement for luminaires using HID lamps
Product features
  • Modular, high-power floodlight with up to 135 lm/W
  • Joint or separate installation with Floodlight Max power supply with up to 40 m distance
  • Available with 10°, 30° and 60° symmetric beam angles, as well as 50°x110° asymmetric light distribution
  • Mounting bracket for up to 180° tilting
  • Highly-transparent, tempered glass diffusor
Equipment / Accessories
  • Power supply not included in luminaire head delivery unit
  • Operation only with official 900 W power supply, GTIN(EAN) 4058075580732
  • Aiming device in preparation
  • Visor for front light cut-off in preparation
Safety advice
  • Floodlight Max Luminaire Heads must be operated with official Floodlight Max Power Supplies only, as described in the user manual.
  • If only one fixation point is used for luminaires installed higher >3m, a secondary fixation of luminaire and bracket (e.g. a restraining wire) is needed for safety reasons.
  • The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 4 m is not expected.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075580626 Shipping box
1		 795 mm x 619 mm x 231 mm 23008.00 g 113.68 dm³
User instruction
FLOODLIGHT MAX PDF (6.87 MB)
Addon Technical Information
LSI FL MAX LUM P PDF (1.15 MB)
Packaging insert
Legal Insert FL MAX LU M/POWER SUPPLY PDF (4.46 MB)
Declarations Of Conformity CE
FL MAX P LUM PDF (216.92 KB)

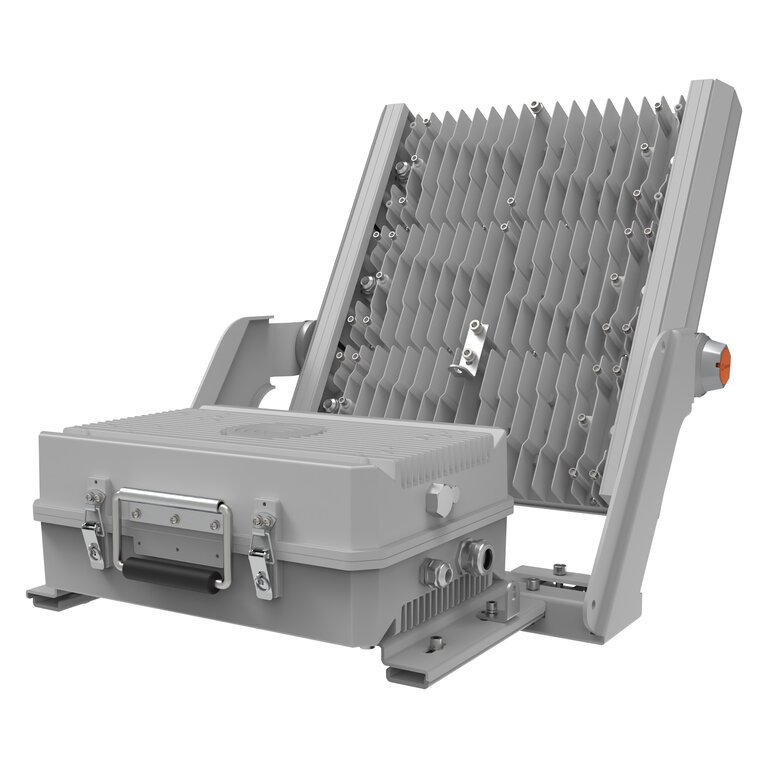

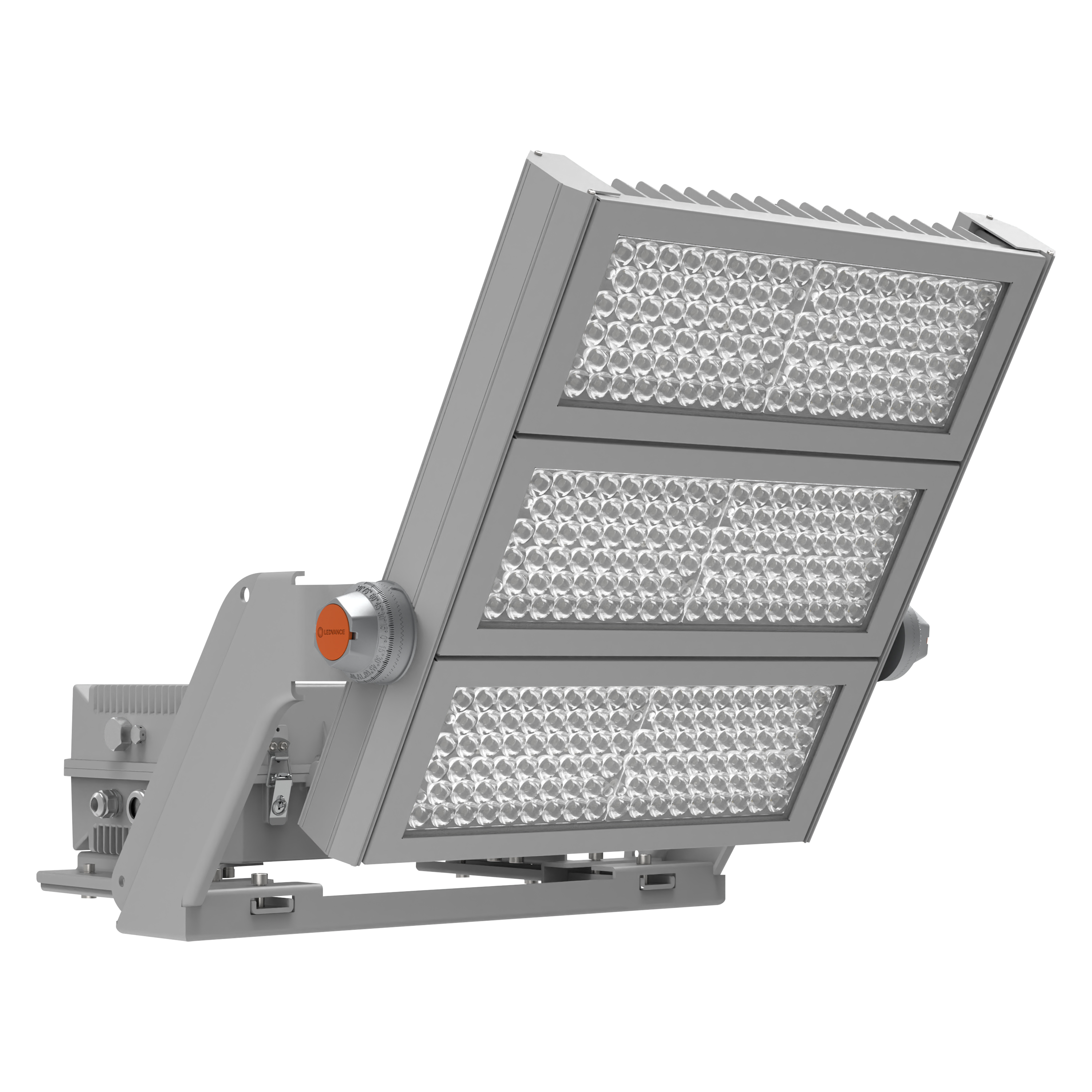

Background: white, diagonal
FLOODLIGHT MAX 900W JPG (1.76 MB)

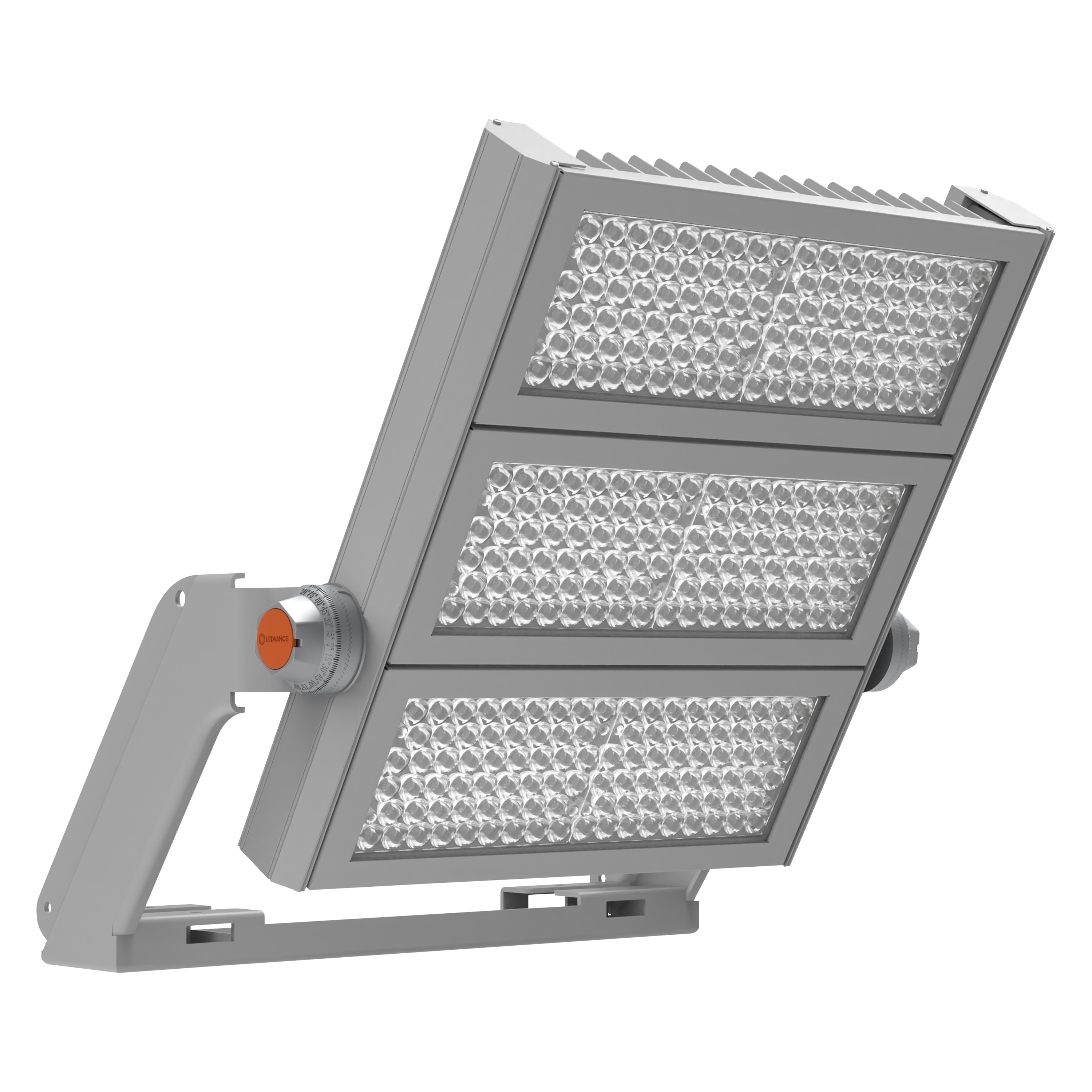

Background: white, spacial
FLOODLIGHT MAX 900W LU MINAIRE HEAD JPG (1.83 MB)
Product line drawing with letters
FL MAX LUM P 900W SVG (8.62 KB)
Product line drawing with numbers
FL MAX LUM P 900W SVG (13.38 KB)
Product line drawing - technical
FL MAX LUM P 900W SVG (6.62 KB)
Combo Shot = Product Beauty Shot + Packaging Image
FL MAX LUM P 900W 757 SYM 10 WAL JPG (1.21 MB)
Packaging image, frontal
FL MAX LUM P 900W 757 SYM 10 WAL JPG (953.97 KB)
Packaging image, spacial
Floodlight MAX 900W Mi Ch JPG (1.06 MB)
Catalog info 1
FL MAX P WALL PNG (220.89 KB)
Catalog info 2
FL MAX P WALL SVG (81.06 KB)
Catalog info 3
FL MAX P WALL SVG (77.7 KB)
Catalog info 4
FL MAX P WALL SVG (107.75 KB)
Catalog info 5
FL MAX P WALL SVG (122.49 KB)
Catalog info 6
FL MAX P WALL PNG (163.79 KB)
IES file (IES)
FL MAX 900W 757 SYM 10 WAL IES (11.97 KB)
LDT file (Eulumdat)
FL MAX 900W 757 SYM 10 WAL LDT (10.81 KB)
ULD file (DIALux)
FL MAX LUM P 900W 757 SYM 10 ULD (308.22 KB)
ROLF file (RELUX)
FL MAX 900W HEAD 757 S YM 10 WAL ROLF (961.79 KB)

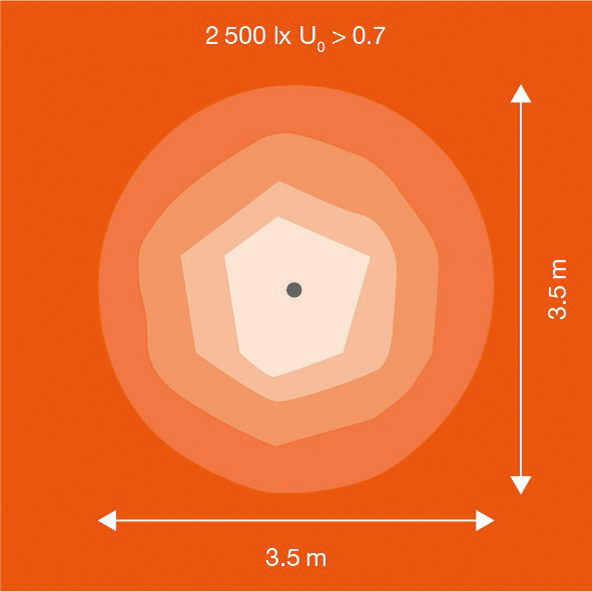

LDC typ polar
Floodlight Max 900W SY M 10 simplified isolux diagram JPG (161.72 KB)

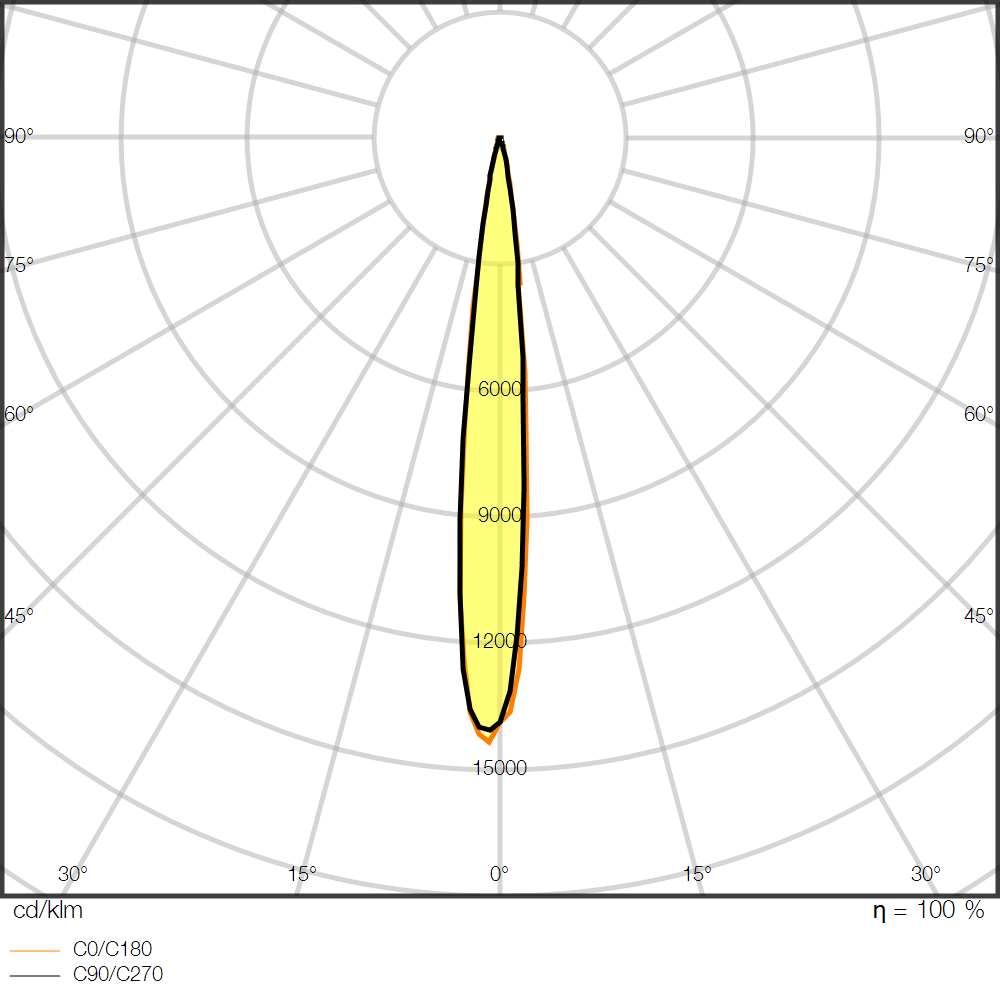

LDC typ polar
FL MAX 900W 757 SYM 10 WAL PNG (104.91 KB)
LDC typ polar
FL MAX 900W 757 SYM 10 WAL SVG (17.44 KB)
CAD_STEP_3D
FL MAX 900W STEP (4.43 MB)
Tender documents
FLOODLIGHT MAX 900W LU MINAIRE HEAD 757 SYM 1 0 WAL-EN TXT (1.89 KB)
EAN SEG number STK number
4058075580626 7766879 4529719
