Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| DP 1200 39 W 4000K IP65 GY | 39.00 W | 25000 | 105 ° | 4400 lm | No |
| DP 1200 39 W 6500K IP65 GY | 39.00 W | 25000 | 105 ° | 4400 lm | No |
| DP 1500 55 W 4000K IP65 GY | 55.00 W | 25000 | 105 ° | 6400 lm | No |
| DP 1500 55 W 6500K IP65 GY | 55.00 W | 25000 | 105 ° | 6400 lm | No |
| Nominal wattage | 39.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 170 mA |
| Inrush current | 7 A |
| Inrush current time Th50 | 220 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 48 |
| Max. number of luminaires per miniature circuit breaker C10 | 40 |
| Max. number of luminaires per miniature circuit breaker C16 | 64 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 4400 lm |
| Luminous efficacy | 115 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 105 ° |
| Length | 1200.00 mm |
| Height | 78.00 mm |
| Width | 95.00 mm |
| Product weight | 1650.00 g |
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+40 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

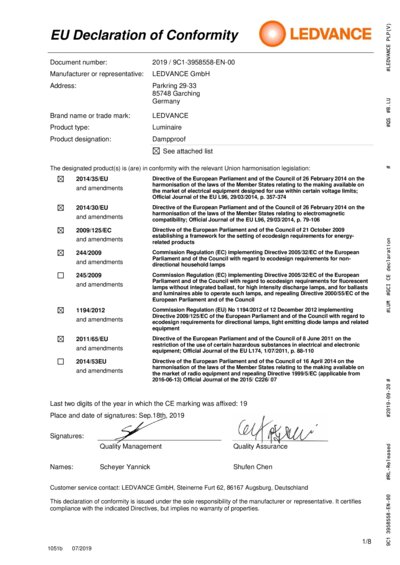

| Standards | CE, CB, TÜV SÜD, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075079915 | Folding box 1 |
1,205 mm x 102 mm x 84 mm | 1833.00 g | 10.32 dm³ |
| 4058075079922 | Shipping box 6 |
1,225 mm x 333 mm x 192 mm | 11992.00 g | 78.32 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075079915 | 7214319 | 4308003 | 3241002 | 941000050 |
