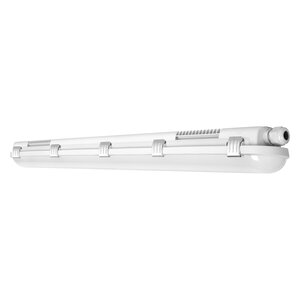

Professional

DAMP PROOF

Choose your product version

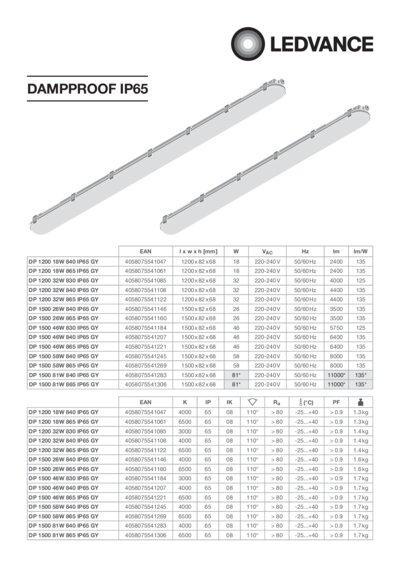

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP 1200 18W 840 IP65 GY  18.00 W 100000 110 ° 2400 lm No
DP 1200 18W 865 IP65 GY        18.00 W 100000 110 ° 2400 lm No
DP 1500 26W 840 IP65 GY 26.00 W 100000 110 ° 3500 lm No
DP 1500 26W 865 IP65 GY 26.00 W 100000 110 ° 3500 lm No
DP 1200 32W 830 IP65 GY 32.00 W 100000 110 ° 4000 lm No
DP 1200 32W 840 IP65 GY 32.00 W 100000 110 ° 4400 lm No
DP 1200 32W 865 IP65 GY 32.00 W 100000 110 ° 4400 lm No
DP 1500 46W 830 IP65 GY 46.00 W 100000 110 ° 5750 lm No
DP 1500 46W 840 IP65 GY 46.00 W 100000 110 ° 6400 lm No
DP 1500 46W 865 IP65 GY 46.00 W 100000 110 ° 6400 lm No
DP 1500 58W 840 IP65 GY 58.00 W 100000 110 ° 8000 lm No
DP 1500 58W 865 IP65 GY 58.00 W 100000 110 ° 8000 lm No
DP 1500 81W 840 IP65 GY 81.00 W 100000 110 ° 11000 lm No
DP 1500 81W 865 IP65 GY   81.00 W 100000 110 ° 11000 lm No

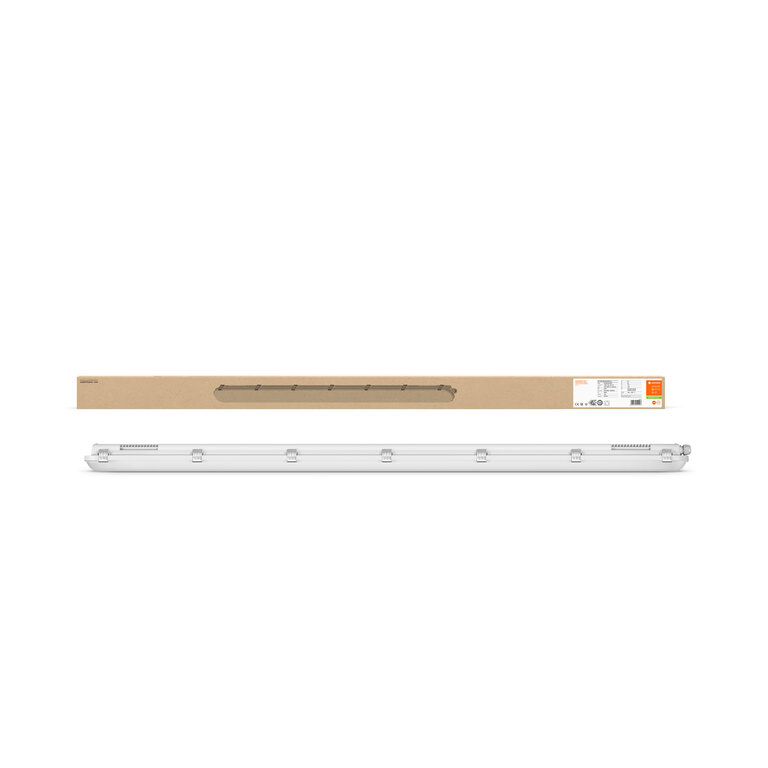

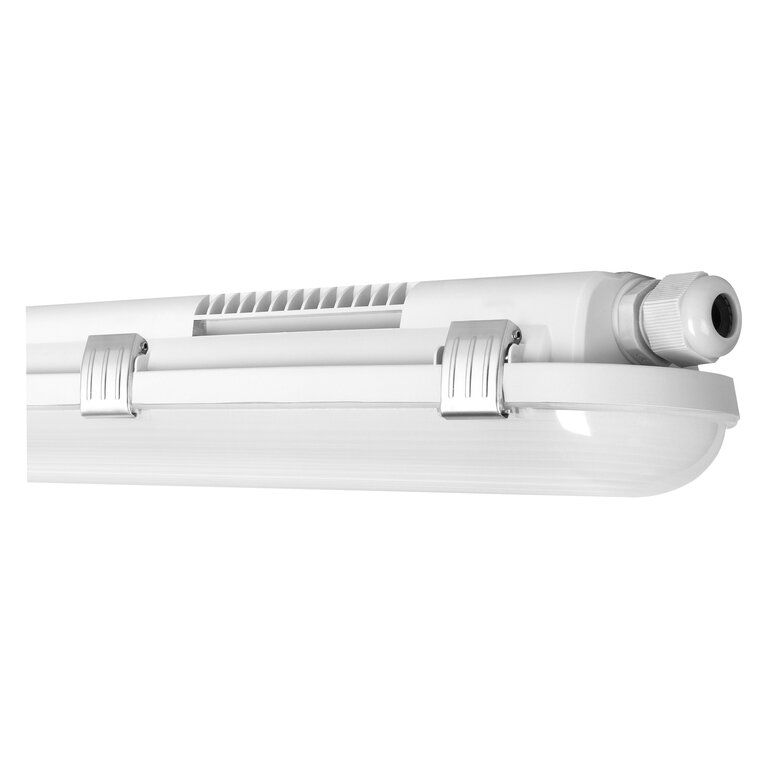

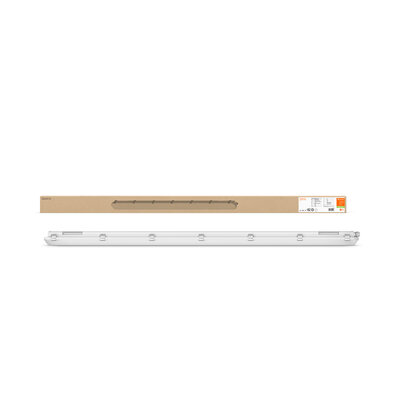

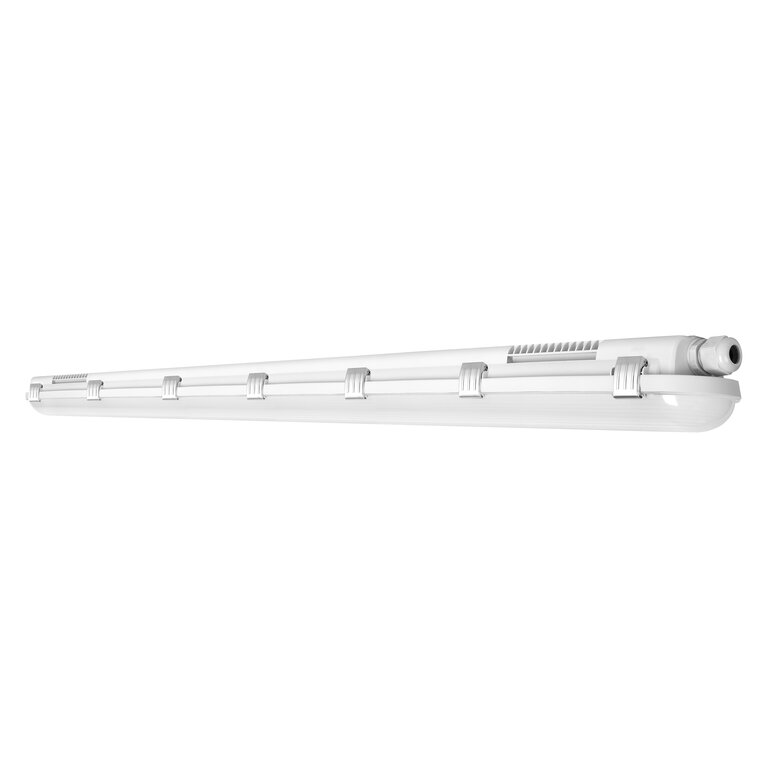

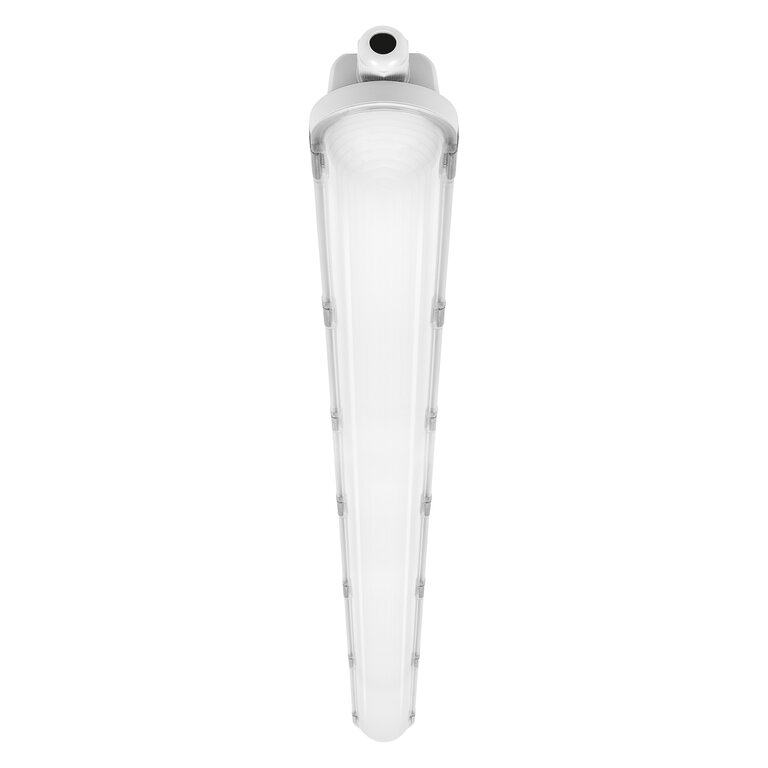

DP 1500 46W 840 IP65 GY

Product benefits
  • Low flicker ≤ 10 %
  • Evenly distributed light
  • Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
  • Easy installation, no tools required for connection
  • 5 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 46.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 222 mA
Inrush current 12.7 A
Inrush current time Th50 220 µs
Max. no. of lum. on circuit break. B16 A 26
Max. no. of lum. on circuit break. C16 A 38
Max. no. of lum. on circuit break. C10 A 23
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 6400 lm
Luminous efficacy 139 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 4 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

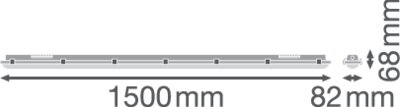

Dimensions & Weight

Length 1500.00 mm
Height 68.00 mm
Width 82.00 mm
Product weight 1690.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+40 °C
Temperature range at storage -25…+80 °C

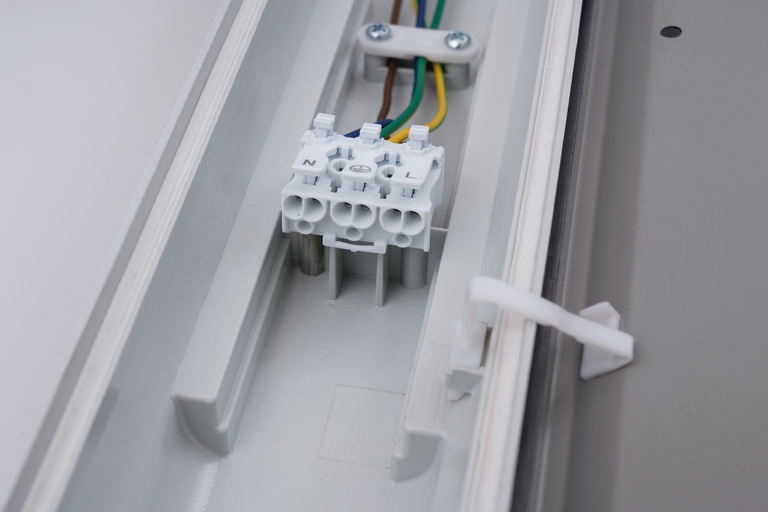

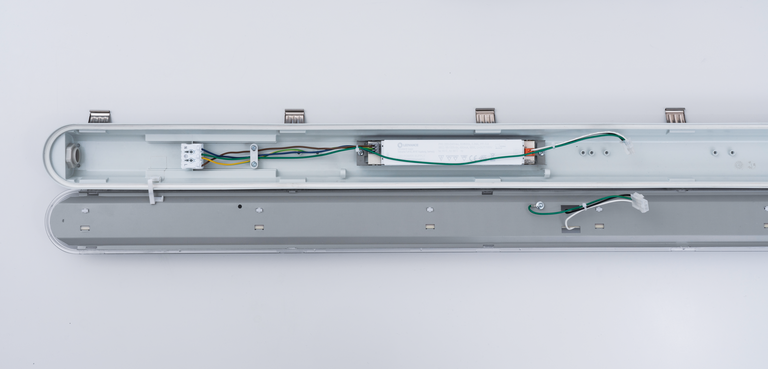

Type of connection Terminal, 3-pin
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No

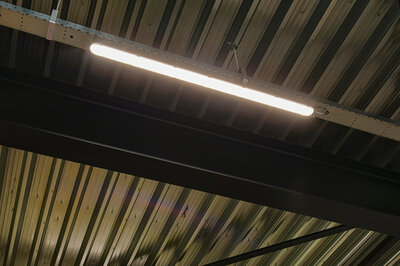

Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 70000 h
Lifespan L80/B10 at 25 °C 50000 h
Lifespan L90/B10 at 25 °C 34000 h
Number of switching cycles 100000

Control gear

Output current 360 mA

Certificates & Standards

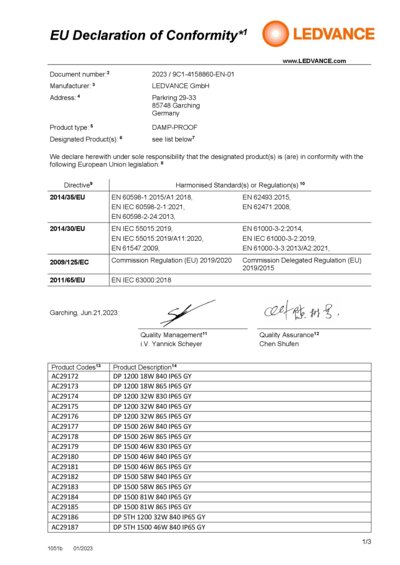

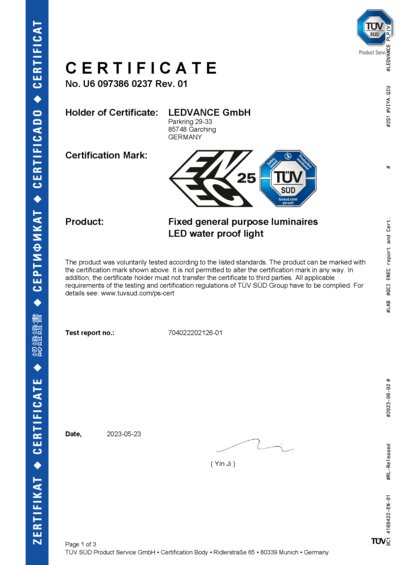

Standards CE, CB, ENEC, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

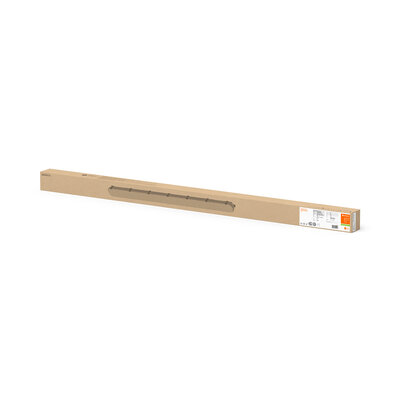

4058075541207 Folding box
1
1,512 mm x 87 mm x 74 mm 1725.00 g 9.73 dm³
4058075541214 Shipping box
6
1,532 mm x 191 mm x 245 mm 11581.00 g 71.69 dm³
EAN SEG number STK number EFO number ELDAS number
4058075541207 7216221 4315655 3304045 941001660
Product benefits
  • Low flicker ≤ 10 %
  • Evenly distributed light
  • Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
  • Easy installation, no tools required for connection
  • 5 years guarantee

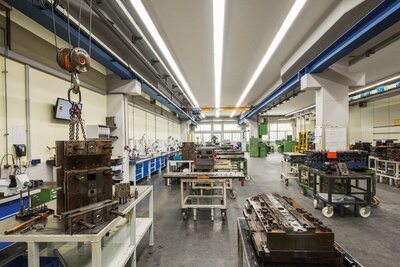

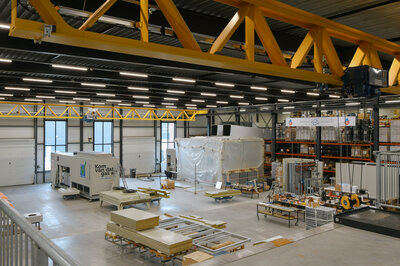

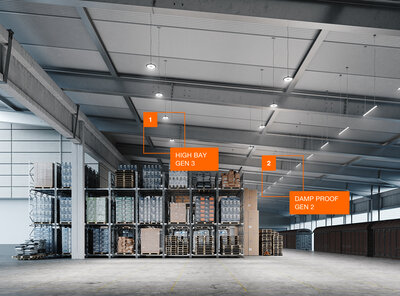

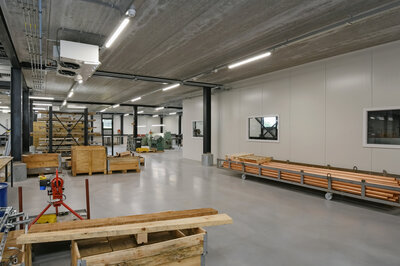

Areas of application

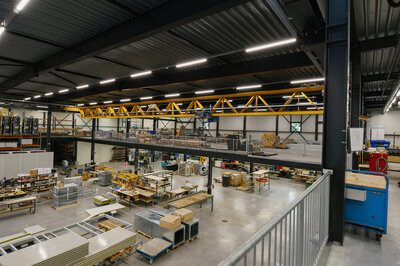

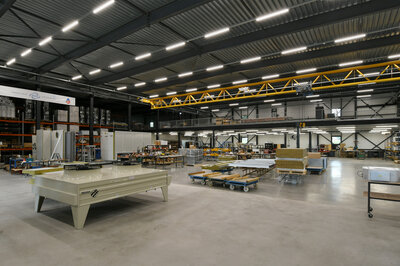

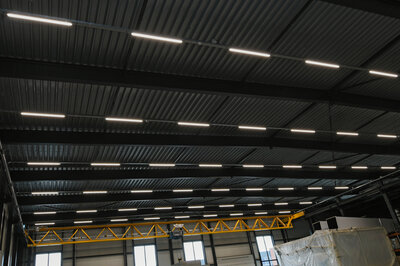

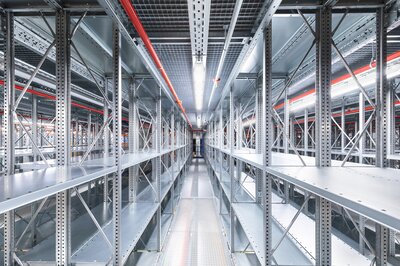

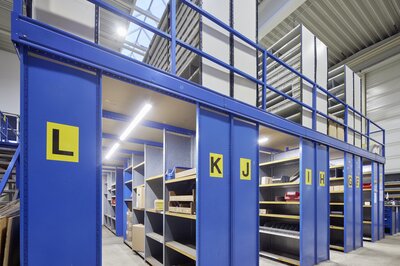

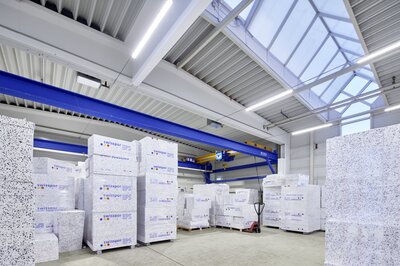

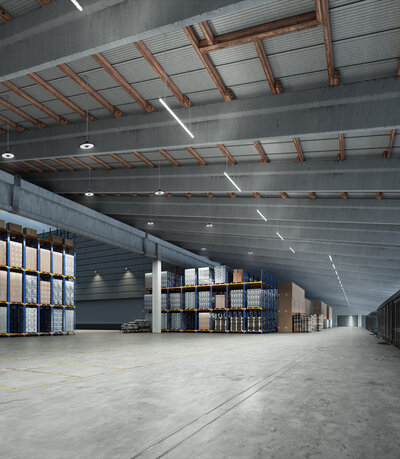

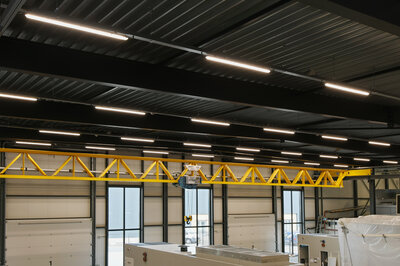

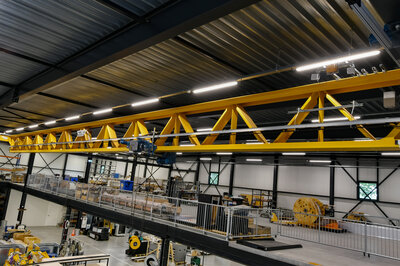

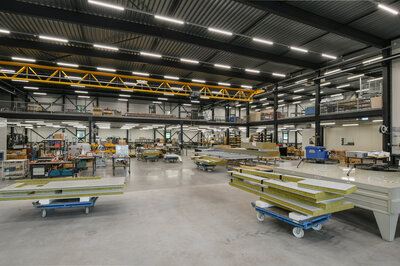

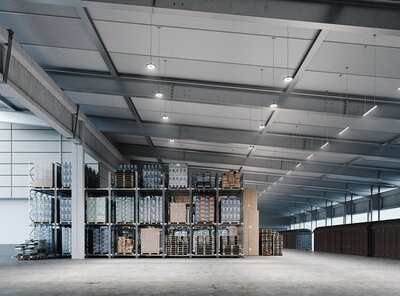

  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages

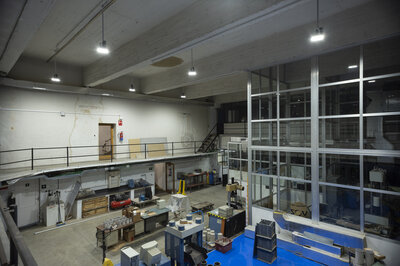

  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 139 lm/W
  • Beam angle: 110°
Equipment / Accessories

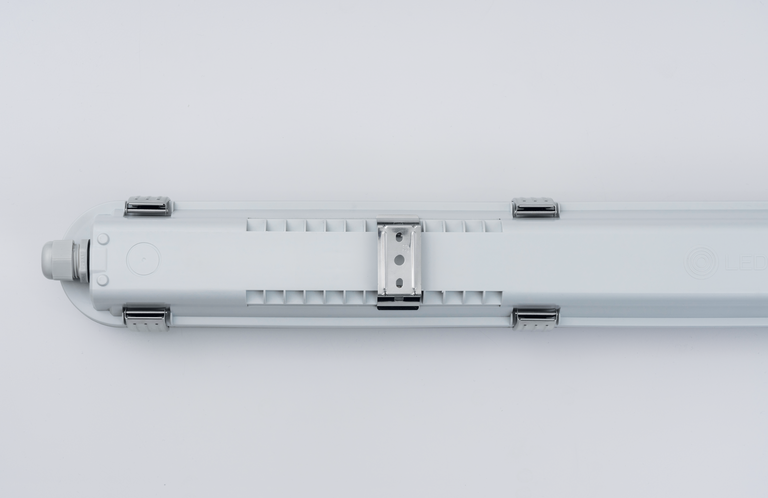

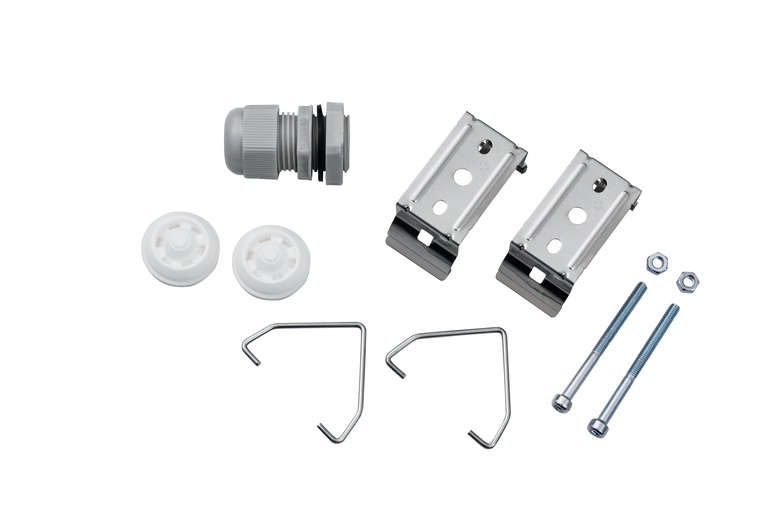

  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
  • For Guarantee see www.ledvance.com/guarantee
