Coming soon
MANUAL CONTROL UNIT SELECT DIRECT
MANUAL CONTROL UNIT SELECT DIRECT 100-240 TW RGB ZB
GTIN: 4099854476334
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Simple, intuitive operation
- Manual dimming, switching and saving of light settings
- Offers combined RGB and TW control
- Individual adjustment of the brightness level and color temperature
- Interchangeable front cover compatible with ABB, GIRA, JUNG, SCHNEIDER, BERKER, SIEMENS

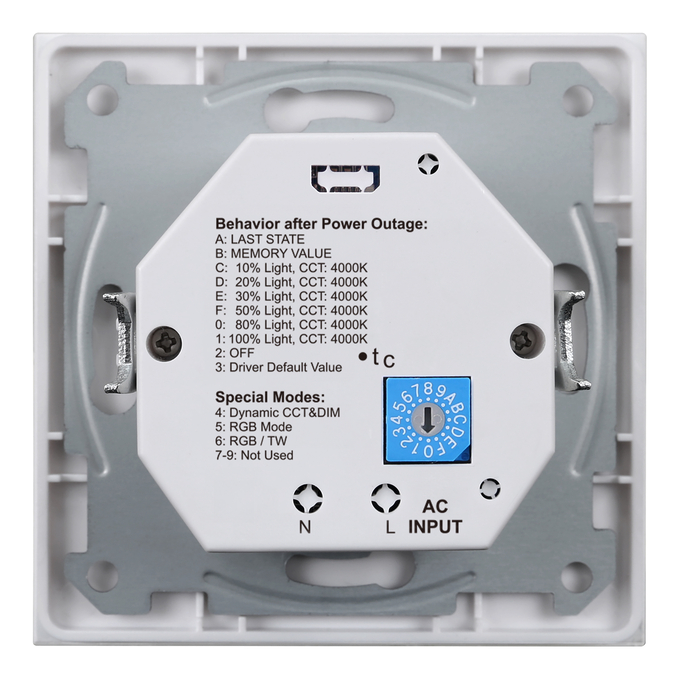

- Behavior after power interruption can be set
- Low maintenance through mains power operation
- Optional surface mount frame available
- Works without gateway in Direct Easy or with Vivares Zigbee
Areas of application
- Meeting and conference rooms
- Restaurants
- Shop lighting
- Private homes
Product features
- Zigbee 3.0 certified control device for installation in standard flush-mounted boxes
- Rotary knob for manual light control
- Tunable white, RGB, RGB plus TW control mode, adjustable via turn key
- Direct commissioning via bluetooth possible
- Compatible with Zigbee 3.0 hubs and controls
- Number of Zigbee lights up to 40
Equipment / Accessories
- SURFACE MOUNT FRAME for installation on walls without flush box
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see www.ledvance.com/light-management-systems
Electrical data
| Nominal wattage | 3.12 W |
| Nominal voltage | 100…240 V |
| Nominal current | 13 mA |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 80.00 mm |
| Width | 80.00 mm |
| Height | 53.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Wire preparation length, input side | 6…7 mm |
| Product weight | 122.00 g |
Colors & materials
| Product color | White |
| Body material | Polycarbonate (PC) |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
| Temperature range in operation | -25…+50 °C |
Lifespan
| Number of switching cycles | 50000 |
Additional product data
| Product remark | Available from September 2025 |
| Commissioning App | App (Android/ iOS) |
Capabilities
| Dimmable | No |
| Dimming interface | Zigbee 3.0 |
| Dimming range | 1…100 % |
| Type of installation | Integrated in flush device box |
Certificates & Standards
| Standards | CE, ROHS, REACH |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854476334 | Folding box 1 |
110 mm x 100 mm x 60 mm | 162.00 g | 0.66 dm³ |
| 4099854476341 | Shipping box 30 |
320 mm x 320 mm x 250 mm | 5460.00 g | 25.60 dm³ |
User instruction / safety instructions
MCU SELECT DIRECT
MCU SELECT DIRECT
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert MCU SELECT DIRECT AND SENSOR DIRECT
Safety Insert MCU SELECT DIRECT AND SENSOR DIRECT
Legal information
App Download guide
App Download guide
Declarations of conformity
MCU SELECT DIRECT 100-240 TW RGB ZB
MCU SELECT DIRECT 100-240 TW RGB ZB

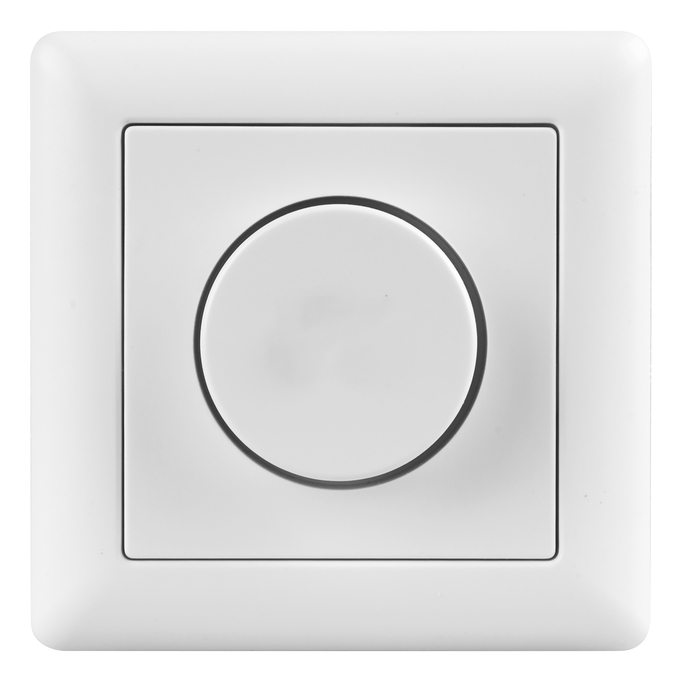

Product image: white background, upright
MCU SELECT DIRECT TW RGB
MCU SELECT DIRECT TW RGB

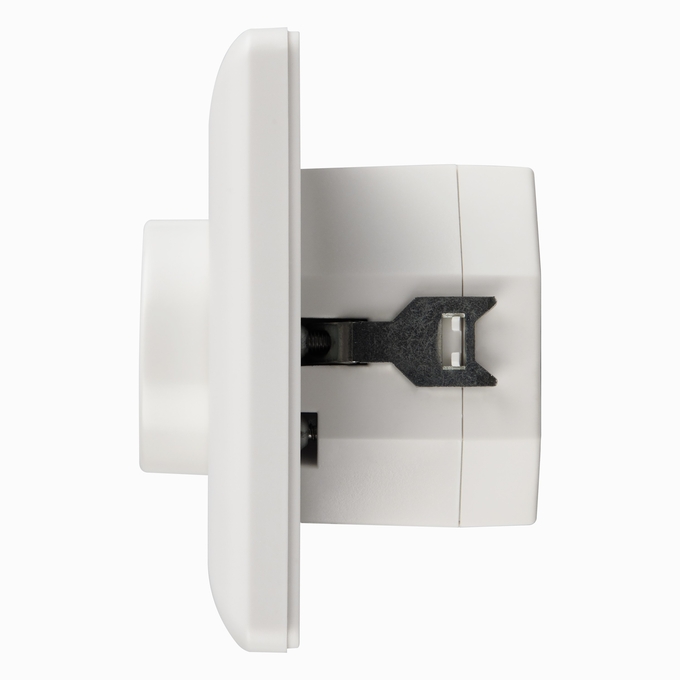

Product image: white background, spacial
MCU SELECT DIRECT TW RGB
MCU SELECT DIRECT TW RGB
Product line drawing with letters
MCU SELECT DALI-2 EXC TW
MCU SELECT DALI-2 EXC TW
Product line drawing with numbers
MCU SELECT DALI-2 EXC TW
MCU SELECT DALI-2 EXC TW
Product line drawing - technical
MCU SELECT DALI-2 EXC TW
MCU SELECT DALI-2 EXC TW

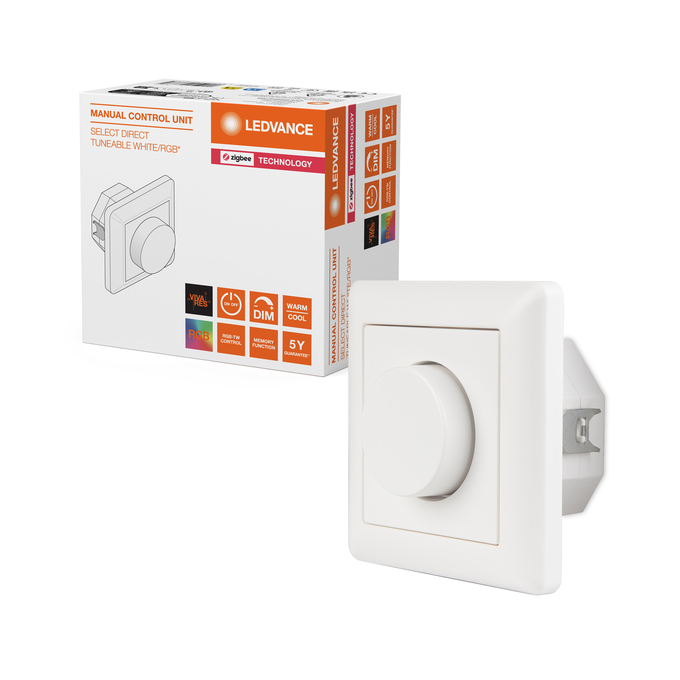

Combo Shot = Product Beauty Shot + Packaging Image
