LED SPOT SURFACE
Spot Surface Round GU10 Black
GTIN: 4058075758629
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Elegant design
- Adjustable heads
Areas of application
- Corridors
- Entrance areas
- Living rooms
- Bedrooms
- Kitchens
- Offices
Product features
- Suitable for lamps with GU10 base
- Housing material: metal
- Surface spot
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Flickering metric (Pst LM) | - |
Dimensions & Weight
| Diameter | 80.00 mm |
| Height | 95.00 mm |
| Product weight | 235.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | No |
| Holder designation | GU10 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075758629 | Folding box 1 |
85 mm x 85 mm x 100 mm | 335.00 g | 0.72 dm³ |
| 4058075758636 | Shipping box 12 |
275 mm x 180 mm x 225 mm | 5020.00 g | 11.14 dm³ |
User instruction / safety instructions
UI SPOT SURFACE GU10
UI SPOT SURFACE GU10
Declarations of conformity
SPOT SURFACE GU10
SPOT SURFACE GU10

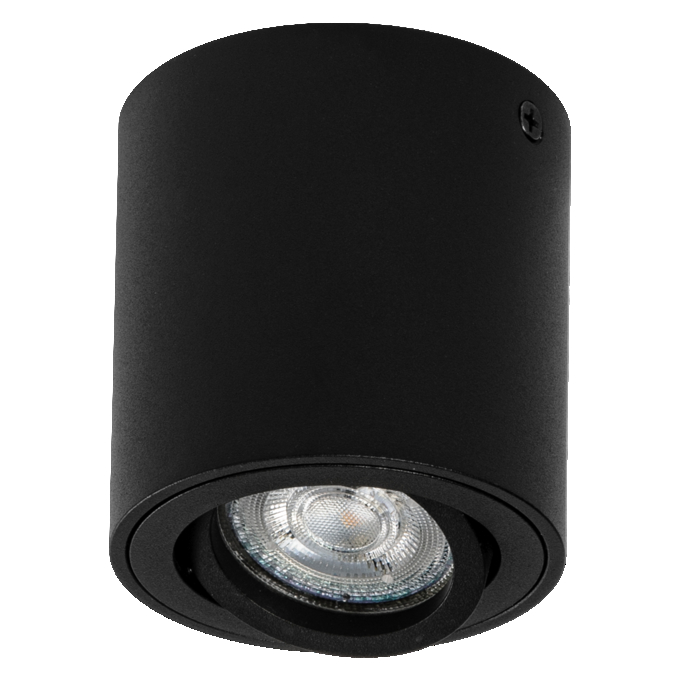

Product image: white background, upright
SPOT SURFACE ROUND BK GU10
SPOT SURFACE ROUND BK GU10

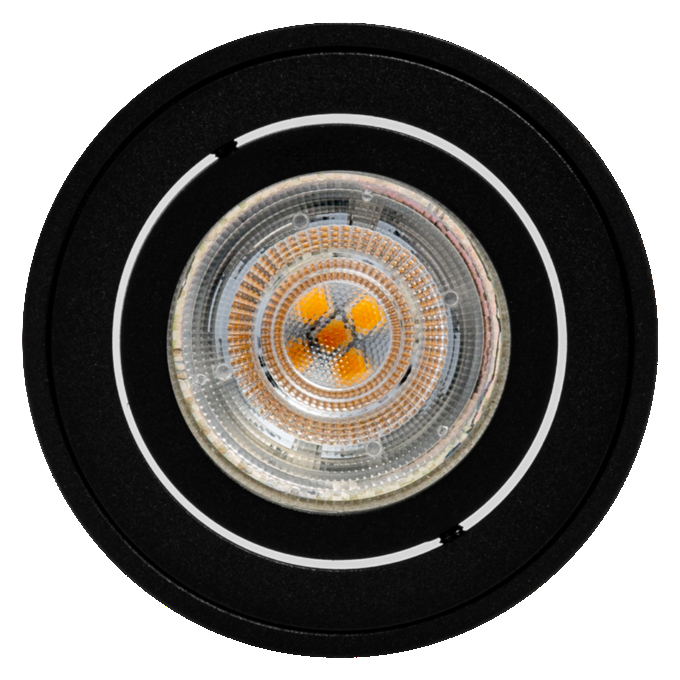

Product image: white background, upright, alternative image
SPOT SURFACE ROUND BK GU10
SPOT SURFACE ROUND BK GU10

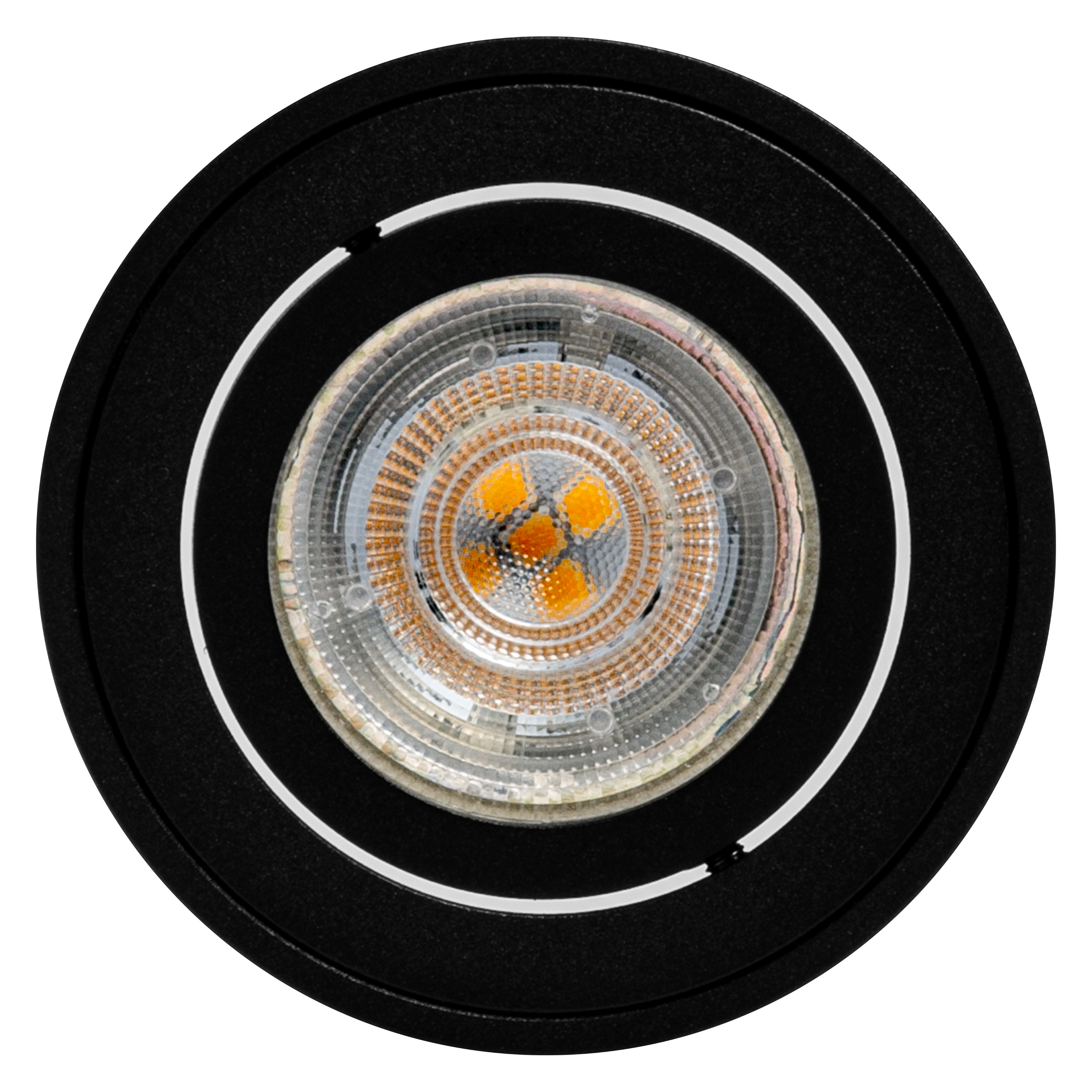

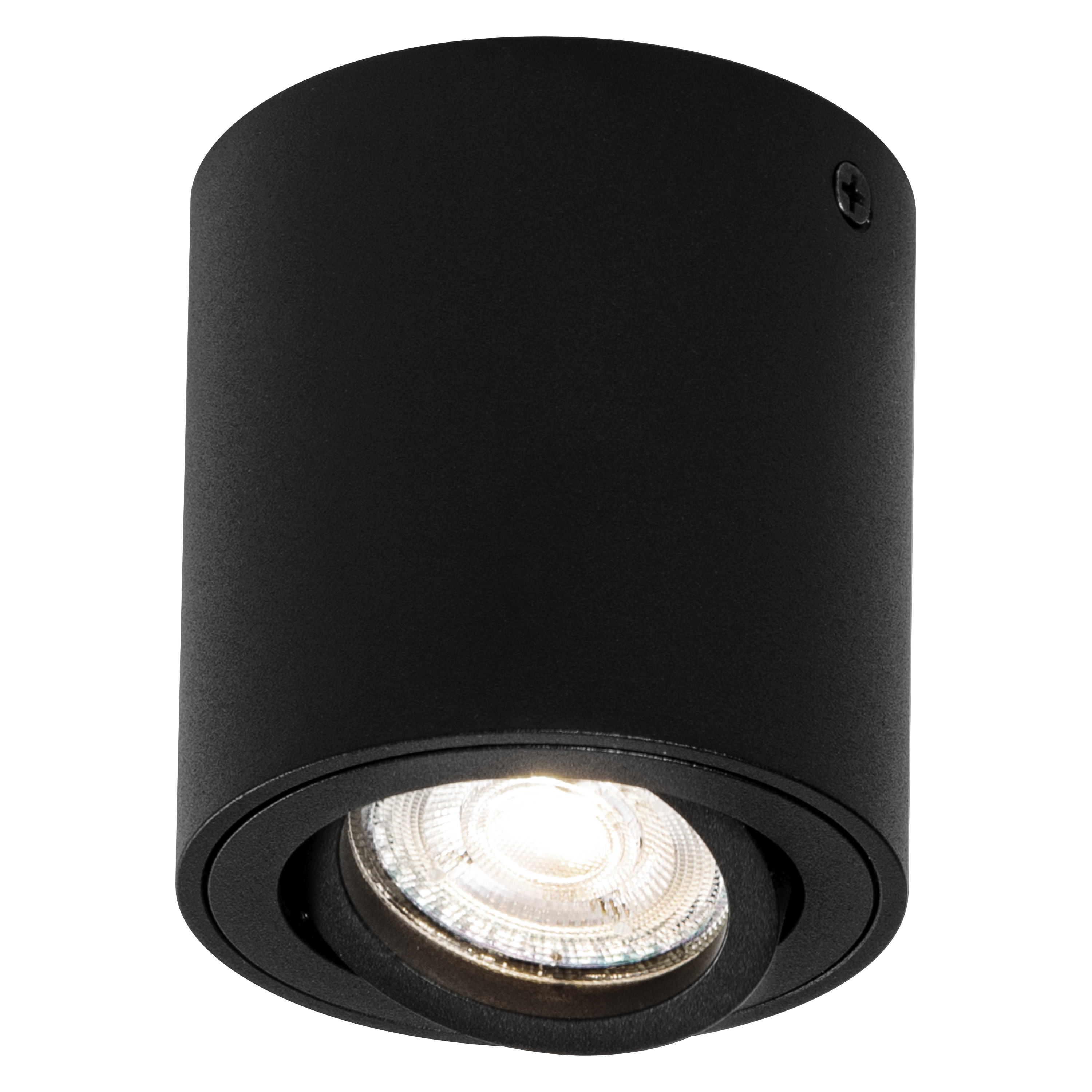

Product image: white background, upright, switched on
SPOT SURFACE ROUND BK GU10
SPOT SURFACE ROUND BK GU10

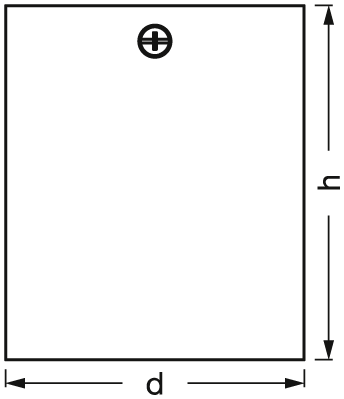

Product line drawing with letters
Spot surface
Spot surface

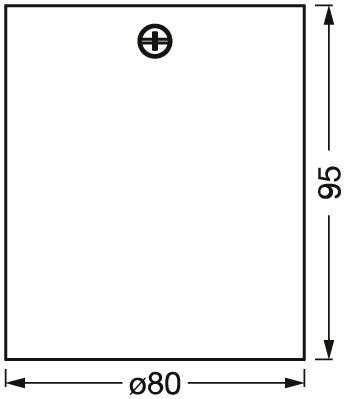

Product line drawing with numbers
Spot surface
Spot surface

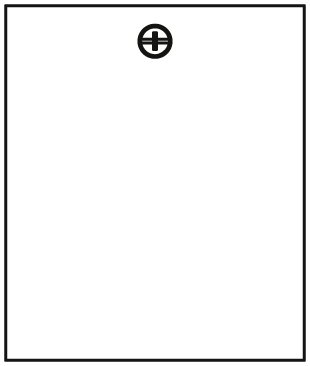

Product line drawing, front, no dimensions
Spot surface
Spot surface

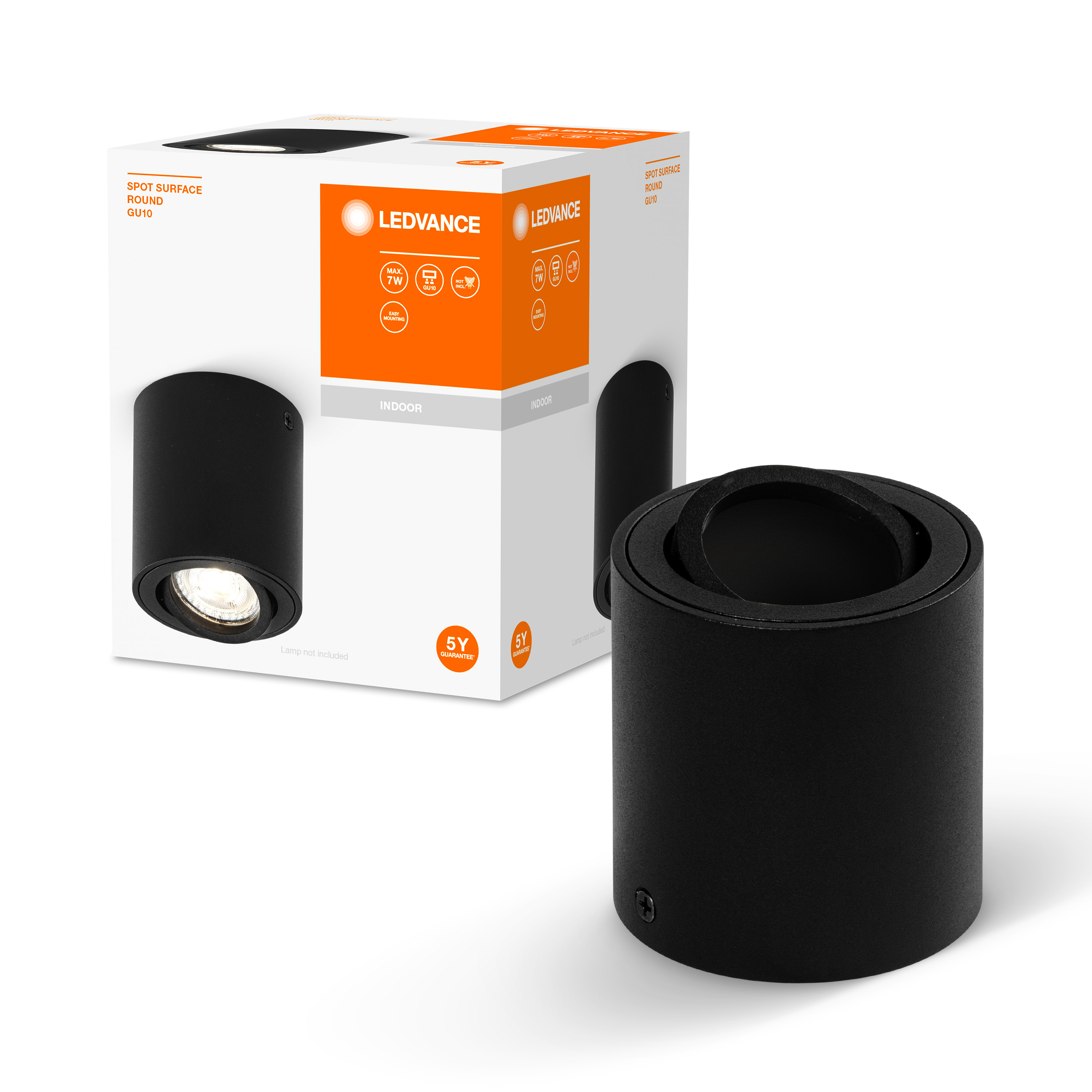

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SPOT SF ROUND BK GU10 MiPRC
LUM FC SPOT SF ROUND BK GU10 MiPRC
Packaging image, frontal
LUM FC SPOT SF ROUND BK GU10 MiPRC
LUM FC SPOT SF ROUND BK GU10 MiPRC
Packaging image, spacial
LUM FC SPOT SF ROUND BK GU10 MiPRC
LUM FC SPOT SF ROUND BK GU10 MiPRC
Application pictures Getty
SPOT SURFACE ROUND BK
SPOT SURFACE ROUND BK
Application pictures Getty
Wall and ceiling luminaires classic design
Wall and ceiling luminaires classic design
| EAN | ELDAS number |
|---|---|
| 4058075758629 | 941320840 |
