SURFACE SQUARE 330
SF SQUARE 330 V 24W 830 IP44
GTIN: 4099854041952
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Indoor luminaire with high luminous efficacy
- Energy savings of up to 55 % compared to luminaires that use CFL
- Easy and quick installation
- Very homogenous light
- 3 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
- Impact resistance: IK03
- Metal housing, PMMA cover
- Ambient temperature in operation: -20…+40 °C
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- Replacement cover optionally available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 115.000 mA |
| Inrush current | 7.2 A |
| Inrush current time Th50 | 5.9 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 104 |
| Max. number of luminaires per miniature circuit breaker C10 | 66 |
| Max. number of luminaires per miniature circuit breaker C16 | 106 |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 60 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 2000 lm |
| Luminous efficacy | 83 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 330.00 mm |
| Height | 75.00 mm |
| Width | 330.00 mm |
| Product weight | 655.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-pin |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 35000 h 1) |
| Lifespan L80/B10 at 25 °C | 33000 h 1) |
| Lifespan L90/B10 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 300 mA |
| ECG - Output ripple current | < 5 % |
Certificates & Standards
| Standards | CE, CB, TÜV, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854041952 | Folding box 1 |
87 mm x 367 mm x 369 mm | 916.00 g | 11.78 dm³ |
| 4099854041969 | Shipping box 5 |
457 mm x 387 mm x 404 mm | 5771.00 g | 71.45 dm³ |
User instruction / safety instructions
UI SF SQUARE 330 V and SF SQUARE 330 SEN V
UI SF SQUARE 330 V and SF SQUARE 330 SEN V
Legal information
LSI SF SQUARE 330 V 24W
LSI SF SQUARE 330 V 24W
Legal information
Legal insert
Legal insert
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
SF SQUARE 330 V 24W 830 IP44
SF SQUARE 330 V 24W 830 IP44
Product image: white background, diagonal
SF SQUARE
SF SQUARE
Product image: white background, horizontal
SF SQUARE
SF SQUARE
Product image: white background, upright
SF SQUARE
SF SQUARE
Product line drawing with letters
SF SQUARE
SF SQUARE
Product line drawing with numbers
SF SQUARE
SF SQUARE
Product line drawing, front, no dimensions
SF SQUARE
SF SQUARE

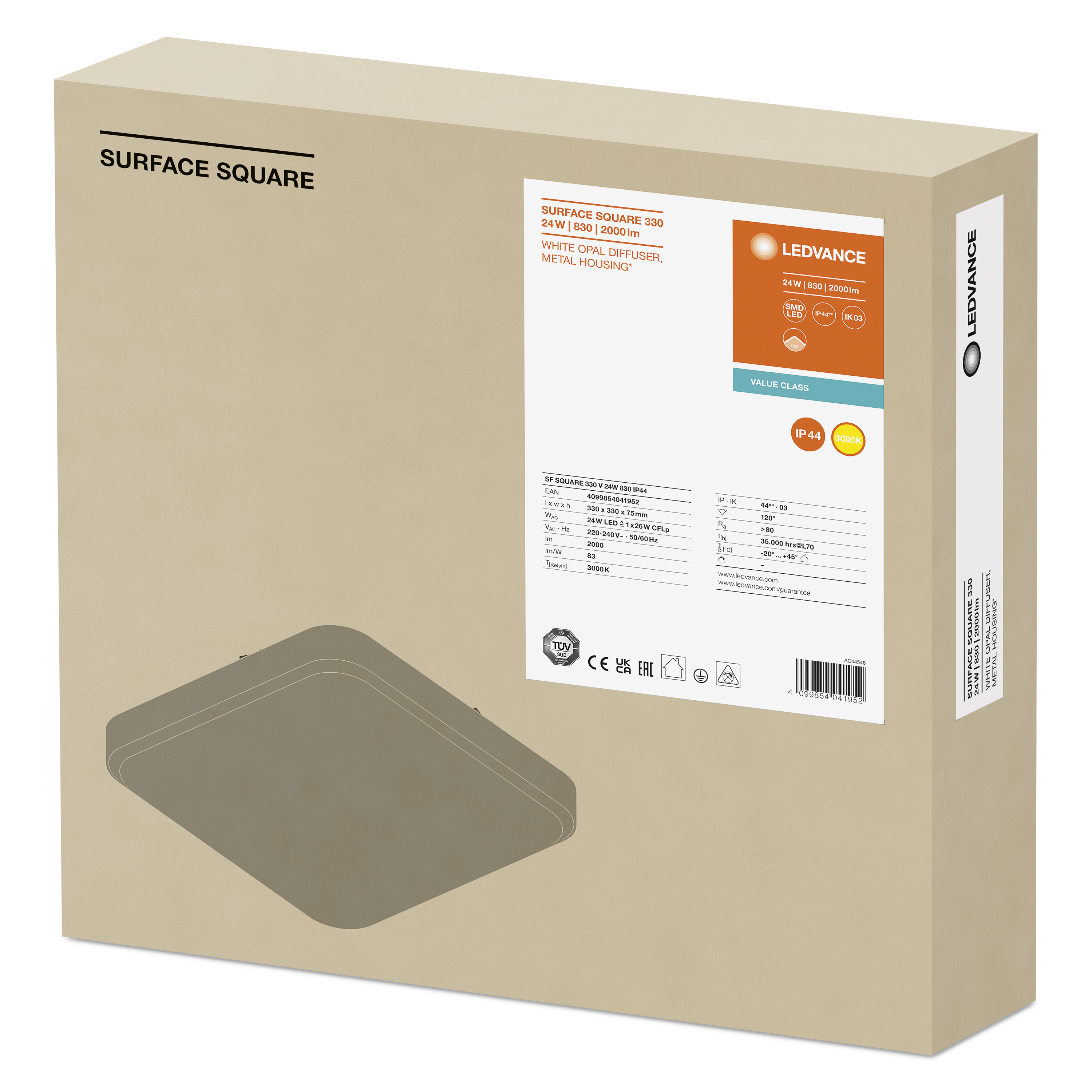

Packaging image, spacial
