TRACKLIGHT SPOT REFLECTOR

TRACK SP REFLECTOR D75 SP

GTIN: 4058075113800 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • Clear cover protects the reflector against dust and contact
  • High optical efficacy
Product features
  • Accessory reflectors available in different beam angles
Photometrical data
Beam angle 15 °
Dimensions & Weight
Diameter 63,0 mm
Height 53.0 mm
Product weight 24.00 g
Materials & Colors
Product color Silver
Body material Polycarbonate (PC)
Certificates & Standards
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075113800 Folding box
1		 70 mm x 70 mm x 60 mm 54.00 g 0.29 dm³
4058075113817 Shipping box
4		 157 mm x 87 mm x 145 mm 421.00 g 1.98 dm³
User instruction / safety instructions
UI Tracklight Spot
PDF (2.78 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
Attestation-of-Conform ity Track SP TÜV
PDF (3.51 MB)
Declarations of conformity
Attestation-of-Conform ity Track SP LEDV
PDF (736.89 KB)

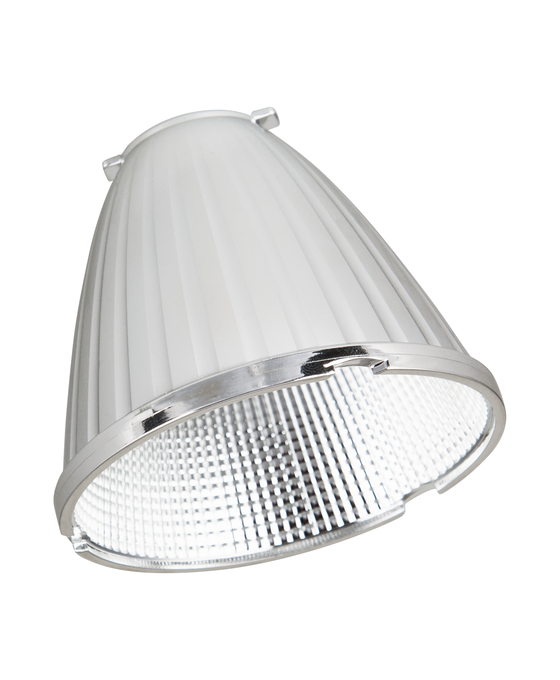

Product image: white background, diagonal
TRACK SP REFLECTOR D75 FL
TIF (15.5 MB)

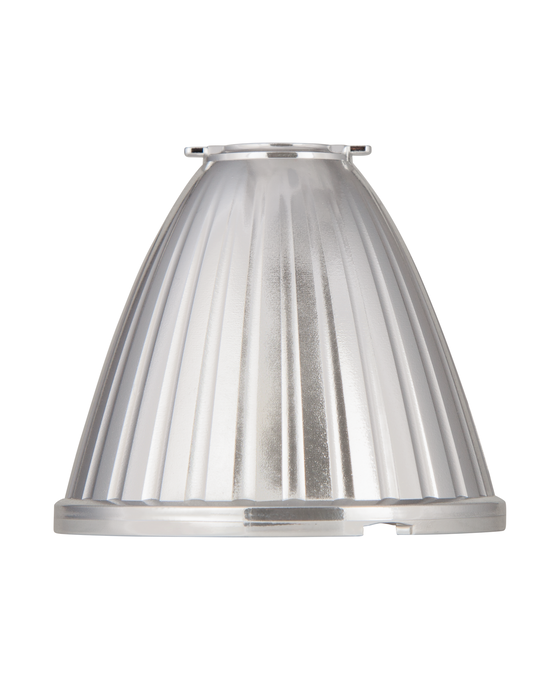

Product image: white background, upright
TRACK SP REFLECTOR D75 FL
TIF (13.82 MB)
Product line drawing with letters
TRACK SP REFLECTOR D75 FL
SVG (11.11 KB)
Product line drawing with numbers
TRACK SP REFLECTOR D75 FL
SVG (15.51 KB)
Product line drawing - technical
TRACK SP REFLECTOR D75 FL
SVG (9.06 KB)
Packaging image, spacial
Tracklight Spot Reflector D75 SP 15DEG MiCh Side
TIF (6.94 MB)
Tender documents
TRACKLIGHT SPOT REFLECTOR D75 SP-EN
TXT (389 B)
EAN SEG number STK number EFO number ELDAS number
4058075113800 7402101 4231934 3203388 941900480
