LN INV DI 1200 P 54W 940 DAVR WT

LINEAR INDIVILED DIRECT/INDIRECT 1200 DALI

GTIN: 4099854135576 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Easy upgradeability of light source and driver (EVERLOOP design)
Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
High performance with CRI90 and up to 137 lm/W
IoT-ready luminaire with DALI-2 driver, suitable for VIVARES and other Light Management Systems
Extended services such as energy monitoring and remote maintenance possible with DALI versions
High color consistency with SDCM 3
Easy installation
Low flicker light thanks to special electronic control gear
Suitable for battery emergency installations acc. to EN 60598-2-22
Multiple mounting options thanks to different accessories

Areas of application

Direct replacement for luminaires with fluorescent lamps
Offices, education, public buildings
Single and continuous line configuration
Direct and indirect lighting

Product features

Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
Includes EVERLOOP: Convenient replacement of light source and LED driver
Linkable into seamless light line with accessories (surface or pendant mounting)
Pendant mounting with suspension kit (to be ordered separetely)
Glow Wire Test according to IEC 60695-2-12: 850 °C
5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Lifetime (L80/B10): 70,000 h (at 25 °C)
Multi lumen function: programmable DALI-2 driver

Equipment / Accessories

Suspension kit available for pendant luminaire version (to be ordered separately)
Inline, corner and infill connectors available as separate accessory
Through-wiring cable kit available

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	54 W / 48 W / 43 W / 34 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	233…205…195…160 mA
Inrush current	25.2 A
Inrush current time T_h50	40 µs
Max. number of luminaires per miniature circuit breaker B16	29
Max. number of luminaires per miniature circuit breaker C10	23
Max. number of luminaires per miniature circuit breaker C16	38
Power factor λ	> 0.90
Total harmonic distortion	≤ 20 %
Protection class	I
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	6950 lm / 6050 lm / 5600 lm / 4650 lm
Luminous efficacy	129 lm/W / 126 lm/W / 132 lm/W / 137 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	≥90
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG0
Beam angle	90 ° + 130 °
UGR	< 19

Adjustable attributes

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
54 W	4000 K	6950 lm	129 lm/W
48 W	4000 K	6050 lm	126 lm/W
43 W	4000 K	5600 lm	132 lm/W
34 W	4000 K	4650 lm	137 lm/W

Dimensions & Weight

Length	1210.00 mm
Height	43.00 mm
Width	125.00 mm
Product weight	3540.00 g

Materials & Colors

Product color	White
Housing color	White
RAL Color (most similar)	RAL 9003
Body material	Aluminum
Cover material	Polymethylmethacrylate (PMMA)
Light emitting surface material	Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP20
Protection class IK (shock resistance)	IK06
Dimmable	Yes
Type of dimming	DALI2
IoT ready	Support of DALI data type PART 251, 252, 253 ¹⁾
Mounting type	Suspended
Mounting location	Ceiling
Application environment	Indoor
Adjustable	No
With light source	Yes
Replaceable light source	Yes

¹⁾ Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	70000 h ¹⁾
Lifespan L90/B10 at 25 °C	35000 h
Number of switching cycles	25000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	1100mA / 950mA / 850mA / 700 mA
ECG - Output ripple current	≤ 5 %
Recommended control gear	OSRAM type OTI DALI 50/220-240/1A4 NFC L

Certificates & Standards

Standards	CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
EPD	LEDV-00026-V01.01-EN
Replaceable light source (EPREL)	By the end consumer

Additional product data

Number of illuminants	2
Added function	EVERLOOP, VIVARES, Programmable Multi Lumen

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854135576	Folding box 1	178 mm x 1,263 mm x 103 mm	4140.00 g	23.16 dm³
4099854135583	Shipping box 2	1,277 mm x 187 mm x 189 mm	9680.00 g	45.13 dm³

Product image	Product name	EAN
	LN INV SUSPENSION KIT WT	4099854215537
	LN INV SUSPENSION WIRE	4099854323980

Product image	Product name	EAN
	LN INV 1200 THROUGHWIRING KIT	4099854214820
	LN INV INLINE CONNECTOR	4099854215612
	LN INV CORNER CONNECTOR WT	4099854308093
	LN INV INFILL 600 WT	4099854214882
	LN INV INFILL 1200 WT	4099854214868
	LN INV INFILL 1500 WT	4099854214844

Product name	Product brand	Product component type	GTIN
LISOEV 1074x29 50 40W 940 S90U19 GY	LEDVANCE	LIGHT SOURCE direct	4099854284809
LISOEV 1200x31 23 18W 940 S130	LEDVANCE	LIGHT SOURCE indirect	4099854284960
OTi DALI 50/220...240/1A4 NFC L	OSRAM	driver direct	4062172074988

User instruction / safety instructions
LN INV D PS

PDF (4.66 MB)

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Legal information
Safety Insert G11205497

PDF (178.17 KB)

Legal information
Legal Insert G11235610

PDF (865.83 KB)

Legal information
LN INV D DI

PDF (2.31 MB)

Declarations of conformity
LN INV

PDF (271.88 KB)

EPD
EPD EN LINEAR INDIVILED DIRECT INDIRECT

PDF (643.54 KB)

EU Data Act
DALI LED Driver and Luminaires

PDF (469.42 KB)

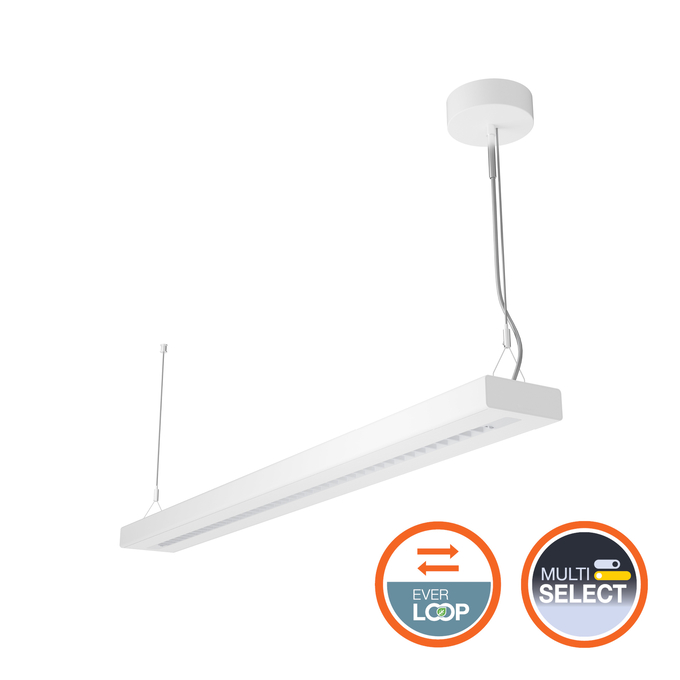

Product image: white background, diagonal
LN INV DI 1200 P

JPG (799.11 KB)

Product image: white background, diagonal, alternative image
LN INV DI 1200 P

JPG (750.3 KB)

Product image: white background, horizontal
LN INV DI 1200 P

JPG (621.08 KB)

Product image: white background, upright
LN INV DI 1200 P

JPG (1.06 MB)

Product image: white background, upright, alternative image
LN INV DI 1200 P

JPG (781.88 KB)

Product image: white background, spacial
LN INV DI 1200 P

JPG (830.12 KB)

Product line drawing with letters
LN INV 1200 P

SVG (76.41 KB)

Product line drawing with numbers
LN INV 1200 P

SVG (82.97 KB)

Product line drawing, front, no dimensions
LN INV 1200 P

SVG (72.8 KB)

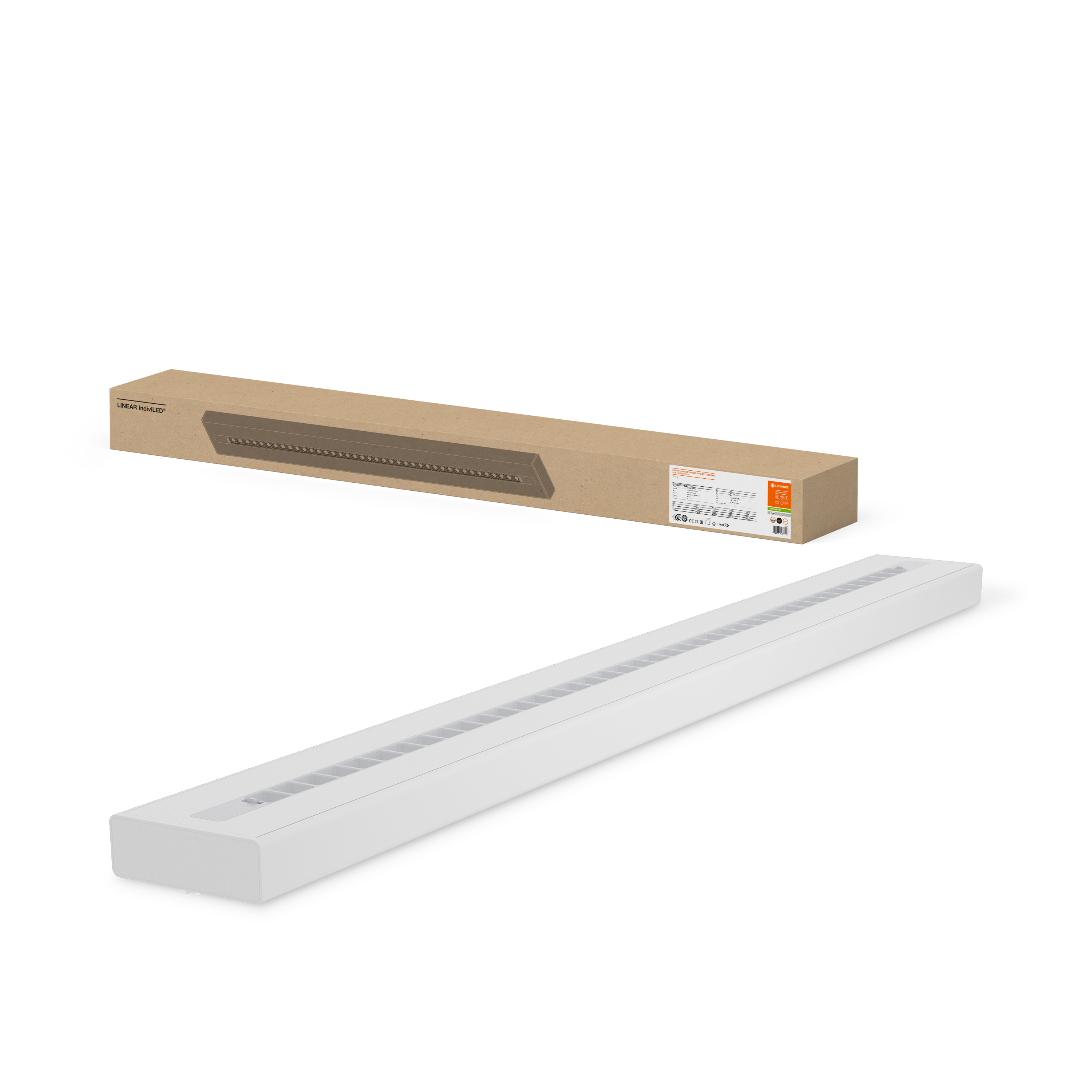

Combo Shot = Product Beauty Shot + Packaging Image
LINEAR IndiviLED DIRECT INDIRECT 1200 DALI 4000K

JPG (808.05 KB)

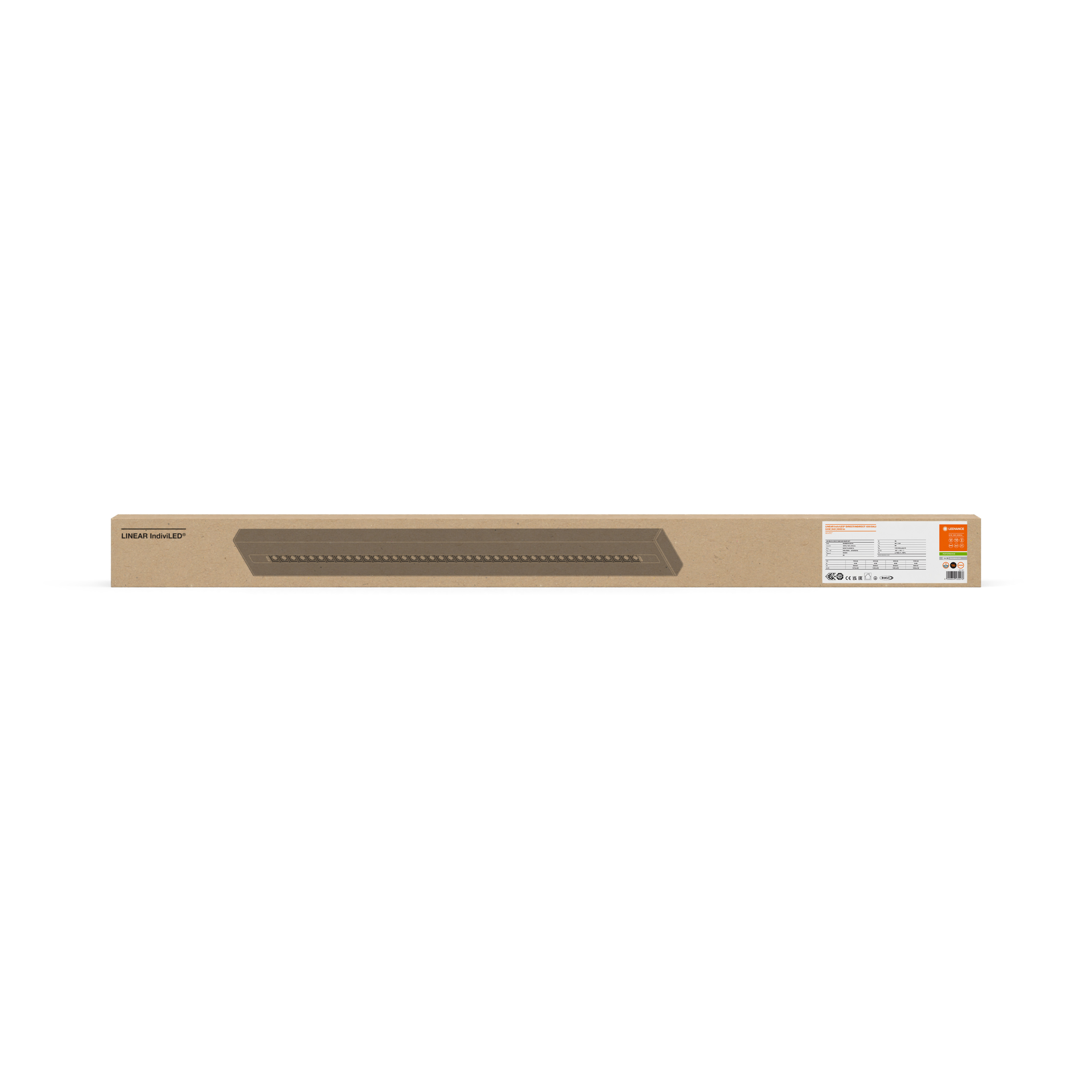

Packaging image, frontal
LINEAR IndiviLED DIRECT INDIRECT 1200 DALI 4000K

JPG (691.76 KB)

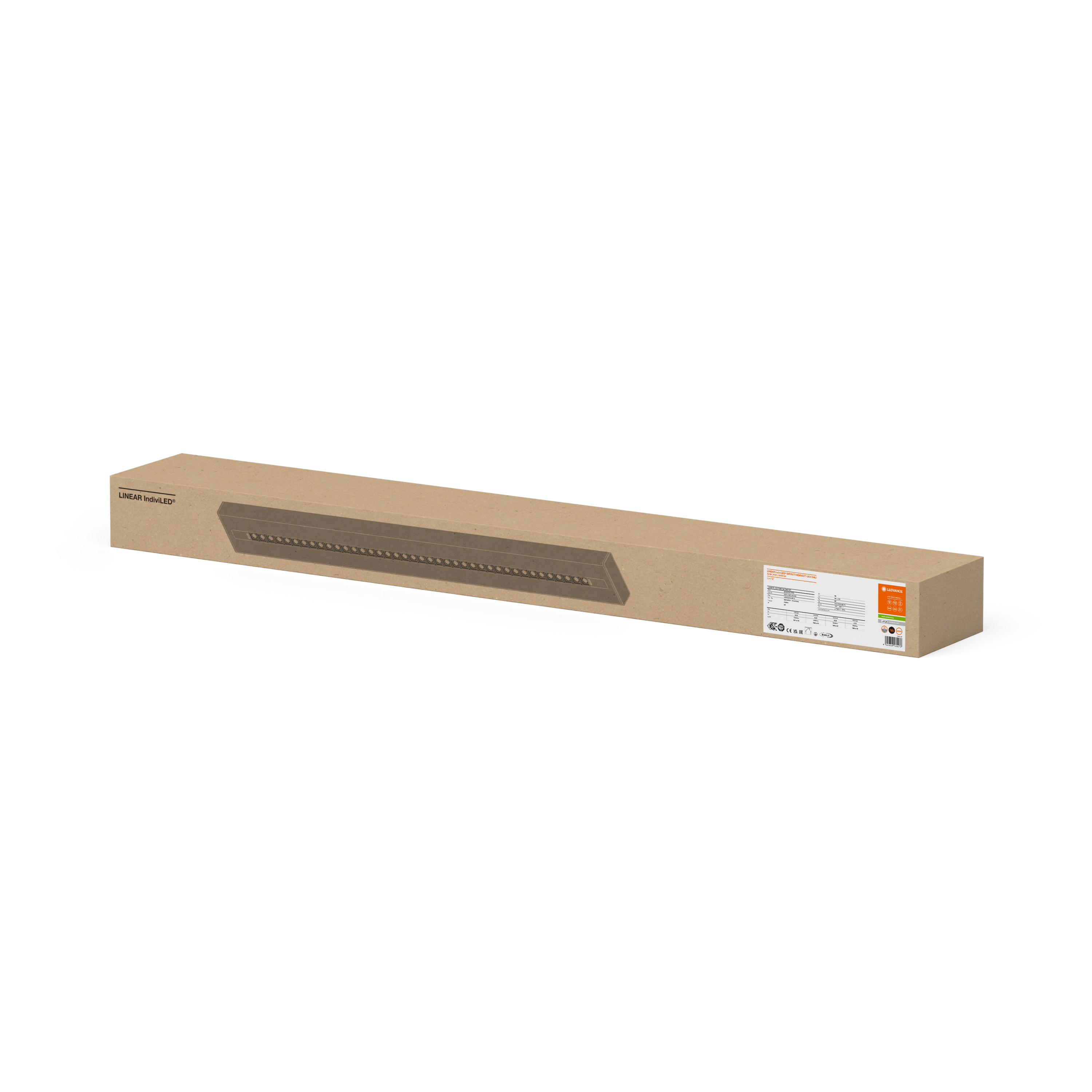

Packaging image, spacial
