NEW
LINEAR INDIVILED LIGHT SOURCES DIRECT
LISOEV 1074x29 50 40W 940 S90U19 GY
GTIN: 4099854284809
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Easy installation, no tools required for connection
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- High performance with CRI90
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
Product features
- Symmetric light distribution
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Beam angle: 90°
Safety advice
- All electrical connections must be made by a qualified person.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 40.00 W |
| Nominal voltage | 45 V |
| Nominal current | 800.000 mA |
Photometrical data
| Luminous flux | 5050 lm |
| Luminous efficacy | 126 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥90 |
| Standard deviation of color matching | 3 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 90 ° |
| UGR | 19 |
Dimensions & Weight
| Length | 1074.00 mm |
| Height | 19.00 mm |
| Width | 29.00 mm |
| Product weight | 363.00 g |
| Cable length | 100.000 |
Materials & Colors
| Product color | Grey |
| Housing color | Grey |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Push-in clamp |
| Type of protection | IP20 |
| Dimmable | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h |
| Lifespan L80/B10 at 25 °C | 70000 h |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 25000 |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC |
Additional product data
| Product remark | Available from September 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854284809 | Folding box 1 |
36 mm x 1,082 mm x 26 mm | 449.00 g | 1.01 dm³ |
| 4099854284816 | Shipping box 10 |
1,094 mm x 184 mm x 65 mm | 5044.00 g | 13.08 dm³ |
| 4099854284823 | Shipping box 20 |
1,114 mm x 204 mm x 158 mm | 11196.00 g | 35.91 dm³ |
User instruction / safety instructions
User instruction G11244437
User instruction G11244437
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Legal Insert G11244392
Legal Insert G11244392
Legal information
LSI insert G11244301
LSI insert G11244301
Declarations of conformity
LN INV
LN INV

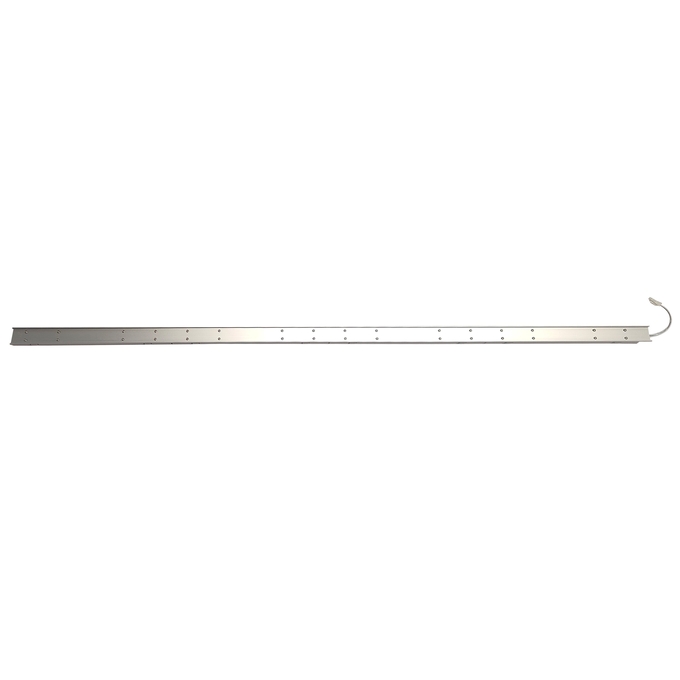

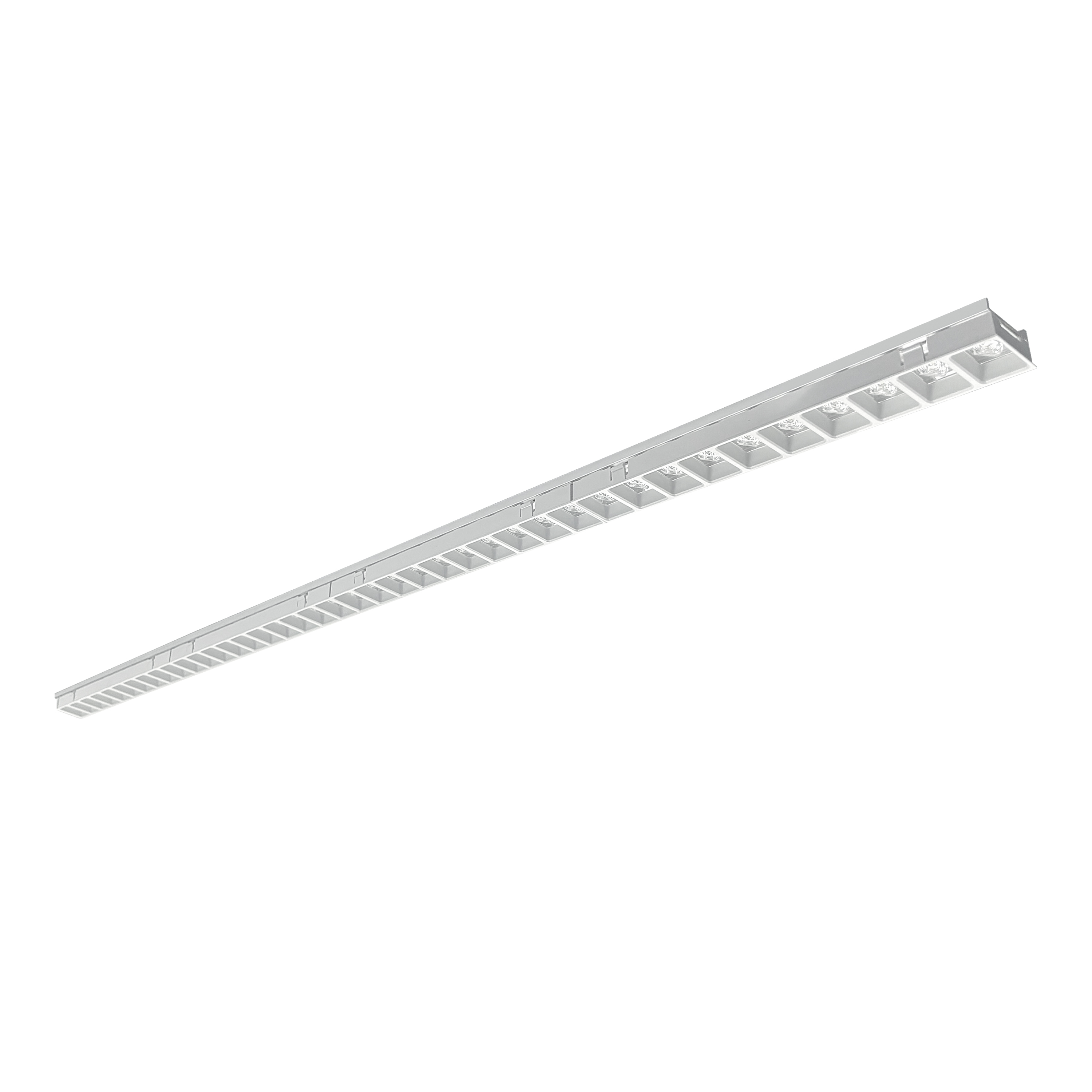

Product image: white background, diagonal
1 2m DIRECT LED MODULE
1 2m DIRECT LED MODULE

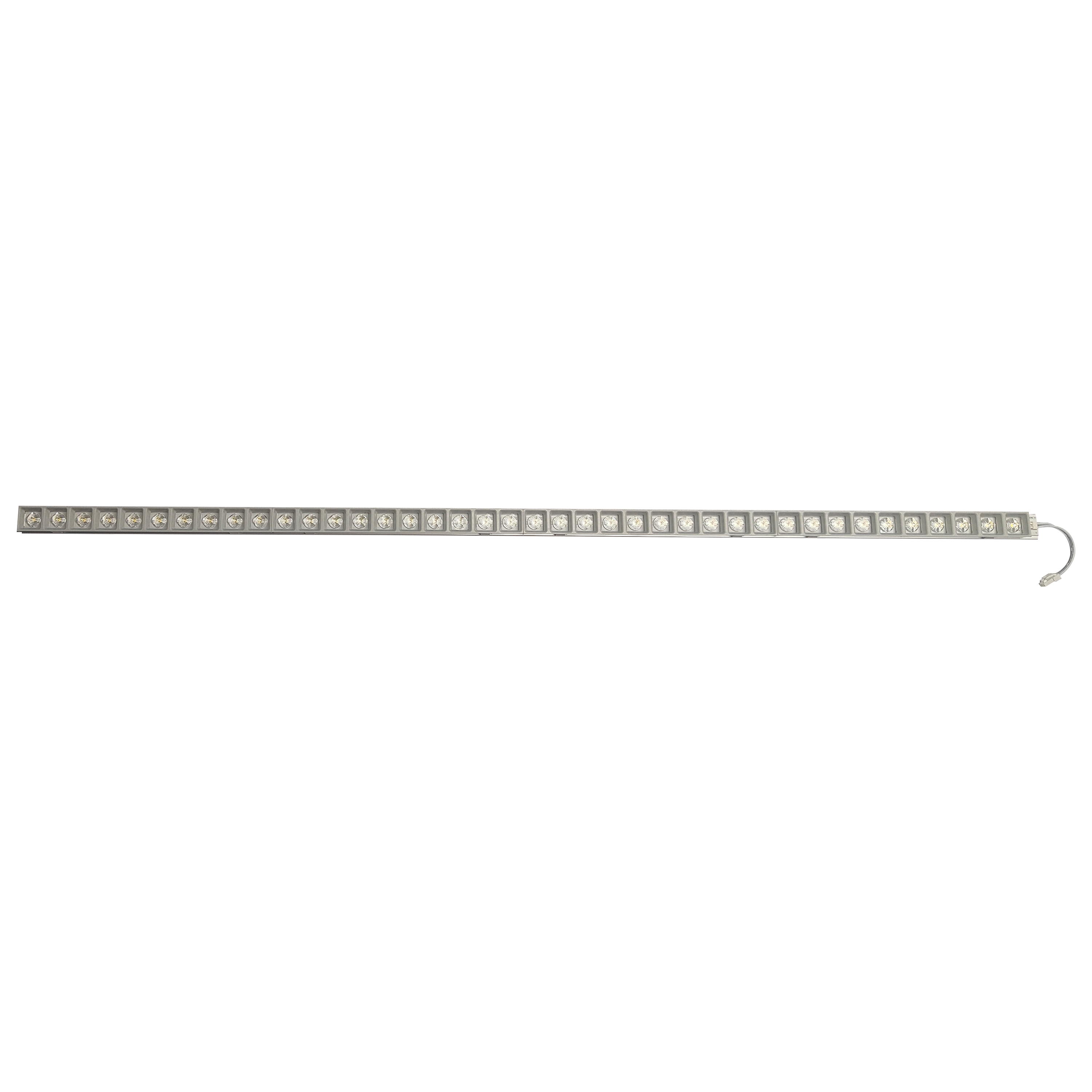

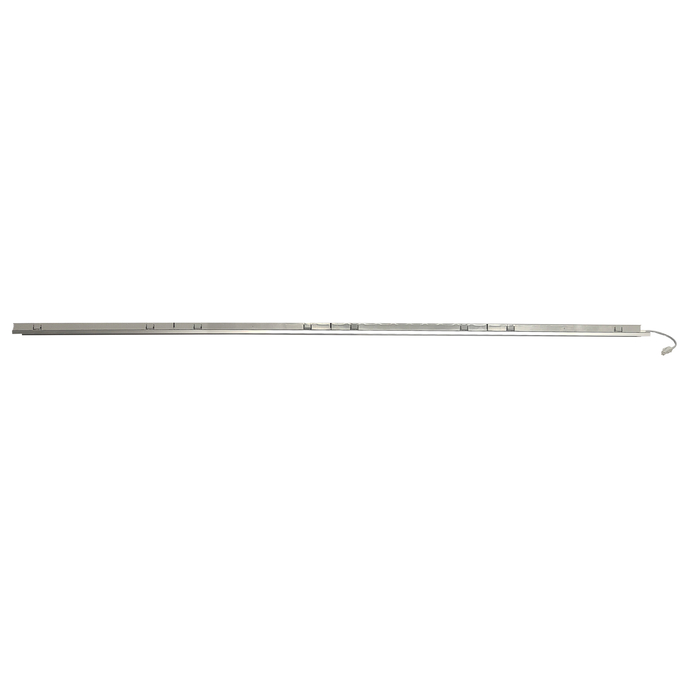

Product image: white background, horizontal
1 2m DIRECT LED MODULE
1 2m DIRECT LED MODULE
Product line drawing with letters
1 2m DIRECT LED MODULE
1 2m DIRECT LED MODULE
Product line drawing with numbers
1 2m DIRECT LED MODULE
1 2m DIRECT LED MODULE

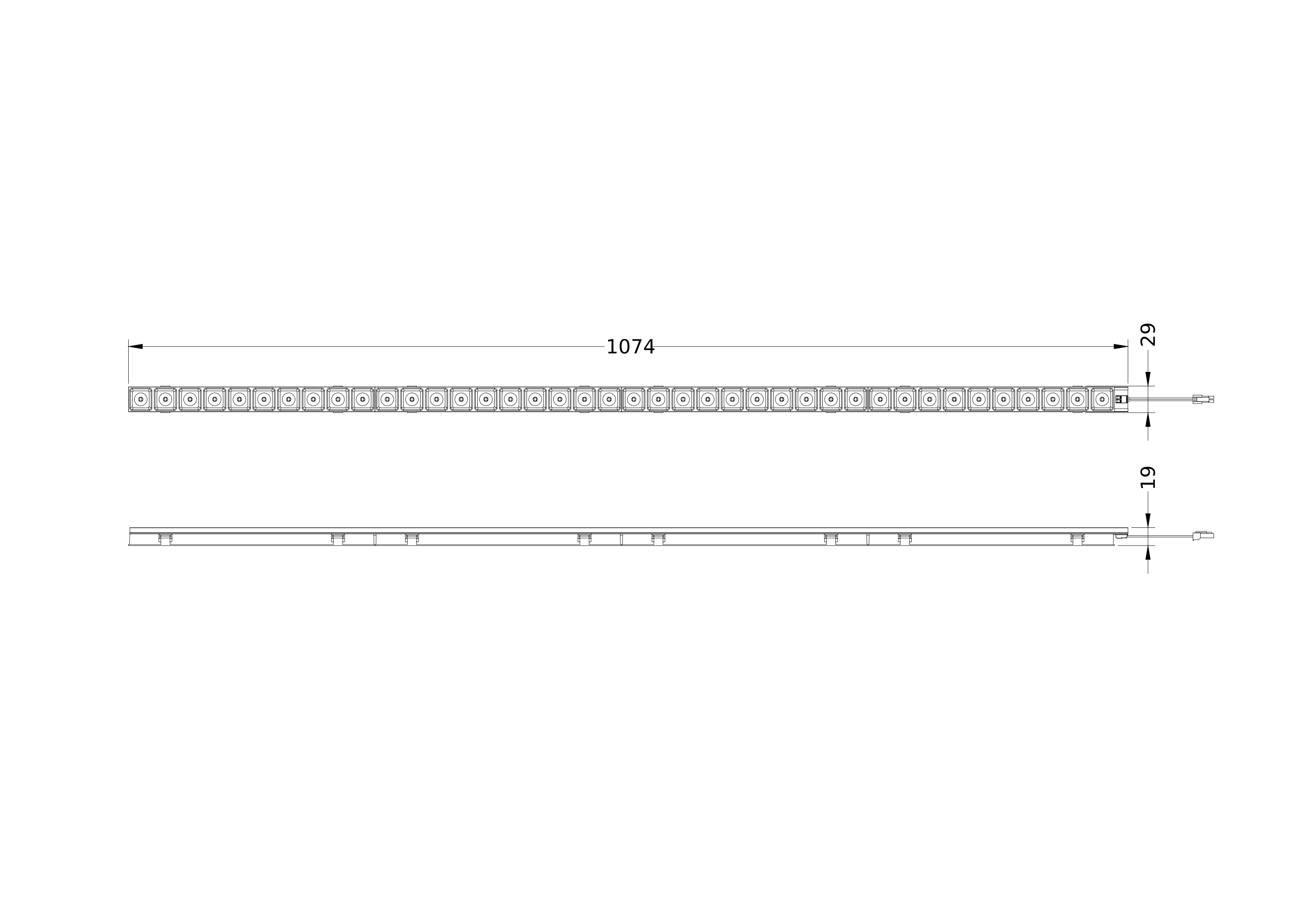

Product line drawing - technical
