PANEL COMFORT 600 UGR<19 CPS CRI90

PL CMFT 600 P 36W 930 940 U19 CPS CRI90

GTIN: 4058075694460 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • High performance with CRI90 and up to 122 lm/W
  • Highly versatile due to selectable CCT and power steps (CCT/Power Select - CPS) on the driver
  • High color consistency with SDCM 3
  • Good glare reduction (UGR < 19)
  • Through-wiring possible with included connector box
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • 5 years guarantee
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Schools, public buildings
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Extruded aluminum frame
  • Polystyrene diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Luminaire versions with IoT-ready DALI-2 driver available
  • Lifetime (L80/B10): up to 60,000 h (at 25 °C)
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets included
  • External control gear included with switches to select CCT and power during installation
References / Links
Electrical data
Nominal wattage 36 W / 29.5 W 1)
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 165.000 mA
Inrush current 12 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 18
Max. number of luminaires per miniature circuit breaker C10 16
Max. number of luminaires per miniature circuit breaker C16 25
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver
1) For possible options refer to lumen/power table image / PANEL COMFORT 600 or 625 P 36W 930/940 U19 CPS are fulfilling the technical minimum requirements according to the German BEG subsidy system for energy efficient luminaires at setting 4000K and 29.5W
Photometrical data
Luminous flux 4200 lm / 4000 lm / 3600 lm / 3400 lm 1)
Luminous efficacy 122 lm/W / 118 lm/W / 115 lm/W / 112 lm/W 1)
Color temperature 3000 K / 4000 K 2)
Light color (designation) Warm White, Cool White
Color rendering index Ra ≥90
Standard deviation of color matching 3 sdcm
Luminous intensity - cd
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 90 °
UGR < 19
1) For possible options refer to lumen/power table image / PANEL COMFORT 600 or 625 P 36W 930/940 U19 CPS are fulfilling the technical minimum requirements according to the German BEG subsidy system for energy efficient luminaires at setting 4000K and 29.5W
2) For possible options refer to lumen/power table image
Dimensions & Weight
Length 595.00 mm
Height 32.00 mm
Width 595.00 mm
Product weight 1950.00 g
Materials & Colors
Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -10…+50 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP40/IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Surface/Recessed
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 80,0 mm
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 50000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 1100 mA
ECG - Output ripple current 10 %
Certificates & Standards
Standards CB, CE, ENEC, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075694460 Folding box
1		 52 mm x 622 mm x 694 mm 2435.00 g 22.45 dm³
4058075694477 Shipping box
4		 640 mm x 220 mm x 710 mm 11035.00 g 99.97 dm³
User instruction / safety instructions
PANEL COMFORT CRI90 600 / 625
PDF (3.53 MB)
Legal information
LSI PL CMFT
PDF (2.64 MB)
Legal information
PL CMFT U19
PDF (5.35 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
CE Declaration of Conformity PL CMFT U19 CPS
PDF (298.74 KB)
Product image: white background, diagonal
PL PFM PL FLEX
JPG (1.66 MB)
Product image: white background, horizontal, alternative image
PL COMFORT DRIVER
JPG (164.83 KB)
Product image: white background, upright
PL PFM PL FLEX
JPG (2.69 MB)
Product image: white background, spacial
PL PFM PL FLEX
JPG (1.02 MB)
Product line drawing with letters
PL PFM PL FLEX PL COMP
SVG (11.29 KB)
Product line drawing with numbers
PL PFM PL FLEX
SVG (18.54 KB)
Product line drawing, front, no dimensions
PL PFM PL FLEX PL COMP
SVG (8.3 KB)

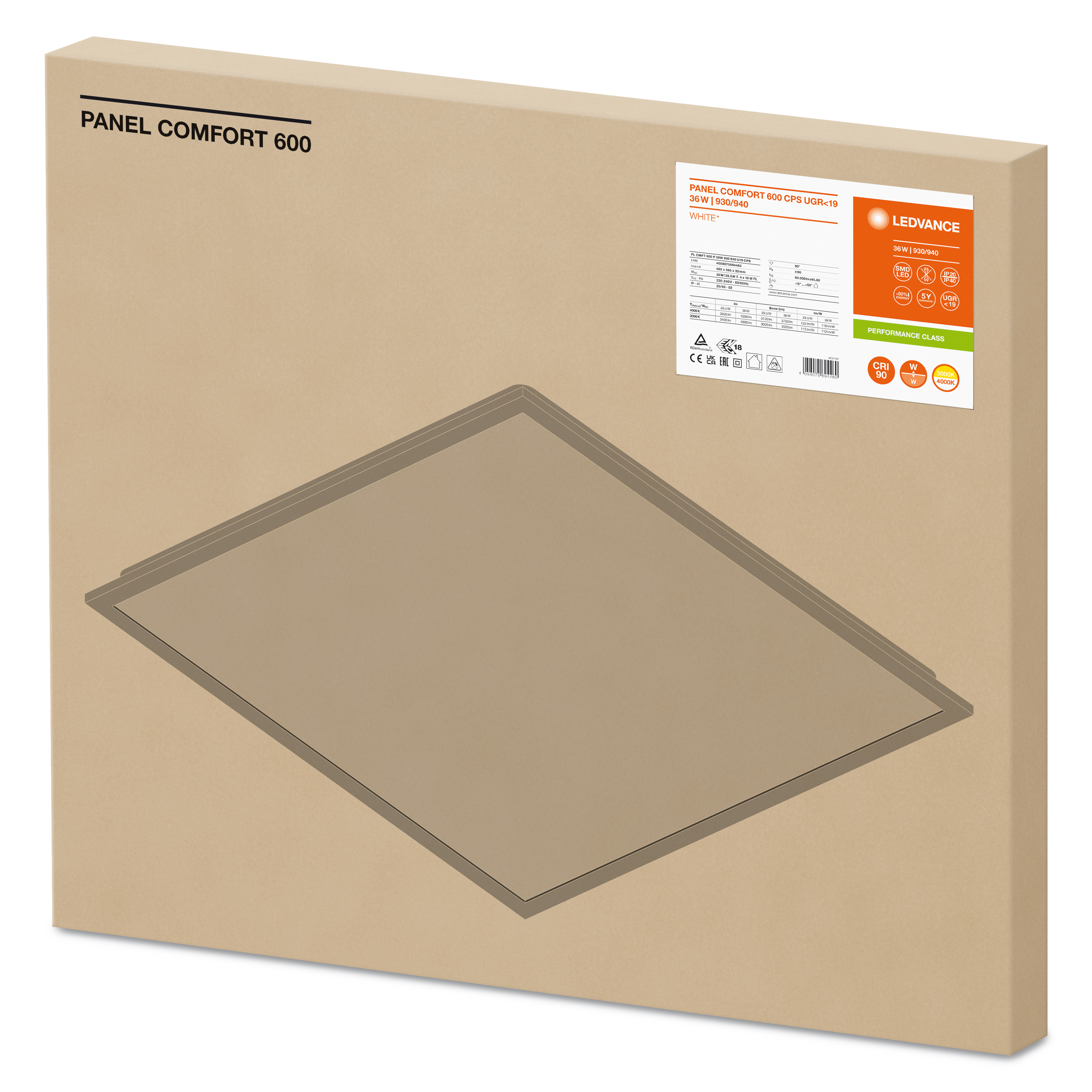

Packaging image, spacial
PANEL COMFORT 600 CPS UGR-19 36W 930940
JPG (2.72 MB)
Catalog info 1
PL CMFT
SVG (652.58 KB)
Catalog info 2
PL CMFT
PNG (101.28 KB)
Catalog info 3
PL CMFT
SVG (458.69 KB)

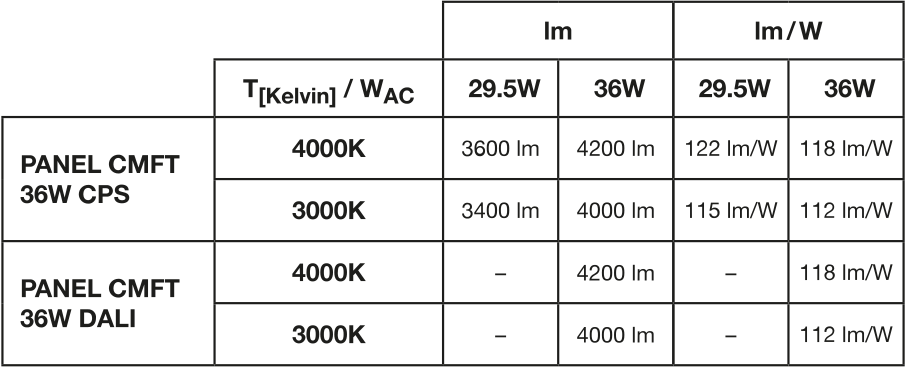

Catalog info 4
Catalog info 4 PANEL CMFT
PNG (59.09 KB)
IES file (IES)
PL CMFT 600 36W 930
IES (8.8 KB)
IES file (IES)
PL CMFT 600 36W 940
IES (8.81 KB)
LDT file (Eulumdat)
PL CMFT 600 36W 930
LDT (9.46 KB)
LDT file (Eulumdat)
PL CMFT 600 36W 940
LDT (9.63 KB)
ULD file (DIALux)
PL CMFT 600 P 36W
ULD (192 KB)
ROLF file (RELUX)
PL CMFT 600 P 36W 930
ROLF (348.25 KB)
UGR file (UGR table)
PL CMFT 600 29.5W 930
PNG (60.32 KB)

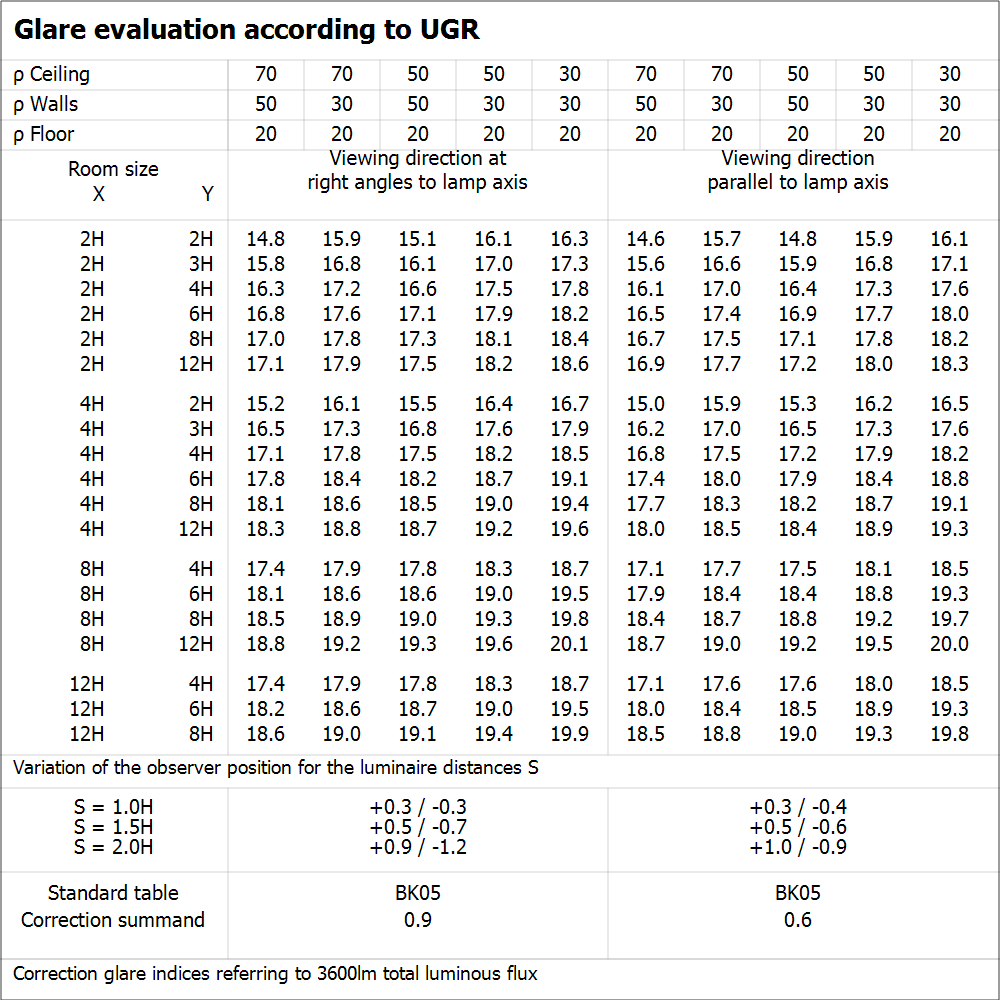

UGR file (UGR table)
PL CMFT 600 29.5W 940
PNG (60.58 KB)
UGR file (UGR table)
PL CMFT 600 36W 930
PNG (59.55 KB)

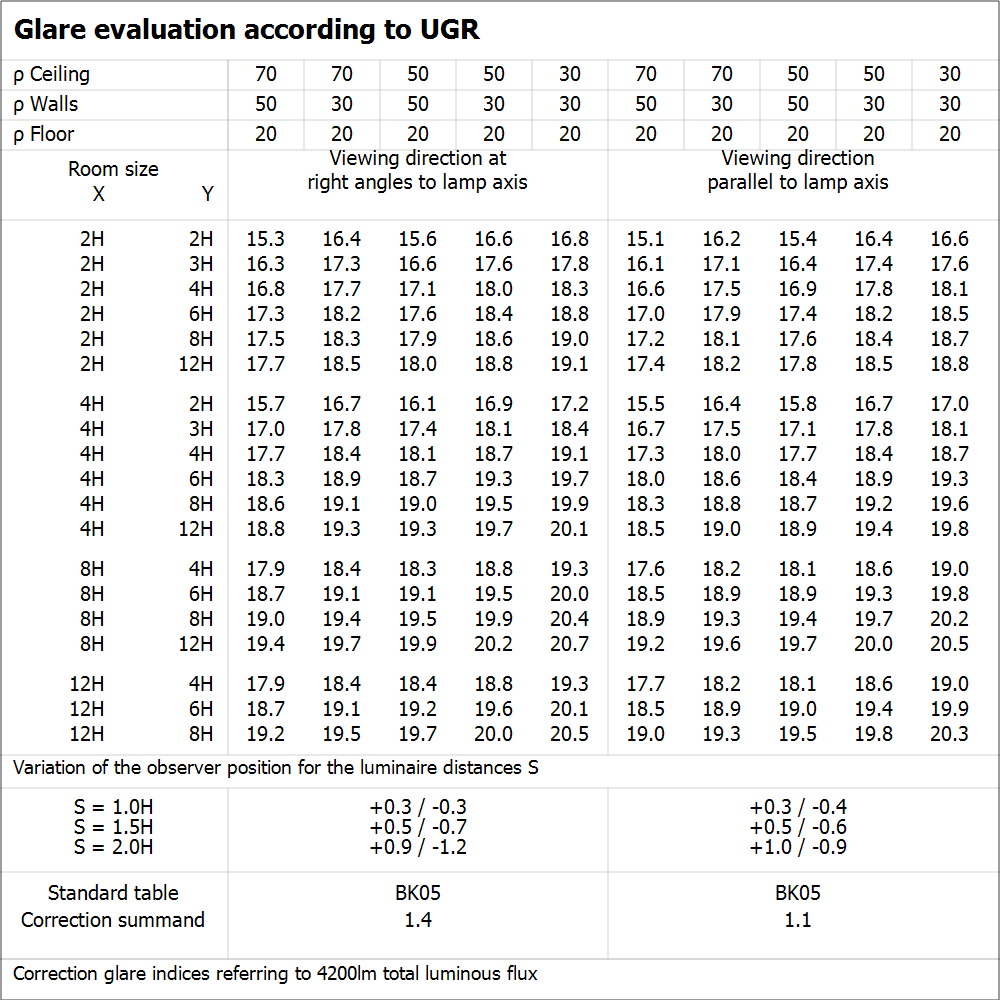

UGR file (UGR table)
PL CMFT 600 36W 940
PNG (60.14 KB)
Light distribution curve type cone
PL CMFT 600 29.5W 930
PNG (48 KB)
Light distribution curve type cone
PL CMFT 600 29.5W 940
PNG (51.96 KB)
Light distribution curve type cone
PL CMFT 600 36W 930
PNG (48.06 KB)
Light distribution curve type cone
PL CMFT 600 36W 940
PNG (48.15 KB)
Light distribution curve type cone
PL CMFT 600 29.5W 930
SVG (16.77 KB)
Light distribution curve type cone
PL CMFT 600 29.5W 940
SVG (16.77 KB)
Light distribution curve type cone
PL CMFT 600 36W 930
SVG (16.78 KB)

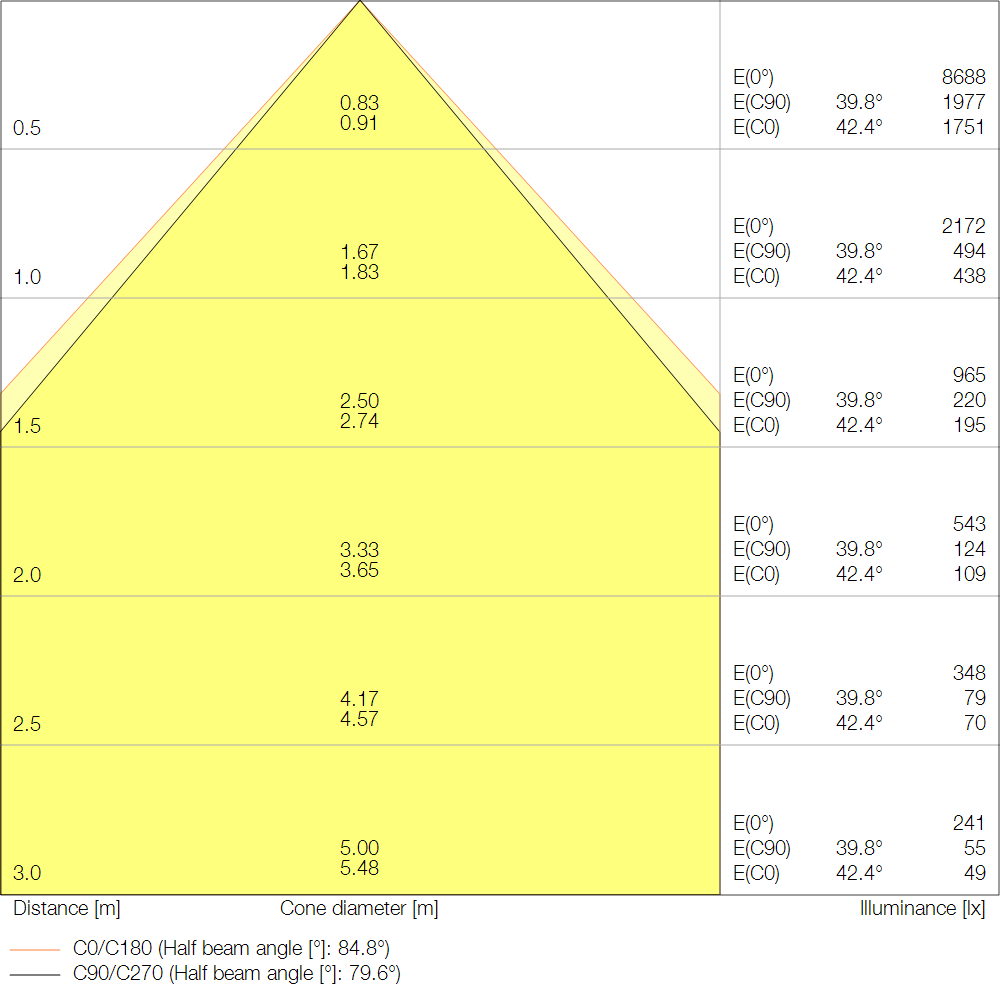

Light distribution curve type cone
PL CMFT 600 36W 940
SVG (16.78 KB)
Light distribution curve type polar
PL CMFT 600 29.5W 930
PNG (118.71 KB)
Light distribution curve type polar
PL CMFT 600 29.5W 940
PNG (118.03 KB)
Light distribution curve type polar
PL CMFT 600 36W 930
PNG (117.06 KB)

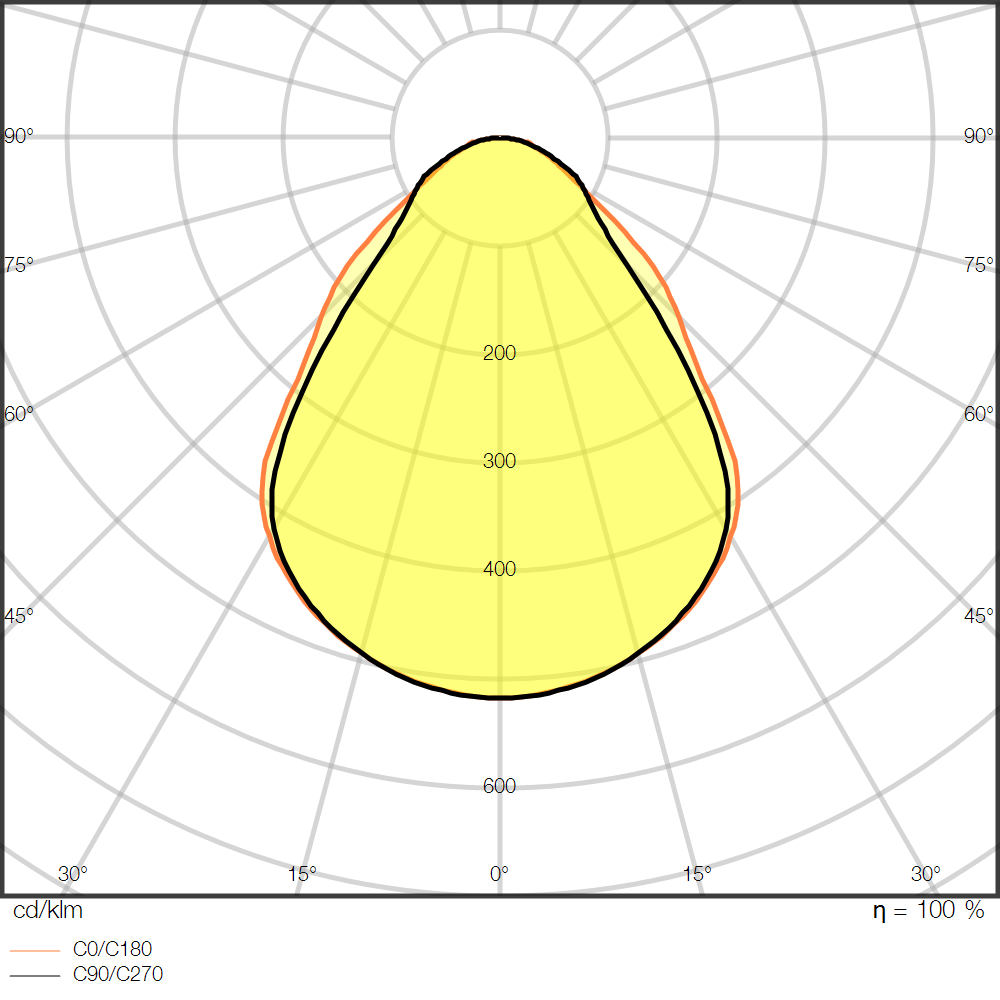

Light distribution curve type polar
PL CMFT 600 36W 940
PNG (117.91 KB)
Light distribution curve type polar
PL CMFT 600 29.5W 930
SVG (17.62 KB)
Light distribution curve type polar
PL CMFT 600 29.5W 940
SVG (17.62 KB)
Light distribution curve type polar
PL CMFT 600 36W 930
SVG (17.62 KB)
Light distribution curve type polar
PL CMFT 600 36W 940
SVG (17.62 KB)
BIM Revit 3D
PL_CMFT
ZIP (3.06 MB)
CAD STEP 3D
PL_CMFT_600
STEP (34.54 KB)
Tender documents
PANEL COMFORT 600 UGR19 36W 930 940 U19 CPS-EN
TXT (1.93 KB)
EAN SEG number STK number EFO number ELDAS number
4058075694460 7021007 4127228 3004888 941402740
