PANEL FLEX 625 UGR<19 PS

PL FLEX 625 S 32W 840 U19 PS

GTIN: 4099854276569 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5220 lm
  • Energy savings thanks to high system efficacy: up to 170 lm/W
  • Good glare reduction (UGR ≤ 19)
  • High color consistency with SDCM 3
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • 7 years guarantee
Areas of application
  • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Extruded aluminum frame, metal housing
  • Polystyrene diffuser
  • Luminaire versions with IoT-ready DALI-2 driver available
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
  • Serviceable luminaire: Upgrades and replacements available
References / Links
Electrical data
Nominal wattage 32 W / 27 W / 22 W / 17 W 1)
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 145.000 mA
Inrush current 11.1 A
Inrush current time Th50 600 µs
Max. number of luminaires per miniature circuit breaker B16 12
Max. number of luminaires per miniature circuit breaker C10 13
Max. number of luminaires per miniature circuit breaker C16 21
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode External LED driver
1) The Panel Flex family is fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires
Photometrical data
Luminous flux 5220 lm / 4460 lm / 3680 lm / 2890 lm 1)
Luminous efficacy 163 lm/W / 165 lm/W / 167 lm/W / 170 lm/W 1)
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 90 °
UGR < 19
1) The Panel Flex family is fulfilling the technical minimum requirements according to the German BEG subsidy program for energy efficient luminaires
Dimensions & Weight
Length 620.00 mm
Height 32.00 mm
Width 620.00 mm
Product weight 1700.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Polystyrene (PS)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -10…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP40/IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Mounting length 620 mm
Mounting width 620 mm
Mounting depth 50 mm
Adjustable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 750 mA
ECG - Output ripple current < 5 %
ECG - Length 125 mm
ECG - Width 60 mm
ECG - Height 30 mm
Recommended control gear DR DS-P-32/220-240/750 PL FLEX 625
Emergency lighting
Type of Emergency Lighting (EL) Optional EL unit (battery and controller) for decentral operation available separately, EL certified driver (0Hz / DC operation) for central battery operation included
Certificates & Standards
Standards CE, CB, ENEC, UKCA, EAC, EPD, EL
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) By the end consumer
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854276569 Folding box
1		 35 mm x 625 mm x 710 mm 2374.00 g 15.53 dm³
4099854276576 Shipping box
4		 737 mm x 179 mm x 657 mm 10818.00 g 86.67 dm³
User instruction / safety instructions
PANEL FLEX
PDF (3.52 MB)
Legal information
LSI PANEL FLEX
PDF (2.76 MB)
Legal information
Legal Insert PL FLEX
PDF (8.04 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
EM Insert PL FLEX
PDF (3.16 MB)
Declarations of conformity
PL FLEX
PDF (266.58 KB)
EPD
EPD EN PANEL FLEX DALI
PDF (638.39 KB)
Product image: white background, diagonal
PL PFM PL FLEX
JPG (1.02 MB)
Product image: white background, upright
PL PFM PL FLEX
JPG (1.55 MB)
Product image: white background, spacial
PL PFM PL FLEX
JPG (663.8 KB)
Product image: white background, spacial
PL FLEX CONNECTOR
JPG (694.32 KB)
Product image: white background, with accessory, alternative image
PL FLEX AND DRIVER
JPG (300.28 KB)
Product line drawing with letters
PL PFM PL FLEX PL COMP
SVG (11.29 KB)
Product line drawing with numbers
PL PFM PL FLEX
SVG (17.59 KB)
Product line drawing, front, no dimensions
PL PFM PL FLEX PL COMP
SVG (8.3 KB)

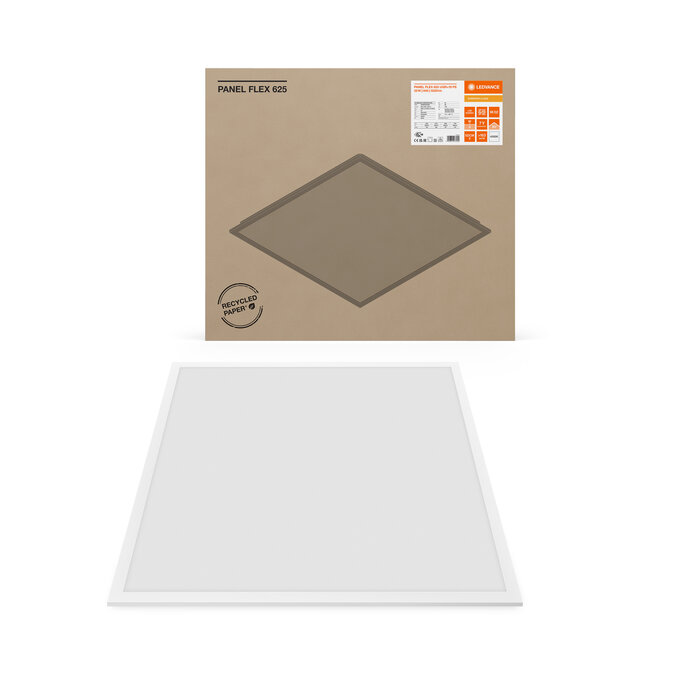

Combo Shot = Product Beauty Shot + Packaging Image
PL FLEX 625 S 32W 840 U19 PS
JPG (1.06 MB)
Packaging image, frontal
PL FLEX 625 S 32W 840 U19 PS
JPG (1.24 MB)
Packaging image, spacial
PL FLEX 625 S 32W 840 U19 PS
JPG (1.25 MB)
Catalog info 1
PL FLEX
PNG (45.29 KB)
Catalog info 2
PL FLEX
PNG (95.09 KB)
Catalog info 3
PL FLEX
PNG (49.03 KB)
IES file (IES)
PL FLEX 625 S 32W 4000K U19 5220lm
IES (3.25 KB)
LDT file (Eulumdat)
PL FLEX 625 S 32W 4000K U19 5220lm
LDT (2.91 KB)
ULD file (DIALux)
PL FLEX 625 S 32W 840 U19 PS
ULD (207.36 KB)
ROLF file (RELUX)
PL FLEX 625 S 32W 840 U19 PS
ROLF (343.91 KB)

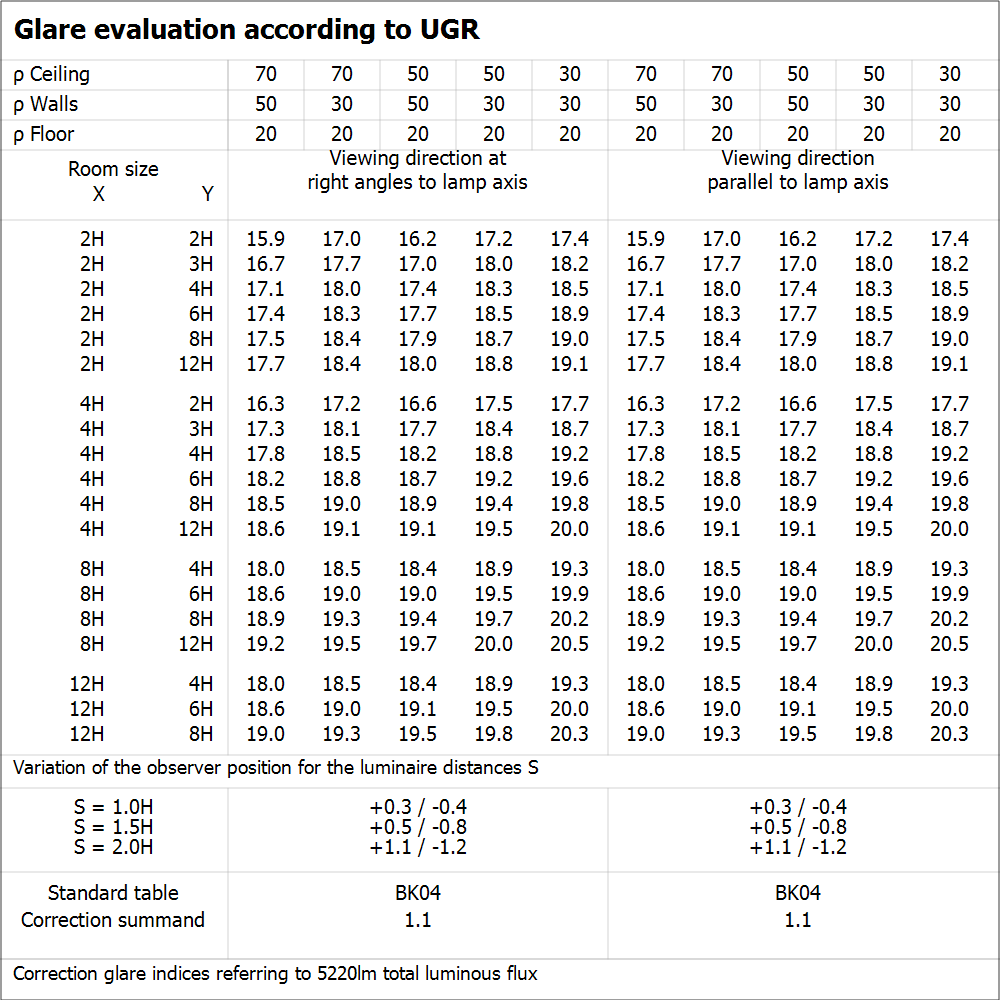

UGR file (UGR table)
