PL FLEX 600 DALI S 30W 840 U19

PANEL FLEX 600 UGR<19 DALI

GTIN: 4099854276620 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
High lumen output with up to 4860 lm
Energy savings thanks to high system efficacy: up to 160 lm/W
Good glare reduction (UGR ≤ 19)
High color consistency with SDCM 3
External driver for extended flexibility and easy installation
Low flicker light thanks to special electronic control gear
Tool-free electrical connection due to push button connector
Through-wiring possible with included connector box
Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
Extended services such as energy monitoring and remote maintenance possible with DALI versions
7 years guarantee

Areas of application

Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Direct replacement for recessed luminaires with fluorescent lamps
Offices, conference rooms
Reception areas, foyers, corridors, elevators

Product features

IoT-ready luminaire with DALI-2 technology
Suitable for central battery emergency installations acc. to EN 60598-2-22
Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Extruded aluminum frame, metal housing
Polystyrene diffuser

Equipment / Accessories

Accessories for several mounting options available
Connector box with 5-pole terminal included
Security rope for luminaire included
Security brackets preinstalled
External control gear included
Suitable for use with seperate Emergency Conversion Box
Serviceable luminaire: Upgrades and replacements available

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	30.00 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	140.000 mA
Inrush current	4.4 A
Inrush current time T_h50	440 µs
Max. number of luminaires per miniature circuit breaker B16	40
Max. number of luminaires per miniature circuit breaker C10	41
Max. number of luminaires per miniature circuit breaker C16	66
Power factor λ	> 0.90
Total harmonic distortion	< 15 %
Protection class	II
Operating mode	External LED driver

Photometrical data

Luminous flux	4860 lm
Luminous efficacy	160 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	> 80
Standard deviation of color matching	≤3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	90 °
UGR	< 19

Dimensions & Weight

Length	595.00 mm
Height	32.00 mm
Width	595.00 mm
Product weight	1600.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Polystyrene (PS)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-10…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP40/IP20
Protection class IK (shock resistance)	IK02
Dimmable	Yes
Type of dimming	DALI2
IoT ready	Support of DALI data type PART 251, 252, 253 ¹⁾
Mounting type	Recessed/Suspended/Surface
Mounting location	Ceiling
Application environment	Indoor
Mounting length	595.00 mm
Mounting width	595.00 mm
Mounting depth	50 mm
Adjustable	No
With light source	Yes
Replaceable light source	No

¹⁾ Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	100000 h ¹⁾
Lifespan L90/B10 at 25 °C	50000 h
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	700 mA
ECG - Output ripple current	< 5 %
ECG - Length	110 mm
ECG - Width	75 mm
ECG - Height	25 mm
Recommended control gear	OTi DALI 50/220...240/1A4 NFC

Emergency lighting

Type of Emergency Lighting (EL)	Optional EL unit (battery and controller) for decentral operation available separately, EL certified driver (0Hz / DC operation) for central battery operation included
Wattage in emergency operation mode	6 W
Luminous flux in emergency operation mode	700 lm

Certificates & Standards

Standards	CE, CB, ENEC, UKCA, EAC, EPD, EL
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	By the end consumer

Additional product data

Added function

VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854276620	Folding box 1	35 mm x 685 mm x 600 mm	2055.00 g	14.39 dm³
4099854276637	Shipping box 4	705 mm x 160 mm x 625 mm	9301.00 g	70.50 dm³

Product image	Product name	EAN
	DR DS-P- 30/220-240/700 PL FLEX 600	4058075843684
	EM CONVERSION BOX	4058075237025
	PANEL Suspension Kit	4058075402928
	PANEL RECESSED MOUNT CLIPS VAL 4x	4058075409859
	PANEL 600 SURFACE MOUNT KIT H75	4058075472914
	PANEL 600 SURFACE MOUNT KIT H70 VAL	4058075402843

Product name	Product brand	Product component type	GTIN
MANUAL CONTROL UNIT SELECT DALI-2	LEDVANCE	Light control	4058075837485
MANUAL CONTROL UNIT SELECT DALI-2 TW	LEDVANCE	Light control	4058075837508
MANUAL CONTROL UNIT SELECT DALI-2 EXCHANGEABLE COVER TW	LEDVANCE	Light control	4058075837522
MANUAL CONTROL UNIT TOUCH DALI-2 TW	LEDVANCE	Light control	4058075837560
MANUAL CONTROL UNIT TOUCH DALI-2	LEDVANCE	Light control	4058075837546
PUSH CONTROL UNIT FLUSH MOUNT DALI-2 TW	LEDVANCE	Light control	4058075837584
SURFACE MOUNT FRAME	LEDVANCE	Light control	4058075843561
PUSHBUTTON COUPLER DALI-2	LEDVANCE	Light control	4058075837607
FLEX CONTROL UNIT IOT DALI-2 HCL TW	LEDVANCE	Light control	4058075841888
FLEX CONTROL UNIT FLUSH MOUNT DALI-2 TW	LEDVANCE	Light control	4058075841901
FLEX CONTROL UNIT DALI-2 TW	LEDVANCE	Light control	4058075843844
FLEX CONTROL UNIT REAL-TIME-CLOCK DALI-2 HCL TW	LEDVANCE	Light control	4058075841925
SENSOR DALI-2 LIGHT/PRESENCE-6 INFRARED CEILING INTEGRATION	LEDVANCE	Light control	4058075837621
SENSOR DALI-2 LIGHT/PRESENCE-8 INFRARED CEILING INTEGRATION	LEDVANCE	Light control	4058075841949
SENSOR DALI-2 LIGHT/PRESENCE-40X5 INFRARED CEILING INTEGRATION	LEDVANCE	Light control	4058075843868
SENSOR DALI-2 LIGHT/PRESENCE-24 INFRARED CEILING MOUNTING	LEDVANCE	Light control	4058075843882
SENSOR CEILING MOUNTING KIT	LEDVANCE	Light control	4058075843905

User instruction / safety instructions
PANEL FLEX

PDF (3.52 MB)

Legal information
LSI PANEL FLEX

PDF (2.76 MB)

Legal information
Legal Insert PL FLEX

PDF (8.04 MB)

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Legal information
EM Insert PL FLEX

PDF (3.16 MB)

Declarations of conformity
PL FLEX

PDF (266.58 KB)

EPD
EPD EN PANEL FLEX DALI

PDF (638.39 KB)

Product image: white background, diagonal
PL PFM PL FLEX

JPG (1.02 MB)

Product image: white background, upright
PL PFM PL FLEX

JPG (1.55 MB)

Product image: white background, spacial
PL PFM PL FLEX

JPG (663.8 KB)

Product image: white background, spacial
PL FLEX CONNECTOR

JPG (694.32 KB)

Product image: white background, with accessory, alternative image
PL FLEX AND DRIVER

JPG (300.28 KB)

Product line drawing with letters
PL PFM PL FLEX PL COMP

SVG (11.29 KB)

Product line drawing with numbers
PL PFM PL FLEX

SVG (18.54 KB)

Product line drawing, front, no dimensions
PL PFM PL FLEX PL COMP

SVG (8.3 KB)

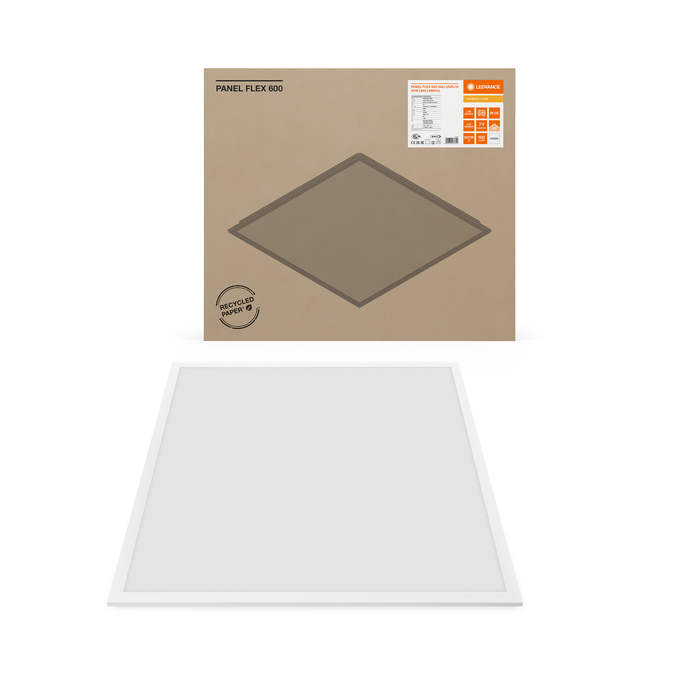

Combo Shot = Product Beauty Shot + Packaging Image
PL FLEX 600 DALI S 30W 840 U19

JPG (1.06 MB)

Packaging image, frontal
PL FLEX 600 DALI S 30W 840 U19

JPG (1.23 MB)

Packaging image, spacial
PL FLEX 600 DALI S 30W 840 U19

JPG (1.22 MB)

Catalog info 1
PL FLEX

PNG (45.29 KB)

Catalog info 2
PL FLEX

PNG (95.09 KB)

Catalog info 3
PL FLEX

PNG (49.03 KB)

IES file (IES)
PL FLEX 600 DALI S 30W 4000K U19 4860lm

IES (3.26 KB)

IES files (IES, additional)
PL FLEX 600 DALI S 3W 4000K U19 400lm EM BOX

IES (3.25 KB)

IES files (IES, additional)
PL FLEX 600 DALI S 6W 4000K U19 750lm EM

IES (3.25 KB)

LDT file (Eulumdat)
PL FLEX 600 DALI S 30W 4000K U19 4860lm

LDT (2.91 KB)

LDT files (Eulumdat, additional)
PL FLEX 600 DALI S 3W 4000K U19 400lm EM BOX

LDT (2.92 KB)

LDT files (Eulumdat, additional)
PL FLEX 600 DALI S 6W 4000K U19 750lm EM

LDT (2.91 KB)

ULD file (DIALux)
PL FLEX 600 DALI S 30W 840 U19

ULD (210.43 KB)

ROLF file (RELUX)
PL FLEX 600 DALI S 30W 840 U19

ROLF (341.8 KB)

UGR file (UGR table)

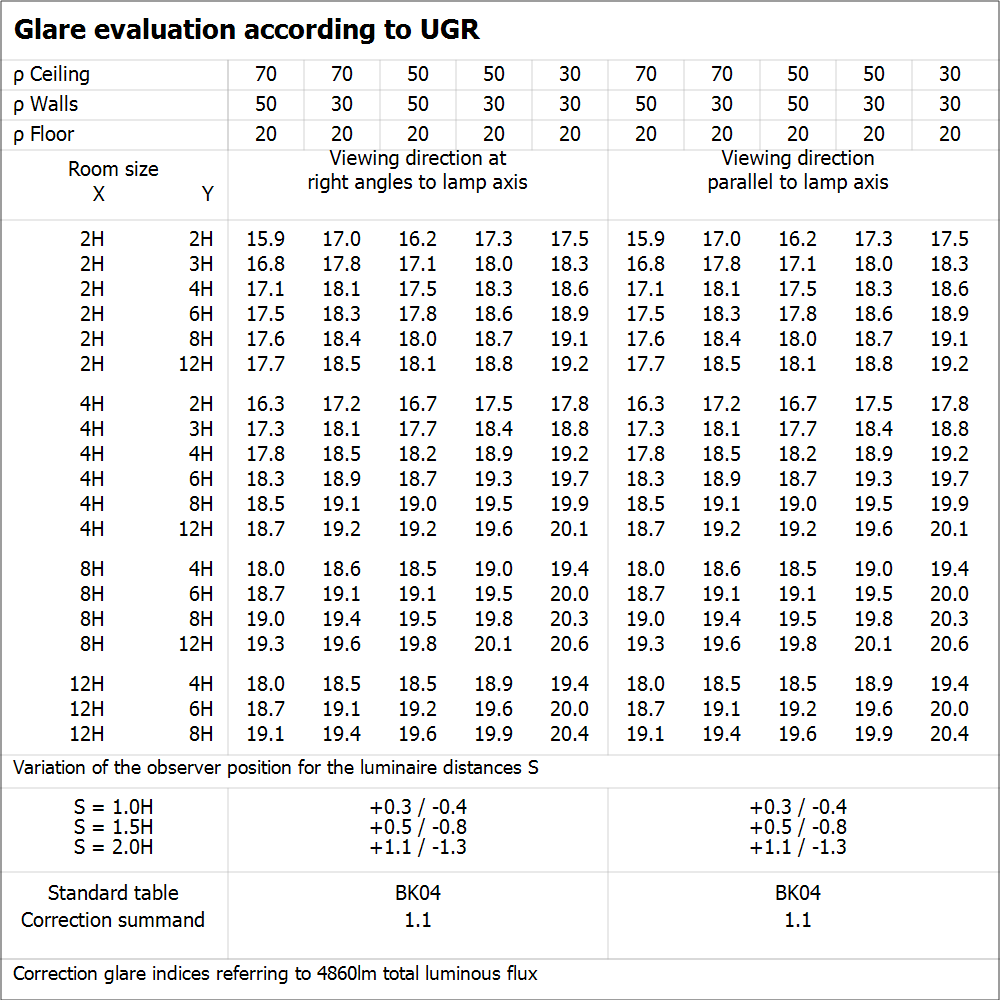

PL FLEX 600 DALI S 30W 4000K U19 4860lm

PNG (56.17 KB)

UGR file (UGR table)

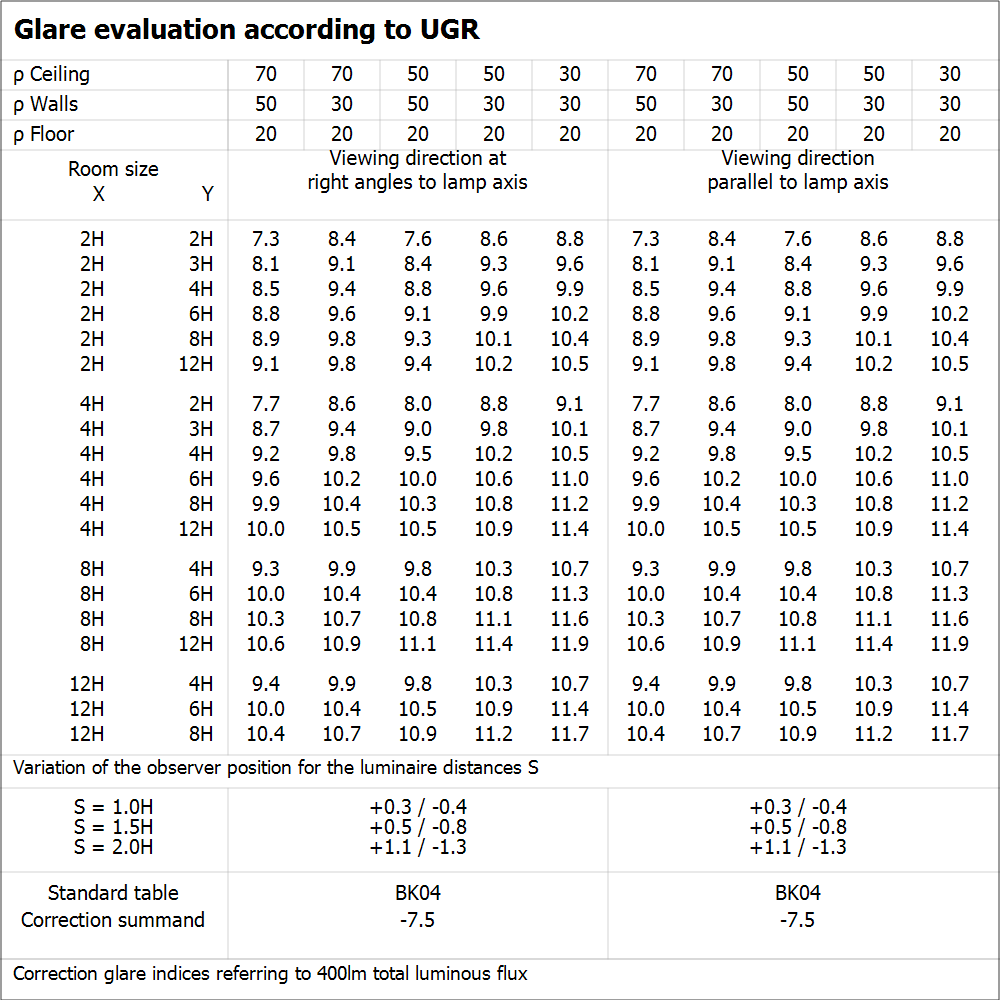

PL FLEX 600 DALI S 3W 4000K U19 400lm EM BOX

PNG (54.83 KB)

UGR file (UGR table)

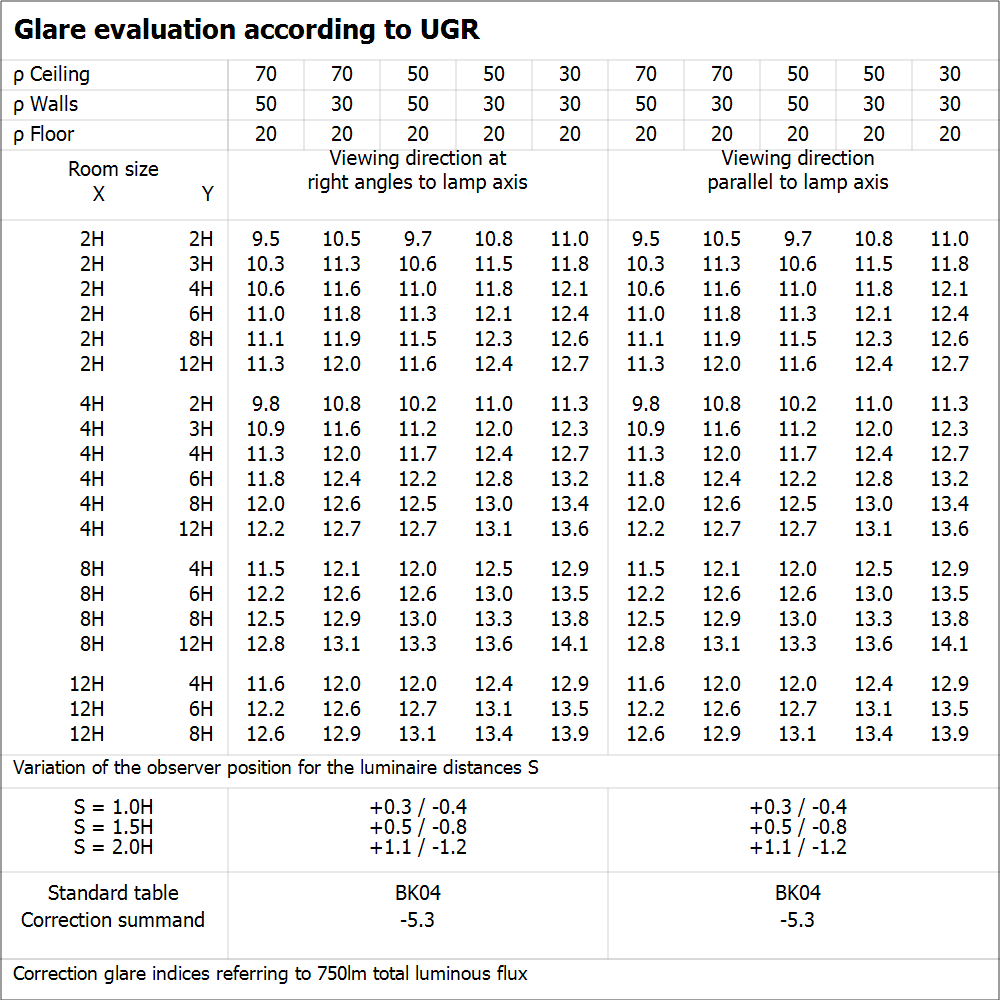

PL FLEX 600 DALI S 6W 4000K U19 750lm EM
