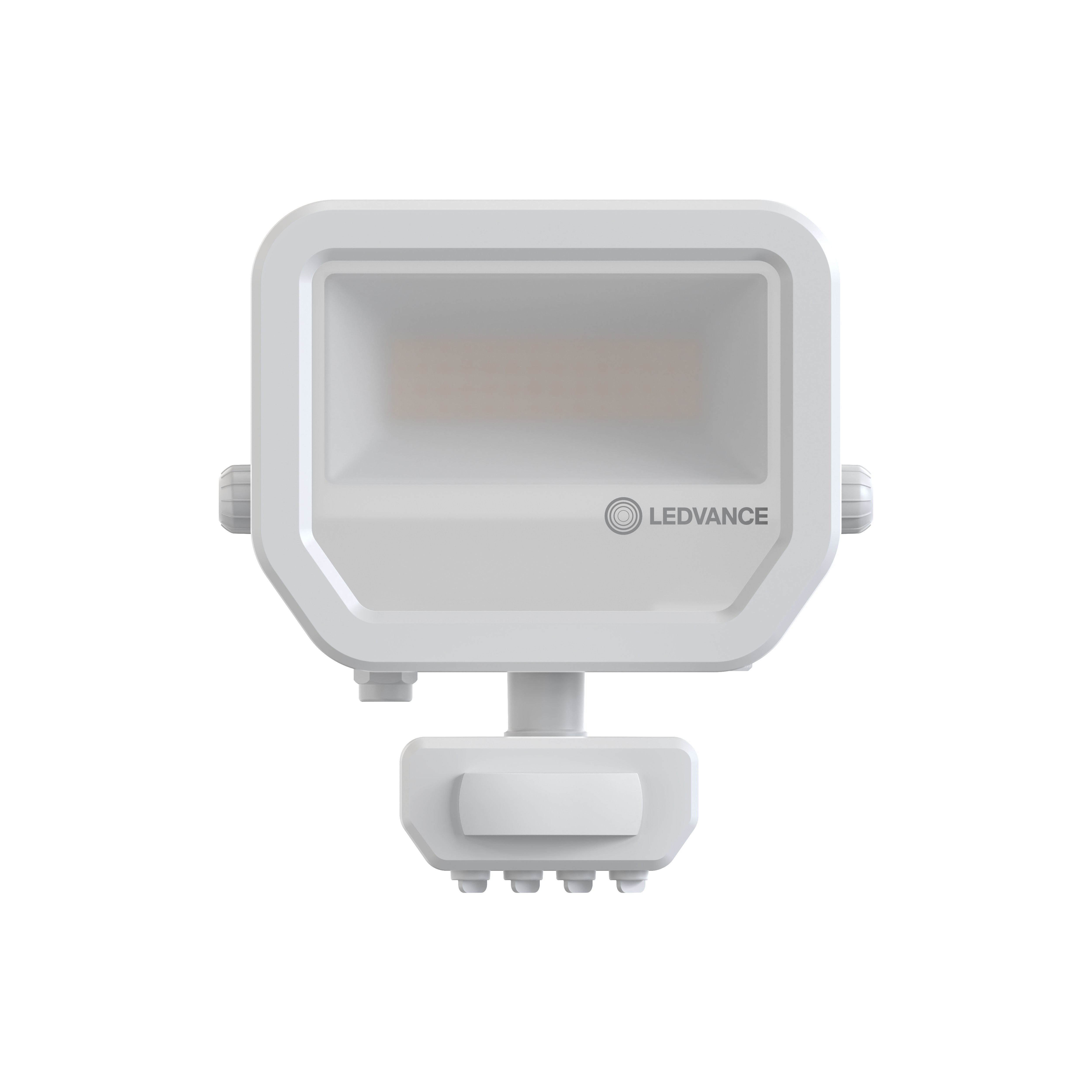

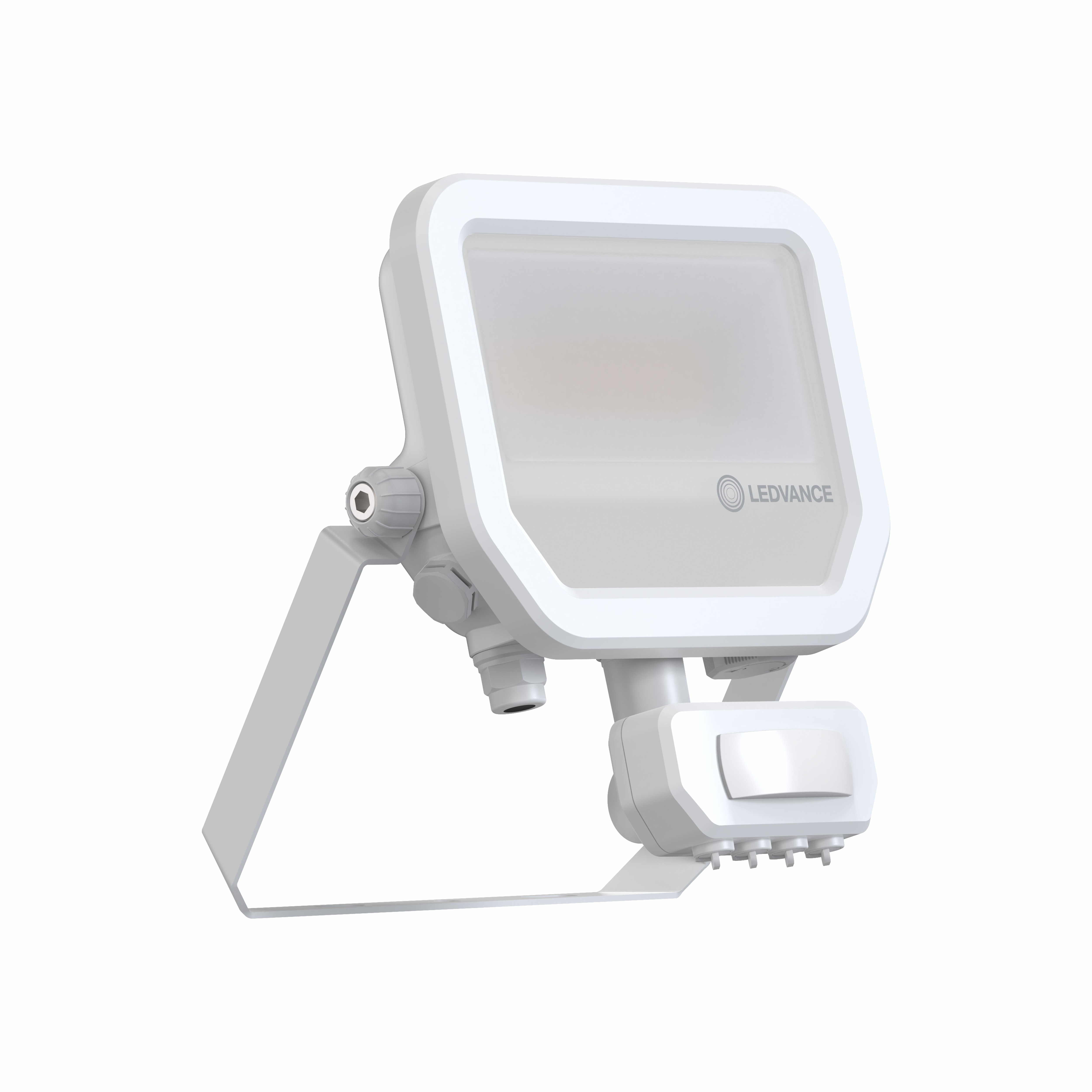

FL 20 SN P 17W 2K4LM 830 PS SY100 WT

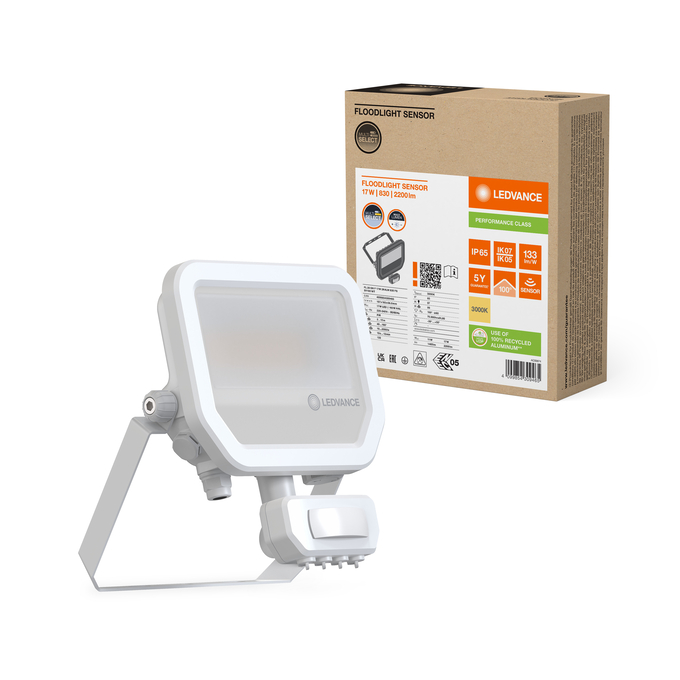

GTIN: 4099854309465 Folding box / 1 Show all packages

Contact sales

Tools

Demand optimized illumination due to flexible and programmable sensor

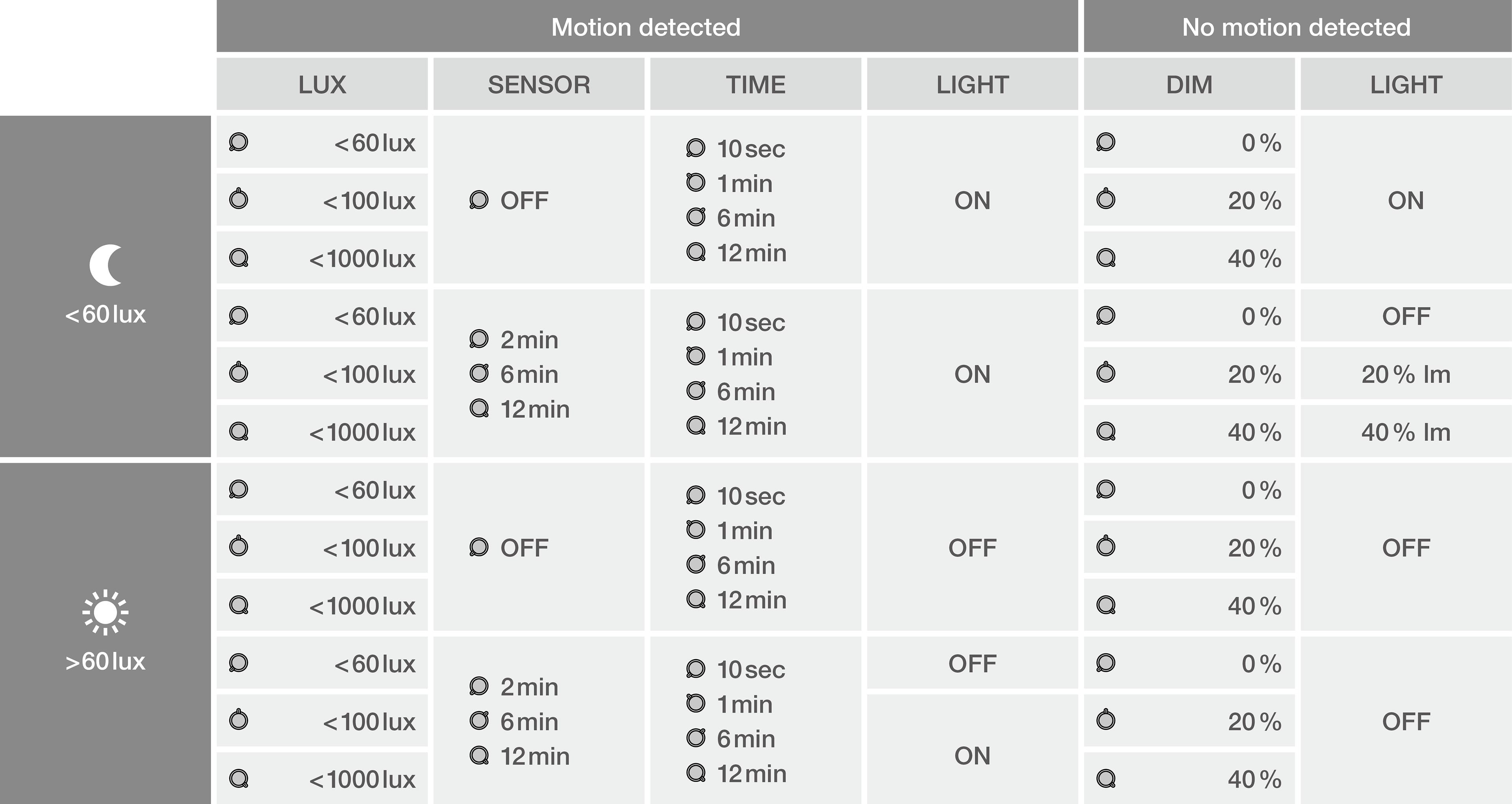

Easy adjustment of sensor range, daylight detection, hold time and dimming function
Always-on override, activated via special mains switching pattern
Breather membrane to optimize air exchange, without compromising IP protection

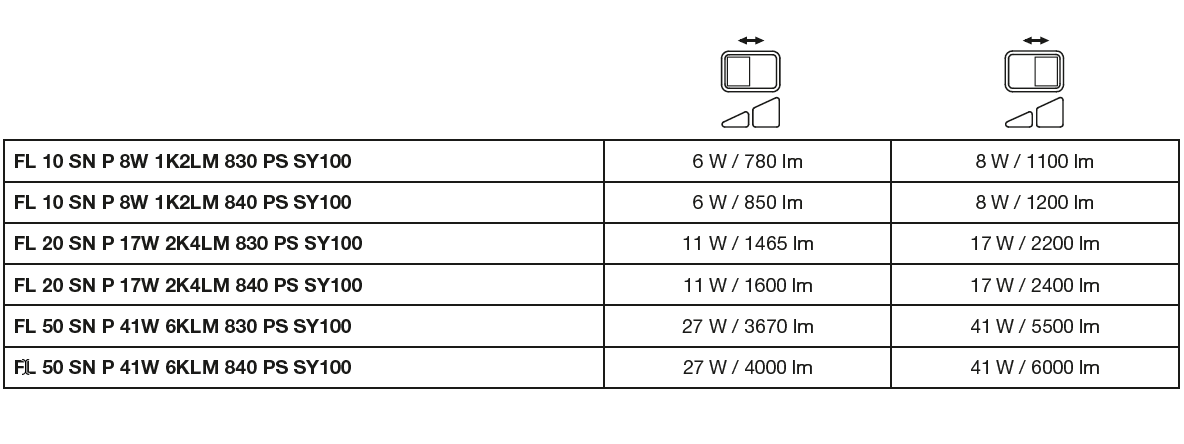

Highly versatile due to selectable power steps (Multi Lumen) on the housing
Robust cable gland with integrated waterstop function
Safe and very uniform illumination, due to frosted and tempered glass diffuser
Bright, robust and durable
Energy savings of up to 90 % compared to halogen lamp floodlights
No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Replacement for floodlights with halogen lamps
Outdoor use (IP65)
D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
Public areas
Building facades
Construction areas
Parking
Gardens and balconies

Nominal wattage	17 W / 11 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	75/60 mA
Inrush current	9.96 A
Inrush current time T_h50	38.2 µs
Max. number of luminaires per miniature circuit breaker B16	75
Max. number of luminaires per miniature circuit breaker C10	60
Max. number of luminaires per miniature circuit breaker C16	96
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	I
Surge capability (L-N)	4 kV
Surge capability (L/N-Ground)	6 kV
Operating mode	Integrated LED driver

Luminous flux	2200 lm / 1465 lm
Luminous efficacy	133 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	80
Standard deviation of color matching	5 sdcm
Stroboscope effect metric (SVM)	≤0.9
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG1
Beam angle	100 ° x 100 °

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Glass
Light emitting surface material	Glass
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	-30…+50 °C
Temperature range at storage	-40…+70 °C

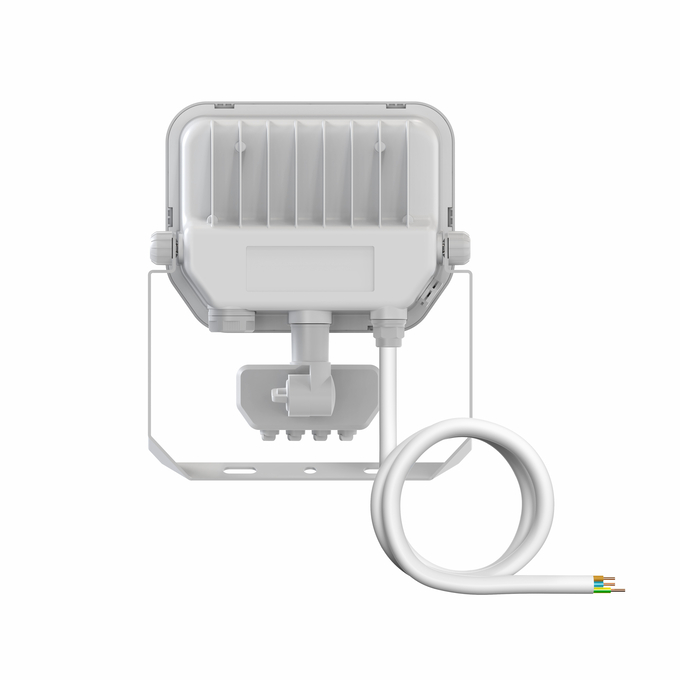

Type of connection	Cable, 3-pole
Type of protection	IP65
Protection class IK (shock resistance)	IK05
Corrosion resistance class acc. to EN 12944	C4
Dimmable	No
Mounting type	Surface
Mounting location	Wall, Ceiling
Application environment	Outdoor
Adjustable	Yes
With light source	Yes

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Output current	133 mA
ECG - Output ripple current	< 20 %

Type of sensor	Motion, Light
Sensor technology	Passive infrared (PIR)

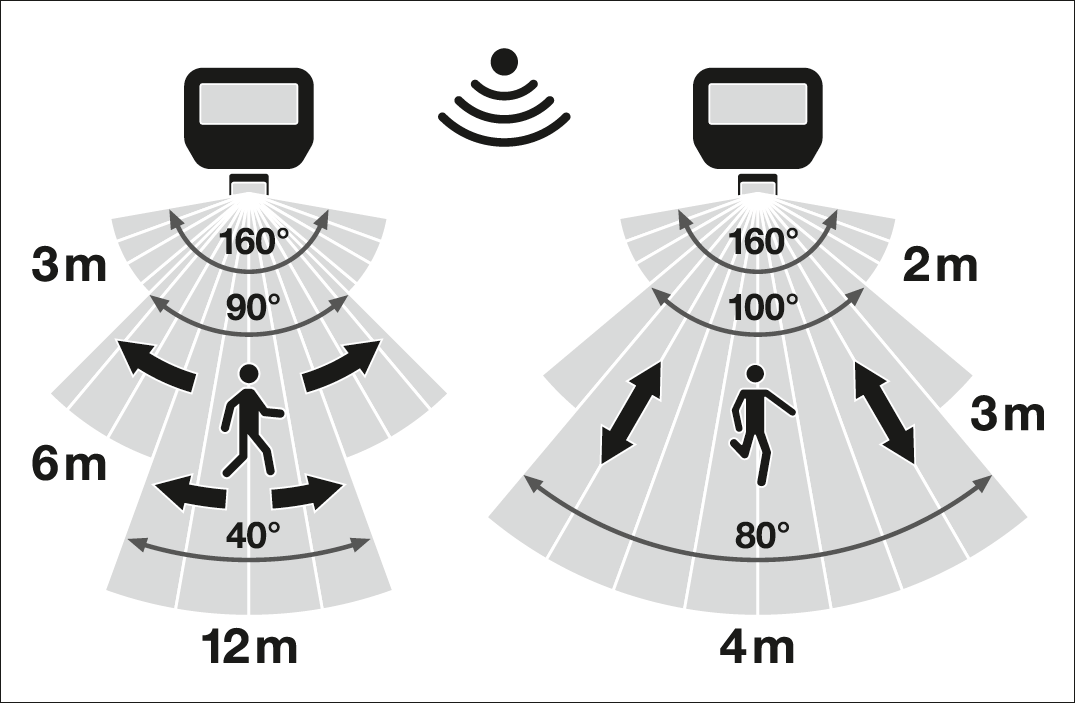

Sensor detection angle	40 °…160 °
Sensor controlled switching time	10 s…12 min
Detection range of motion sensor	2…12 m
Detection threshold of daylight sensor	10…2000 lx
Sensor IP rating	IP65

Standards	CE, CB, ENEC, EAC, UKCA, EPD
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No
EPD	LEDV-00031-V01.01-EN
Replaceable light source (EPREL)	Not replaceable

Added function

MULTI SELECT

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
