DOWNLIGHT ALU
DL ALU DN 150 14 W 3000 K IP44/IP20 WT
GTIN: 4058075382817
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- High luminous efficacy
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
- Very homogenous light
- Functional design
- Easy installation with fast connection
- External driver for extended flexibility (compatible with selected DALI drivers)
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features
- Diameter of required ceiling cut-out: 150 mm or 200 mm (depending on version)
- Type of protection: IP44
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 14.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 100 mA |
| Inrush current | 4 A |
| Max. number of luminaires per miniature circuit breaker B16 | 128 |
| Max. number of luminaires per miniature circuit breaker C10 | 80 |
| Max. number of luminaires per miniature circuit breaker C16 | 128 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 1190 lm |
| Luminous efficacy | 85 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 100 ° |
Dimensions & Weight
| Diameter | 160.00 mm |
| Height | 52.00 mm |
| Product weight | 360.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal, 2-Pole |
| Type of protection | IP44/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 150 mm |
| Mounting depth | 100 mm |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 27…42 mA |
| ECG - Output ripple current | < 45 % |
| ECG - Length | 83 mm |
| ECG - Width | 39 mm |
| ECG - Height | 28 mm |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, RoHS |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075382817 | Folding box 1 |
175 mm x 175 mm x 85 mm | 480.00 g | 2.60 dm³ |
| 4058075382824 | Shipping box 8 |
365 mm x 365 mm x 185 mm | 4290.00 g | 24.65 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
EM CONVERSION BOX | 4058075237025 |
User instruction / safety instructions
UI Downlight ALU
UI Downlight ALU
On-Pack-Info
Legal Insert Downlight LED ALU+Comfort
Legal Insert Downlight LED ALU+Comfort
Declarations of conformity
CE-Certificate Downlight ALU TUV
CE-Certificate Downlight ALU TUV
Declarations of conformity
EU Declaration of Conformity DOWNLIGHT ALU LEDV
EU Declaration of Conformity DOWNLIGHT ALU LEDV
PRODUCT DATASHEET
DOWNLIGHT LED 150 14 W 3000 K WT
DOWNLIGHT LED 150 14 W 3000 K WT

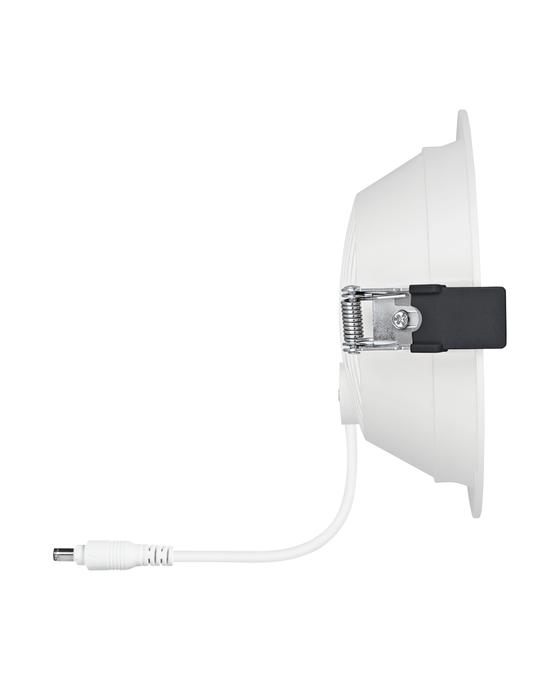

Product image: white background, diagonal
DL ALU DN150 14W
DL ALU DN150 14W

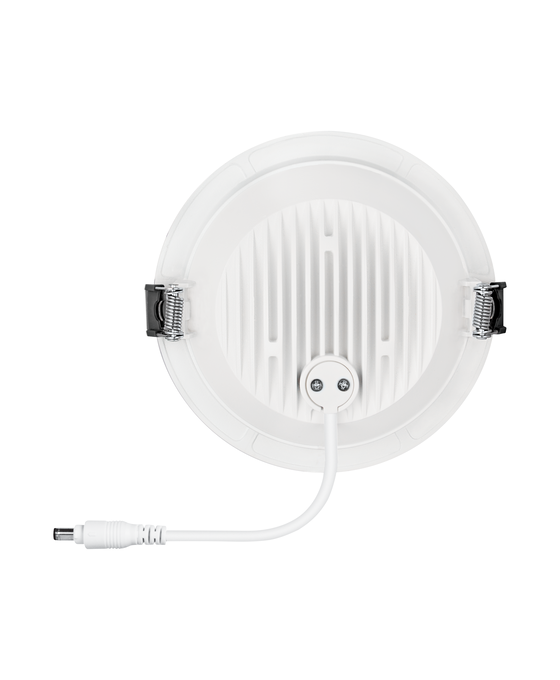

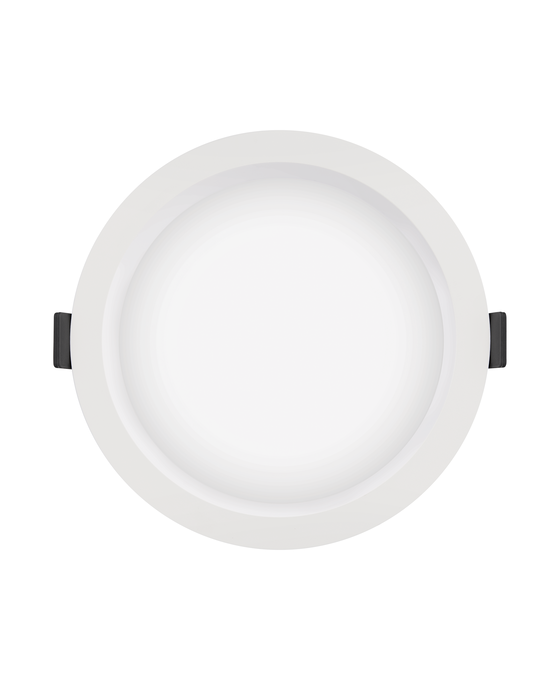

Product image: white background, upright
DL ALU DN150 14W
DL ALU DN150 14W
Product line drawing with letters
DL ALU DN150 14W
DL ALU DN150 14W
Product line drawing with numbers
DL ALU DN150 14W
DL ALU DN150 14W
Product line drawing, front, no dimensions
DL ALU DN150 14W
DL ALU DN150 14W
Catalog info 1
Downlight Alu
Downlight Alu
Catalog info 2
Downlight Alu DALI
Downlight Alu DALI
Catalog info 6
Downlight Alu DALI
Downlight Alu DALI
IES file (IES)
DL ALU 14W3000K WT IP44
DL ALU 14W3000K WT IP44
LDT file (Eulumdat)
DL ALU 14W3000K WT IP44
DL ALU 14W3000K WT IP44

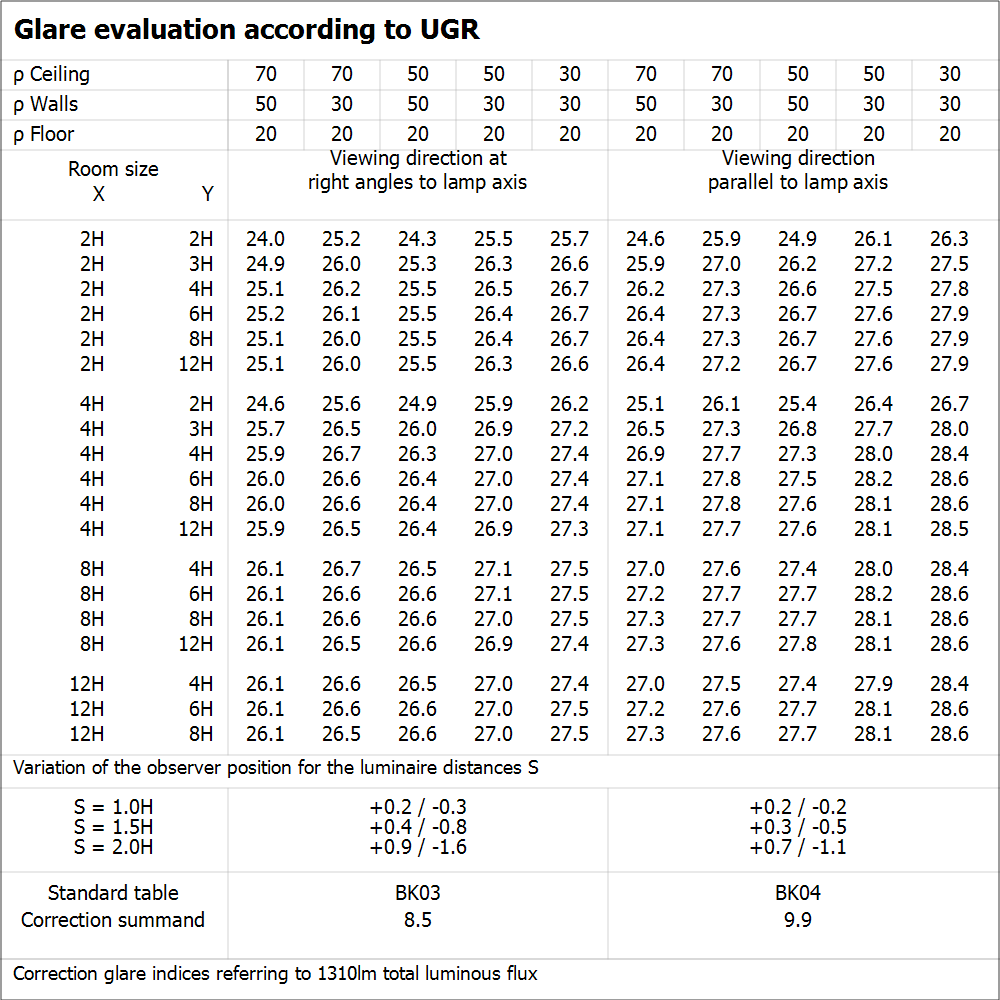

UGR file (UGR table)
