DAMP PROOF SPECIAL
DP SPECIAL 1200 22 W 4000 K WT IP67
GTIN: 4058075452114
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Easy installation as mounting brackets can be positioned freely on the luminaire
- Easy installation, no tools required for connection
- Uniform light distribution
- Energy savings of up to 55 % (compared to luminaires that use fluorescent lamps)
- 5 years guarantee
Areas of application
- Keeping farm animals
- Food industry
- Open car parks and underpasses
- Garages
- Workshops, assembly lines
- Outdoor applications
Product features
- Ammonia resistant
- Sealed housing made of PMMA
- Through-wiring cable already installed
- Type of protection: IP67 (DIN EN 60529), IP69K (ISO 20653:2013)
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 110 mA |
| Inrush current | 13 A |
| Inrush current time Th50 | 230 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 25 |
| Max. number of luminaires per miniature circuit breaker C10 | 23 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 2800 lm |
| Luminous efficacy | 130 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 74.00 mm |
| Length | 1344.00 mm |
| Height | 82.00 mm |
| Product weight | 1130.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polymethylmethacrylate (PMMA) |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP67/IP69K |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Output ripple current | < 10 % |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075452114 | Folding box 1 |
1,347 mm x 108 mm x 108 mm | 2015.00 g | 15.71 dm³ |
| 4058075452121 | Shipping box 6 |
1,365 mm x 231 mm x 344 mm | 13673.00 g | 108.47 dm³ |
User instruction / safety instructions
UI_DP SPECIAL
UI_DP SPECIAL
Legal information
LS Insert DP SPECIAL
LS Insert DP SPECIAL
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration DP Special
CE Declaration DP Special
Certificates
DP SPECIAL WT IP67
DP SPECIAL WT IP67
Certificates
DP SPECIAL WT IP67
DP SPECIAL WT IP67
Certificates
DP SPECIAL
DP SPECIAL

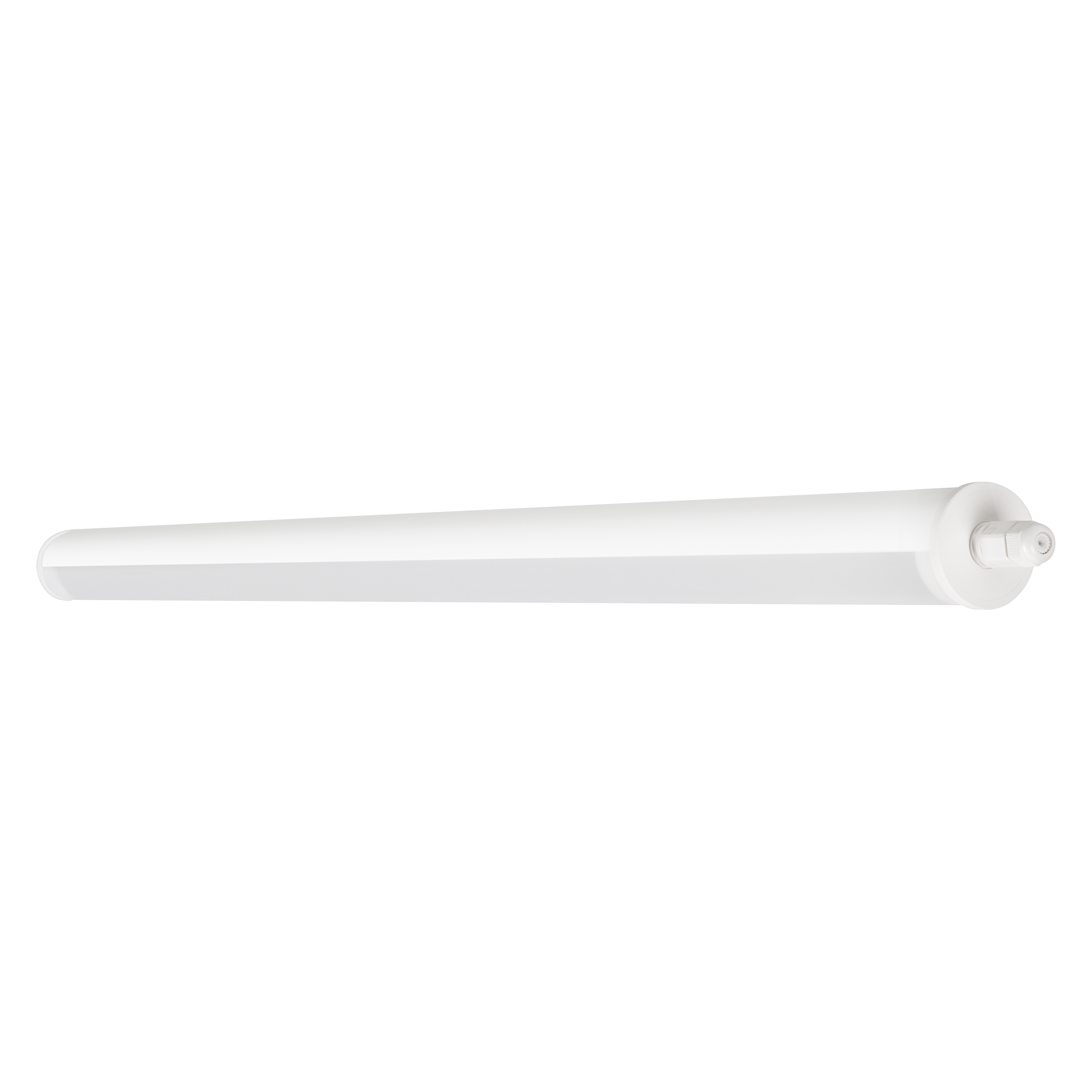

Product image: white background, diagonal
DP SPECIAL
DP SPECIAL
Product line drawing with letters
DP SPECIAL
DP SPECIAL
Product line drawing with numbers
DP_SPECIAL
DP_SPECIAL
Product line drawing - technical
DP SPECIAL
DP SPECIAL

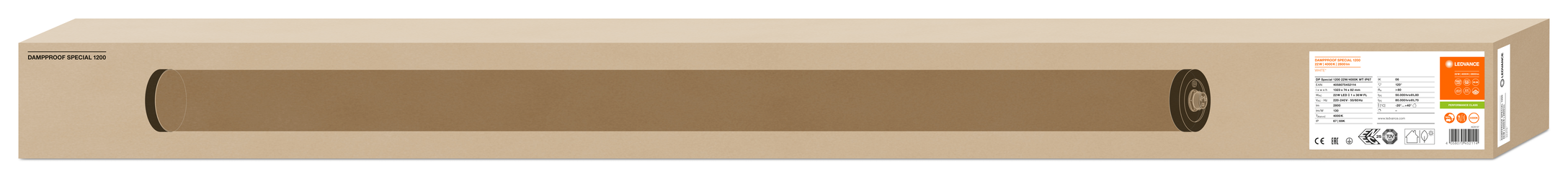

Packaging image, spacial
DampProof Special 1200 22W 840 MiCh
DampProof Special 1200 22W 840 MiCh
Catalog info 1
DP Special Gen 2
DP Special Gen 2
Catalog info 2
DP Special Gen 2
DP Special Gen 2
Catalog info 3
DP Special Gen 2
DP Special Gen 2
IES file (IES)
DP SPECIAL 1200 22W4000K WT IP67
DP SPECIAL 1200 22W4000K WT IP67
LDT file (Eulumdat)
DP SPECIAL 1200 22W4000K WT IP67
DP SPECIAL 1200 22W4000K WT IP67
ULD file (DIALux)
DP SPECIAL 1200 22W-4000K WT
DP SPECIAL 1200 22W-4000K WT
ROLF file (RELUX)
DP SPECIAL 1200 22W-4000K
DP SPECIAL 1200 22W-4000K

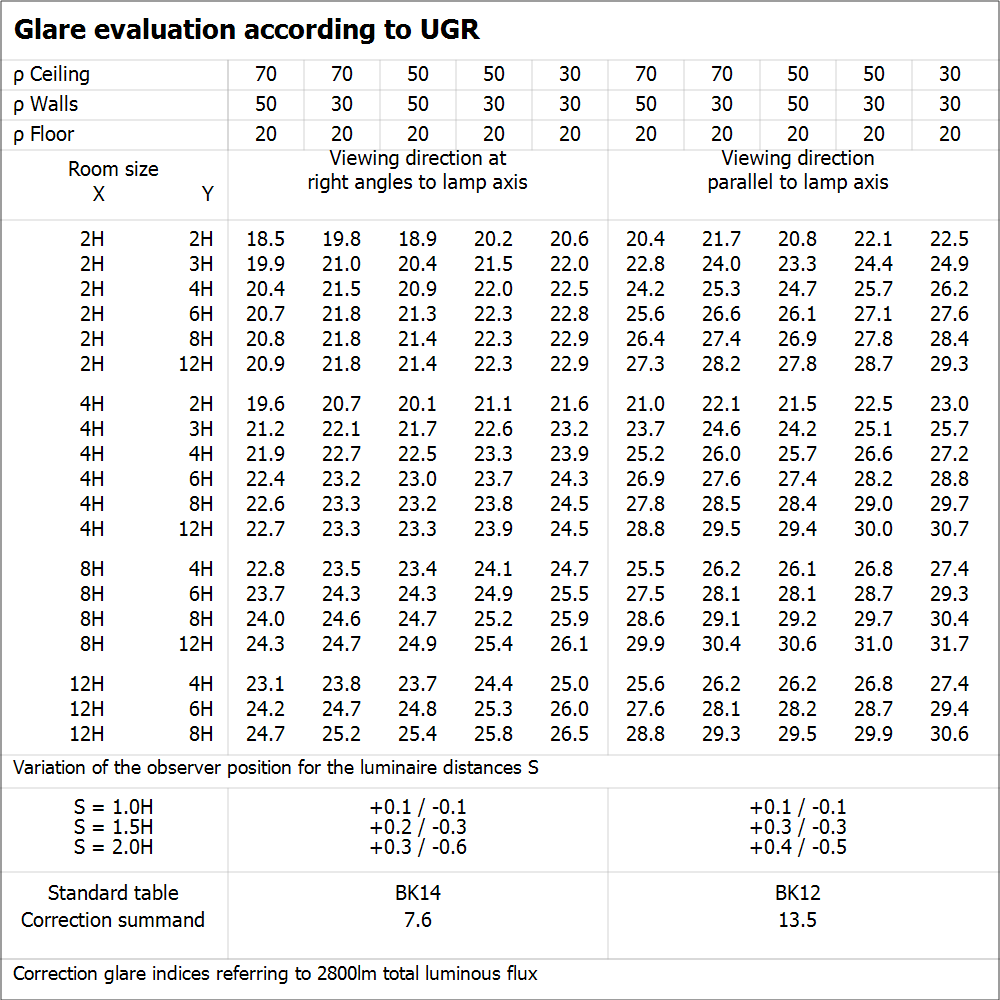

UGR file (UGR table)
