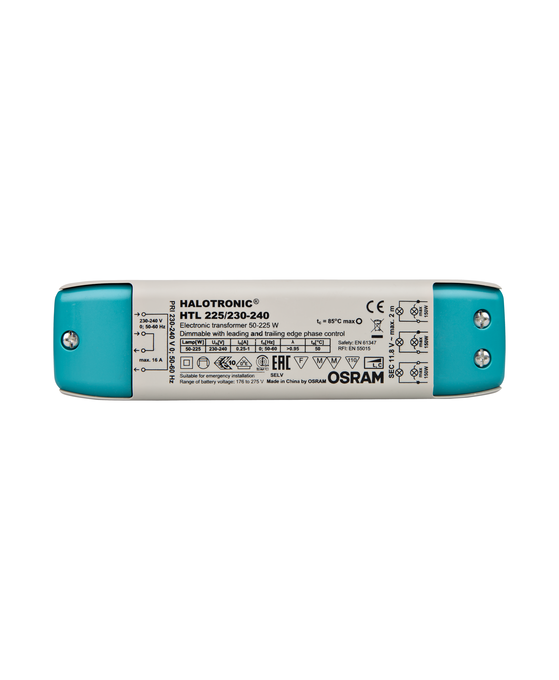

HTL 225/230…240

GTIN: 4008321927026 Unpacked / 1 Show all packages

Contact sales

Very low power loss thanks to high efficacy
Through-wiring possible on the primary side
Large temperature range
Protective operation throughout the entire partial-load range for long lamp life
High efficiency

Line frequency: 50…60 Hz
RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547
Safety: to EN 61347
Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Electrical isolation between the primary side and the secondary side
Dimmable on the leading edge and trailing edge

Nominal wattage	230.00 W
Nominal voltage	230…240 V
Nominal output voltage	11.6 V, 11.7 V ¹⁾
Input voltage range	230…240 V
Input voltage AC	207…264 V
Input voltage DC	176…275 V
Inrush current	1.5 A ²⁾
Mains frequency	50/60 Hz ³⁾
Power factor λ	0.95 ⁴⁾
ECG efficiency	95 % ⁵⁾
Device power loss	9 W ²⁾
Max. ECG no. on circuit breaker 10 A (B)	11
Max. ECG no. on circuit breaker 16 A (B)	18
Operating frequency	50 kHz

¹⁾ 225 W / 50 W
²⁾ Maximum
³⁾ Approximately
⁴⁾ Minimum
⁵⁾ At full load

Length	170.00 mm
Mounting hole spacing, length	140,0 mm
Width	44.00 mm
Height	34.00 mm
Cable cross-section, input side	2.5 mm² ¹⁾
Cable cross-section, output side	4 mm² ¹⁾
Wire preparation length, input side	14 mm, 8.0 mm ²⁾
Wire preparation length, output side	14 mm, 8.0 mm ²⁾
Product weight	225.00 g

¹⁾ Maximum
²⁾ Cable sheath / Wire

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

Encapsulated

Dimmable	Yes
Dimming range	0…100 %
Overheating protection	Automatic switch off, reversible
Overload protection	Automatic switch off, reversible
Short-circuit protection	Automatic switch-off, reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	II
Suitable for emergency lighting	Yes
Type of connection, output side	Screw terminal

Approval marks – approval	ENEC 10, VDE, VDE-EMC, EAC
Standards	Acc. to EN 61347, Acc. to EN 55015, Acc. to EN 61000-3-2, Acc. to EN 61547, Acc. to EN 61047
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
