QUICKTRONIC PROFESSIONAL M
QTP-T/E 1X18,2X18
GTIN: 4008321537065
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- Separate installations thanks to optional cable clamp for K2 and K3 casings
- VDE/VDE EMC certified system
Areas of application
- Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
- Public buildings
- Sports halls and factories
- Suitable for luminaires of protection class I
Product features
- Supply voltage: 220…240 V
- Line voltage: 198…264 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Lamp start with optimum filament preheating
- Energy Efficiency Index EEI: A2
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
- Lamp operation: to EN 60929
- Safety: to EN 61347-2-3
Electrical data
| Nominal wattage | 38.00 W |
| Nominal voltage | 220…240 V |
| Input voltage AC | 198…264 V |
| Input voltage DC | 176…264 V |
| U-OUT (working voltage) | 430 V |
| Mains frequency | 50/60 Hz |
| Max. ECG no. on circuit breaker 10 A (B) | 17 1) |
| Max. ECG no. on circuit breaker 16 A (B) | 28 1) |
| Operating frequency | 40…50 kHz |
1) Type B
Light technical data
| Starting time [PIM] | 1 s |
Dimensions & Weight
| Length | 103.00 mm |
| Mounting hole spacing, length | 94,0 mm |
| Width | 67.00 mm |
| Height | 31.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Product weight | 149.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 75 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 50000 h 1) |
1) At Tcase = 75°C at Tc point / 10% failure rate
Capabilities
| Dimmable | No |
| Max. cable length to lamp/LED module | 2.0 m / 1.0 m |
| Suitable for fixtures with prot. class | I, II |
| End of lamp life safety shutdown | EOL T.2 |
Certificates & Standards
| Approval marks – approval | VDE, VDE-EMC, ENEC 10, GOST, RCM |
| Standards | Acc. to EN 61347-2-3, Acc. to EN 60929, Acc. to EN 55015:2006 + A1:2007, Acc. to EN 61000-3-2, Acc. to EN 61547 |
| Protection class | I/II |
| Type of protection | IP20 |
| Energy efficiency class | A2 |
| EEI – Energy Label | A2 BAT |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321537065 | Unpacked 1 |
149.00 g | ||
| 4008321537072 | Shipping box 20 |
360 mm x 101 mm x 230 mm | 3266.00 g | 8.36 dm³ |
User instruction / safety instructions
596657_EAC QTP-D/E + QTP-T/E
596657_EAC QTP-D/E + QTP-T/E
Declarations of conformity
339525_Declaration of Conformity (GB)
339525_Declaration of Conformity (GB)
Certificates
335169_Manufacturer´s declaration – Lamp/ECG combinations: Frequent switching
335169_Manufacturer´s declaration – Lamp/ECG combinations: Frequent switching
Certificates
334954_ENEC-Marks approval
334954_ENEC-Marks approval
Certificates
504181_VDE-EMC-Certifi cate QTP DL_TE
504181_VDE-EMC-Certifi cate QTP DL_TE
Certificates
334956_EMC-Marks approval – QTP-M
334956_EMC-Marks approval – QTP-M
PRODUCT DATASHEET
502688_ECG lifetime - QUICKTRONIC non DIM
502688_ECG lifetime - QUICKTRONIC non DIM
Product image: white background, diagonal
721425_QTP-T/E 1X18,2X18/220-240
721425_QTP-T/E 1X18,2X18/220-240

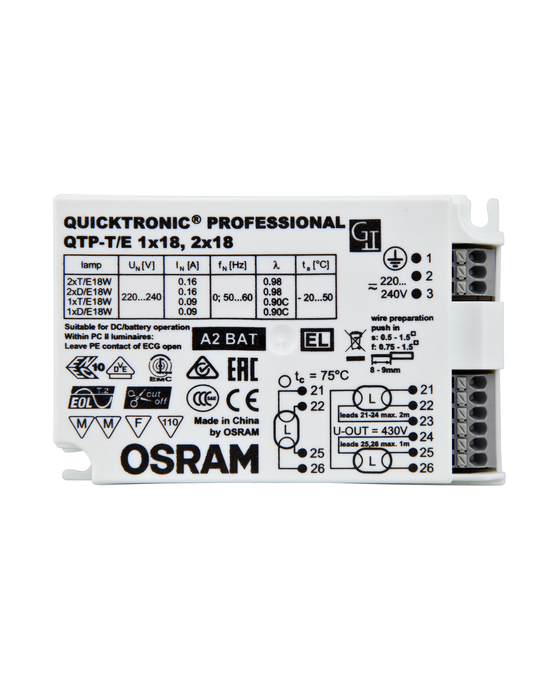

Product image: white background, horizontal
721554_QTP-T/E 1X18,2X18/220-240
721554_QTP-T/E 1X18,2X18/220-240
Product line drawing with letters
47056_QUICKTRONIC QT-T/E EZ-TRONIC POPULAR EZ-T/E 1x13 1x18 1x26 2x13 2x18 2x26
47056_QUICKTRONIC QT-T/E EZ-TRONIC POPULAR EZ-T/E 1x13 1x18 1x26 2x13 2x18 2x26
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321537065 | 7980338 | 4030041 | 6659885 | 919440810 |
