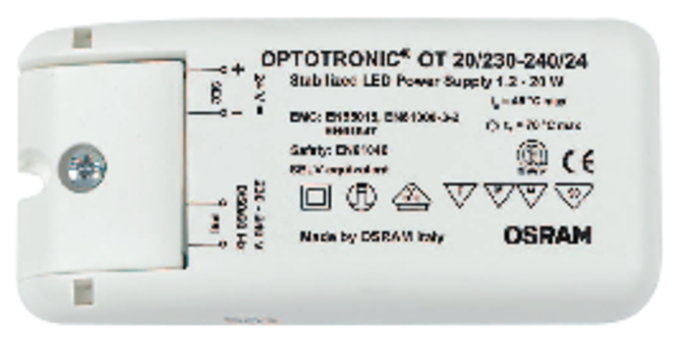

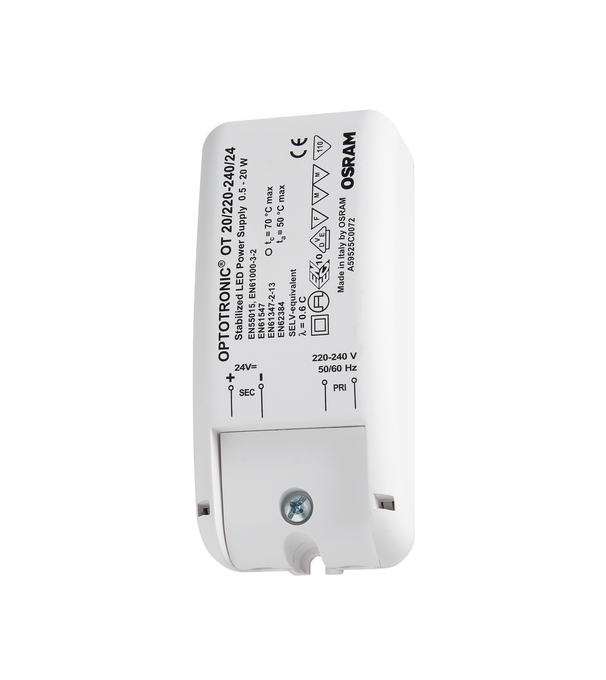

OT 20/220…240/24

GTIN: 4050300618111 Unpacked / 1 Show all packages

Contact sales

Installation in cold and hot environments
Very stable output power
High electronical reversible short-circuit, overload, overtemperature protection
Independent installation possible

Nominal wattage	20.00 W
Nominal output power	20 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	24 V ²⁾
Input voltage AC	198…264 V ³⁾
U-OUT (working voltage)	24 V
Nominal current	0.35 A
Inrush current	17 A
Mains frequency	50/60 Hz
Total harmonic distortion	150 %
Power factor λ	0.50 ⁴⁾
ECG efficiency	83 %
Device power loss	4 W ⁵⁾
Max. ECG no. on circuit breaker 10 A (B)	-
Max. ECG no. on circuit breaker 16 A (B)	-
Max. ECG no. on circuit breaker 25 A (B)	-
Surge capability (L-N)	1 kV
Galvanic isolation	SELV

¹⁾ Partial load 0.5…20 W
²⁾ ±1.0 V / Line ripple maximum ±0.2 V
³⁾ Permitted voltage range
⁴⁾ Minimum
⁵⁾ Maximum

Length	109.00 mm
Width	50.00 mm
Height	35.00 mm
Cable cross-section, input side	0.75…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Wire preparation length, input side	10 mm
Wire preparation length, output side	10 mm
Product weight	108.00 g

Casing material	Plastic
Body material	Plastic

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	70 °C
Max.housing temperature in case of fault	90 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

30000 h

Encapsulated

Dimmable	No ¹⁾
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	10 m
Suitable for fixtures with prot. class	II
Type of connection, output side	Screw terminal

¹⁾ With OPTOTRONIC dimmers

Approval marks – approval	CE, ENEC 10, VDE, VDE-EMC, C-Tick
Standards	Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to EN 55015, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 61547
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
