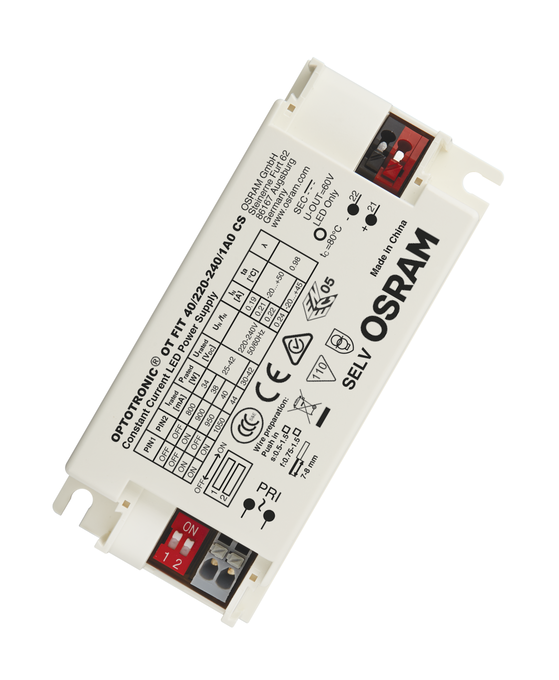

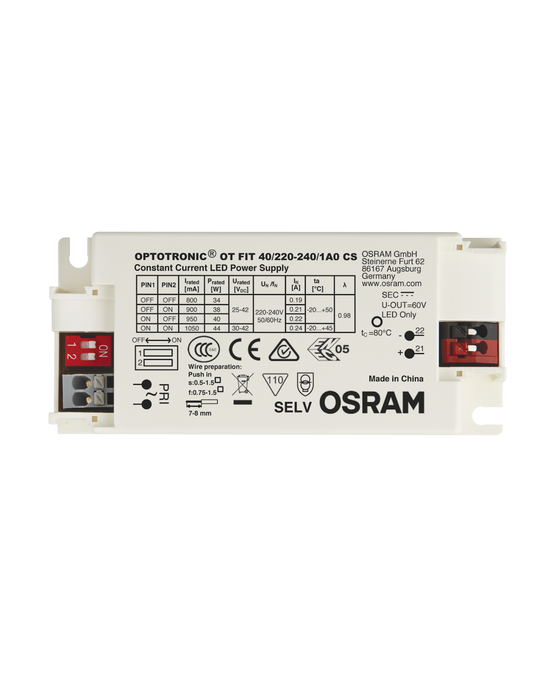

OT FIT 40/220…240/1A0 CS

GTIN: 4052899435650 Unpacked / 1 Show all packages

Contact sales

Nominal wattage	40.00 W
Nominal output power	20…44 W
Nominal voltage	220…240 V
Nominal output voltage	25…42 V
Input voltage AC	198…264 V
U-OUT (working voltage)	60 V
Nominal current	0.19 A
Nominal output current	800 mA, 900 mA, 1050 mA, 950 mA
Inrush current	16 A
Output current tolerance	±7,5 %
Output ripple current (100 Hz)	< 5 %
Mains frequency	50/60 Hz
Total harmonic distortion	< 10 % ¹⁾
Power factor λ	0.98
ECG efficiency	90 % ²⁾
Device power loss	4,9 W ³⁾
Max. ECG no. on circuit breaker 10 A (B)	16
Max. ECG no. on circuit breaker 16 A (B)	25
Max. ECG no. on circuit breaker 25 A (B)	-
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV

¹⁾ At full load, 230 V, 50 Hz / see graphs
²⁾ At full load and 230 V / At 50 Hz
³⁾ At 230 V, Input power 49 W max.

Length	97.00 mm
Mounting hole spacing, length	88,0 mm
Width	43.00 mm
Height	29.50 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Wire preparation length, input side	7…8 mm
Wire preparation length, output side	7…8 mm
Product weight	110.00 g

Casing material	Plastic
Body material	Plastic

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

50000 h, 30000 h ¹⁾

¹⁾ T_c = 70°C, with max. 10% failure rate / T_c = 80°C, with max. 10% failure rate

Encapsulated

Dimmable	No
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	II
Type of connection, output side	Push terminal

Approval marks – approval	CCC, CE, RCM, ENEC 05
Standards	Acc. to IEC 61347-1, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to CISPR 15, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 61547
Protection class	II
Type of protection	IP20

Temperature range at storage

-20…80 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
