SENSOR CEILING FLUSH IP20

SENSOR CEILING FLUSH 360DEG IP20 WT

GTIN: 4058075240315 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Sensor for optimized energy savings
  • Compact design
Areas of application
  • Indoor
  • Stairways
  • Basement
  • Restrooms
Product features
  • 2 operating modes selectable (light 6h continous on, switch-on by movement)
  • Type of protection: IP20
  • Protection class: II
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II
Dimensions & Weight
Diameter 83 mm
Height 63.00 mm
Product weight 80.00 g
Materials & Colors
Product color White
Body material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -25…+70 °C
Type of connection Screw terminal, 3-Pole
Type of protection IP20
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Light, Motion
Sensor technology Passive infrared (PIR)
Sensor detection angle 360 °
Sensor controlled switching time 2 s…15 min
Detection range of motion sensor 6 m
Detection threshold of daylight sensor 1…1000 lx
Certificates & Standards
Standards CE, EAC, UKCA
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075240315 Folding box
1		 90 mm x 90 mm x 72 mm 106.00 g 0.58 dm³
4058075240322 Shipping box
8		 190 mm x 190 mm x 160 mm 1163.00 g 5.78 dm³
User instruction / safety instructions
SENSOR CEILING FLUSH
PDF (1.79 MB)
Declarations of conformity
SENSOR CEILING WALL
PDF (4.24 MB)

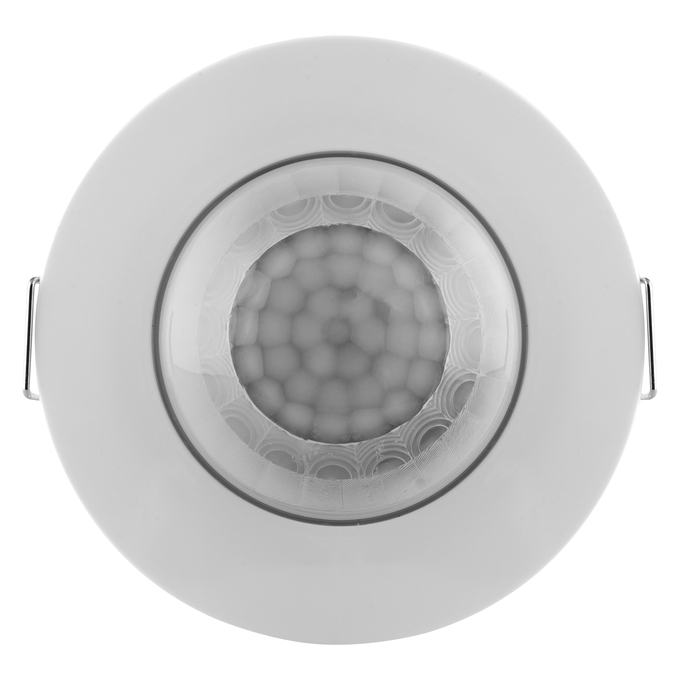

Product image: white background, diagonal
SENSOR C FLUSH 360DEG IP20
JPG (1.85 MB)

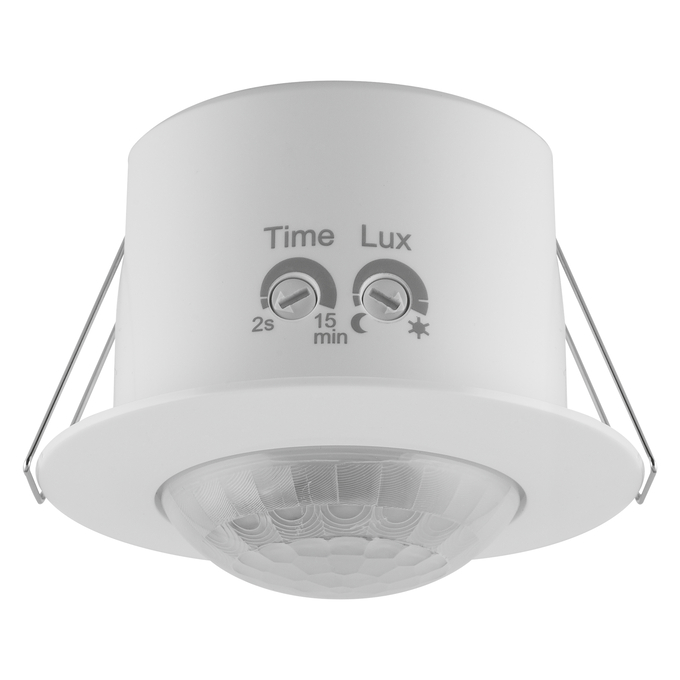

Product image: white background, upright
SENSOR C FLUSH 360DEG IP20
JPG (1.98 MB)
Product line drawing with letters
SENSOR C FLUSH 360DEG IP20
SVG (18.55 KB)
Product line drawing with numbers
SENSOR C FLUSH 360DEG IP20
SVG (27.89 KB)

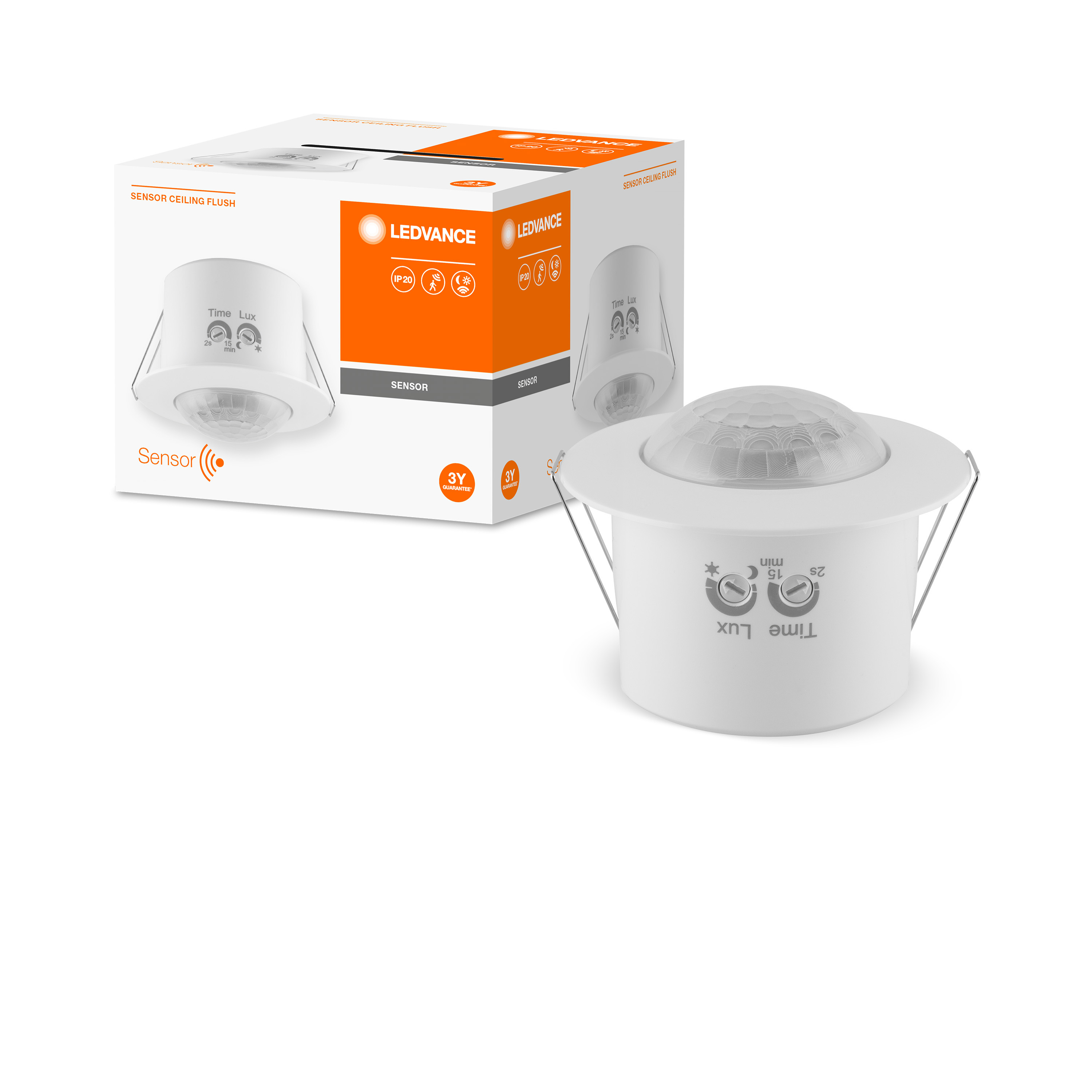

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SEN CEIL 360DEG IP20 WT MiPRC
JPG (597.26 KB)

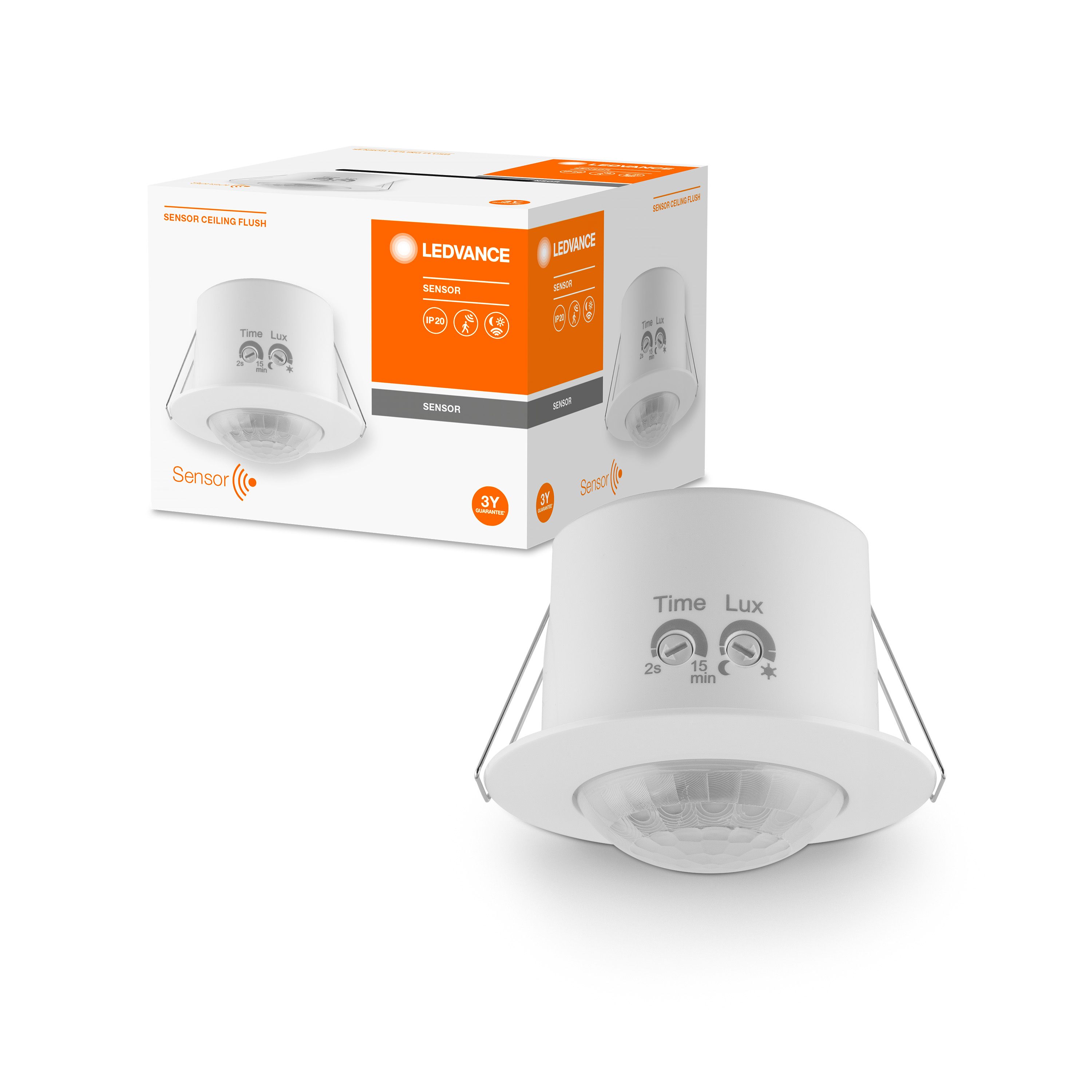

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SEN CEIL 360DEG IP20 WT MiPRC
JPG (550.73 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SEN CEIL 360DEG IP20 WT MiPRC
JPG (633.71 KB)

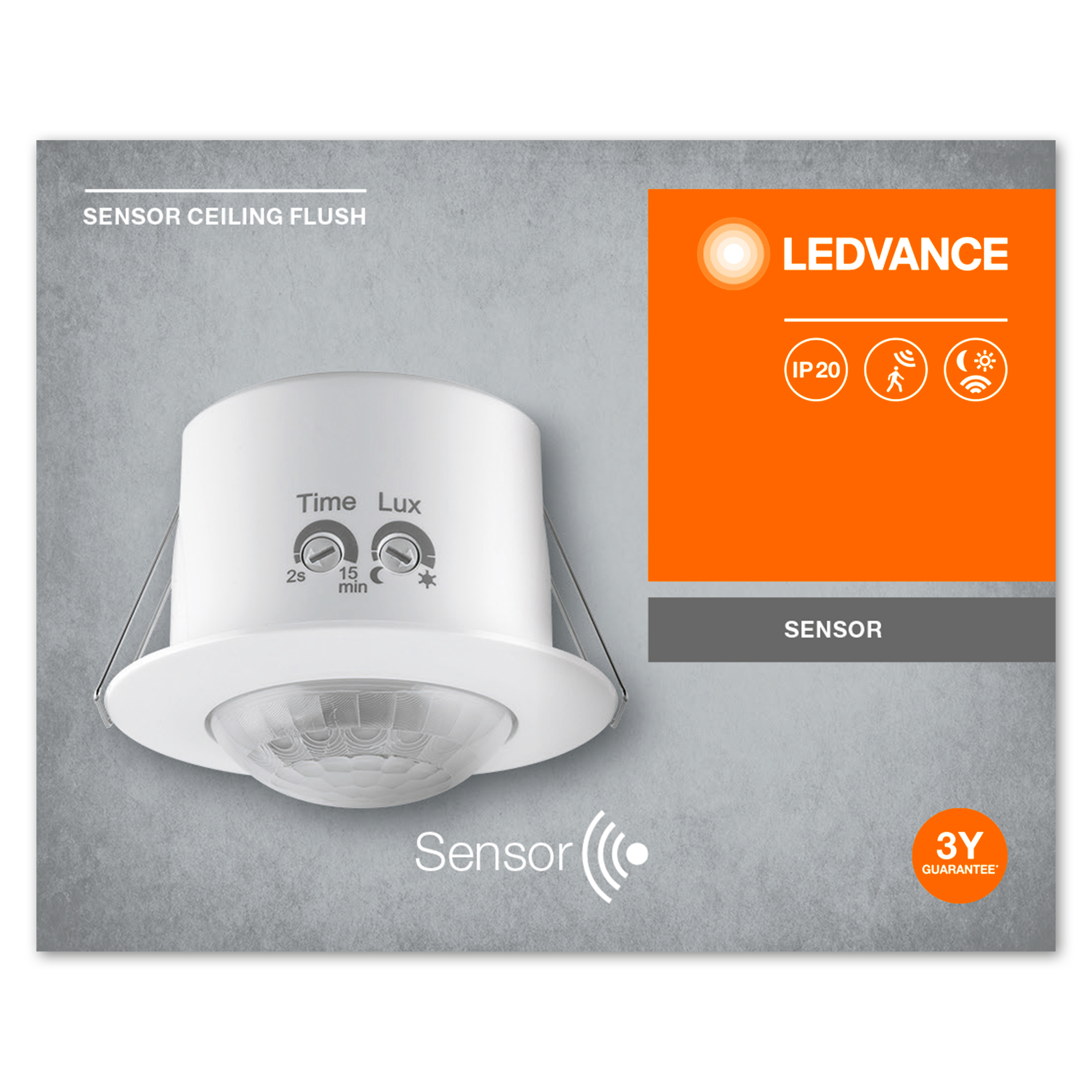

Packaging image, frontal
LUM FC SEN CEIL 360DEG IP20 WT MiPRC
JPG (2.09 MB)

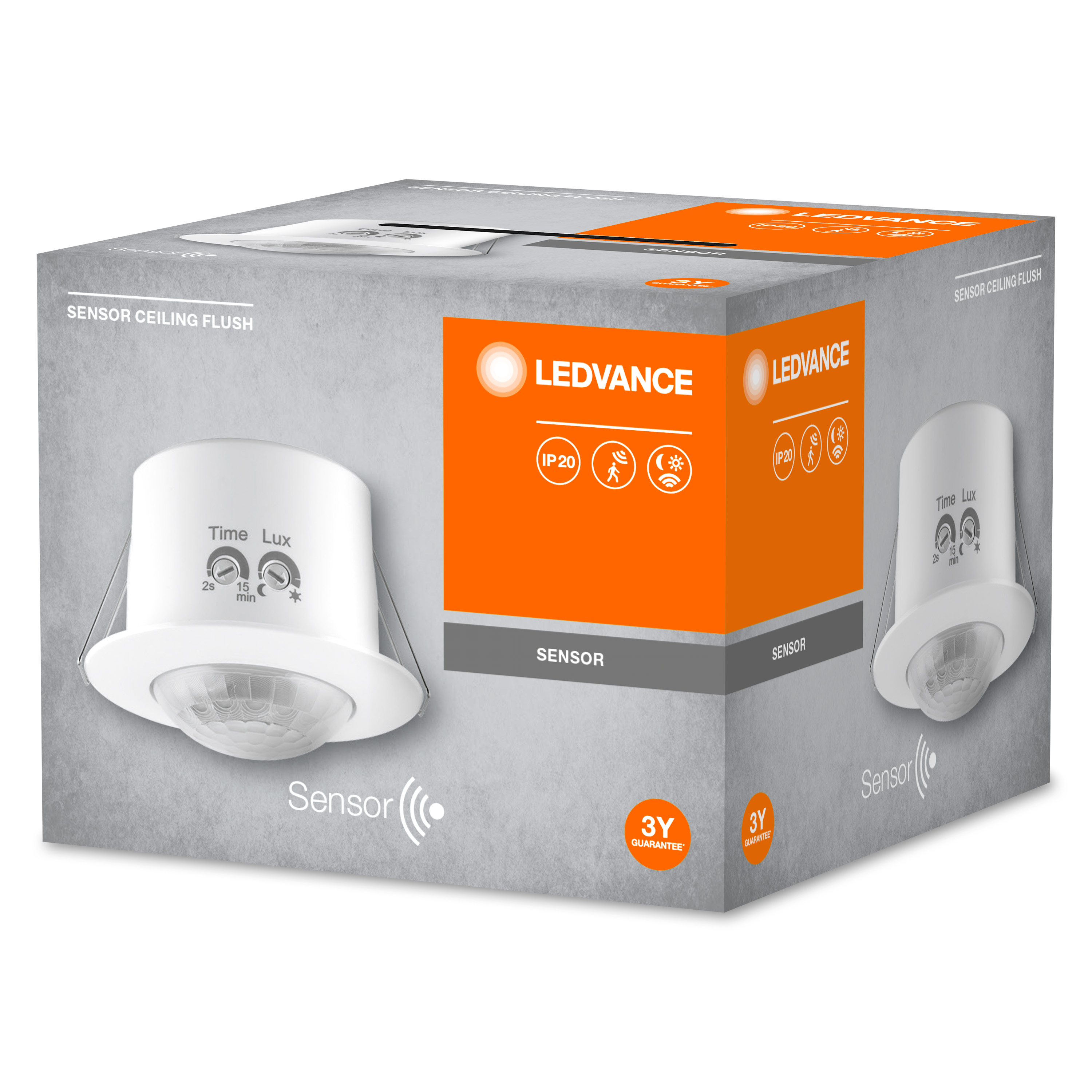

Packaging image, spacial
SENSOR CEILING FLUSH 360DEG IP20_WT MiPRC Side
TIF (914.56 KB)
Application pictures
Endura Pro Sensor Ceiling 360DEG application night with sensor luminaire and person
JPG (4.44 MB)
Application pictures

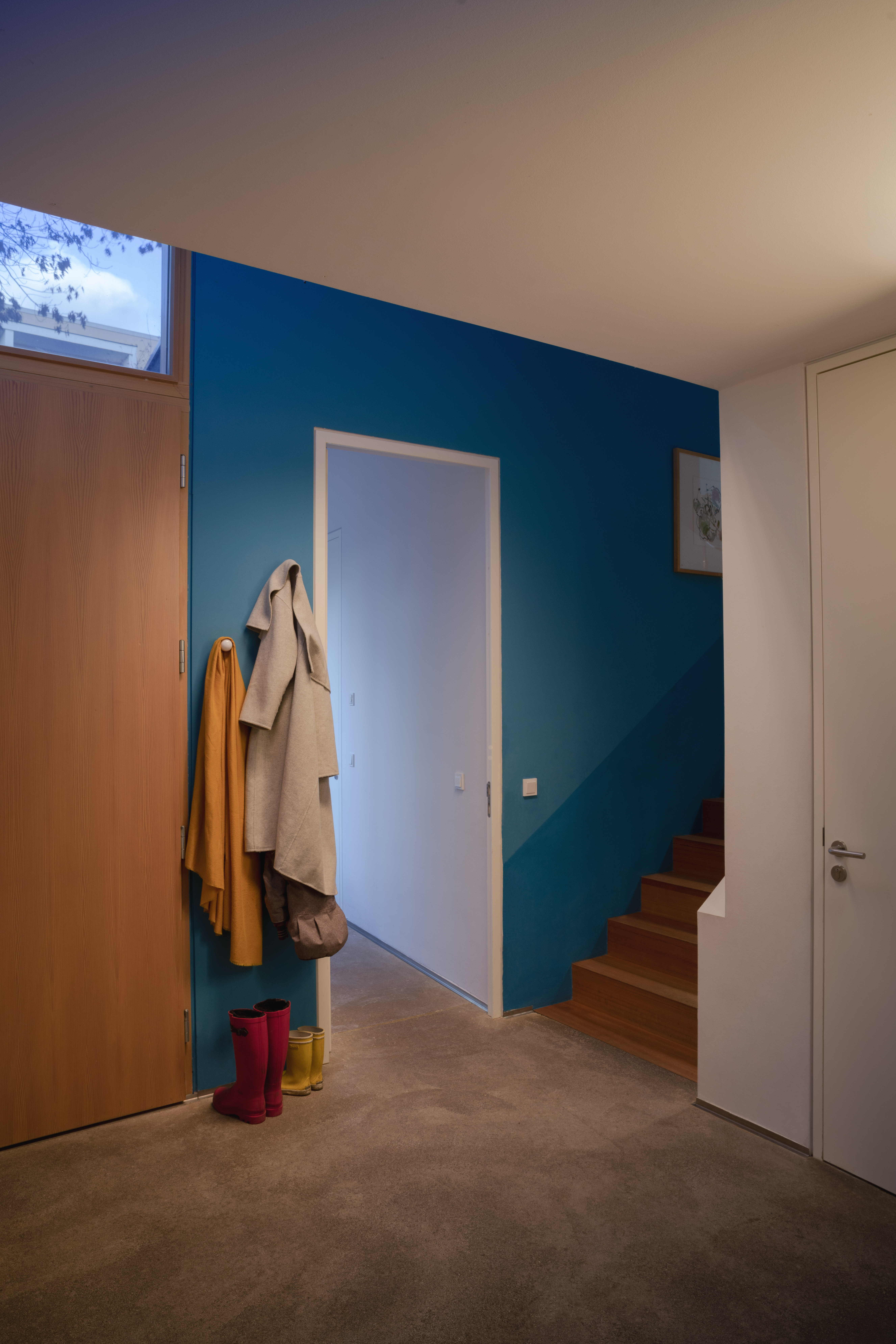

Endura Pro Sensor Ceiling 360DEG application night
JPG (4.32 MB)
Application pictures
Endura Pro Sensor Ceiling 360DEG application night with sensor luminaire
JPG (4.35 MB)
EAN ELDAS number
4058075240315 941930380
