ENDURA GARDEN DOT
ENDURA Garden 9 Dots 3000K
GTIN: 4058075478411
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Gardens, balconies and other outdoor areas
Product features
- Protection class (dots): IP65
- Protection class (power supply): IP44
- Extension up to maximum 18 dots
- Color temperature: 3,000 K (Warm White)
Equipment / Accessories
- Power supply included only in basic set
- Complete mounting and connecting accessories included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.5 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 480 lm |
| Total luminous flux of contained light sources | 630 lm |
| Luminous efficacy | 63 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 33.00 ° |
Dimensions & Weight
| Diameter | 23.00 mm |
| Height | 96.00 mm |
| Width | 23.00 mm |
| Product weight | 340.00 g |
Materials & Colors
| Product color | Clear |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP65 |
| Dimmable | No |
| Mounting type | Ground spike |
| Mounting location | Ground |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075478411 | Folding box 1 |
132 mm x 122 mm x 104 mm | 388.00 g | 1.67 dm³ |
| 4058075478428 | Shipping box 4 |
278 mm x 258 mm x 129 mm | 1855.00 g | 9.25 dm³ |
User instruction / safety instructions
ENDURA GARDEN DOT
ENDURA GARDEN DOT
Declarations of conformity
ENDURA GARDEN DOT EXT3P 2,1W TP LEDV
ENDURA GARDEN DOT EXT3P 2,1W TP LEDV
Product datasheet -> old version of product
4058075478411 ENDURA GARDEN 9 Dot 6W en old
4058075478411 ENDURA GARDEN 9 Dot 6W en old

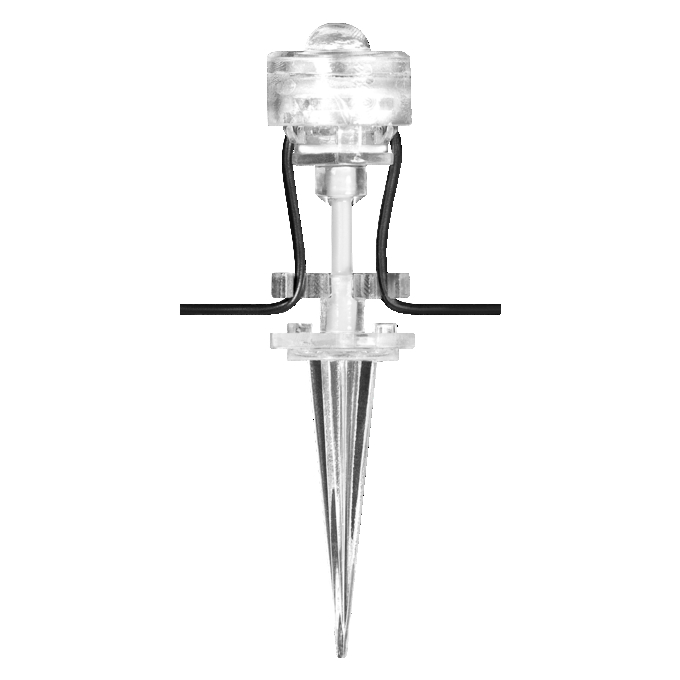

Product image: white background, upright
ENDURA GARDEN DOT 9P 6W TP
ENDURA GARDEN DOT 9P 6W TP

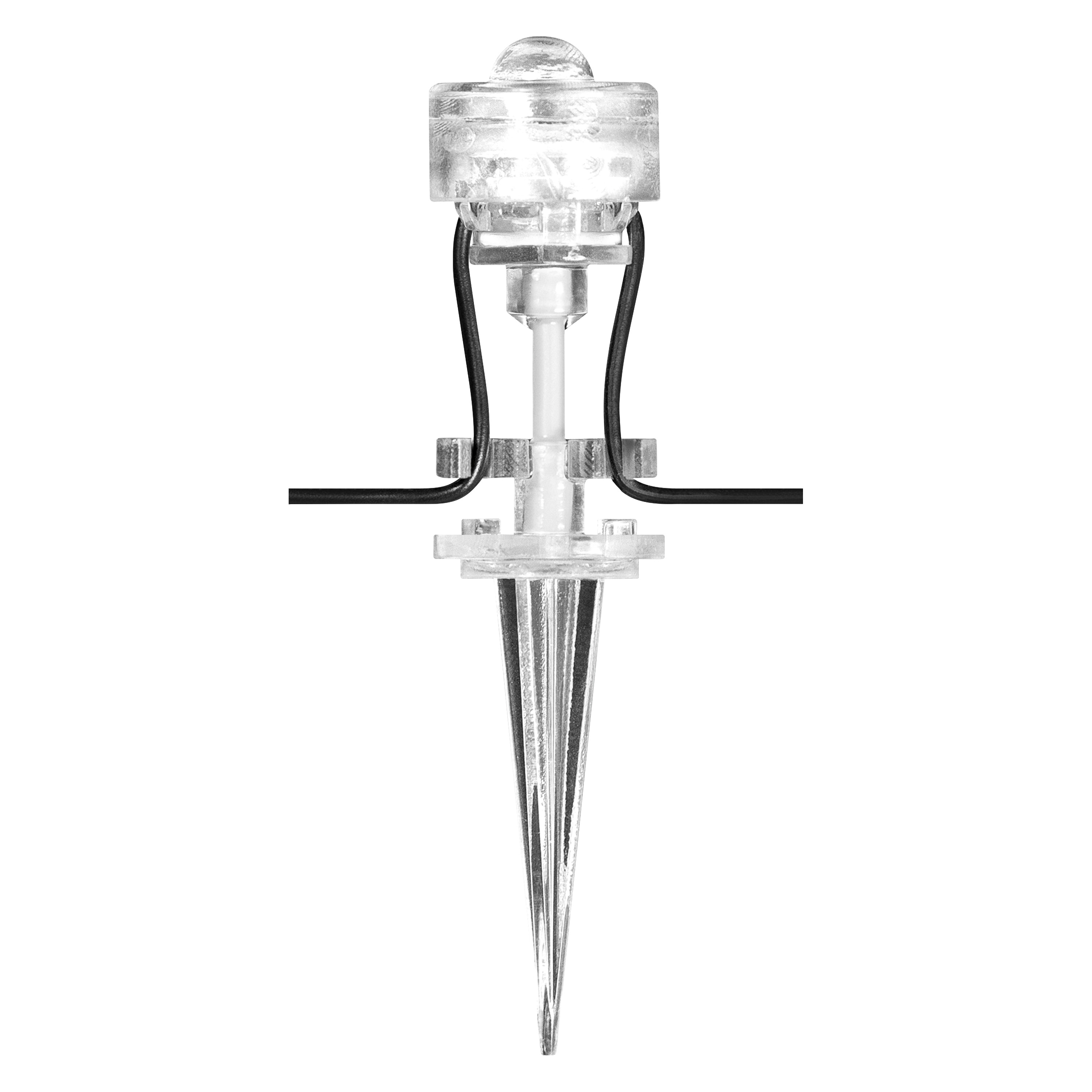

Product image: white background, upright, alternative image
ENDURA GARDEN DOT 9P 6W TP
ENDURA GARDEN DOT 9P 6W TP

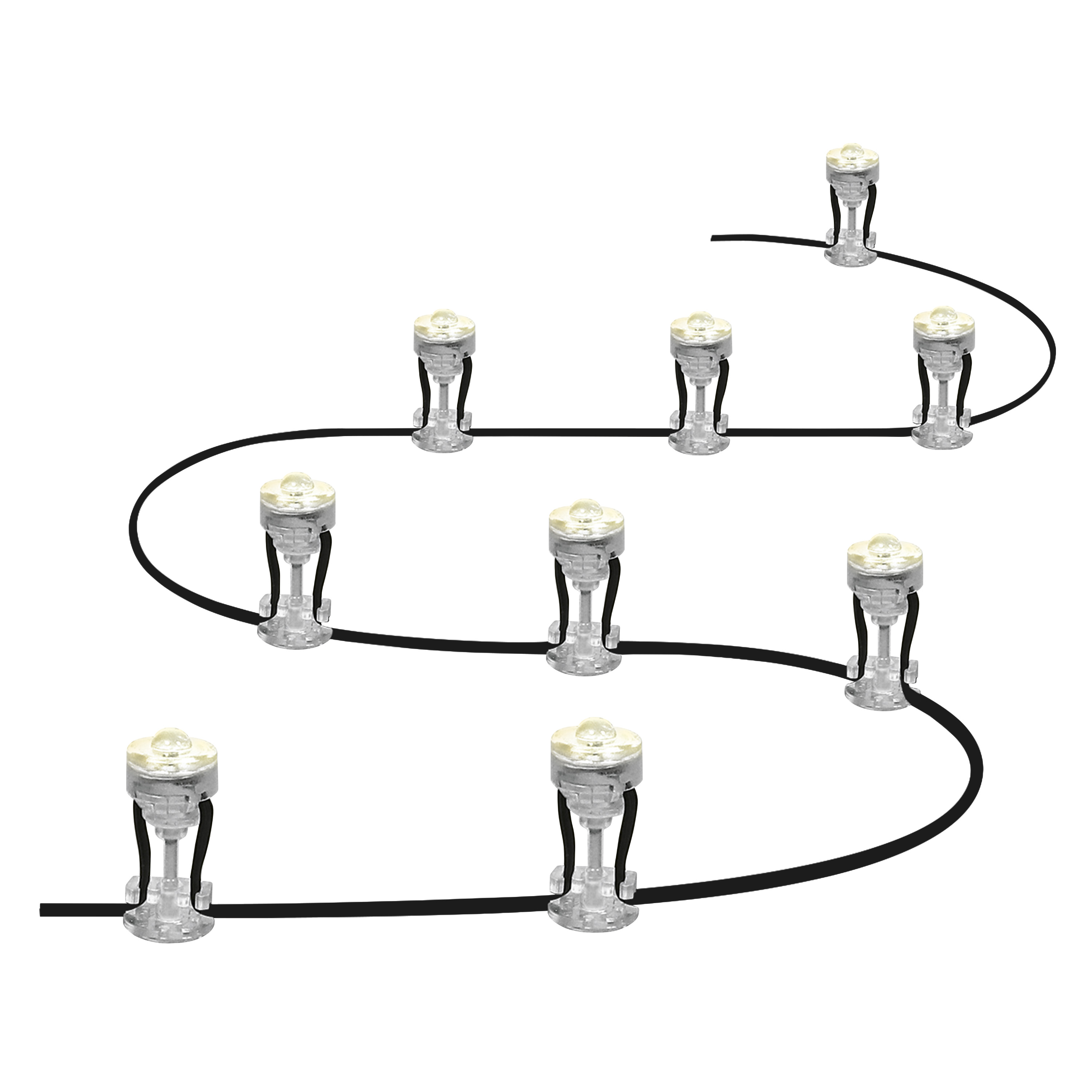

Product image: white background, upright, switched on
ENDURA GARDEN DOT 9P 6W TP
ENDURA GARDEN DOT 9P 6W TP
Product line drawing with letters
ENDURA GARDEN DOT 9P 6W TP
ENDURA GARDEN DOT 9P 6W TP
Product line drawing with numbers
ENDURA GARDEN DOT 9P 6W TP
ENDURA GARDEN DOT 9P 6W TP
Product line drawing, front, no dimensions
ENDURA GARDEN DOT 9P 6W TP
ENDURA GARDEN DOT 9P 6W TP

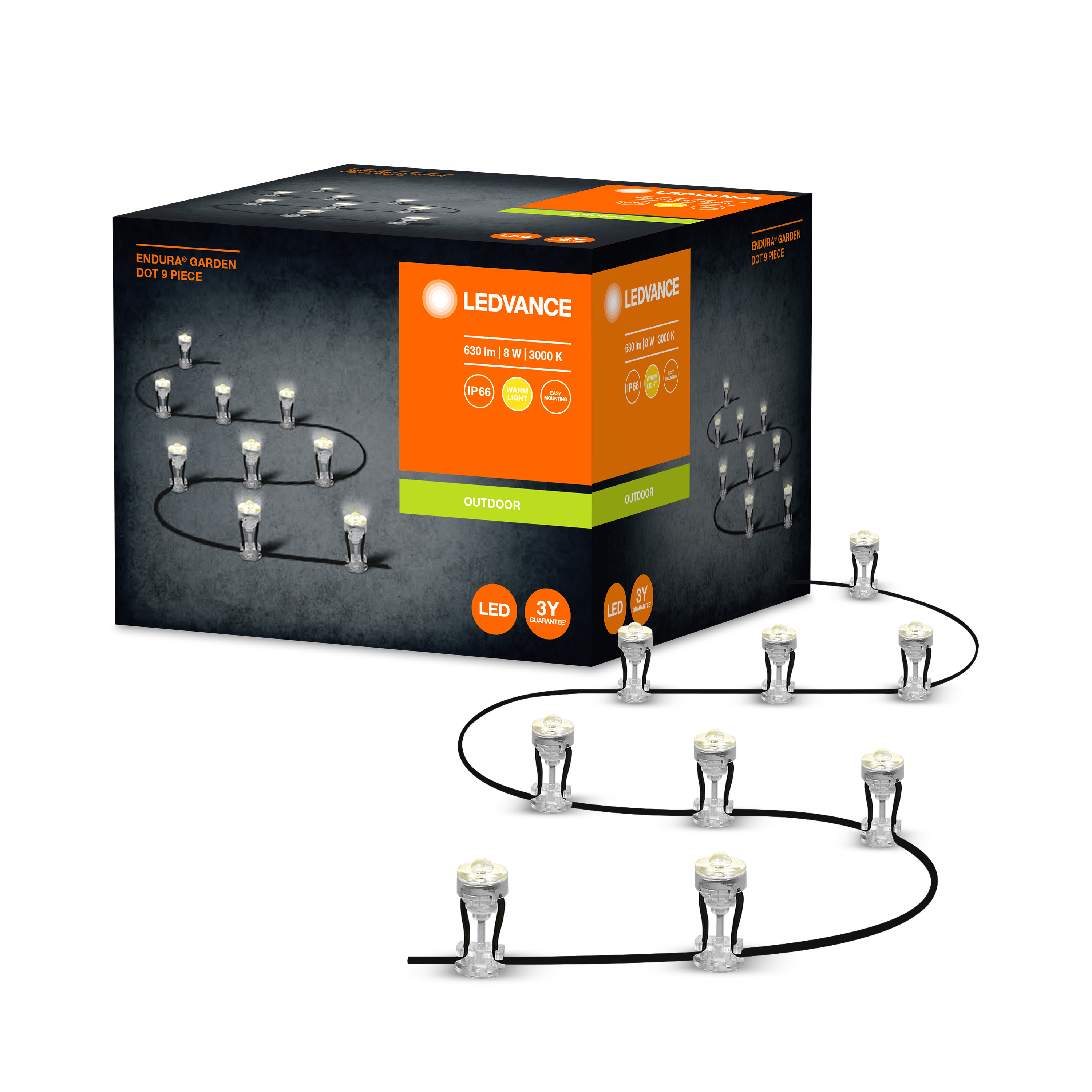

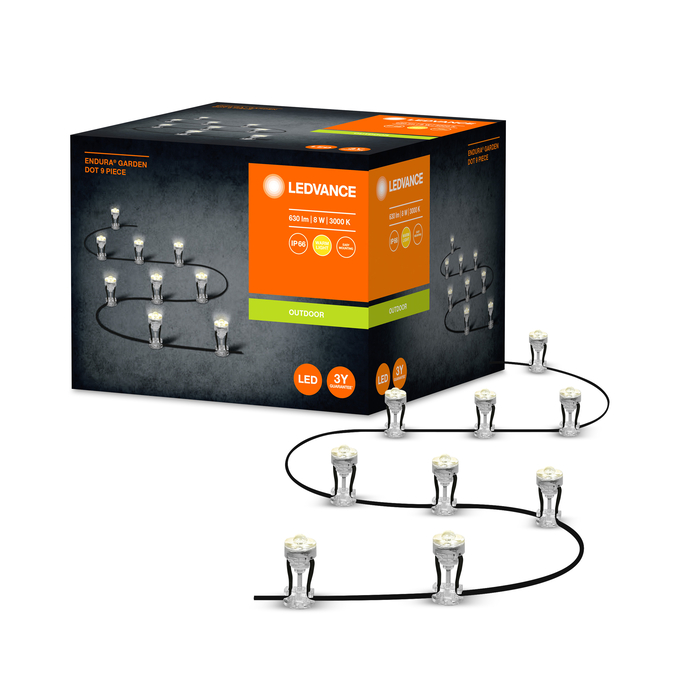

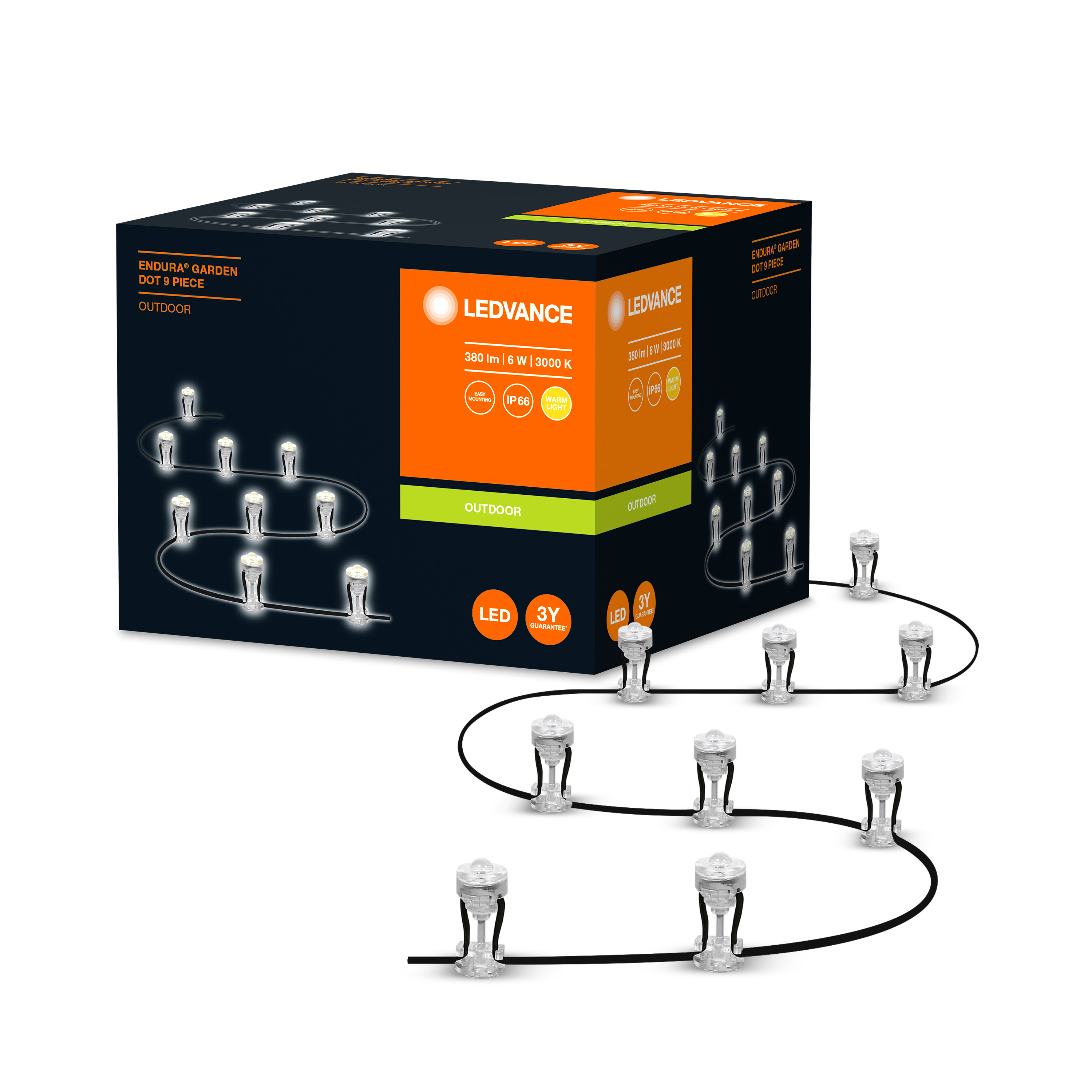

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC E GARDEN DOT 9P 6W MiPRC
LUM FC E GARDEN DOT 9P 6W MiPRC

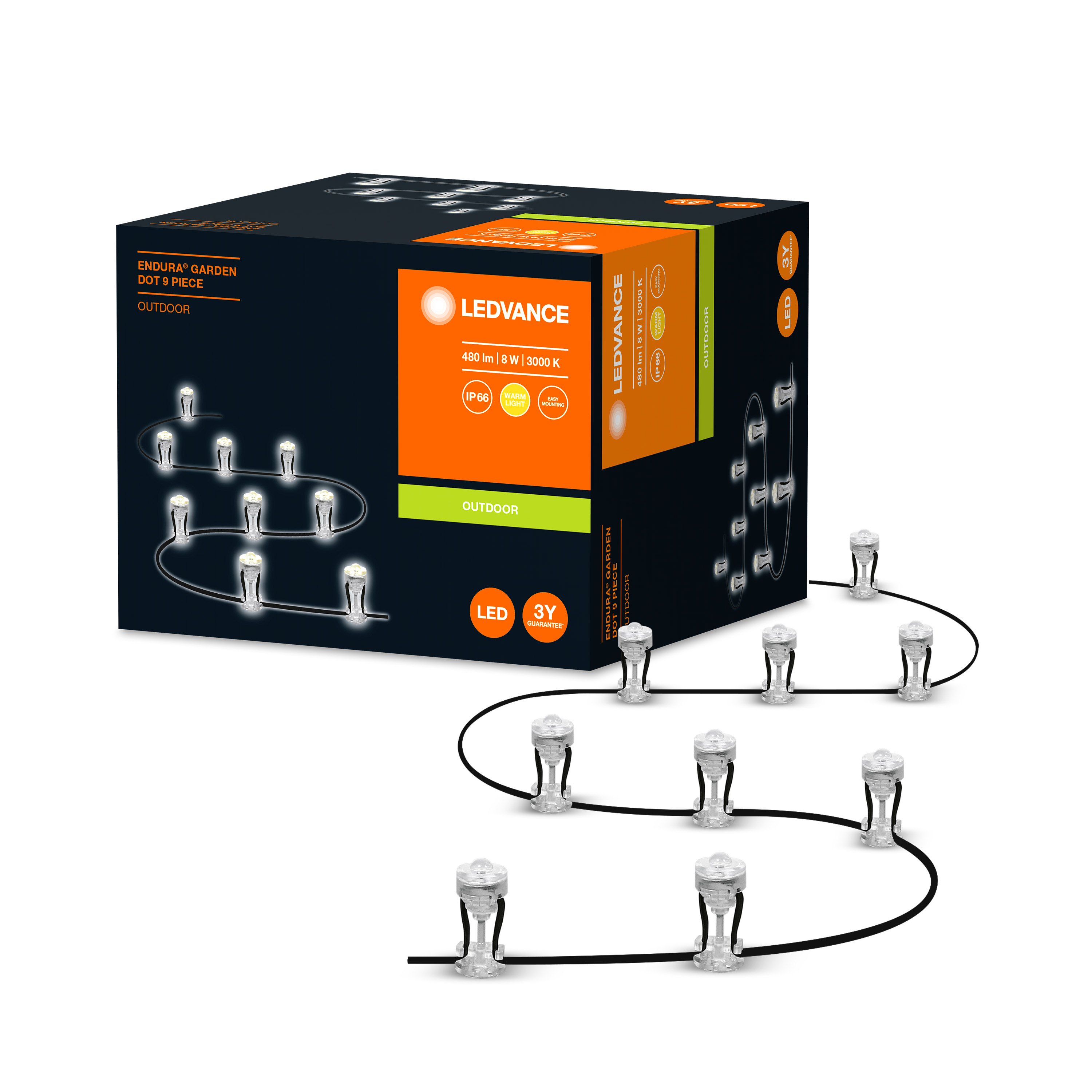

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC E GARDEN DOT 9P 830 MiPRC
LUM FC E GARDEN DOT 9P 830 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ENDURA GARDEN DOT 9P MiPRC
LUM FC ENDURA GARDEN DOT 9P MiPRC

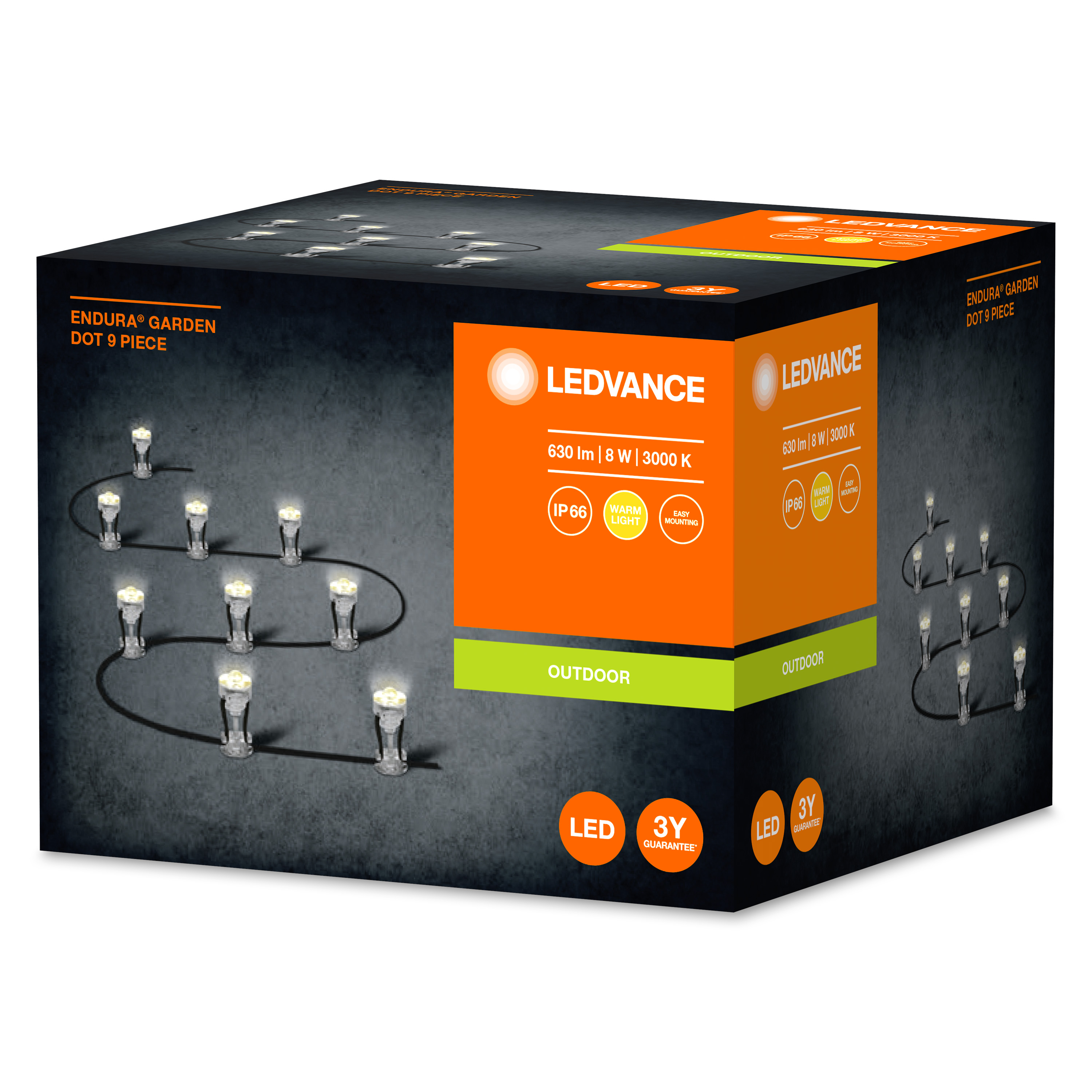

Packaging image, frontal
LUM FC E GARDEN DOT 9P 6W MiPRC
LUM FC E GARDEN DOT 9P 6W MiPRC
Packaging image, spacial
LUM FC E GARDEN DOT 9P 6W MiPRC
LUM FC E GARDEN DOT 9P 6W MiPRC

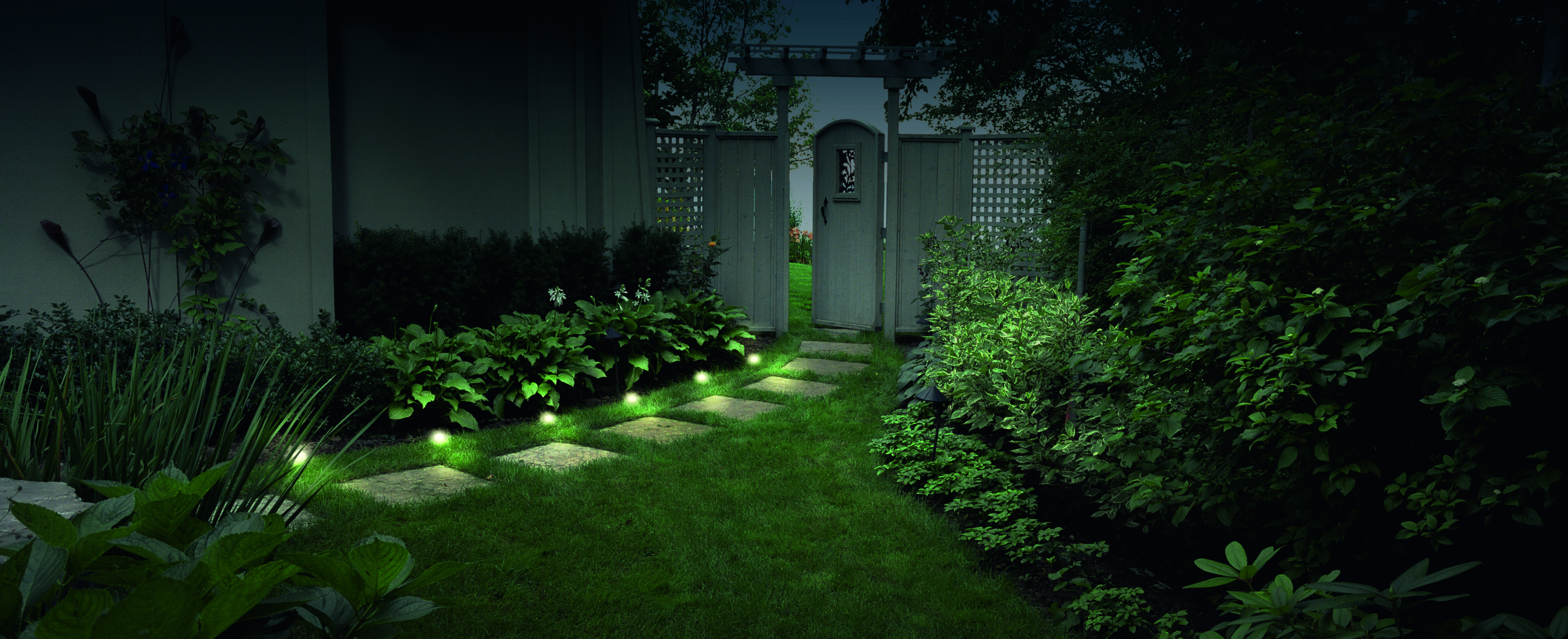

Application pictures

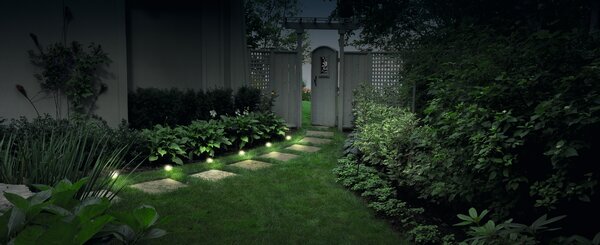

Private Garden - stock photo RET
Private Garden - stock photo RET
Application pictures

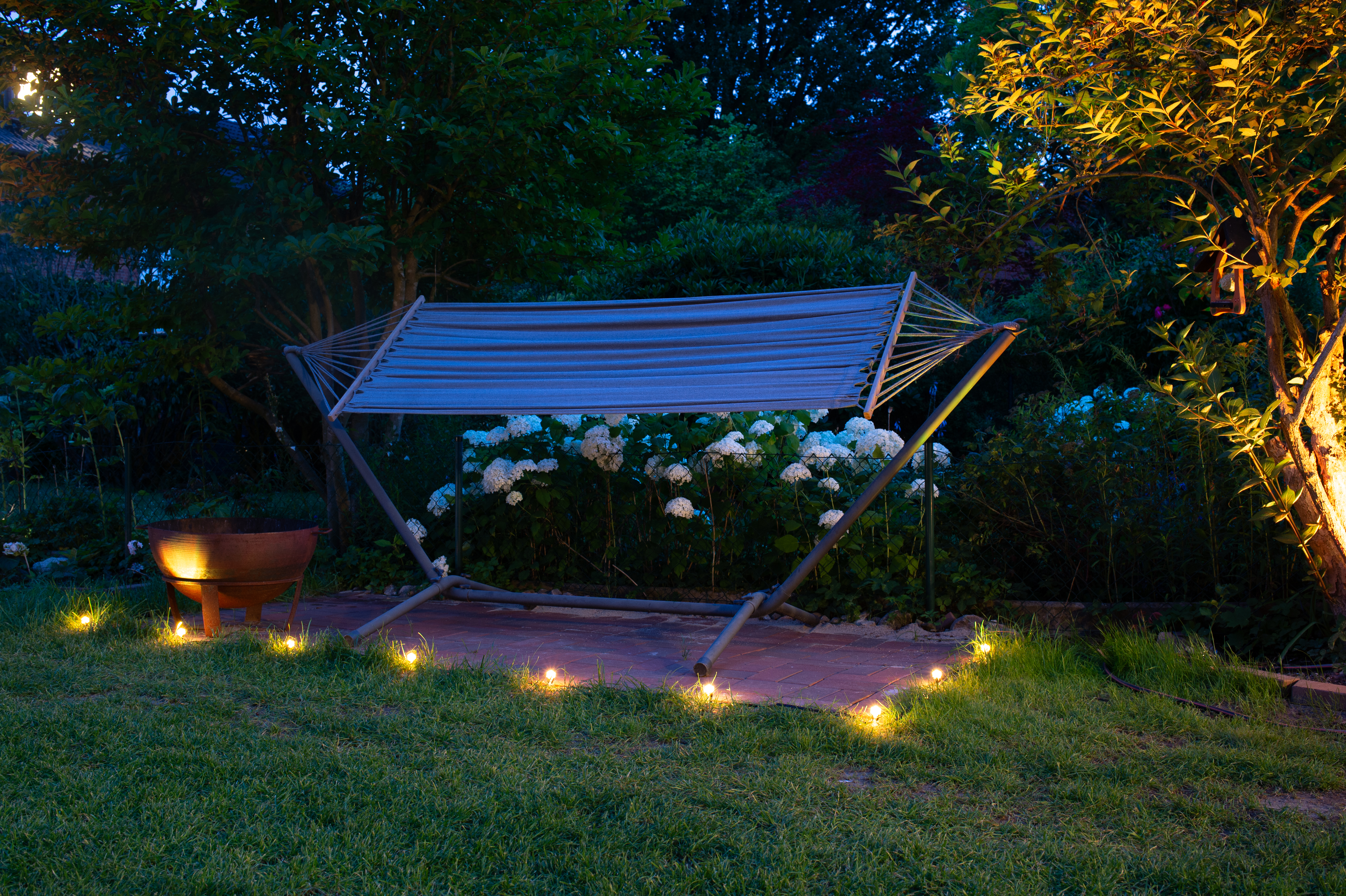

Hammock along Fireplace with Ground Lights in Backyard
Hammock along Fireplace with Ground Lights in Backyard
Application pictures Getty

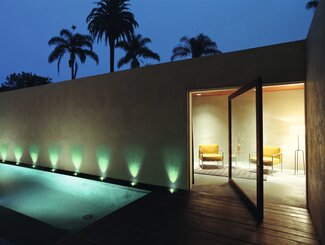

OUTDOOR GARDEN DOT GREEN LIGHT
