LED SPOT RECESS TWIST PRO
Spot Twist 93mm 10W 3000K White White
GTIN: 4099854089145
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy savings of up to 90 % compared to halogen lamp spotlights
- Easy installation and electrical connection thanks to tool-free electrical connectors
Areas of application
- Indoor applications
- General illumination
Product features
- Silicon-pad protected springs
Equipment / Accessories
- Connector box not included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 100.000 mA |
| Inrush current | < 25 A |
| Inrush current time Th50 | 10 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 120 |
| Max. number of luminaires per miniature circuit breaker C10 | 70 |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Power factor λ | ≥0.5 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 800 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Luminous intensity | 2500 |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 30 ° |
Dimensions & Weight
| Diameter | 93.00 mm |
| Height | 94.00 mm |
| Product weight | 210.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum|Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting diameter | 85 mm |
| Mounting depth | 100 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 230 mA |
| ECG - Length | 82 mm |
| ECG - Width | 35 mm |
| ECG - Height | 25 mm |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854089145 | Folding box 1 |
109 mm x 124 mm x 114 mm | 261.00 g | 1.54 dm³ |
| 4099854089152 | Shipping box 20 |
580 mm x 270 mm x 245 mm | 5780.00 g | 38.37 dm³ |
User instruction / safety instructions
UI Spot Twist
UI Spot Twist
Declarations of conformity
CE Declaration Spot Twist
CE Declaration Spot Twist

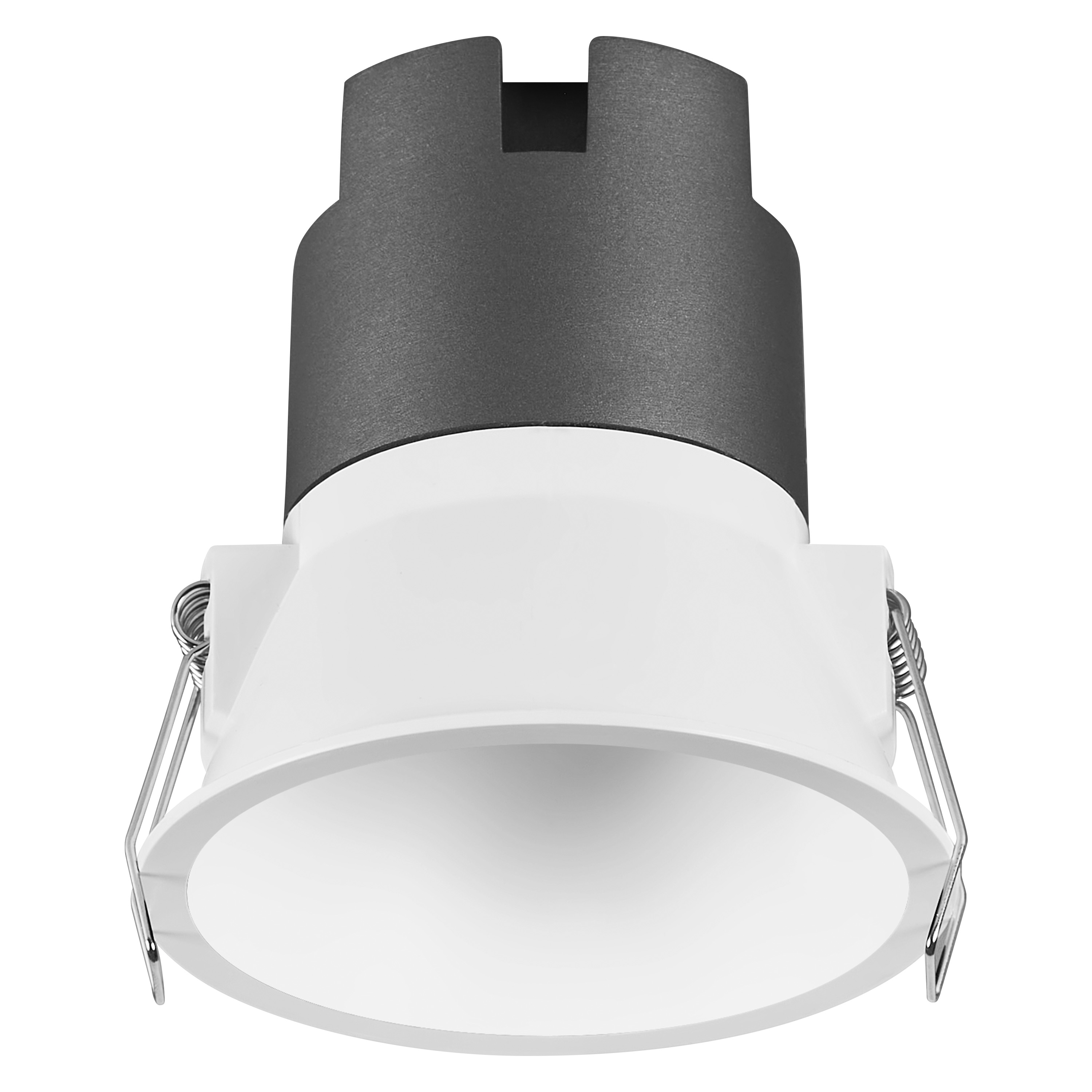

Product image: white background, upright
SPOT TWIST 93MM 10W 840 WT WT
SPOT TWIST 93MM 10W 840 WT WT

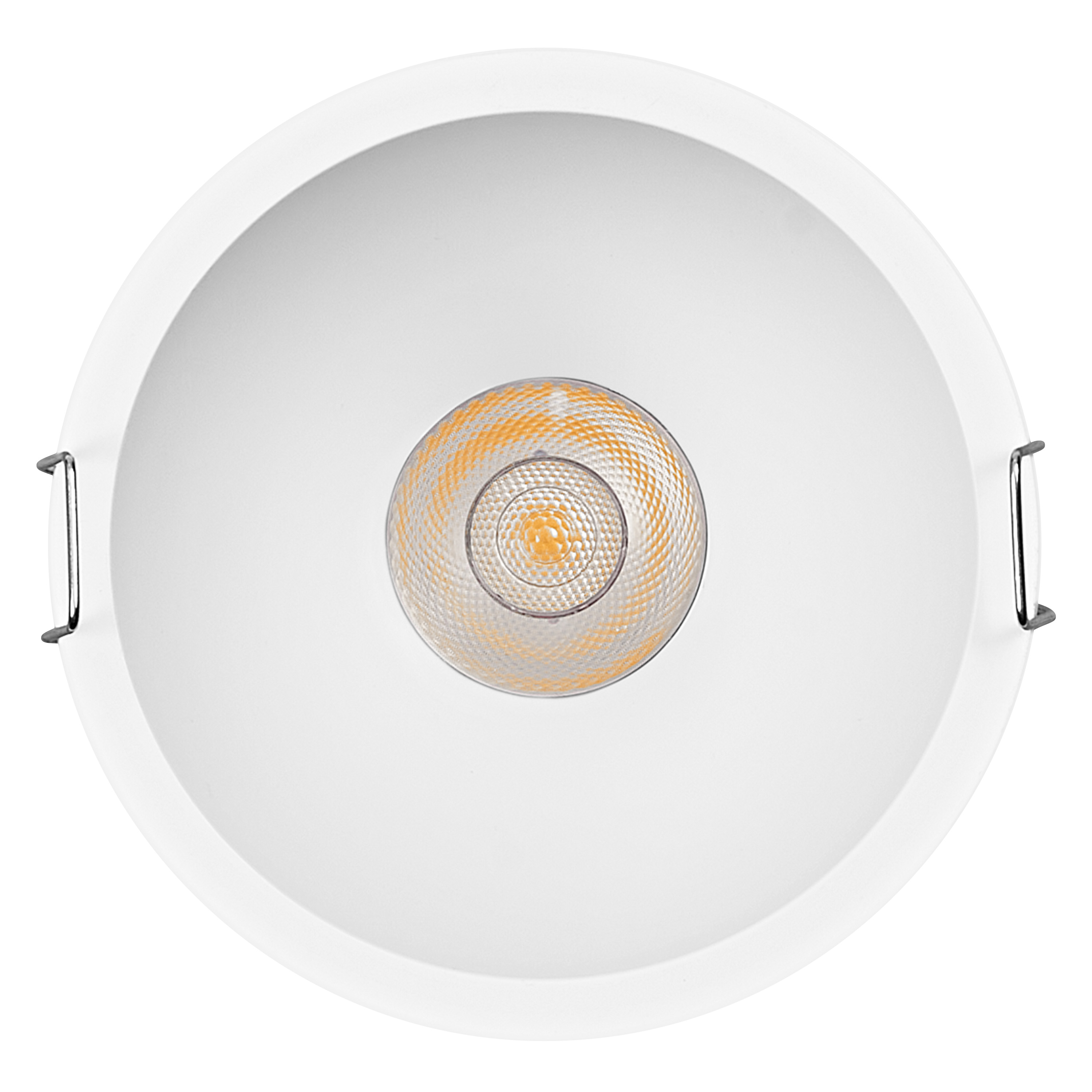

Product image: white background, upright, alternative image
SPOT TWIST 93MM 10W 840 WT WT
SPOT TWIST 93MM 10W 840 WT WT

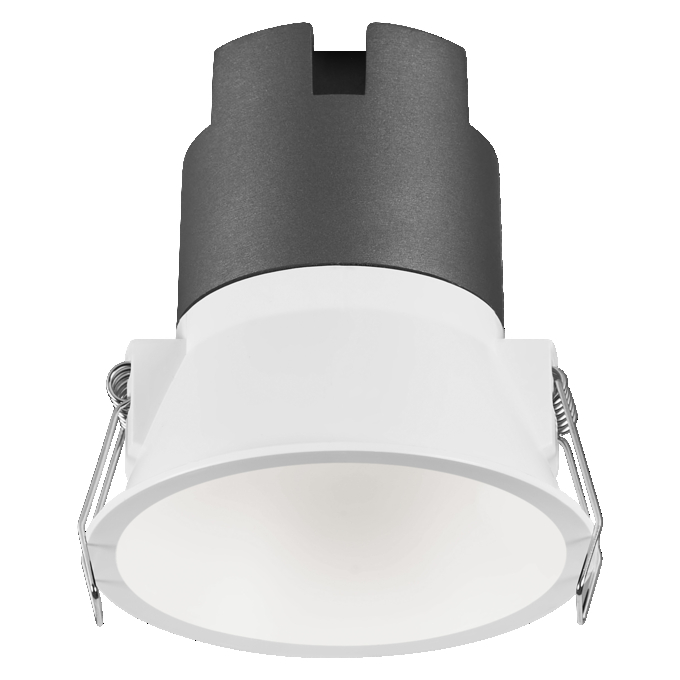

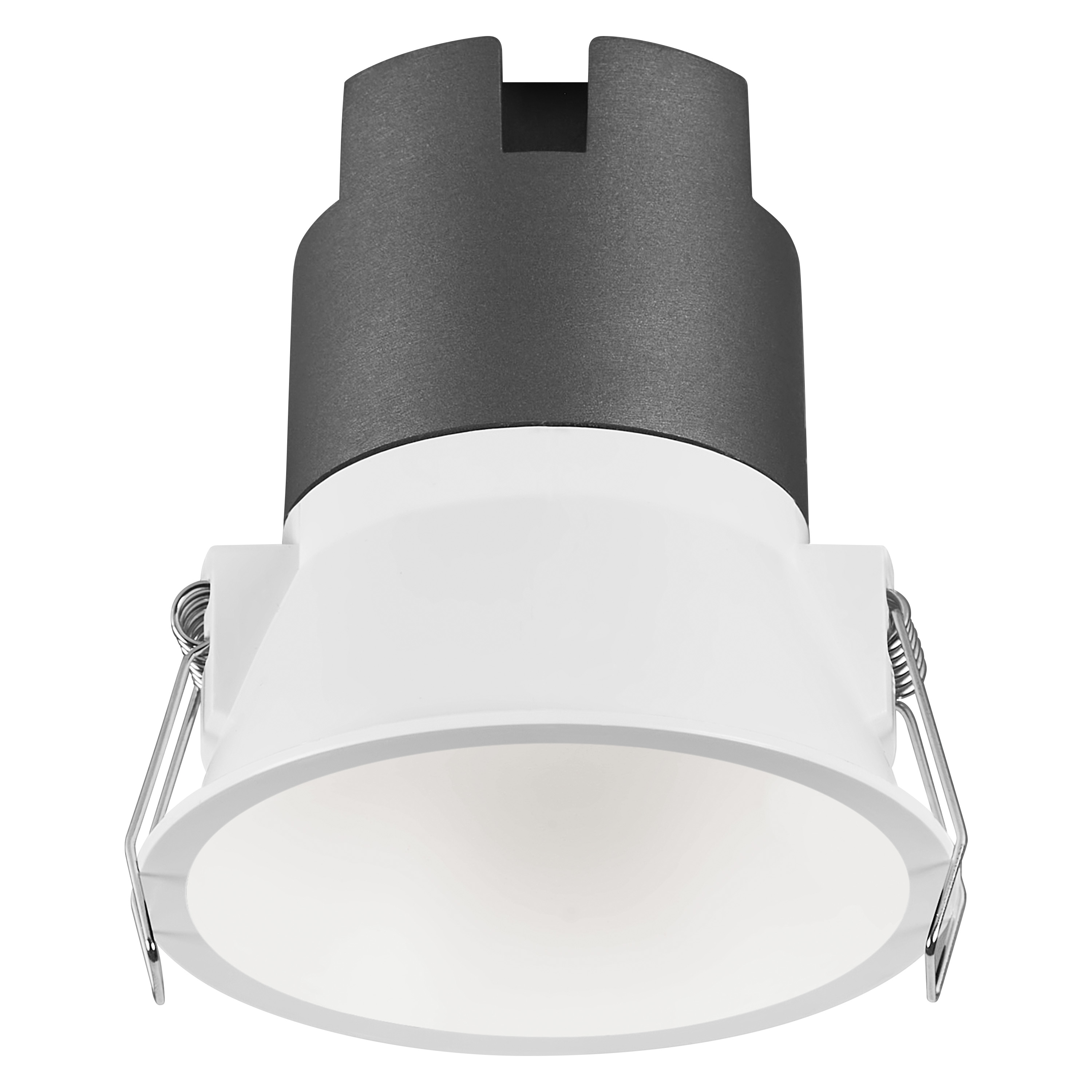

Product image: white background, upright, switched on
SPOT TWIST 93MM 10W 830 WT WT
SPOT TWIST 93MM 10W 830 WT WT
Product infographic (application image with text and graphic)
LED-Spots E-Com Grafik 1200x1200px 2023 EN
LED-Spots E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SPOT TWIST 93MM
SPOT TWIST 93MM
Product line drawing with numbers
SPOT TWIST 93MM
SPOT TWIST 93MM
Product line drawing, front, no dimensions
SPOT TWIST 93MM
SPOT TWIST 93MM

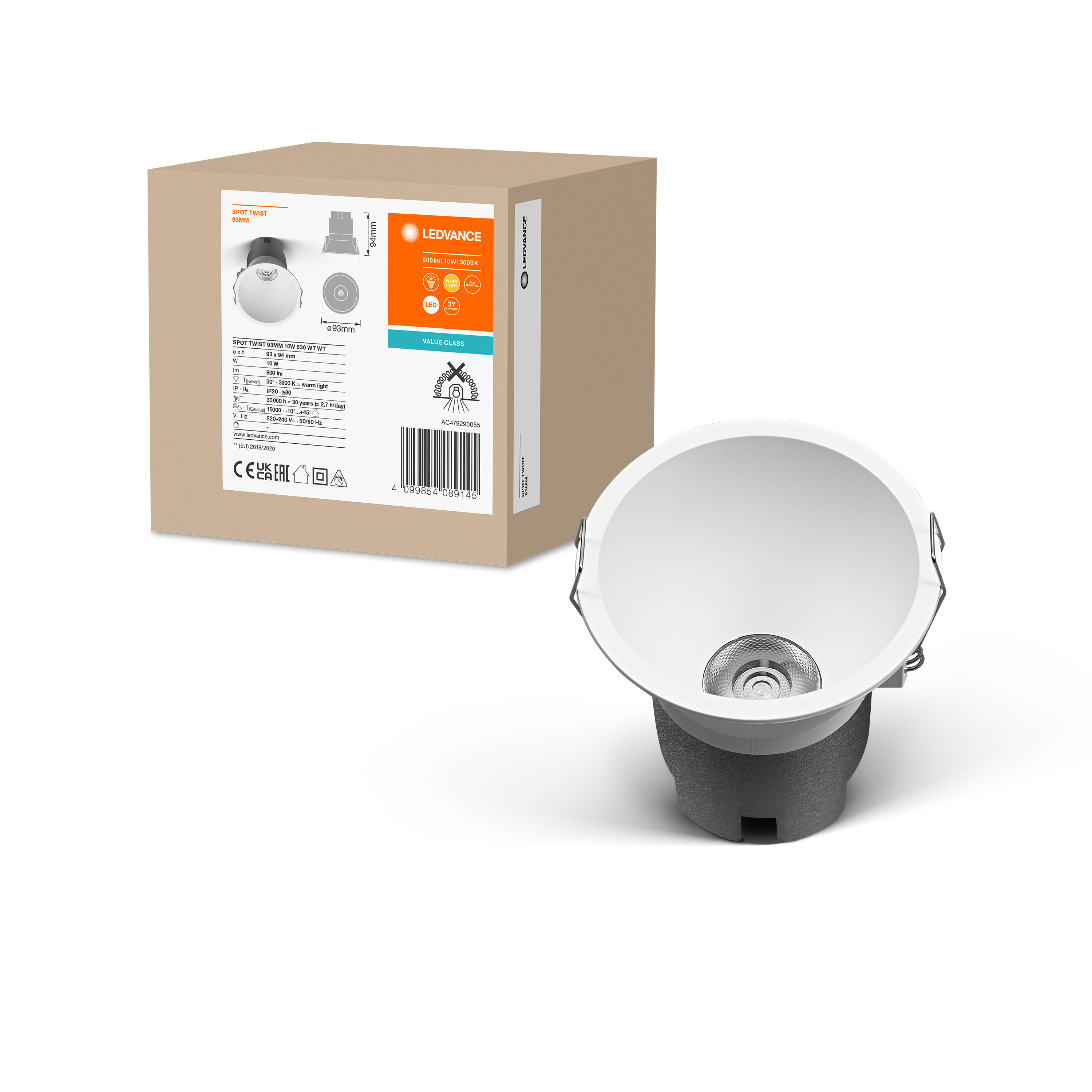

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SPOT TWIST 93 830 WTWT MiPRC
LUM FC SPOT TWIST 93 830 WTWT MiPRC

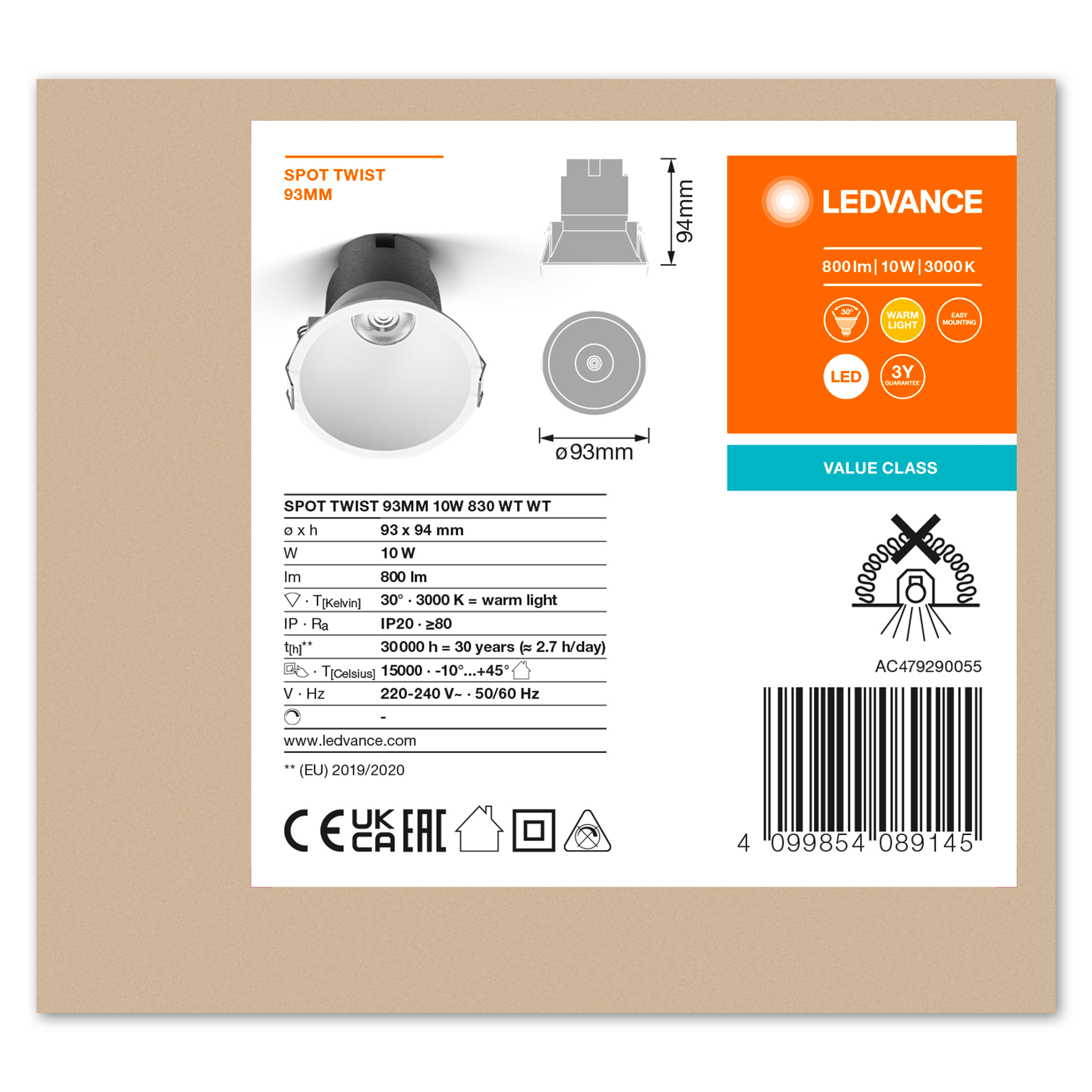

Packaging image, frontal
LUM FC SPOT TWIST 93 830 WTWT MiPRC
LUM FC SPOT TWIST 93 830 WTWT MiPRC

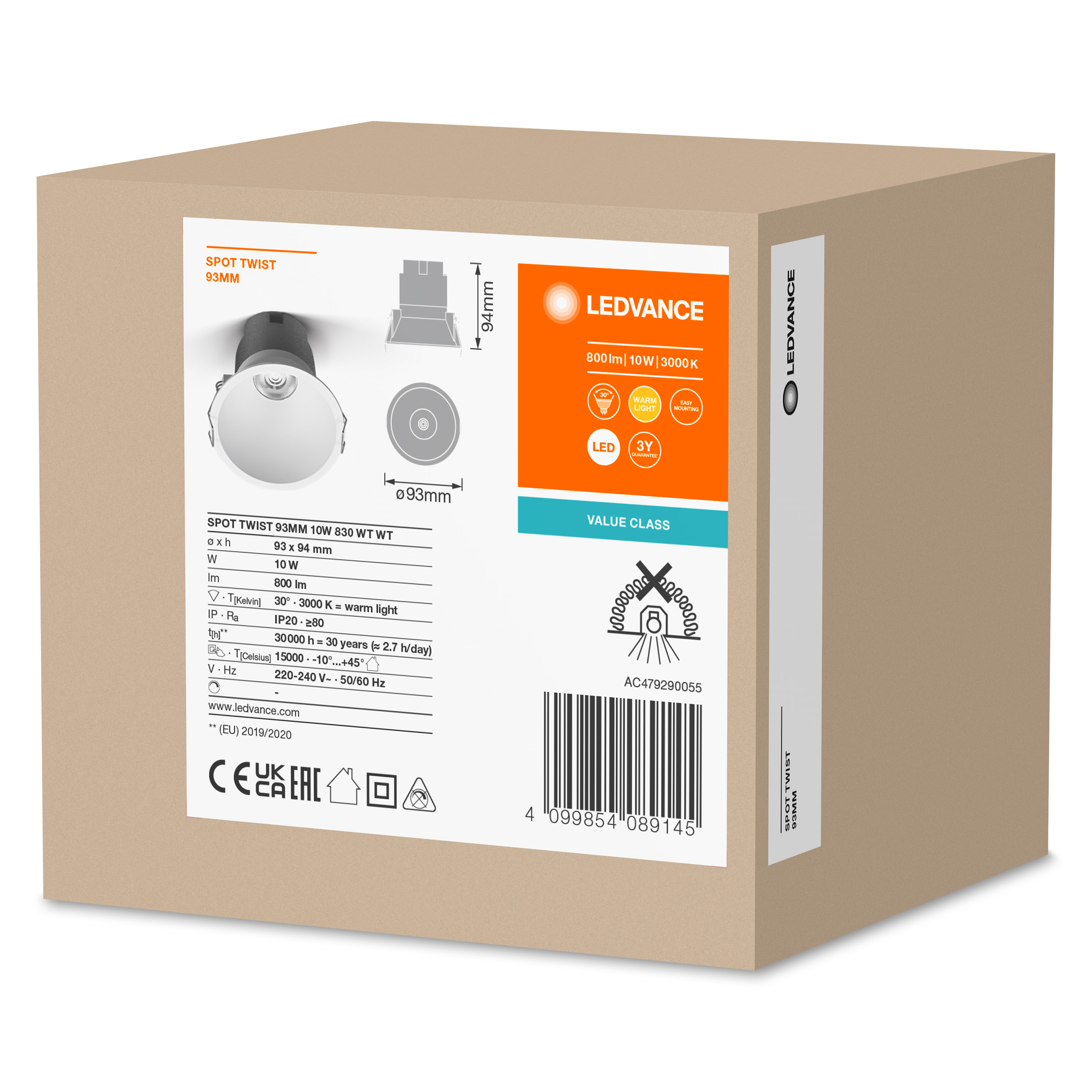

Packaging image, spacial
LUM FC SPOT TWIST 93 830 WTWT MiPRC
LUM FC SPOT TWIST 93 830 WTWT MiPRC
IES file (IES)
SPOT TWIST 93MM 10W 830 WT WT
SPOT TWIST 93MM 10W 830 WT WT
LDT file (Eulumdat)
SPOT TWIST 93MM 10W 830 WT WT
SPOT TWIST 93MM 10W 830 WT WT

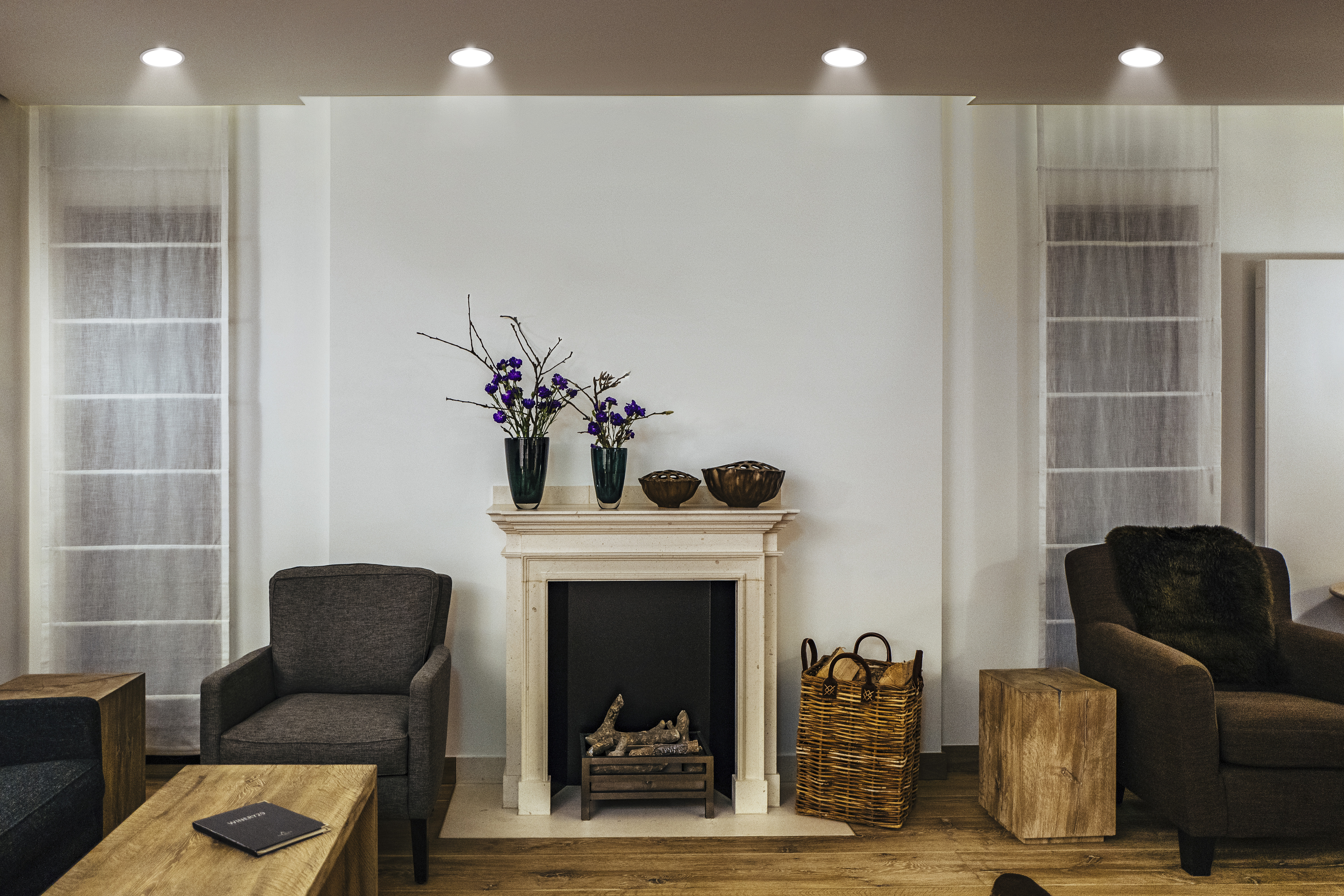

Application pictures Getty
