LED SWITCH BATTEN
LED Switch Batten 300 mm 4 W 4000 K
GTIN: 4058075266704
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Little space required thanks to compact dimensions
- Ready for connection due to integrated on/off switch and cable with EU-plug
- Easy and quick electrical connection for light line installation
- Flexible application due to a wide range of available lengths of 300 to 1200 mm.
- Flexible installation in 2 different angles with 2 different mounting options
Areas of application
- Indoor applications
- Under cabinet lighting
- Accent lighting
- General indoor illumination
- Corridors, entrance areas, stairwells, living rooms, basements
- Cove lighting
Product features
- Replacement for traditional T8 luminaires
- On/off switch on luminaire
- Polycarbonate housing
- Lifetime up to 30,000 h
- Color temperature: 3,000 K, 4,000 K
- High luminous efficacy: up to 115 lm/W
- Lengths available: 0.3 m, 0.6 m, 0.9 m, 1.2 m
- Mounting accessories included

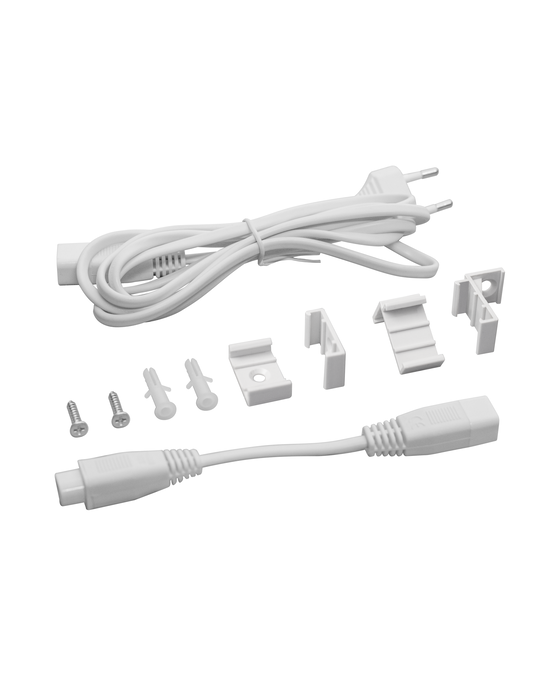

Equipment / Accessories
- Equipped with 1.5 m cable and EU plug
- Mounting bracket included

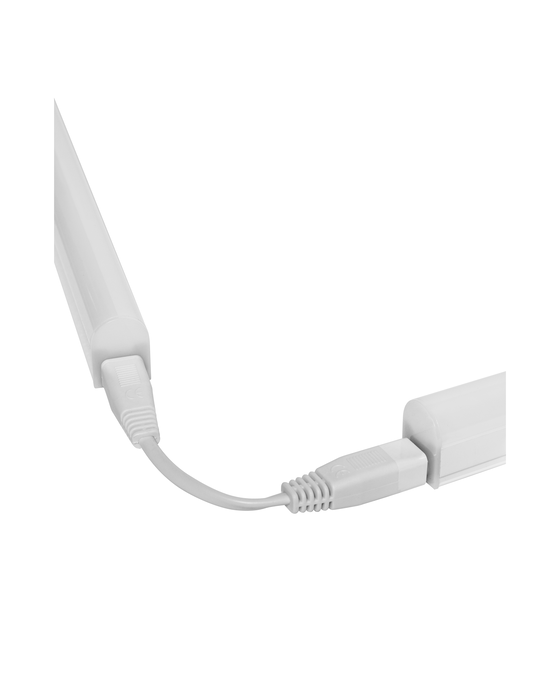

- Fixed connector and flexible connecting cable included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 4.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 35.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 72 |
| Max. number of luminaires per miniature circuit breaker C16 | 114 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | 110 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 450 lm |
| Total luminous flux of contained light sources | 500 lm |
| Luminous efficacy | 110 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <5 % |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 155 ° |
Dimensions & Weight
| Length | 313.00 mm |
| Height | 30.00 mm |
| Width | 22.00 mm |
| Product weight | 100.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075266704 | Folding box 1 |
41 mm x 46 mm x 406 mm | 154.00 g | 0.77 dm³ |
| 4058075266711 | Shipping box 8 |
416 mm x 205 mm x 105 mm | 1422.00 g | 8.95 dm³ |
User instruction / safety instructions
LED SWITCH BATTEN
LED SWITCH BATTEN
Legal information
Legal insert B-not dimmable
Legal insert B-not dimmable
Declarations of conformity
CE Declaration LED Switch Batten
CE Declaration LED Switch Batten
Product datasheet -> old version of product
4058075266704 LED Switch Batten 300 mm 4 W 4000 K en old
4058075266704 LED Switch Batten 300 mm 4 W 4000 K en old

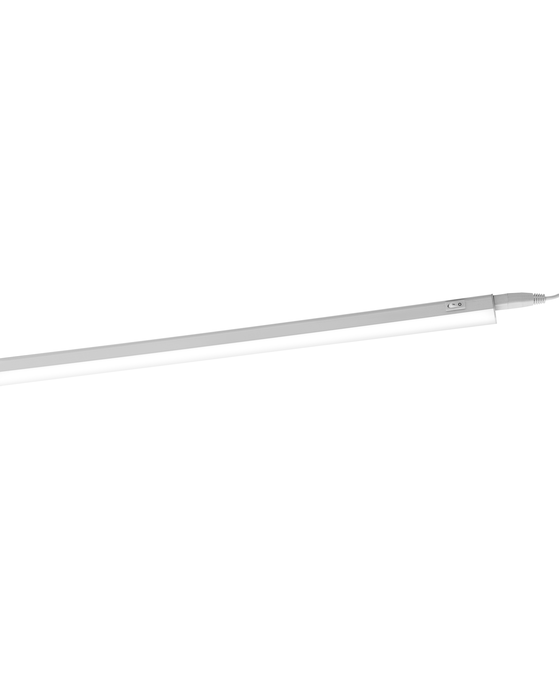

Product image: white background, diagonal
LED SWITCH BATTEN 0.3M 4W
LED SWITCH BATTEN 0.3M 4W

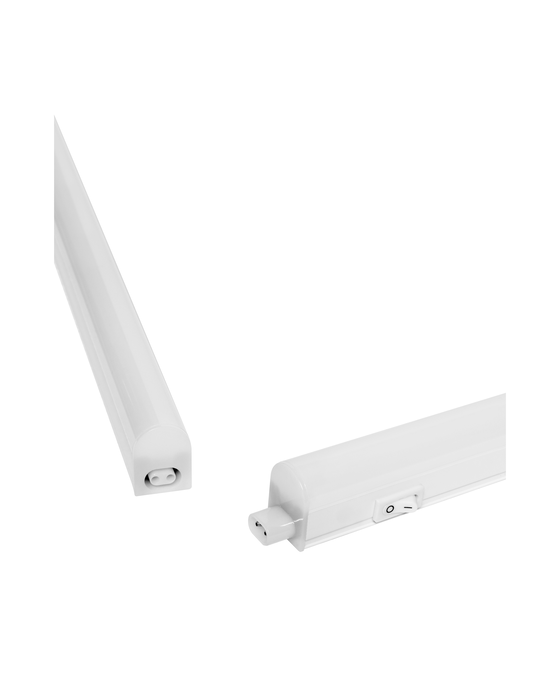

Product image: white background, upright, alternative image
LED SWITCH BATTEN 0.3M 4W
LED SWITCH BATTEN 0.3M 4W

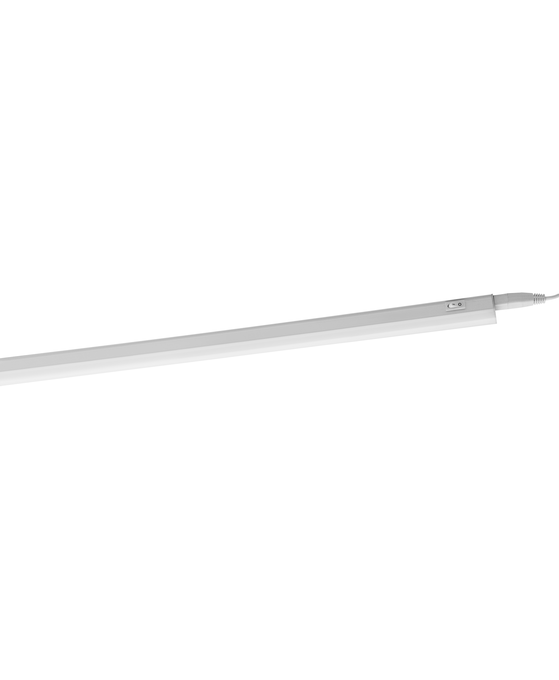

Product image: white background, upright, switched on
LED SWITCH BATTEN 0.3M 4W
LED SWITCH BATTEN 0.3M 4W
Product image: white background, with accessory, alternative image
LED SWITCH BATTEN 0.3M 4W
LED SWITCH BATTEN 0.3M 4W
Product line drawing with letters
LED SWITCH BATTEN 0.3M 4W
LED SWITCH BATTEN 0.3M 4W
Product line drawing with numbers
LED SWITCH BATTEN 0.3M 4W
LED SWITCH BATTEN 0.3M 4W
Product line drawing, front, no dimensions
LED SWITCH BATTEN 0.3M 4W
LED SWITCH BATTEN 0.3M 4W

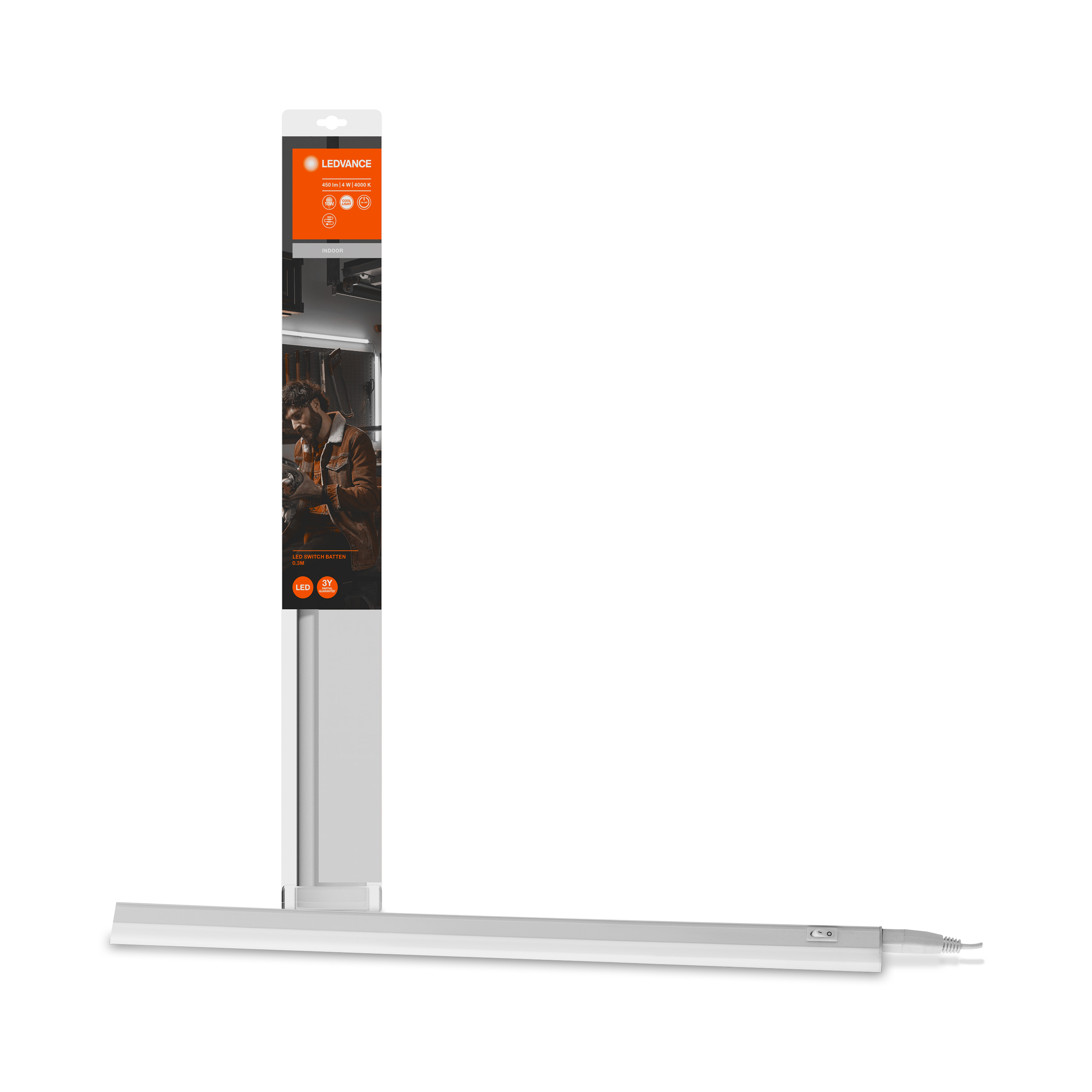

Combo Shot = Product Beauty Shot + Packaging Image
LED SWITCH BATTEN 0.3M 4W-840
LED SWITCH BATTEN 0.3M 4W-840
Combo Shot = Product Beauty Shot + Packaging Image
LUM IN LED S BATTEN 30 4W 840 MiPRC
LUM IN LED S BATTEN 30 4W 840 MiPRC

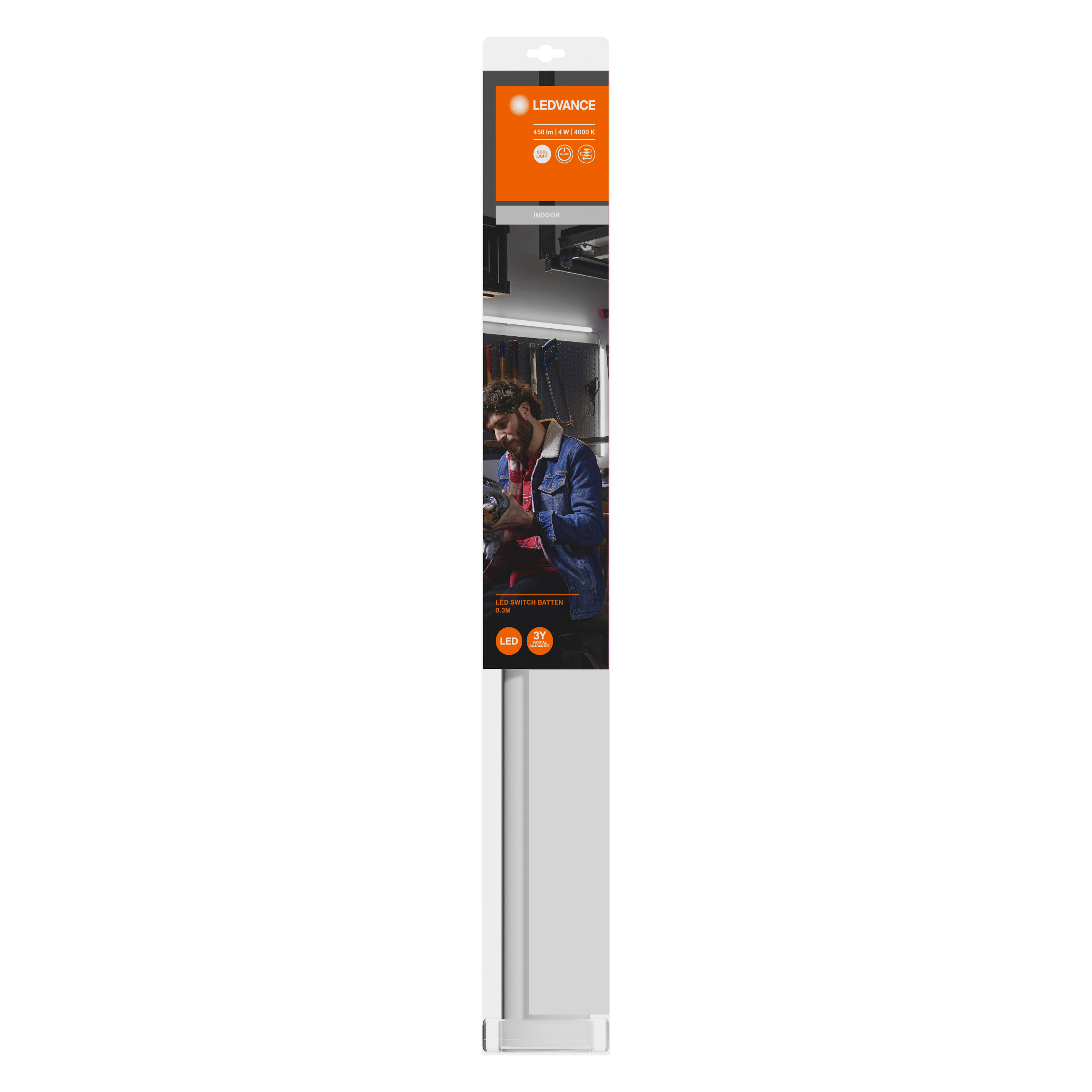

Packaging image, frontal
LUM IN SB 0 3 4W 840 MIPRC Front
LUM IN SB 0 3 4W 840 MIPRC Front

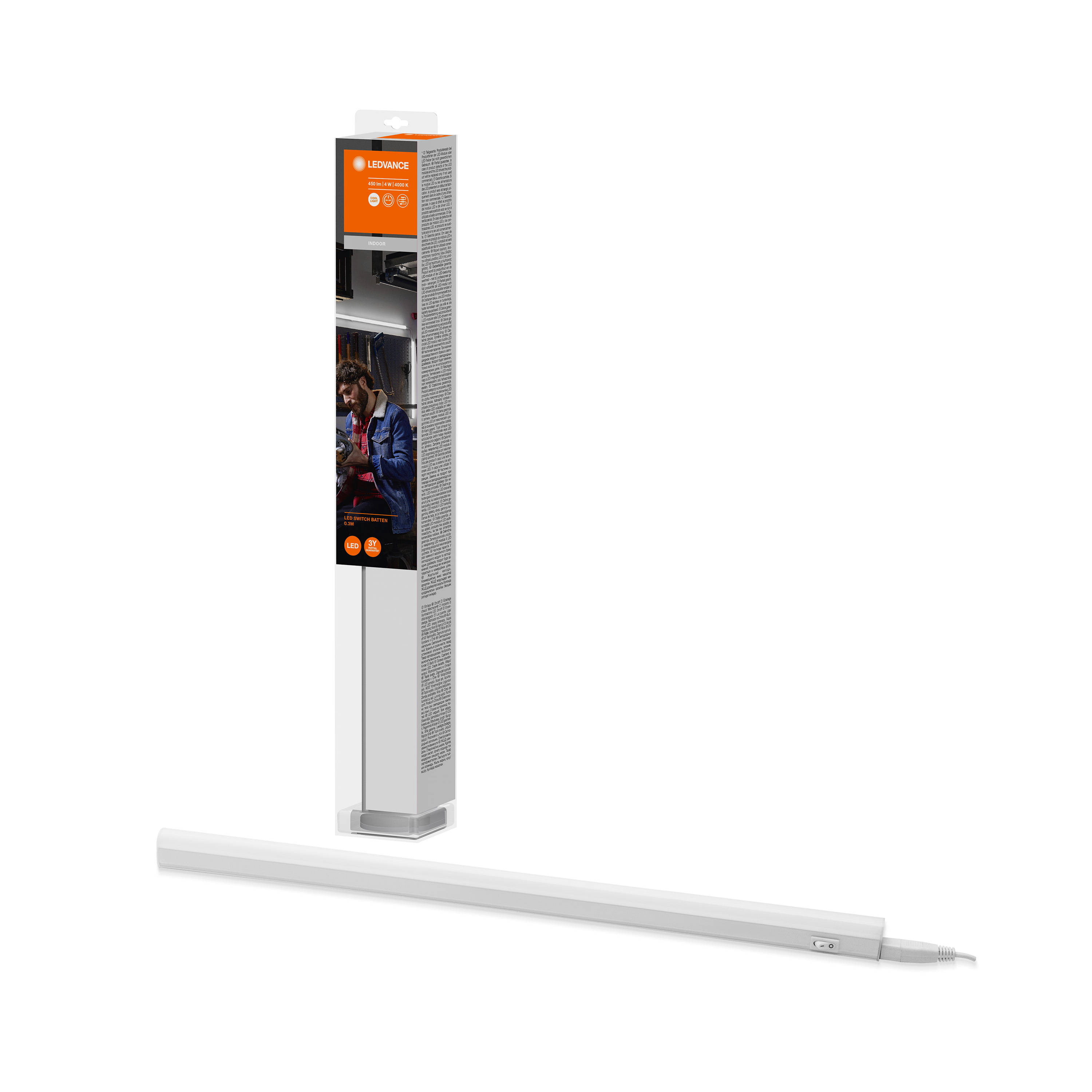

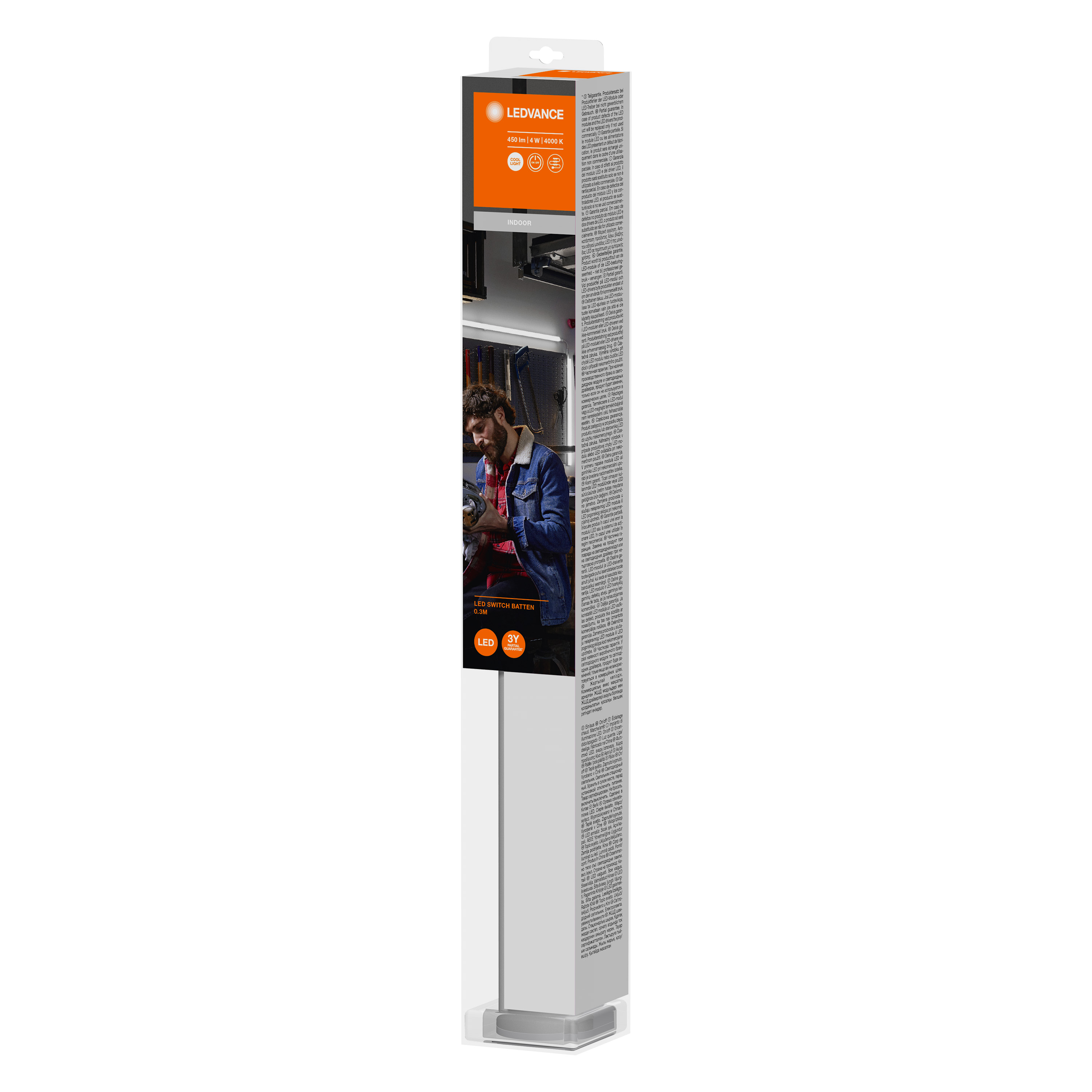

Packaging image, spacial
