LED OFFICE LINE
LED Office Line 0.6M 25W 4000K
GTIN: 4058075271463
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Flexible mounting options
- Functional and minimalistic design
Areas of application
- Indoor applications
- Home offices
- General indoor illumination
- Kitchens, workspaces
Product features
- Replacement for traditional T8 luminaires
- Wall and ceiling batten luminaire
- Material: Aluminium (Housing), Polycarbonate (Diffusor)
- Lifetime up to 30,000 h
- Lengths available: 0.6 m, 1.2 m
- Color temperature: 4,000 K
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 120.000 mA |
| Inrush current | 8.2 A |
| Max. number of luminaires per miniature circuit breaker B16 | 17 |
| Max. number of luminaires per miniature circuit breaker C10 | 18 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 2500 lm |
| Total luminous flux of contained light sources | 3700 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <5 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 615.00 mm |
| Height | 25.00 mm |
| Width | 130.00 mm |
| Product weight | 800.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075271463 | Folding box 1 |
32 mm x 135 mm x 645 mm | 880.00 g | 2.79 dm³ |
| 4058075271470 | Shipping box 8 |
640 mm x 290 mm x 150 mm | 7502.00 g | 27.84 dm³ |
User instruction / safety instructions
LED OFFICE LINE
LED OFFICE LINE
Legal information
Legal insert B-not dimmable
Legal insert B-not dimmable
Declarations of conformity
CE Declaration LED Office Line
CE Declaration LED Office Line
Product datasheet -> old version of product
4058075271463 LED Office Line 600 mm 25 W 4000 K en old
4058075271463 LED Office Line 600 mm 25 W 4000 K en old

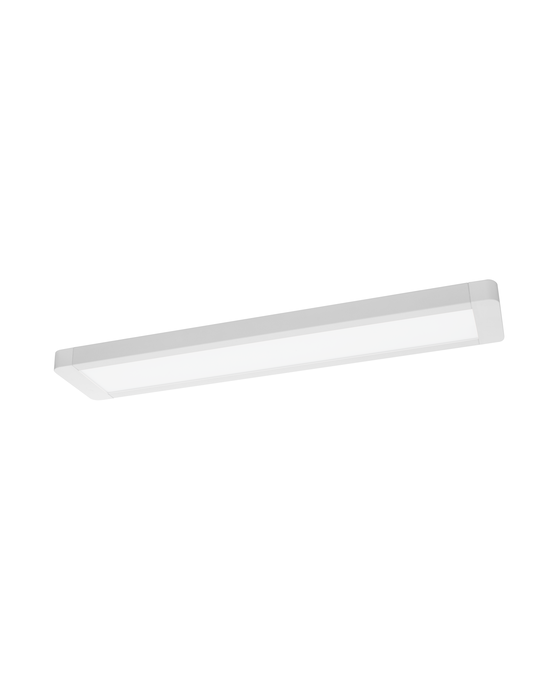

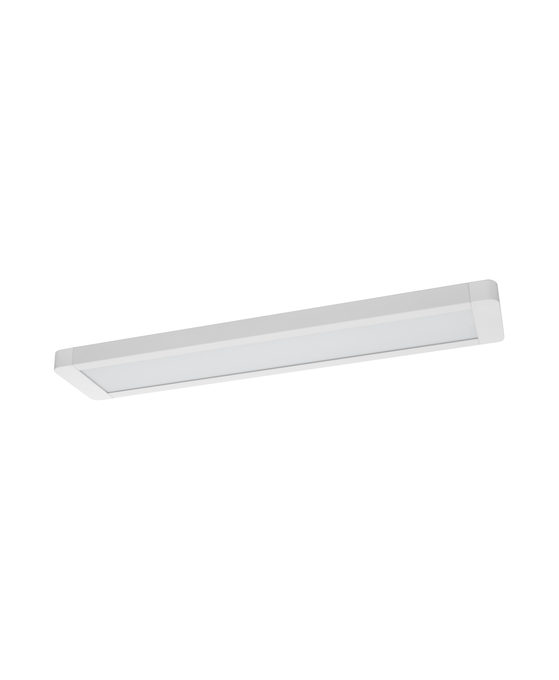

Product image: white background, diagonal
LED Office Line 0.6 25W/840
LED Office Line 0.6 25W/840
Product image: white background, upright
LED Office Line 0.6 25W/840
LED Office Line 0.6 25W/840
Product image: white background, upright, switched on
LED Office Line 0.6 25W/840
LED Office Line 0.6 25W/840
Product line drawing with letters
LED Office Line 0.6 25W/840
LED Office Line 0.6 25W/840
Product line drawing with numbers
LED Office Line 0.6 25W/840
LED Office Line 0.6 25W/840
Product line drawing, front, no dimensions
LED Office Line 0.6 25W/840
LED Office Line 0.6 25W/840
Combo Shot = Product Beauty Shot + Packaging Image
LED OFFICE LINE 0.6 25W-840
LED OFFICE LINE 0.6 25W-840
Packaging image, frontal
LUM IN OL 0 6 25W MIPRC
LUM IN OL 0 6 25W MIPRC
Packaging image, spacial
LUM IN OL 0 6 25W MIPRC
LUM IN OL 0 6 25W MIPRC

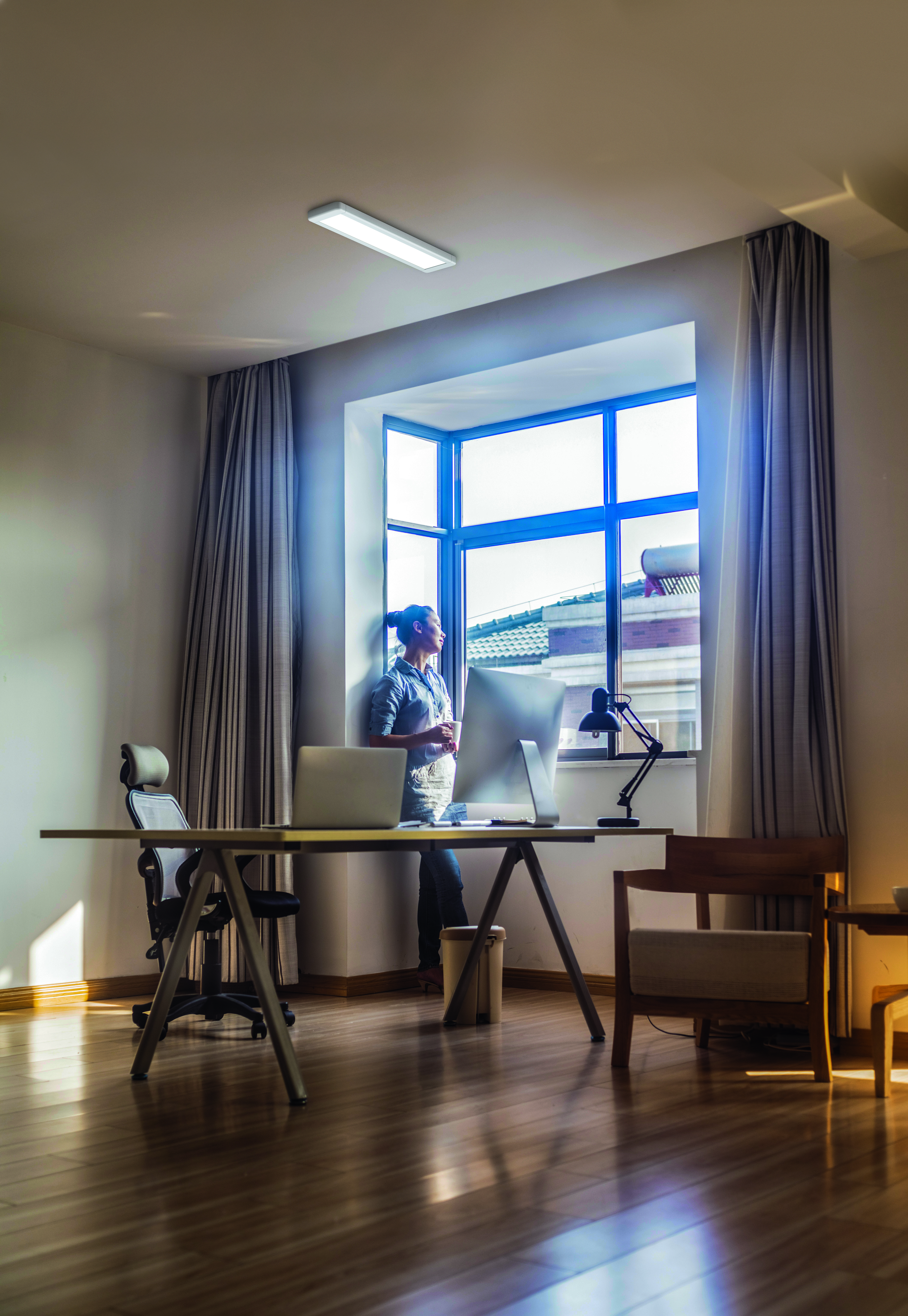

Application pictures
LED Office Line 0,6m application
LED Office Line 0,6m application

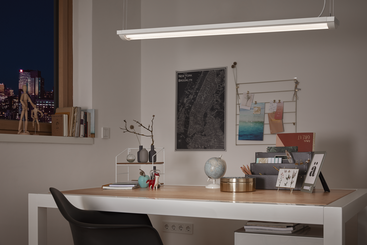

Application pictures
LED Office Line 2
LED Office Line 2

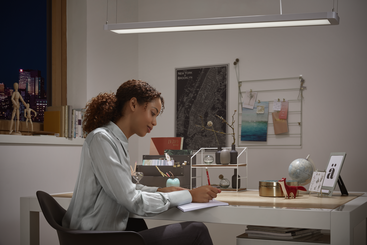

Application pictures
