LED HIGH BAY LUMINAIRES

THE NEW HIGH BAY GEN 4

STATE-OF-THE-ART LED HIGH-BAY LUMINAIRES

The LEDVANCE HIGH BAY luminaires are real pros for high ceilings and an excellent replacement for conventional HQI luminaires. Energy efficiency has been increased even further in their latest generation. The highlight of the new HIGH BAY GEN 4 is a new sensor version with integrated corridor function. It adds to the ON/OFF and DALI versions and allows for even greater economical operation.

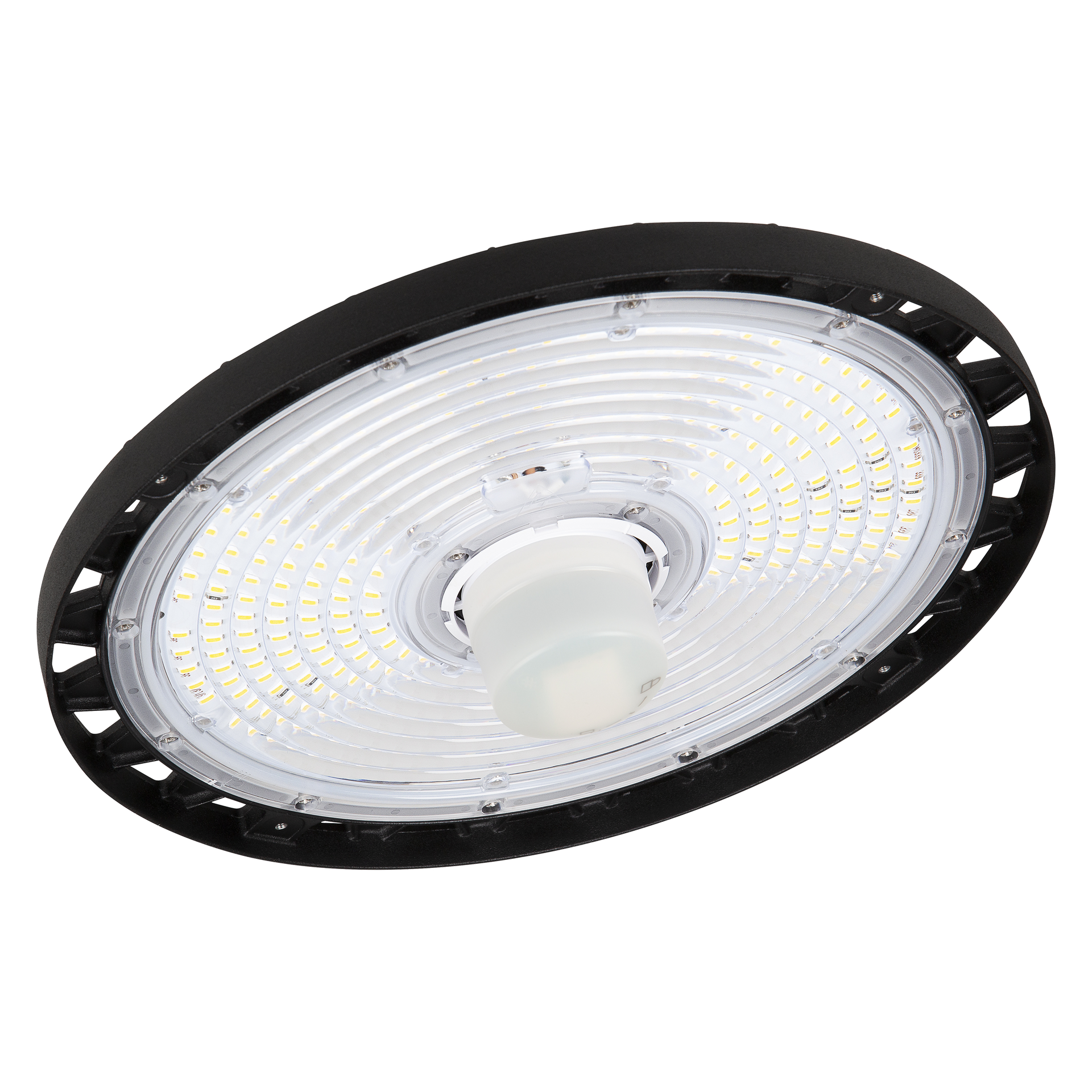

HIGH BAY GEN 4 SENSOR

LIGHT ON DEMAND FOR HIGH CEILINGS

HIGH BAY DALI REFRACTOR

The intelligent sensor of the HIGH BAY GEN 4 SENSOR luminaire with integrated corridor function provides light on demand in warehouses and factories and increases economy wherever 24-hour lighting is required. Thanks to low-flicker light they provide maximum health and safety at work.

TECHNICAL BENEFITS:

  • Adjustable motion and daylight sensor
  • Different luminous intensities and beam angles for ceiling heights up to about 12 m
  • High efficiency of up to 150 lm/W
  • IP65 protection for use in dusty and damp environments
  • Integrated corridor function with programmable lighting levels and timings
  • Simple basic adjustment via toggle switch on the luminaire
  • Advanced programming via optional remote control
  • Fast and convenient transfer of the sensor configuration via remote control to other HIGH BAY SENSOR luminaires
  • 5-year guarantee 1

¹  Refer to www.ledvance.com/guarantee for precise conditions.

SIMPLE BASIC CONFIGURATION DIRECTLY ON THE SENSOR

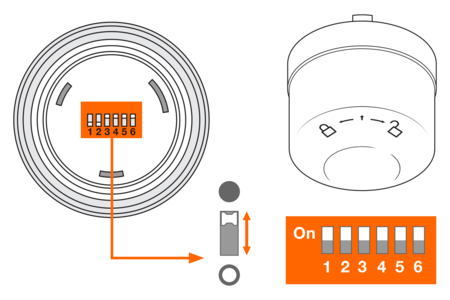

High Bay Sensor configuration graphic

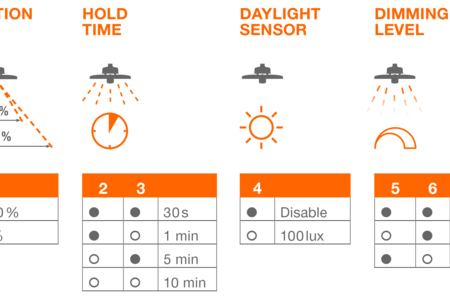

High Bay Sensor configuration properties

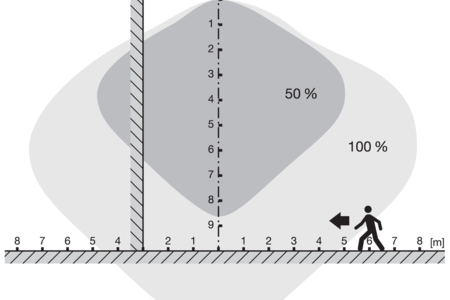

High Bay Sensor detection area

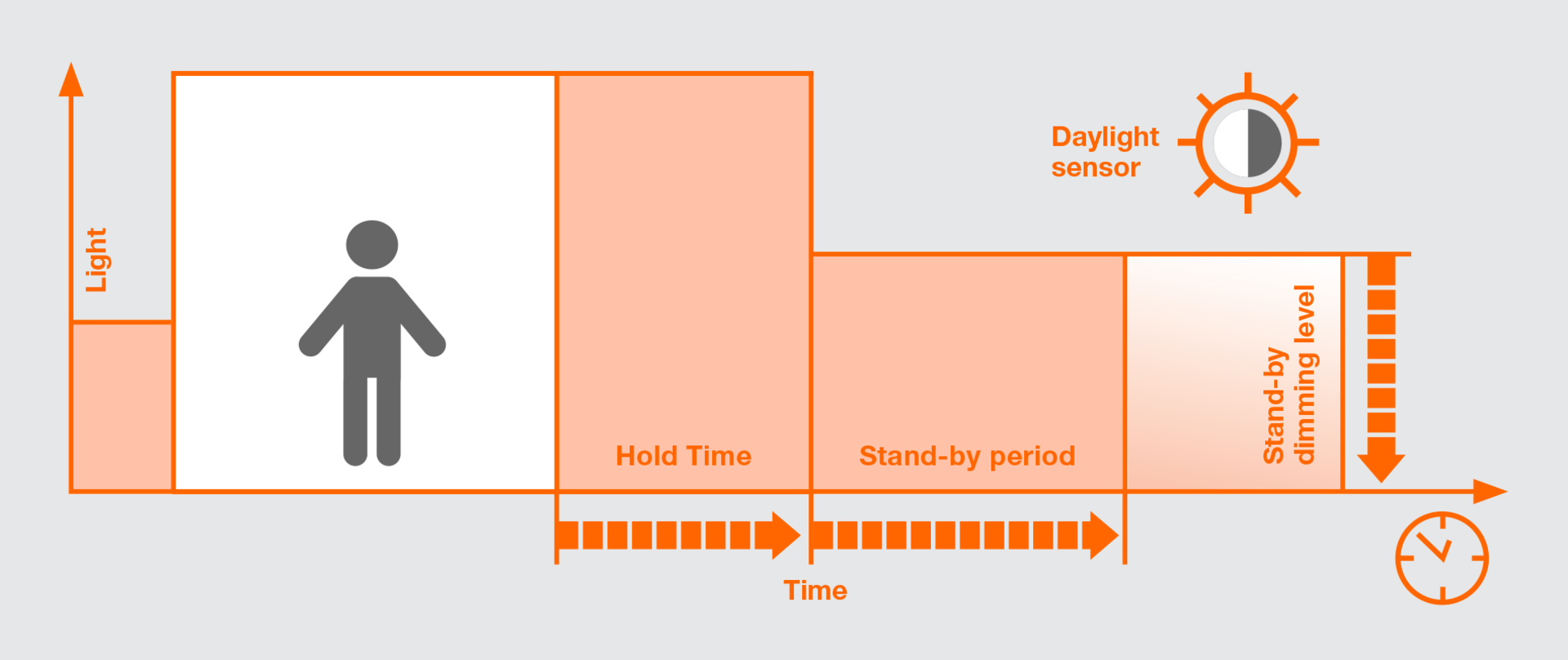

ECONOMICAL THANKS TO INTELLIGENT CORRIDOR FUNCTION

The integrated corridor function provides light on demand without the need for any additional devices. The HIGH BAY SENSOR automatically increases its luminous intensity as soon as a person enters the room. When no one is present, it decreases the luminous intensity after a certain time. You can easily set hold time and threshold and dimming values in preprogrammed steps using toggle switches on the luminaire. This function can increase economy and reduce operating costs wherever 24-hour lighting is mandatory but not continually needed.

HIGH BAY LED LUMINAIRES.

APPEALING. DISTINCT. FUNCTIONAL.

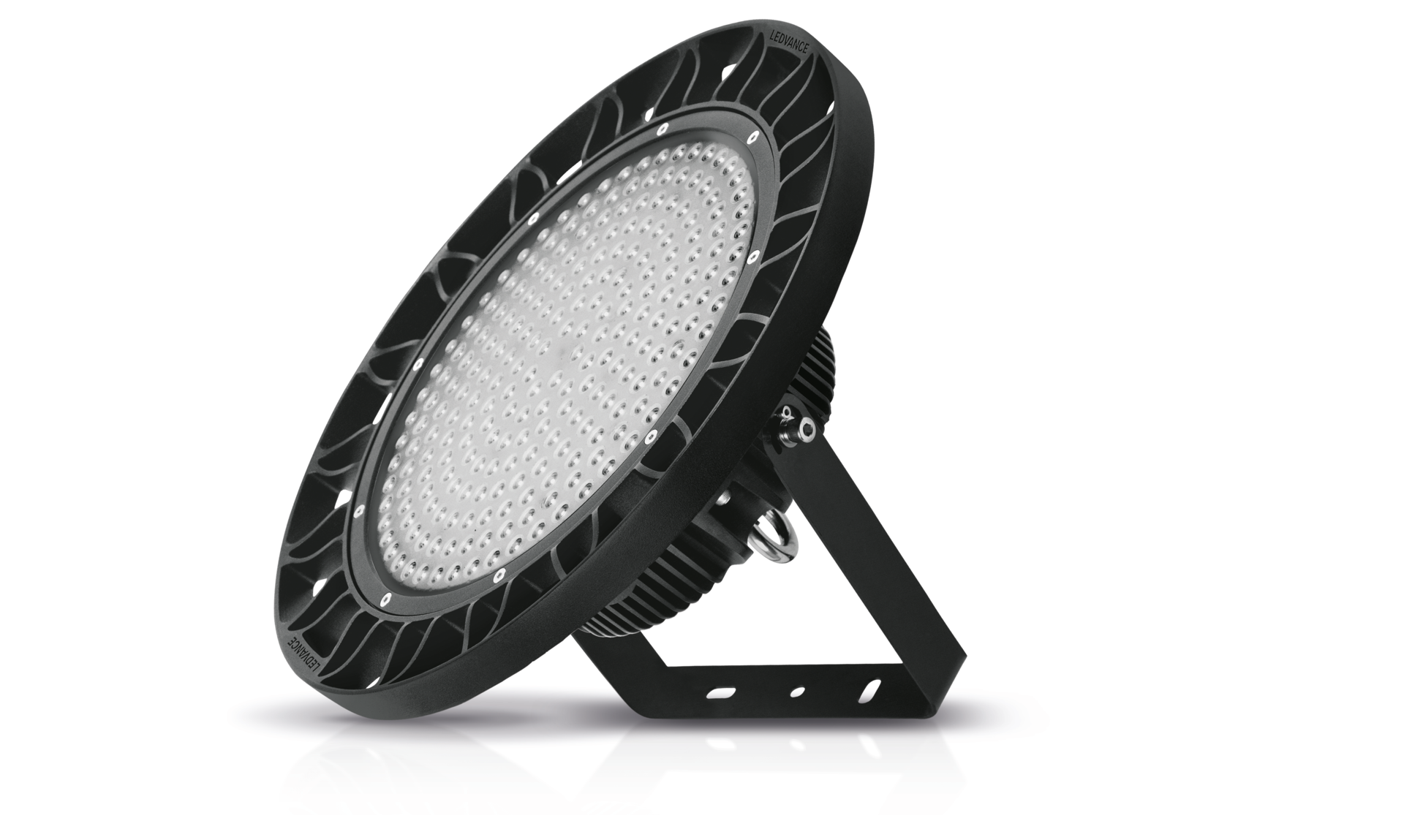

LEDVANCE HIGHBAY

Benefits for your projects

The LEDVANCE High Bay LED luminaires are suitable replacements for HQI High-Bay luminaires with an energy saving potential of up to 60% compared to the old lighting technology. They are produced in a compact and exclusive LEDVANCE design and are weight and size optimized.

The LED High Bays provide different luminous flux and a beam angle for mounting heights of 6 to 14 m. Accessories like a hook and a bracket are included, same with a cable of 1,500 mm length. The LED luminaires have an aluminum housing and a lens made from robust plastic (PC). They come with a five-year guarantee.

QUICK FACTS

Benefit highlights

  • Replacement for traditional high-bay luminaires
  • Energy savings of up to 60%
  • High luminous efficacy with up to 135 lm/W
  • Exclusive LEDVANCE design with optimized size and weight
  • Different luminous flux and beam angles for different mounting heights available
  • Accessories included



Recommended applications

  • General lighting for high ceilings

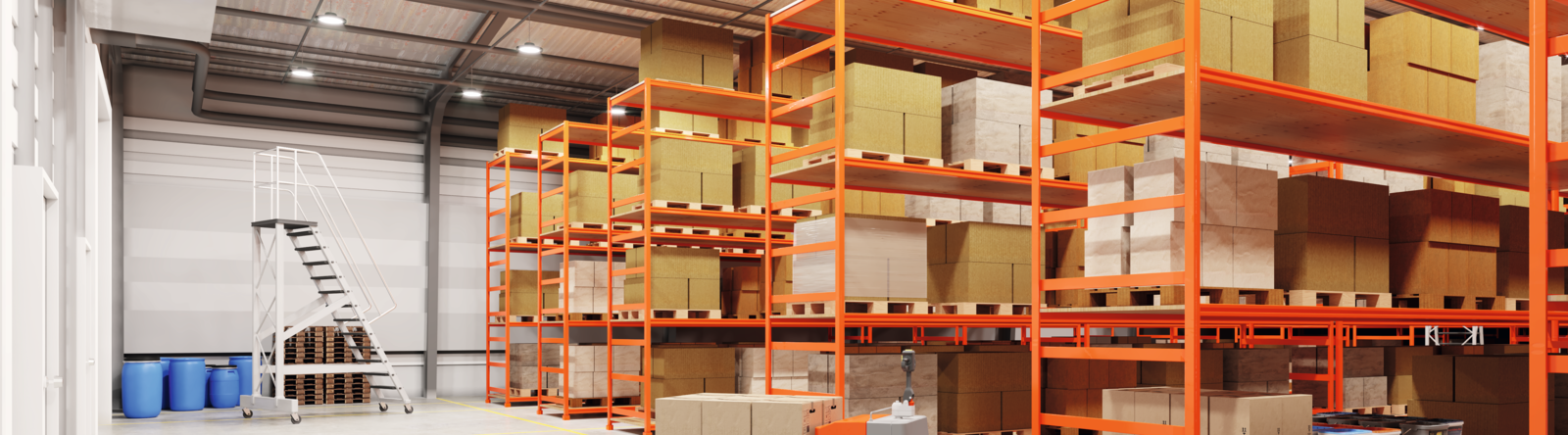

  • Warehouses, logistics centers
  • Industry

SAVINGS IN ENERGY AND COSTS OVER THE ENTIRE LIFETIME*

Comparison Energy consumption Costs
Traditional equivalent
e. g. 250W HQL, HQL 250W E40
12,500 kWh 1,600.71 €
LEDVANCE High Bay
e. g. HighBayLED 120W/4000K
100-240V IP65
6,000 kWh 932.90 €
Savings –52.00 % –667.81 €

* Savings calculated based on lifetime of LEDVANCE LED luminaires including purchase price, maintenance and installation costs as well as energy costs of 0.12 EUR/kWh. Calculation of CO2 savings based on European electricity mix and 400 g CO2/kWh. Payback period assumes 7 hours of operation per day and 260 days per year.
