LED Damp proof luminaires

LED Damp proof luminaires

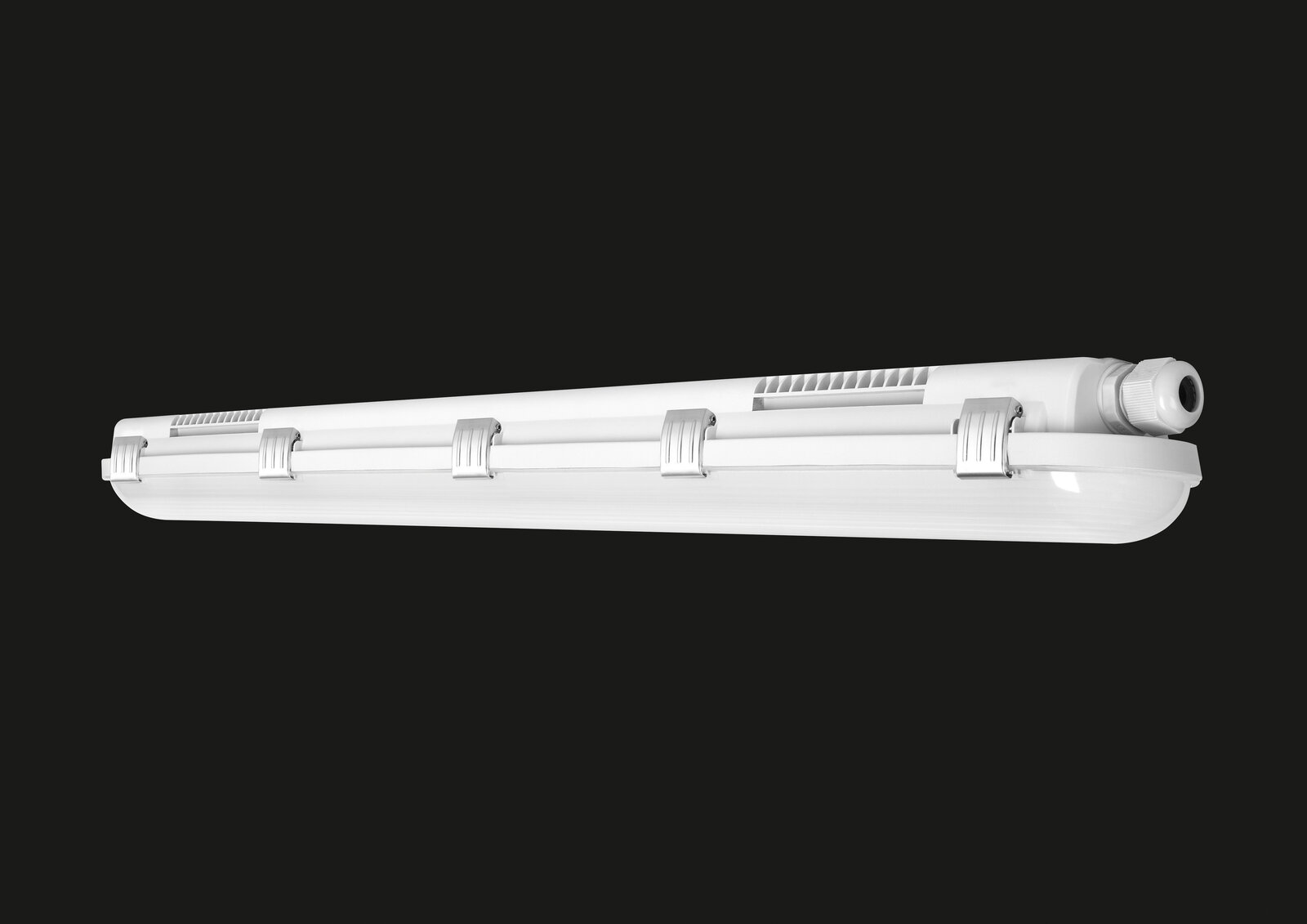

DAMP PROOF SENSOR

LIGHT WHEN IT’S NEEDED

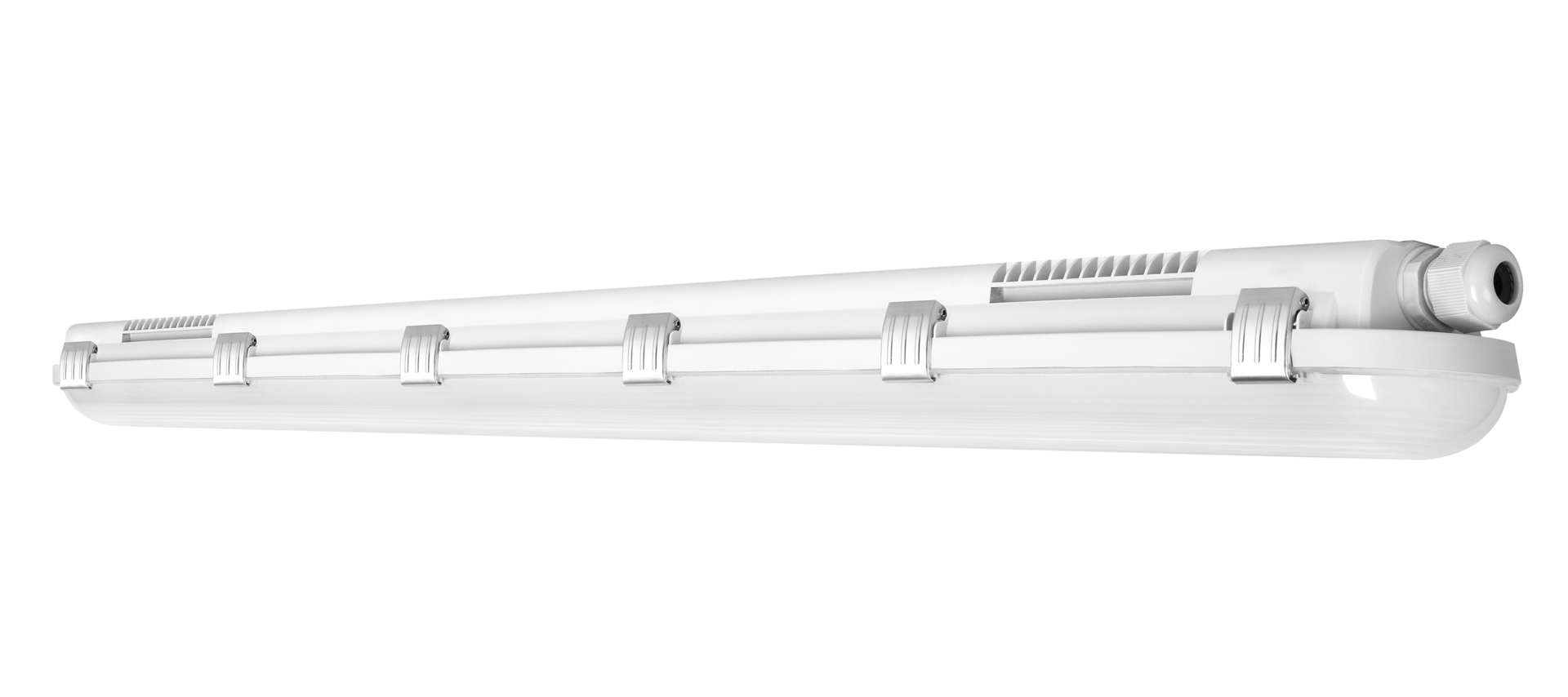

DP SENSOR

The robust DAMP PROOF SENSOR luminaires provide reliable basic lighting in rooms that are up to 4 meters high – well protected from dust and moisture. Their configurable sensor makes them ideal for use in driveways, car parks, underpasses, industrial facilities and other applications where light needs to suit specific situations.

Technical benefits

  • Adjustable motion and daylight sensor
  • For networks with leader-follower and leader-leader functionality
  • IP65 protection
  • Efficiency up to 135 lm/W
  • Luminous flux up to 8000 lm
  • Life of up to 50,000 hours 1
  • Flicker < 10%
  • 5-year guarantee 2

1 t [h]: L80/B10 @ 25 °C (Ta)
2  Refer to www.ledvance.com/guarantee for precise conditions.

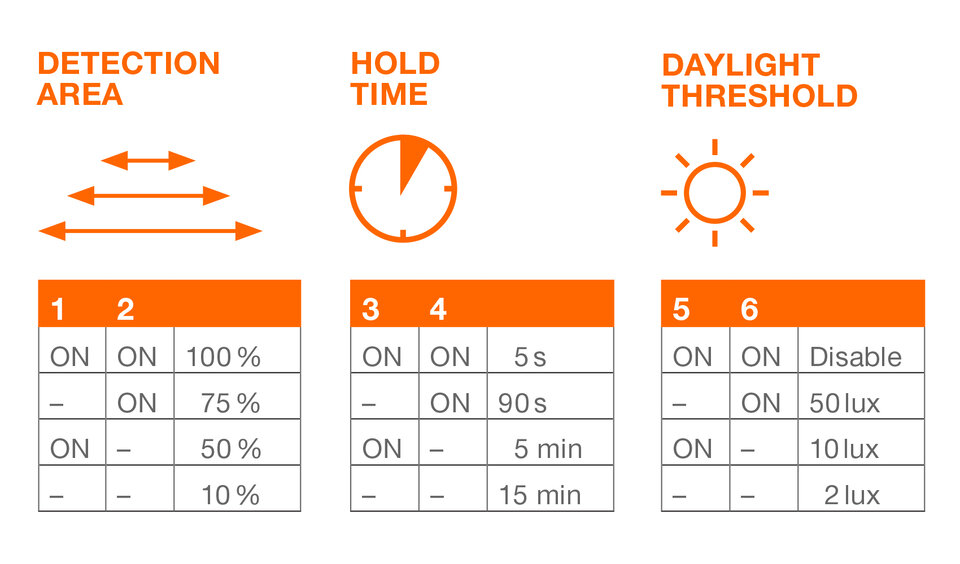

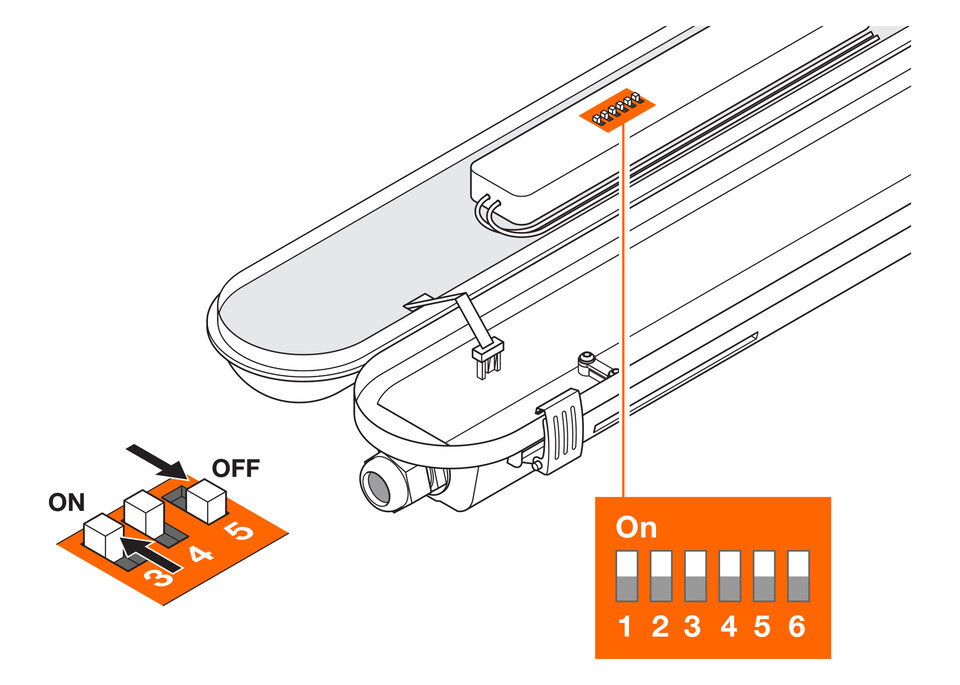

EASILY CONFIGURABLE SENSOR

SENSOR CONFIGURATION

SENSOR CONFIGURATION

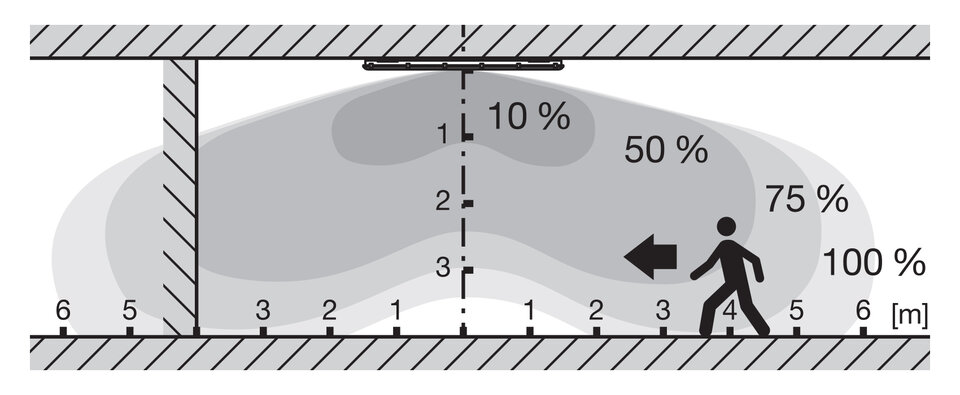

SWITCHES 1 AND 2: DETECTION AREA
The RF signal penetrates walls so movements
outside the room could also activate the lighting if
the detection area is too big. It is therefore important
to configure the luminaire correctly for economic
operation.

SENSOR CONFIGURATION

SWITCHES 3 AND 4: HOLD TIME
The hold time is the time that the light stays
on 100 % after moving objects have left the
detection area.

SENSOR CONFIGURATION

SWITCHES 5 AND 6: DAYLIGHT THRESHOLD
When the daylight function is activated the sensor
is only triggered by movement if the ambient brightness
is lower than the set lux value. When the
daylight function is deactivated the sensor always
reacts when movement is recognised.

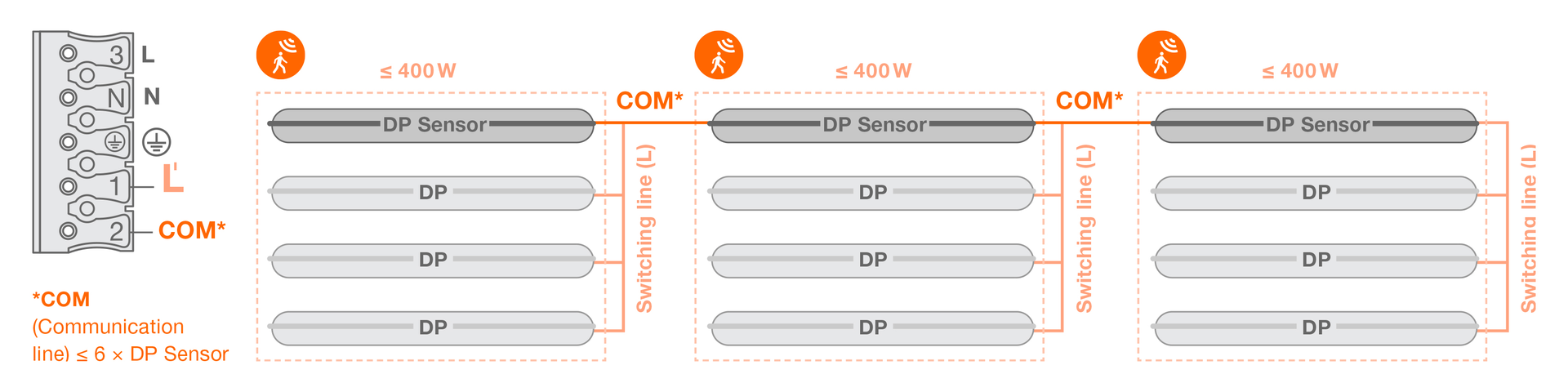

INTELLIGENT CONNECTION OPTIONS FOR LARGE FACILITIES

LEADER-FOLLOWER AND LEADER-LEADER FUNCTIONALITY

LED DAMP PROOF SPECIAL

HIGHLIGHT PRODUCT

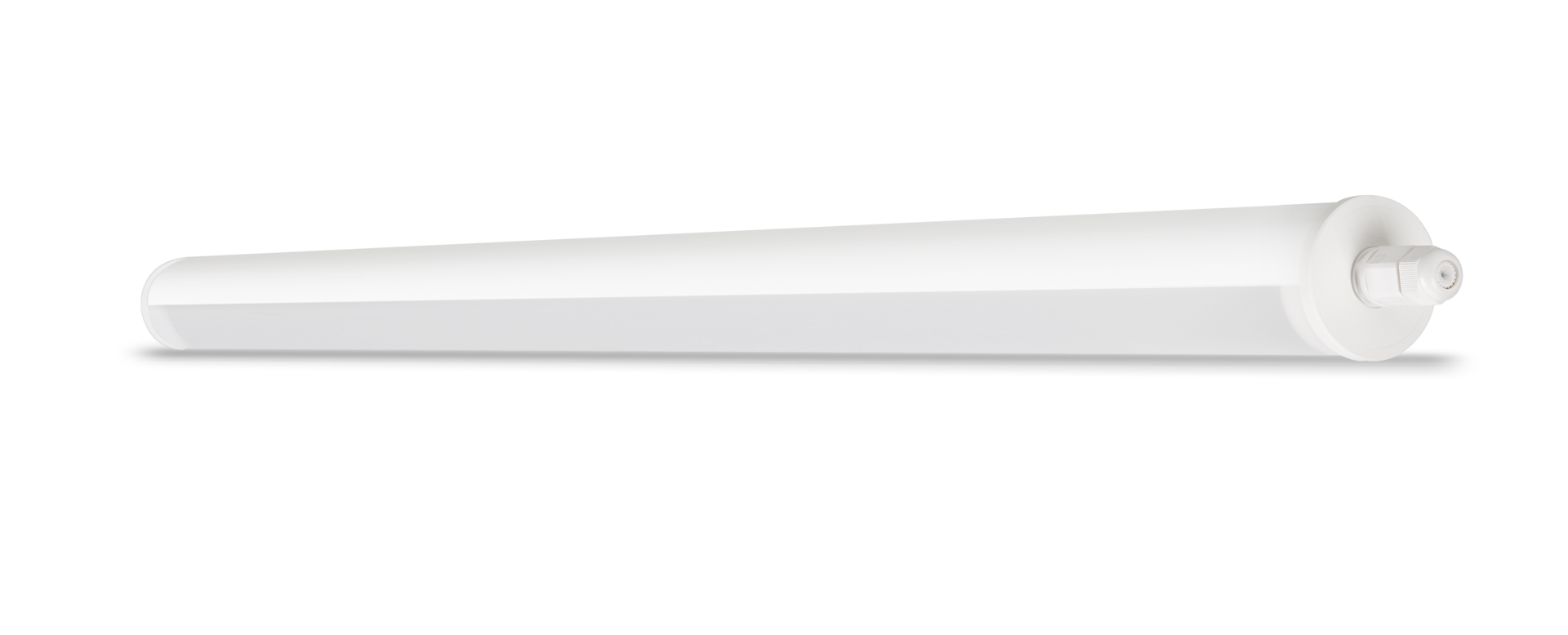

DP SPECIAL

The specialist tubular damp proof luminaire for outdoor and agricultural applications

Technical benefits

  • Completely sealed and ammonia-resistant for use in agricultural applications
  • Ideal for food processing applications due to being fat resistant
  • Also usable in uncovered outdoor areas thanks to IP69K/IP67 protection
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy installation and tool-free connection due to fast connectors
  • Via the rotatable mounting the luminaire can be fixed in any position for optimal light steering
  • Energy savings of up to 55 % (compared to luminaires that use fluorescent lamps)

INSTALLATION IN NO TIME AT ALL

The end caps with their “Twist & Lock” mechanism and color-coded electrical fast connectors allow for quick, tool-free electrical connection.

Damp proof special installation

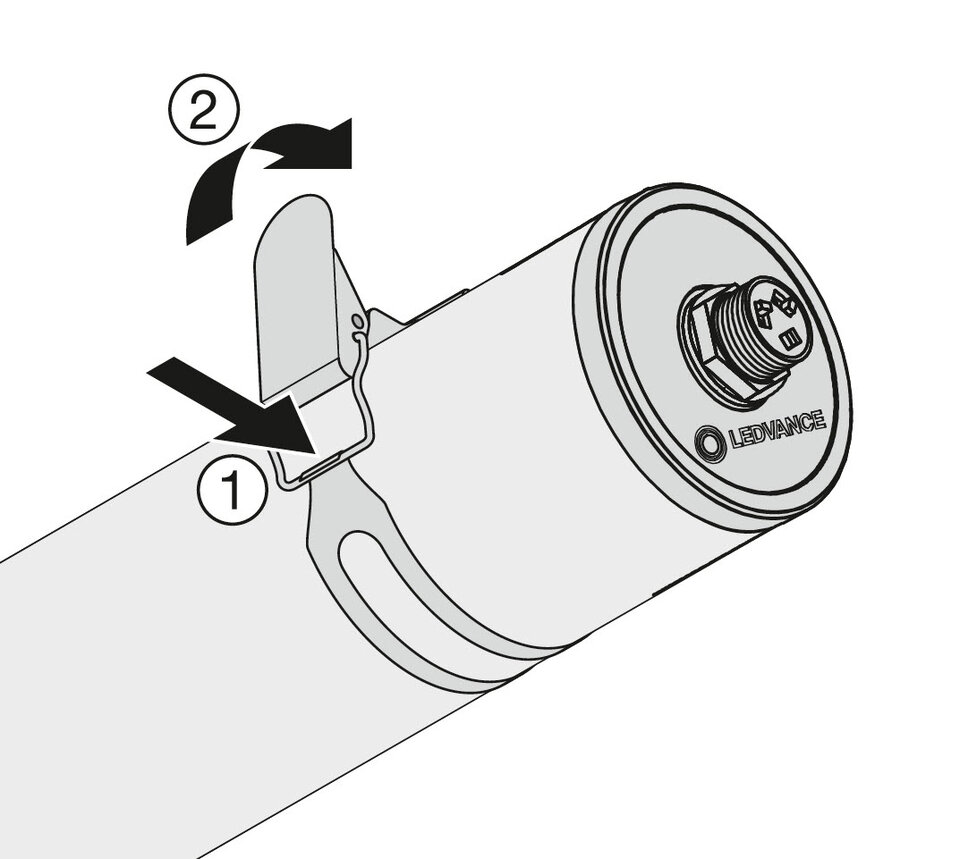

Easy installation as mounting brackets can be positioned freely on the luminaire

Damp proof special installation

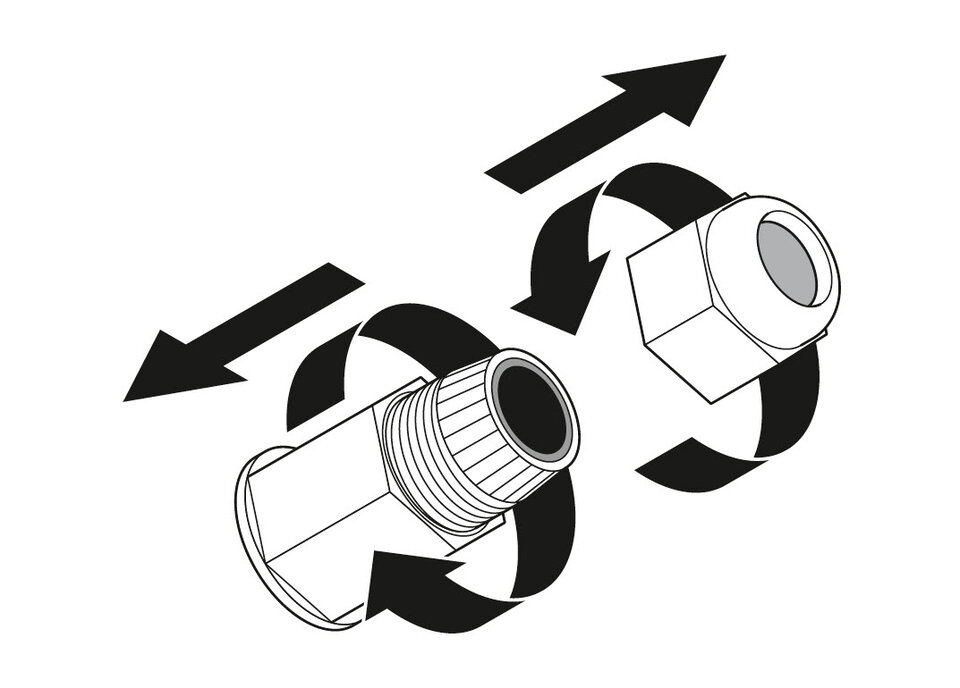

Easy access to electrical terminal thanks end caps with twist and lock mechanism

Damp proof special installation

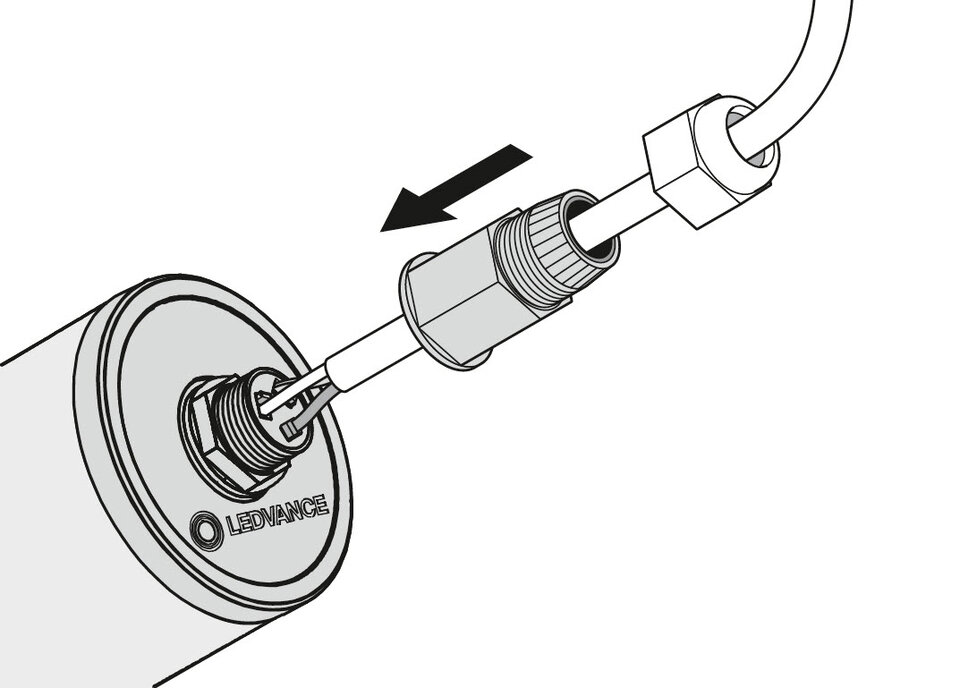

Tool-free electrical connection thanks to color-coded push-button fast connector

LED DAMP PROOF COMPACT

FOR EASY INSTALLATION

LEDVANCE DAMP PROOF Compact

Technical benefits


  • Evenly distributed light
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee

INSTALLATION IN NO TIME AT ALL

The end caps with their “Twist & Lock” mechanism allow for quick tool-free electrical connection.

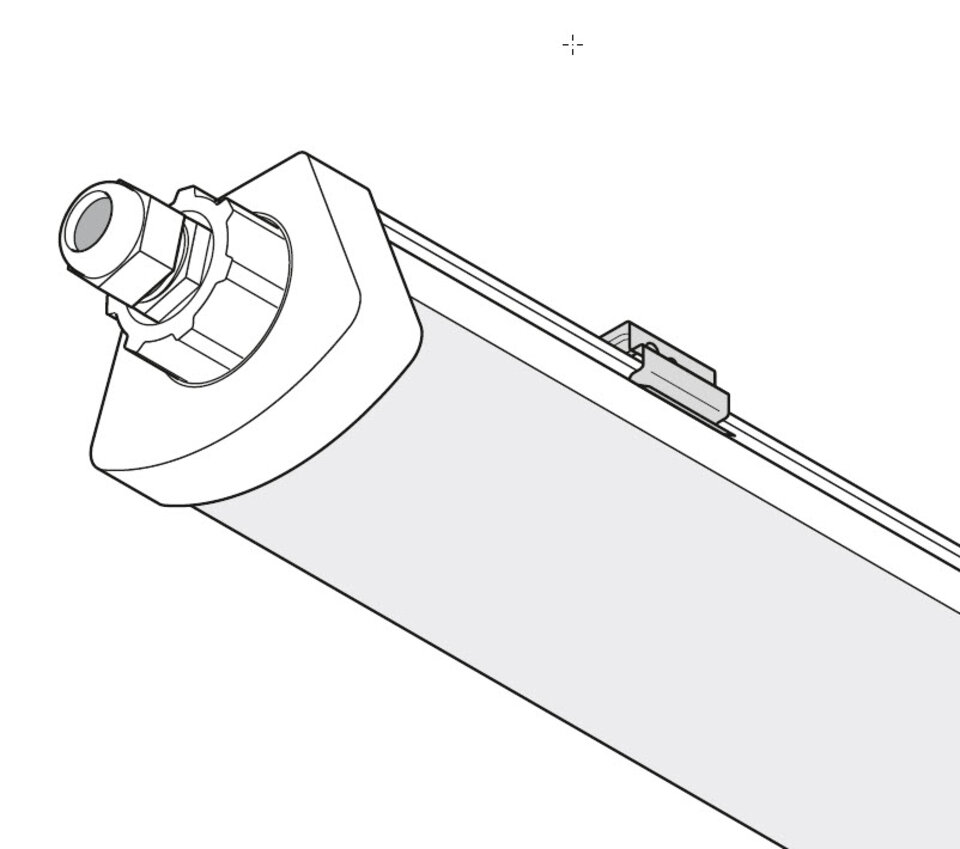

DAMP PROOF COMPACT Montage

Easy installation as mounting brackets can be positioned freely on the luminaire

DAMP PROOF COMPACT Montage

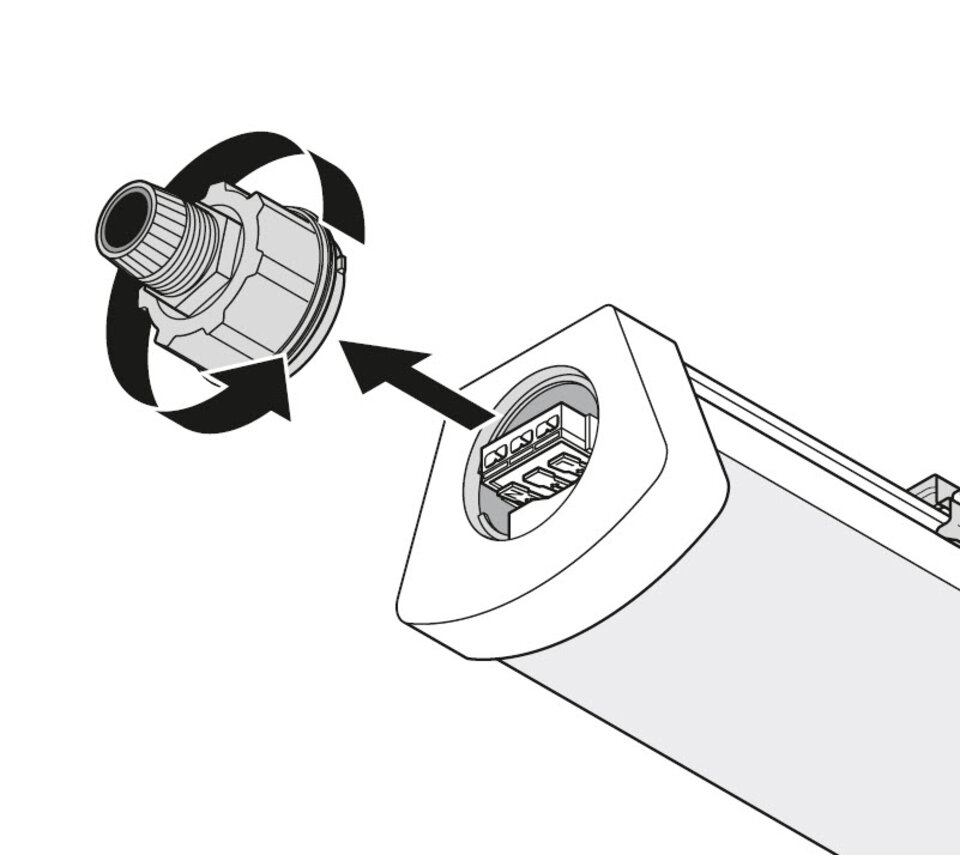

Easy access to electrical terminal thanks end caps with twist and lock mechanism

DAMP PROOF COMPACT Montage

Tool-free electrical connection due to push button connector

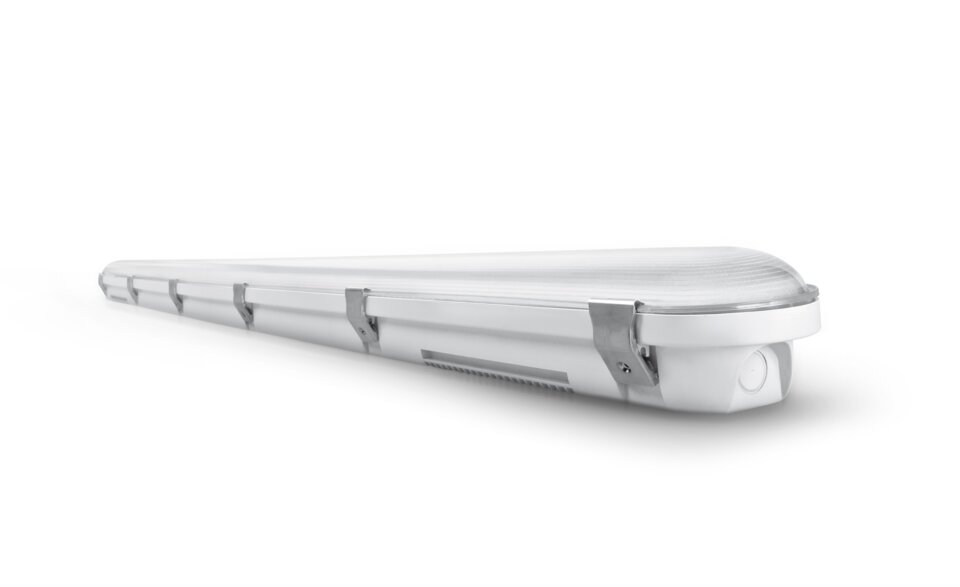

DAMP-PROOF LED LUMINAIRES.

APPEALING. DISTINCT. FUNCTIONAL.

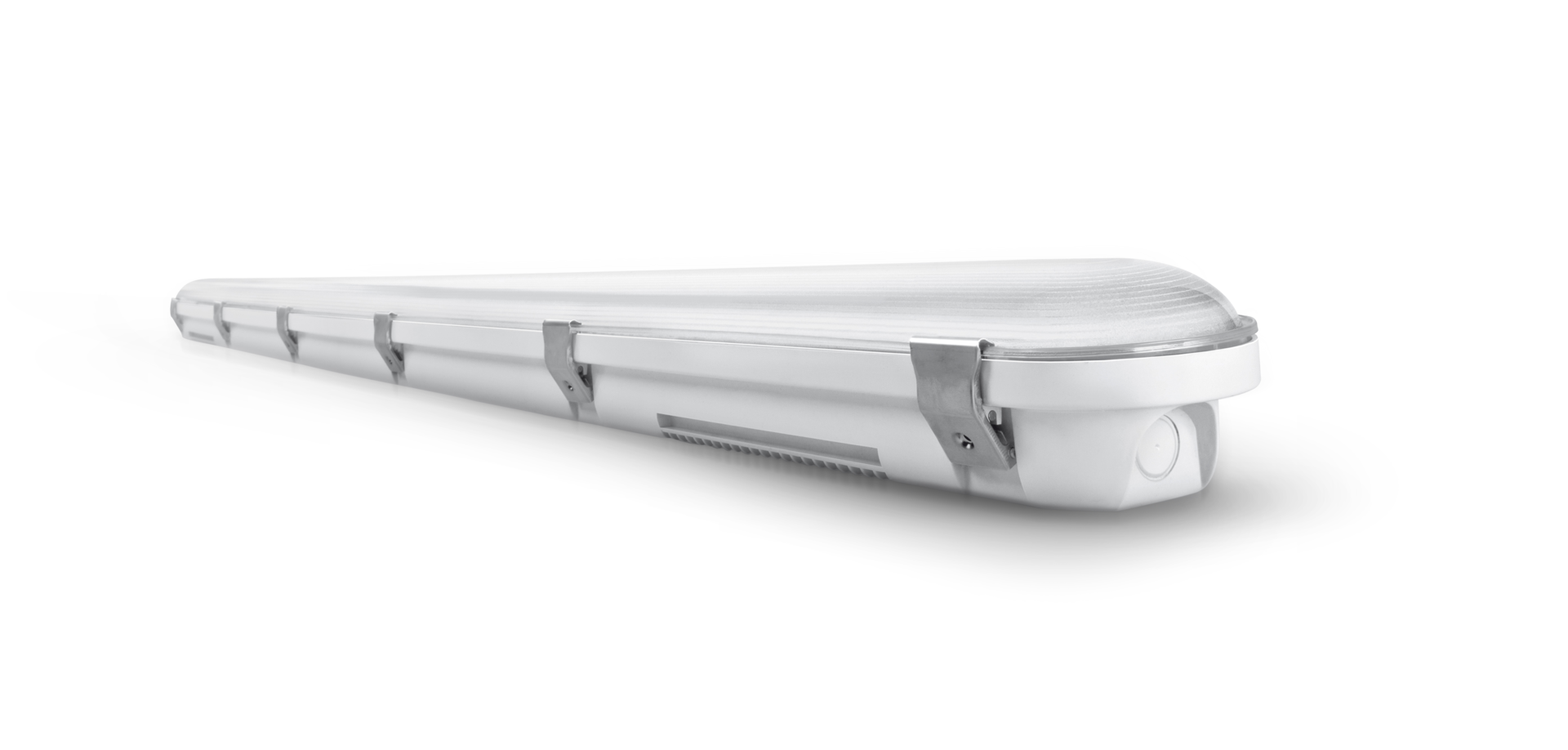

LEDVANCE DAMPROOF

Benefits for your projects

The LED Damp Proof luminaires are suitable replacements for luminaires with traditional lighting technologies with energy savings up to 50%. They distribute an uniform light with a wide beam angle and are characterized by an easy installation and connection without any tools. Customer have no ESD risk thanks to LED module integrated in luminaire cover.

The LED luminaires with IP65 protection have a housing and diffuser made from robust plastic (PC) and stainless-steel clamps. The two unequipped housings (1 and 2-lamp versions) are pre-wired for AC LED tube installation. They come with a five-year guarantee.

Quick facts

Benefit highlights

  • IP65 damp proof luminaires with attractive classic and modern designs
  • Efficacy of up to 120 lm/W with up to 6,700 lumen output
  • Easy installation and tool-free electrical connection
  • Empty body versions for LED tubes available





Recommended applications

  • Parking lots, garages and car parks
  • Workshops, technical premises
  • Industrial and storage facilities



SAVINGS IN ENERGY AND COSTS OVER THE ENTIRE LIFETIME*

Comparison Energy consumption Costs
Traditional equivalent
e. g. 2x58W FL, LUMILUX T8
L 58W/840
5,800 kWh 737.97 €
LEDVANCE Damp Proof
e. g. DampProofLED 1500
55W/4000K IP65
2,750 kWh 396.60 €
Savings –52.59 % –341.37 €
* Savings calculated based on lifetime of LEDVANCE LED luminaires including purchase price, maintenance and installation costs as well as energy costs of 0.12 EUR/kWh. Calculation of CO2 savings based on European electricity mix and 400 g CO2/kWh. Payback period assumes 7 hours of operation per day and 260 days per year.
