PLANON™ Frameless

PLANON™ Frameless

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
Planon Frameless Round 300mm 19W 3000K 19.00 W 15000 110 ° 1600 lm No

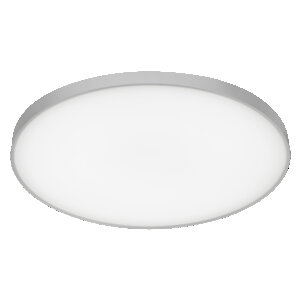

Planon Frameless Round 450mm 28W 3000K 28.00 W 15000 110 ° 2700 lm No
Planon Frameless 300x300mm 19W 3000K 19.00 W 15000 110 ° 1500 lm No

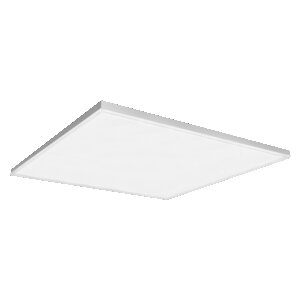

Planon Frameless 600x600mm 40W 3000K 40.00 W 15000 110 ° 3000 lm No

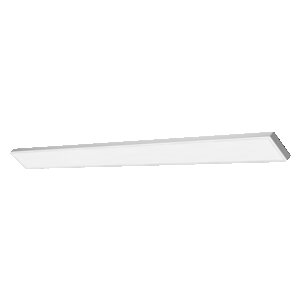

Planon Frameless 1200x100mm 35W 3000K 35.00 W 15000 110 ° 2500 lm No

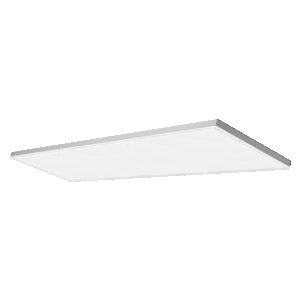

Planon Frameless 1200x300mm 40W 3000K 40.00 W 15000 110 ° 3300 lm No

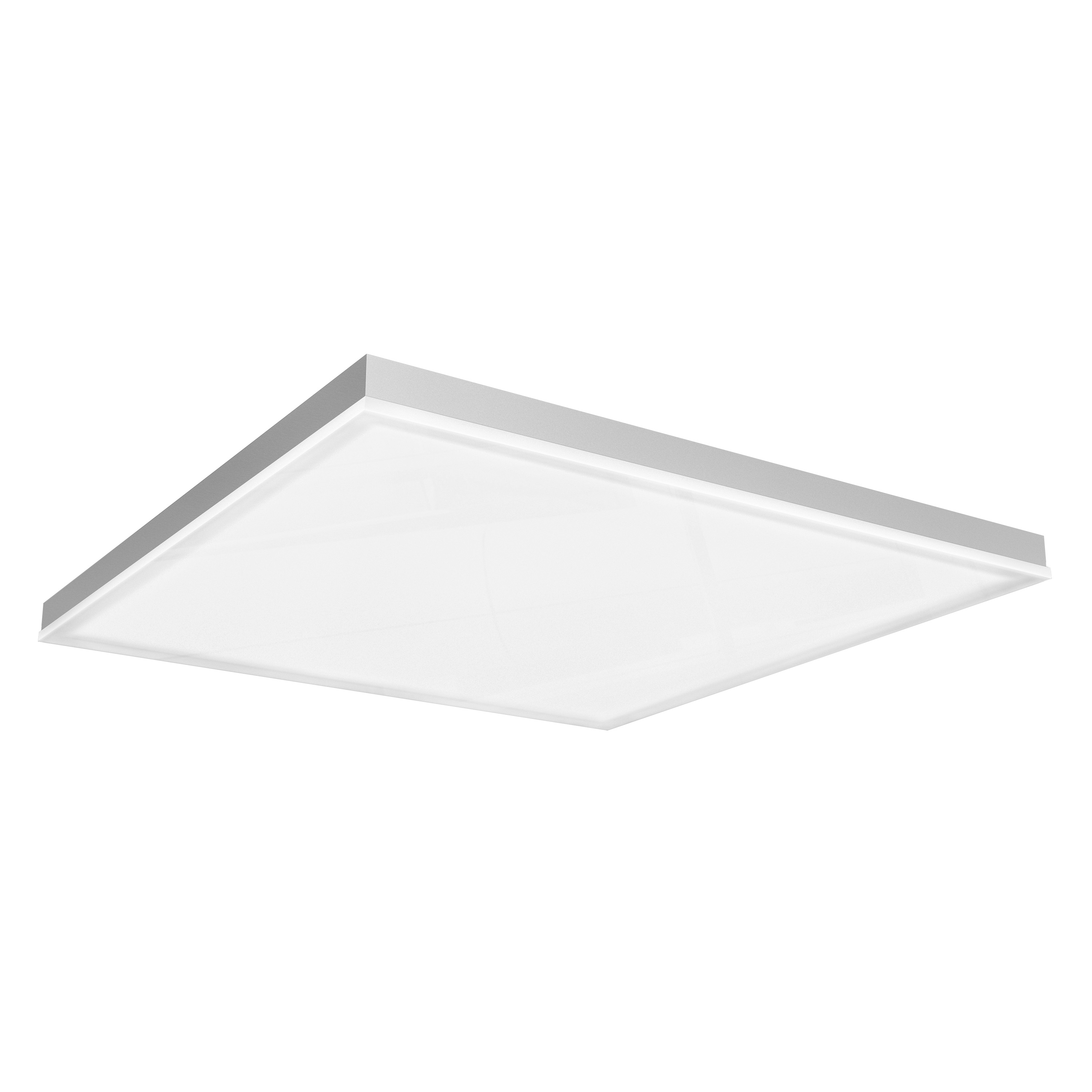

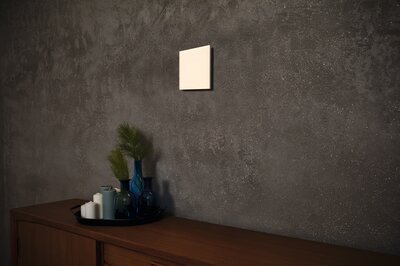

Planon Frameless 300x300mm 19W 3000K

Product benefits
  • Homogenous light distribution
  • Easy and quick installation

PRODUCT DETAILS

Electrical data

Nominal wattage 19.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 84.000 mA
Inrush current 20 A
Power factor λ > 0.90
Protection class II
Operating mode Mains voltage

Photometrical data

Luminous flux 1500 lm
Total luminous flux of contained light sources 2100 lm
Luminous efficacy 80 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 110 °

Dimensions & Weight

Length 300.00 mm
Height 62.00 mm
Width 300.00 mm
Product weight 1500.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 15000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Emergency lighting

Type of emergency light operation Non-maintained
Luminous flux in maintained operation mode -
Luminous flux in emergency operation mode -

Certificates & Standards

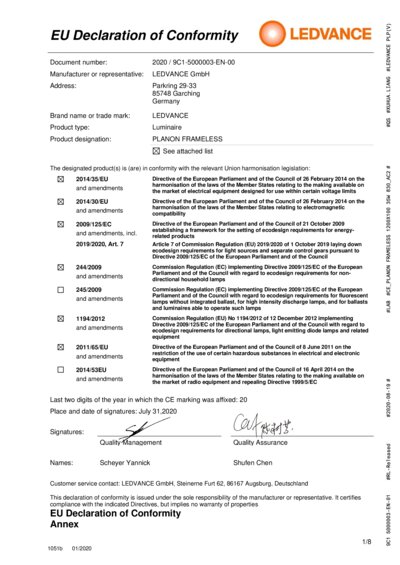

Standards CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Product benefits
  • Homogenous light distribution
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Decorative domestic lighting
  • Wall and ceiling surface mounting
Product features
  • Ceiling luminaire with advanced LED technology
  • Available in square and rectangular form
  • Color temperature: 3,000 K
  • Aluminum housing, frosted PMMA diffuser
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • Driver included
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075470675 Folding box
1
335 mm x 95 mm x 337 mm 1679.00 g 10.73 dm³
4058075470682 Shipping box
5
492 mm x 353 mm x 366 mm 9100.00 g 63.57 dm³
