TruSys® PERFORMANCE EMERGENCY WIDE

TruSys PERFORMANCE EMERGENCY WIDE

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TruSys® PFM EM W 35 W 4000 K AT 3H 35.00 W 100000 90 ° 5600 lm Yes
TruSys® PFM EM W 50 W 4000 K AT 3H 50.00 W 100000 90 ° 8000 lm Yes


TruSys® PFM EM W 35 W 4000 K AT 3H

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • 3 years guarantee
  • Homogenous light distribution
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 luminaires possible

PRODUCT DETAILS

Electrical data

Nominal wattage 35.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 190.000 mA
Inrush current 25 A
Inrush current time Th50 220 µs
Max. number of luminaires per miniature circuit breaker B16 13
Max. number of luminaires per miniature circuit breaker C10 12
Max. number of luminaires per miniature circuit breaker C16 19
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5600 lm
Luminous efficacy 160 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 90 °

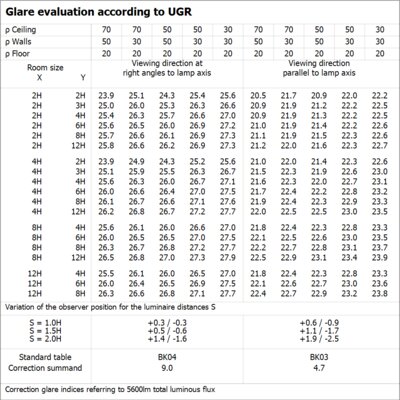

UGR 21

Dimensions & Weight

Length 1500.00 mm
Height 39.40 mm
Width 66.80 mm
Product weight 1660.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+40 °C
Temperature range at storage 5…+35 °C
Type of connection Plug-In connection
Type of protection IP20
Protection class IK (shock resistance) IK04
Dimmable Yes
Mounting type Suspended/Surface
Mounting location Mounting rail
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 65000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output ripple current < 20 %

BATTERY

Type of Battery LiFePO4
Nominal voltage of battery 3.2 V
Nominal capacity of battery 9000 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 35 W
Wattage in emergency operation mode 4 W
Luminous flux in maintained operation mode 5600 lm
Luminous flux in emergency operation mode 600 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

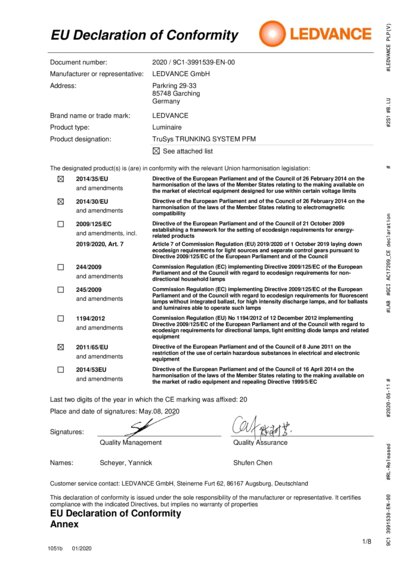

Standards CE, CB, ENEC, EAC
Ball shot safe No
Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • 3 years guarantee
  • Homogenous light distribution
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 luminaires possible
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Luminaire suited for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Beam angle wide: 90°
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 160 lm/W
  • Fixed luminare taps
  • Lumen package 5600 lm, 8000 lm, 11200 lm
  • Steel-sheet housing
Equipment / Accessories
  • Mounting rail with fixed integrated 8-pole cable
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075291157 Folding box
1
83 mm x 1,571 mm x 88 mm 1835.00 g 11.47 dm³
4058075291164 Shipping box
4
1,589 mm x 194 mm x 198 mm 8133.00 g 61.04 dm³
EAN SEG number STK number
4058075291157 7215820 4283697
