OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HB P 87W 840 70DEG IP65 87.00 W 200000 70 ° 13000 lm No
HB P 87W 840 110DEG IP65 87.00 W 200000 110 ° 13000 lm No
HB P 87W 865 70DEG IP65 87.00 W 200000 70 ° 13000 lm No
HB P 87W 865 110DEG IP65 87.00 W 200000 110 ° 13000 lm No
HB P 147W 840 70DEG IP65 147.00 W 200000 70 ° 22000 lm No
HB P 147W 840 110DEG IP65 147.00 W 200000 110 ° 22000 lm No
HB P 147W 865 70DEG IP65 147.00 W 200000 70 ° 22000 lm No
HB P 147W 865 110DEG IP65 147.00 W 200000 110 ° 22000 lm No
HB P 190W 840 70DEG IP65 190.00 W 200000 70 ° 27000 lm No
HB P 190W 840 110DEG IP65 190.00 W 200000 110 ° 27000 lm No
HB P 190W 865 70DEG IP65 190.00 W 200000 70 ° 27000 lm No
HB P 190W 865 110DEG IP65 190.00 W 200000 110 ° 27000 lm No
HB P 210W 840 70DEG IP65 210.00 W 200000 70 ° 30000 lm No
HB P 210W 865 70DEG IP65 210.00 W 200000 70 ° 30000 lm No


HB P 87W 840 70DEG IP65

Product benefits
  • Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 64 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Optimized weight and size due to compact design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 87.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 400 mA
Inrush current 42 A
Inrush current time Th50 378 µs
Max. number of luminaires per miniature circuit breaker B16 5
Max. number of luminaires per miniature circuit breaker C10 5
Max. number of luminaires per miniature circuit breaker C16 9
Power factor λ ≥ 0.95
Total harmonic distortion < 20 %
Protection class I
Operating mode Mains voltage

Photometrical data

Luminous flux 13000 lm
Luminous efficacy 150 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 70 °
UGR ≤ 25

Dimensions & Weight

Diameter 280.00 mm
Height 155.00 mm
Product weight 2264.00 g
Cable length 1500 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output ripple current < 10 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Product benefits
  • Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 64 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 14 m in 4000 K or 6500 K
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets, reflectors and refractors available as separate accessory
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075692787 Shipping box
1		 328 mm x 328 mm x 171 mm 2872.00 g 18.40 dm³

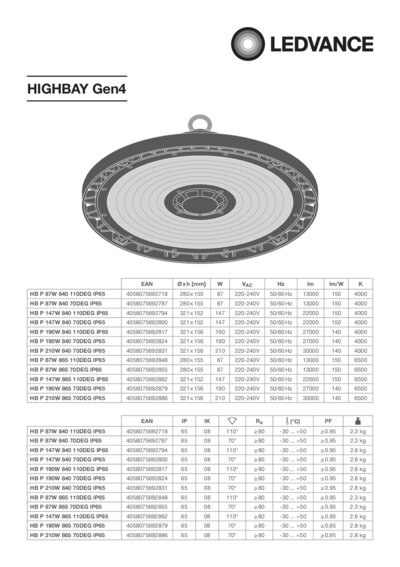

User instruction
UI HighBay Gen4 PDF (4.47 MB)

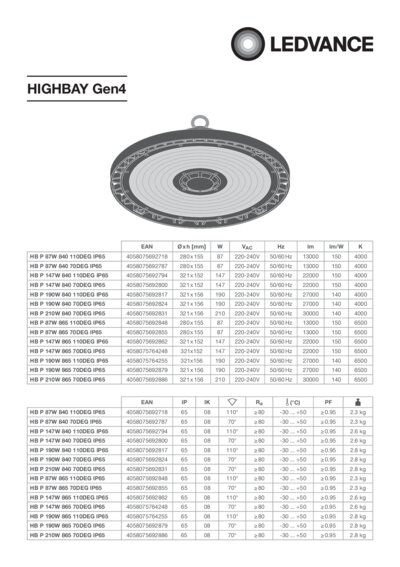

User instruction
UI HighBay Gen4 PDF (4.37 MB)
Addon Technical Information

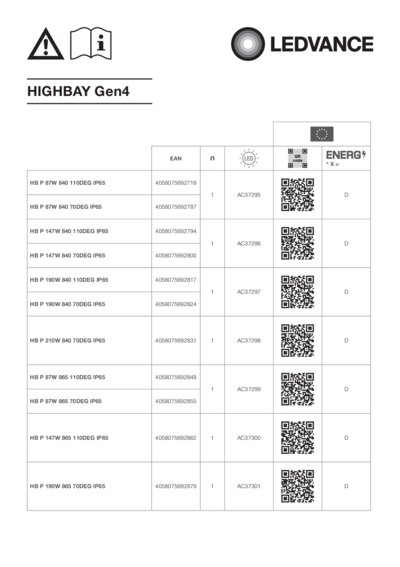

LS Insert HB P GEN4 PDF (1.4 MB)
Packaging insert
Legal insert HB P GEN 4 AND HB GEN 3 PDF (3.51 MB)
Declarations Of Conformity CE

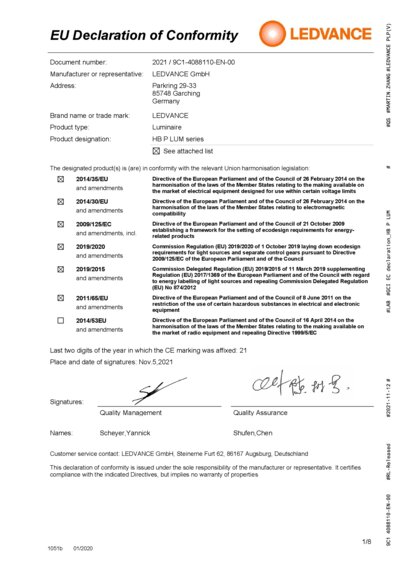

EC Declaration HB P PDF (303.69 KB)
Certificates

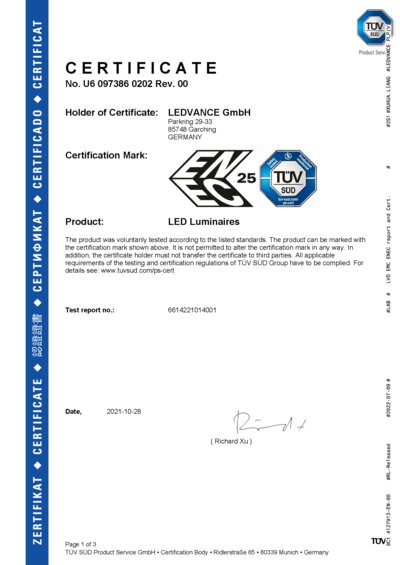

ENEC Certificate HB P and HB Sensor P PDF (720.95 KB)

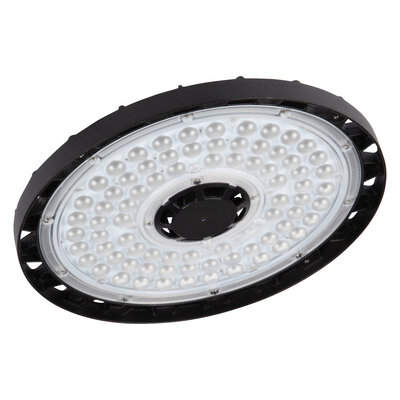

Background: white, diagonal

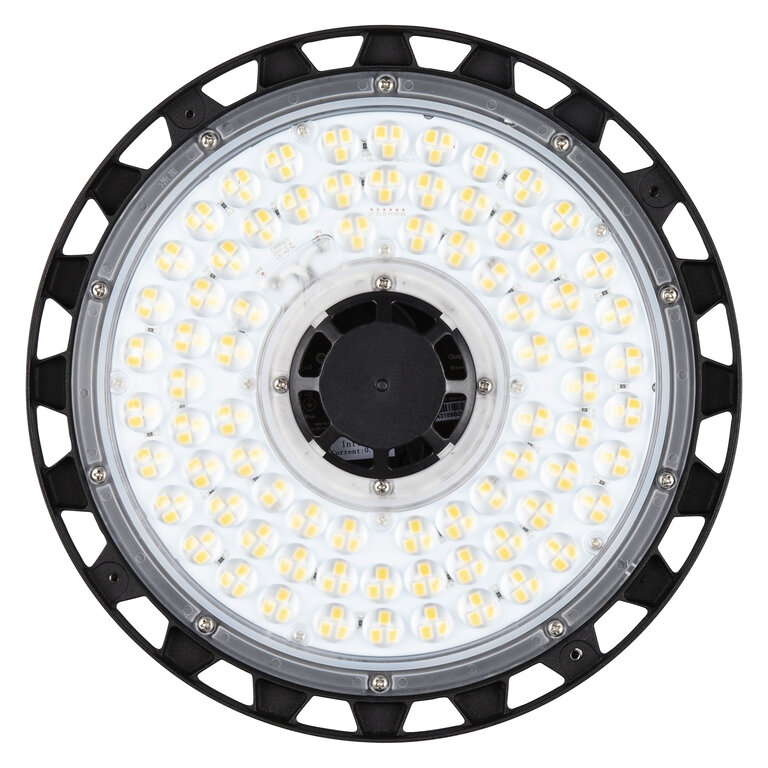

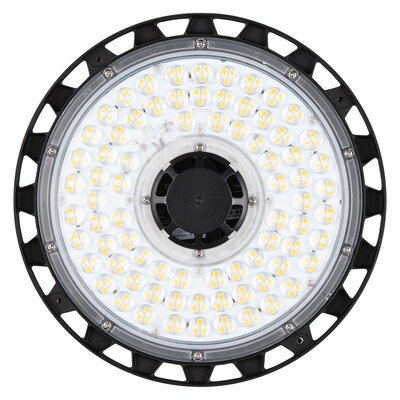

HIGHBAY PERFORMANCE JPG (2.62 MB)

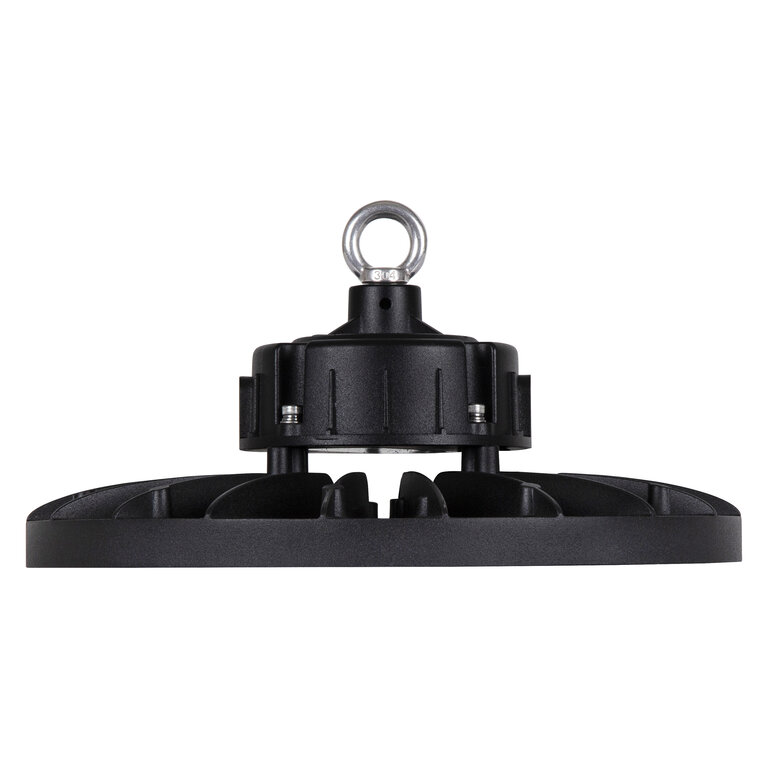

Background: white, upright

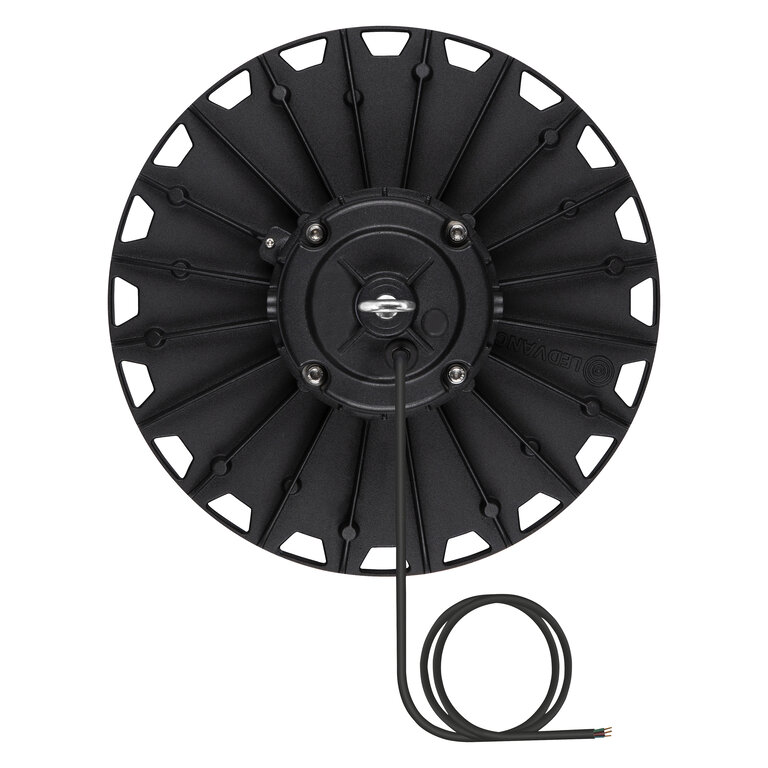

HIGHBAY PERFORMANCE JPG (3.28 MB)
Product line drawing with letters
HighBay 87W 70DEG 110_ DEG SVG (113.11 KB)
Product line drawing with numbers
HighBay 87W 70DEG 110_ DEG SVG (121.6 KB)
Prod.line drw, front, no dimensions
HighBay 87W 70DEG 110_ DEG SVG (107.9 KB)

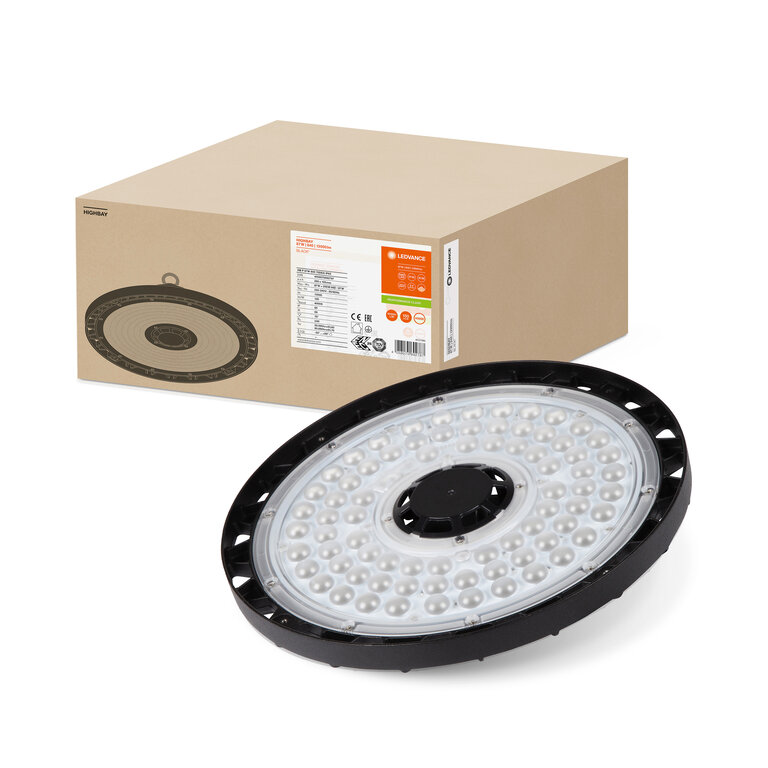

Combo Shot = Product Beauty Shot + Packaging Image
HB P 87W 840 70DEG IP6 5 JPG (1.58 MB)

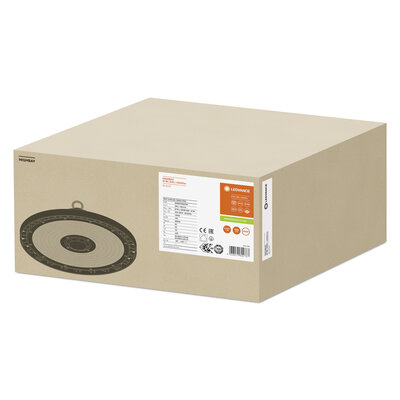

Packaging image, spacial
HighBay 87W MiCh JPG (1.75 MB)
Catalog info 1

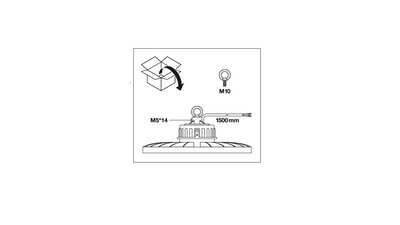

Catalog info 1 HB Gen4 JPG (36.65 KB)
IES file (IES)
HB P 87W 840 70DEG IP6 5 IES (1.88 KB)
IES file (IES)
HB P 87W 840 70DEG IP 65 IES (1.78 KB)
LDT file (Eulumdat)
HB P 87W 840 70DEG IP6 5 LDT (1.37 KB)
LDT file (Eulumdat)
HB P 87W 840 70DEG IP 65 LDT (1.31 KB)
ULD file (DIALux)
HB P 87W 840 70DEG ULD (173.57 KB)
ROLF file (RELUX)
HB P 87W 840 70DEG ROLF (1.26 MB)

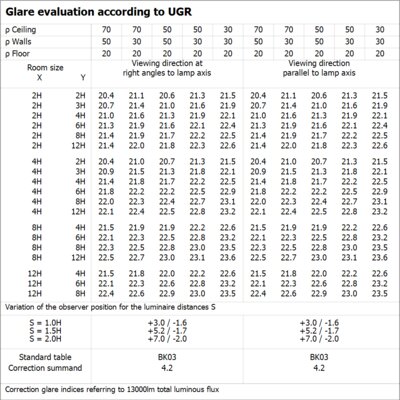

UGR file (UGR table)
HB P 87W 840 70DEG IP6 5 PNG (55.81 KB)
LDC typ cone
HB P 87W 840 70DEG IP6 5 SVG (11.43 KB)
LDC typ polar
HB P 87W 840 70DEG IP6 5 SVG (17.23 KB)
BIM_Revit_3D
HB G4 ZIP (5.99 MB)
CAD_STEP_3D
HB G4 87W STEP (1.68 MB)
Tender documents
HIGH BAY GEN 4 87W 840 70DEG IP65-EN TXT (1.88 KB)
Application Pictures

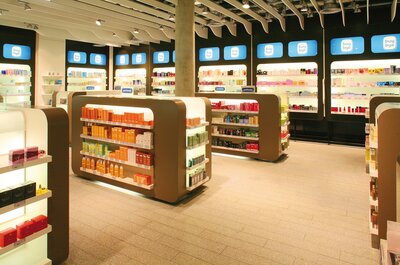

313890_LUXEMBURG AIRPO RT SHOP JPG (6.11 MB)
EAN SEG number STK number EFO number
4058075692787 7216709 4324717 3208500
