Professional

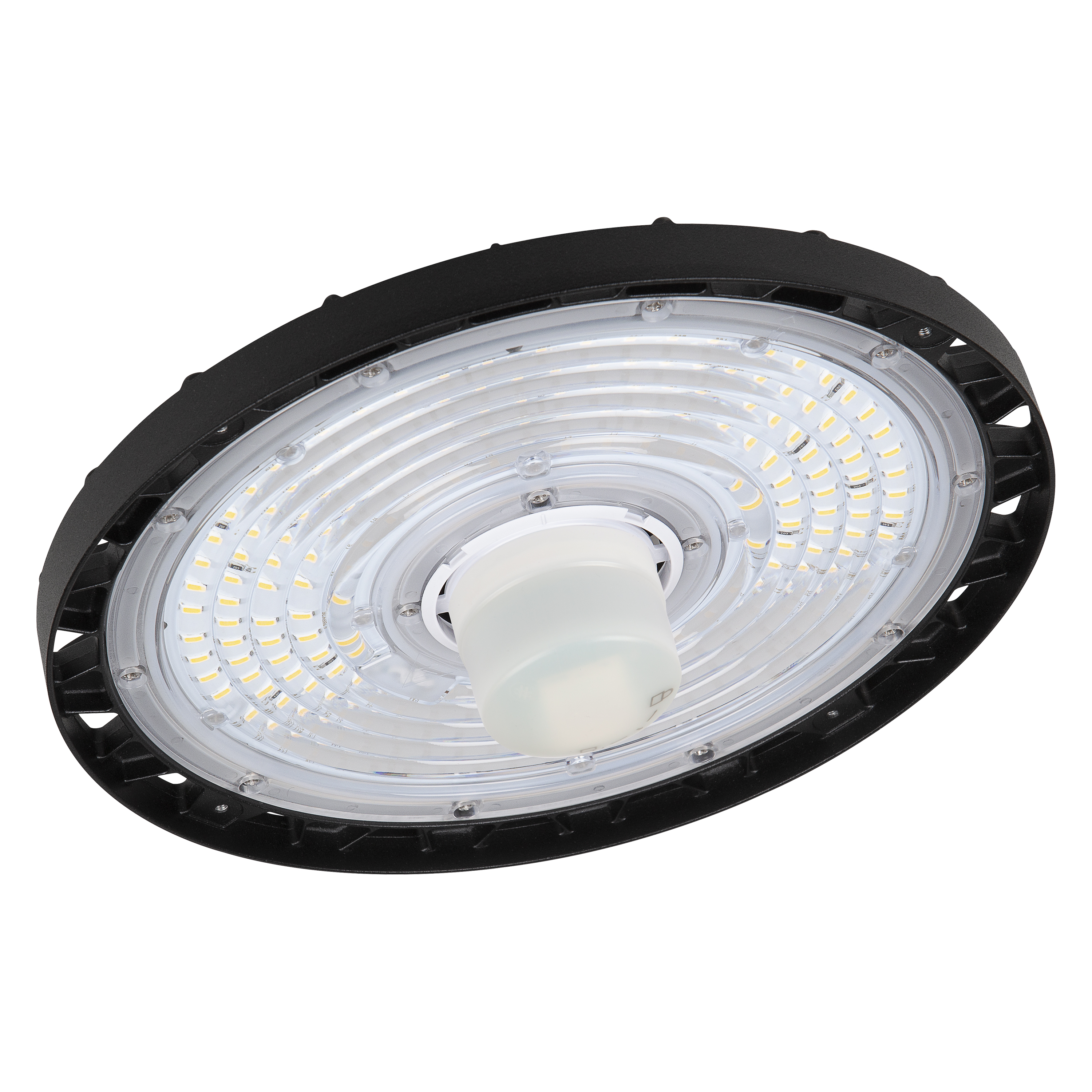

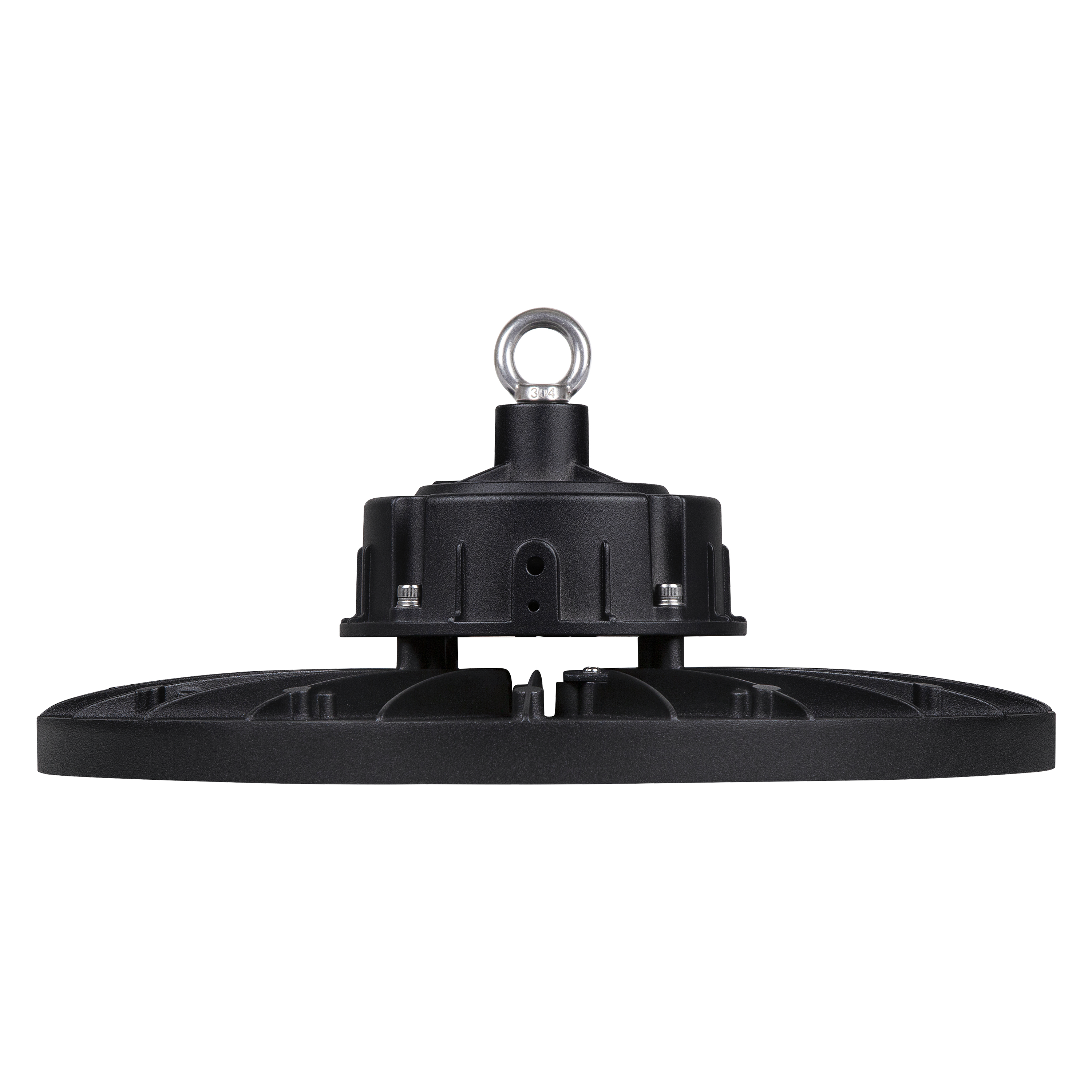

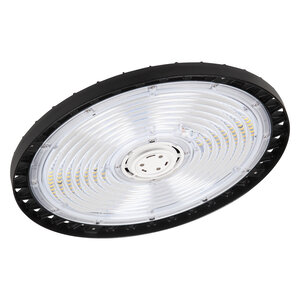

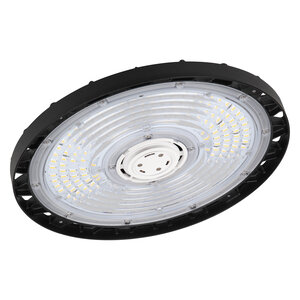

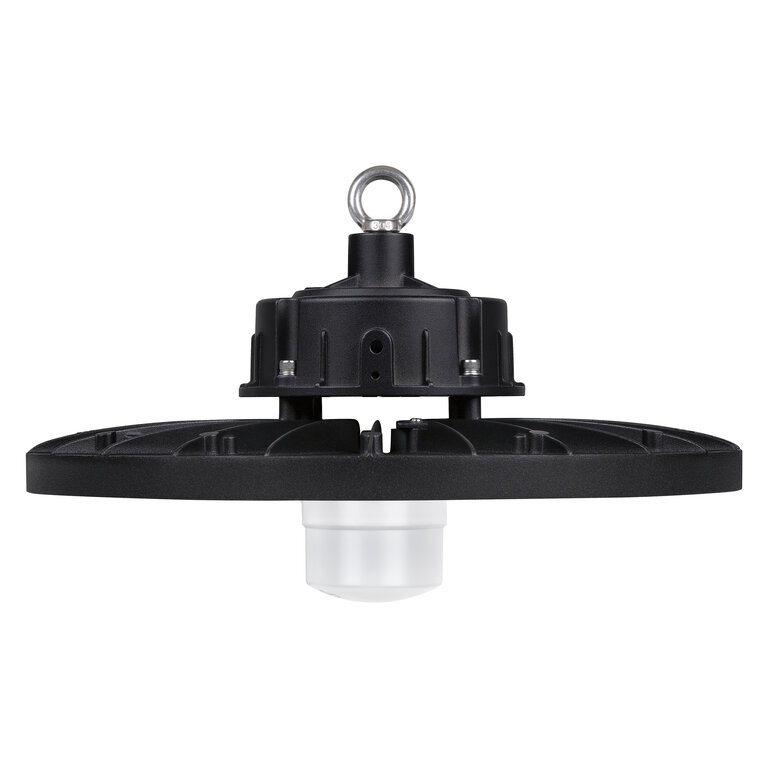

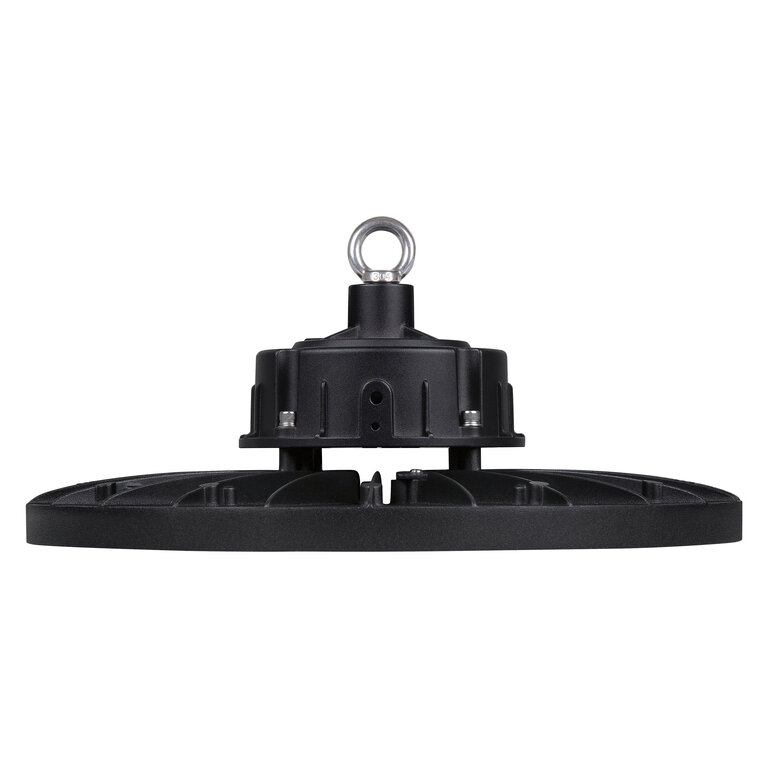

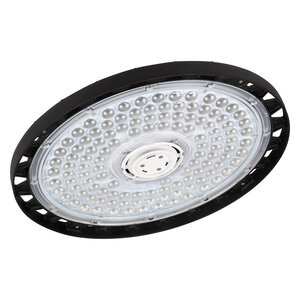

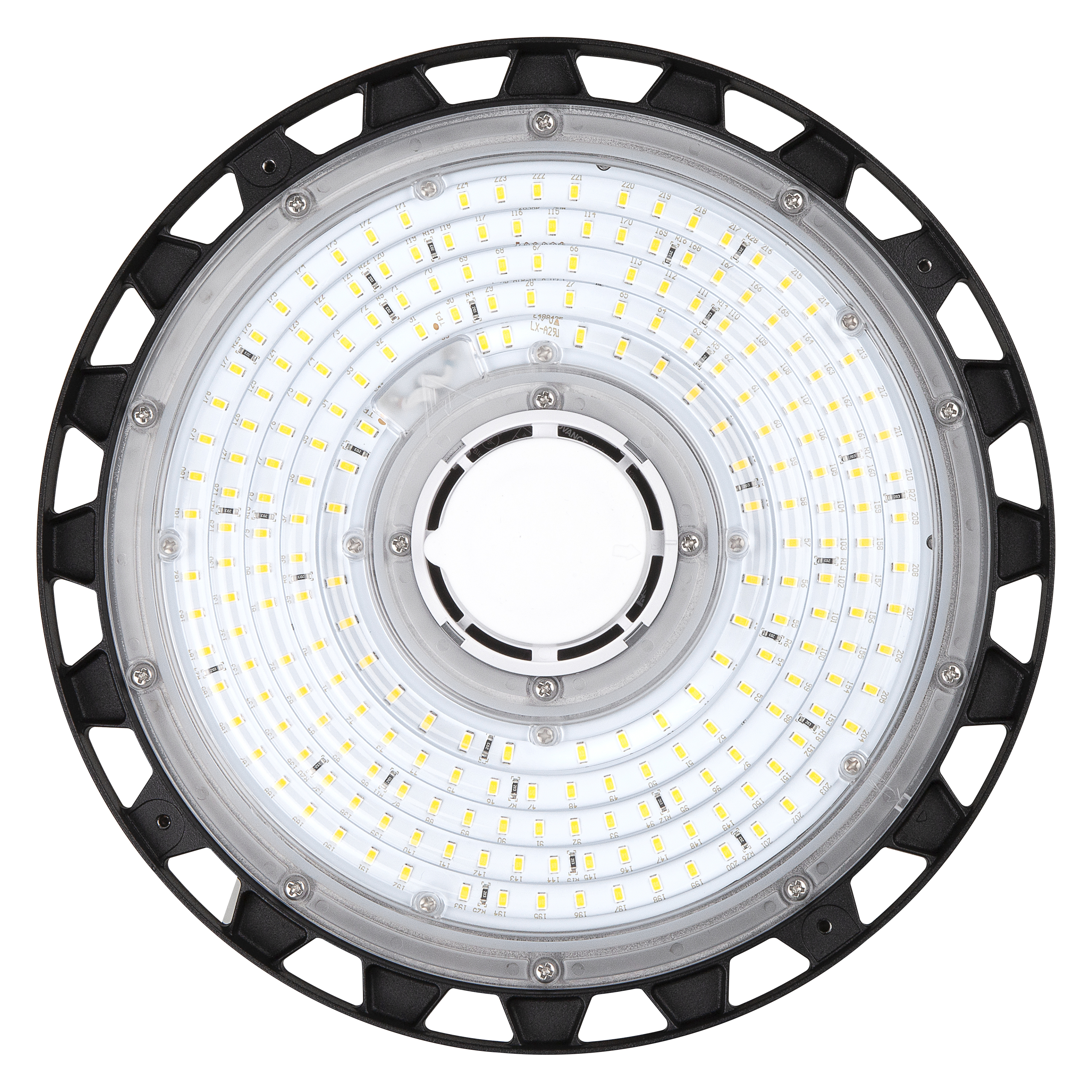

HIGH BAY SENSOR GEN 4

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HB SEN P 87W 840 110DEG IP65 87.00 W 200000 110 ° 13000 lm No
HB SEN P 147W 840 70DEG IP65 147.00 W 200000 70 ° 22000 lm No
HB SEN P 147W 840 110DEG IP65 147.00 W 200000 110 ° 22000 lm No
HB SEN P 190W 840 110DEG IP65 190.00 W 200000 110 ° 27000 lm No

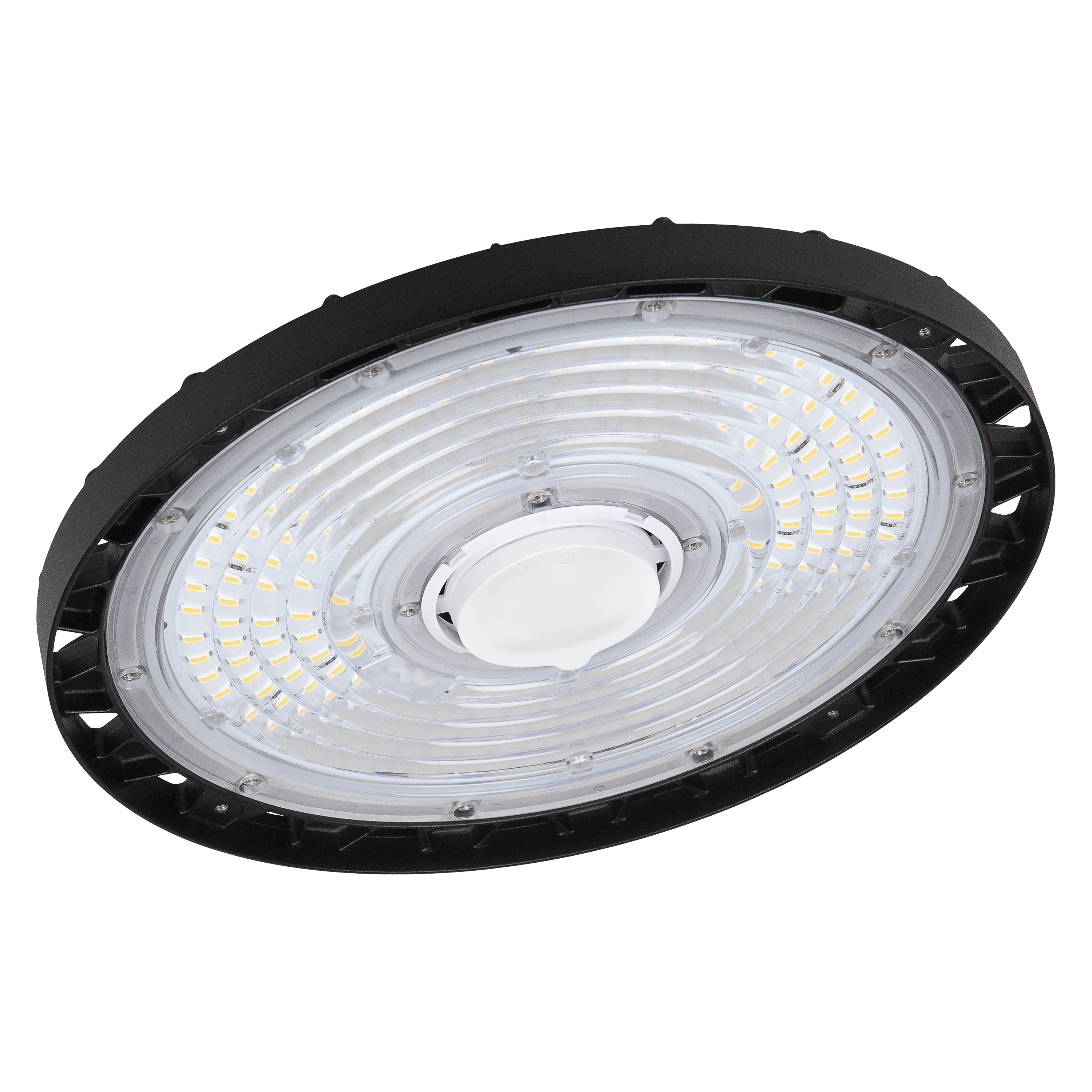

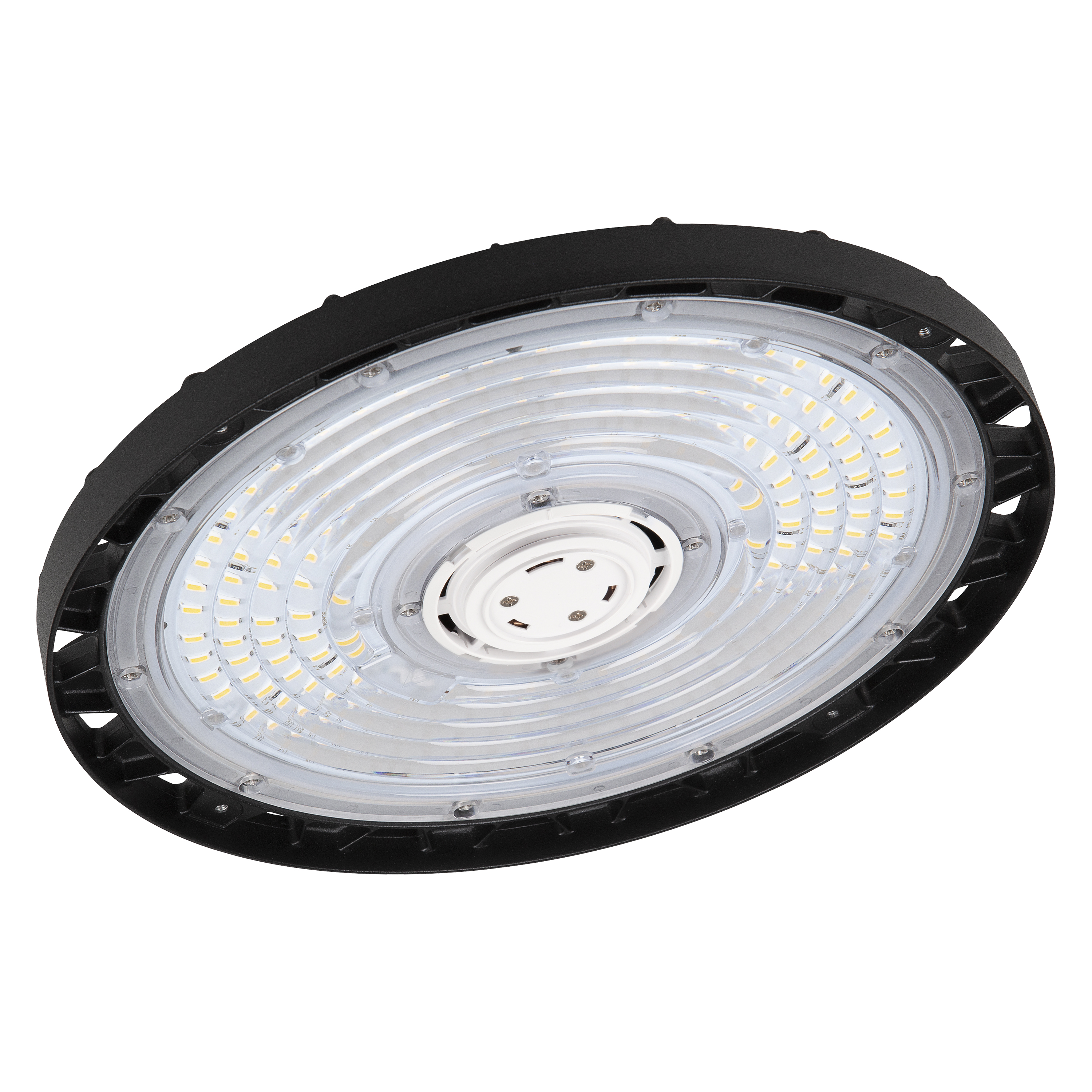

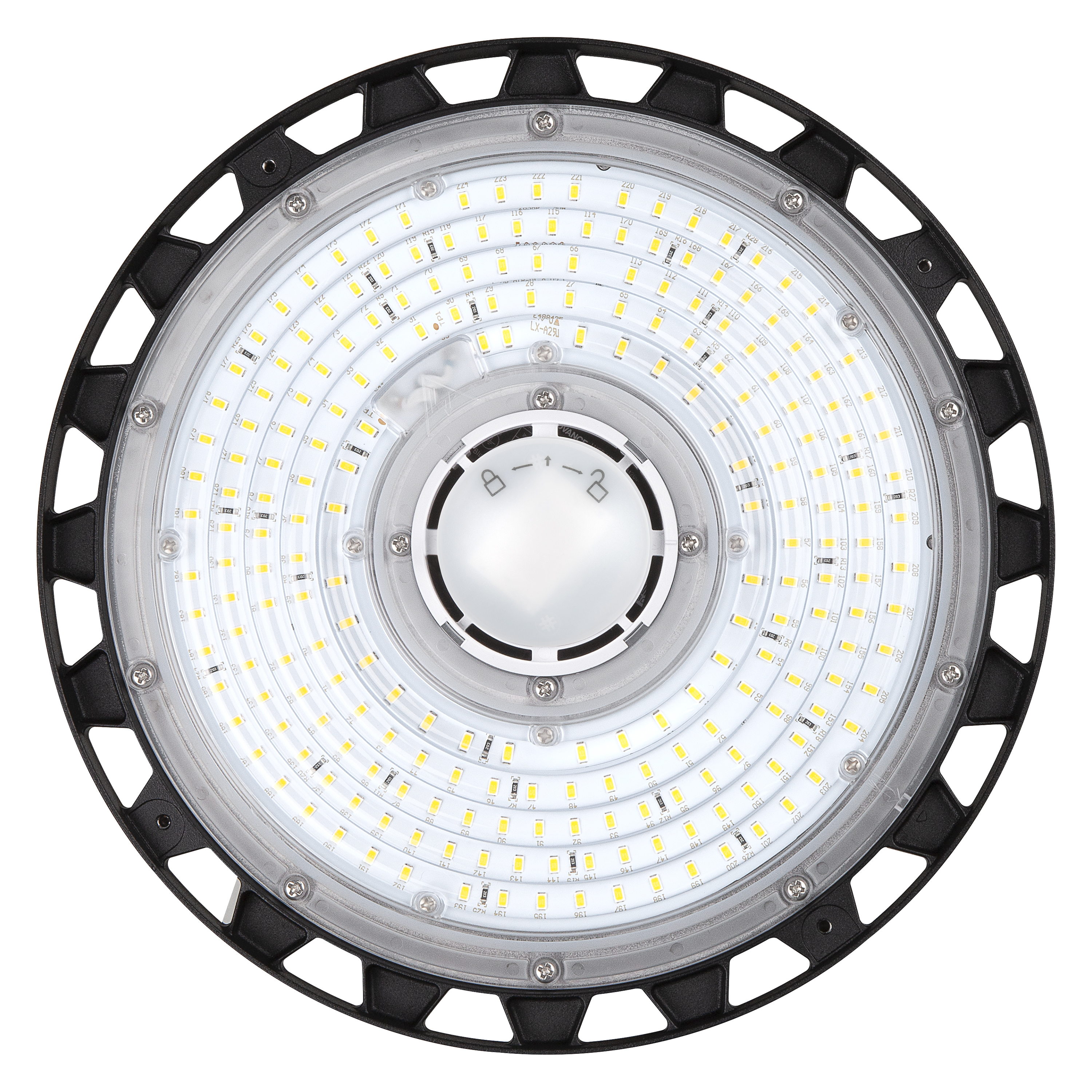

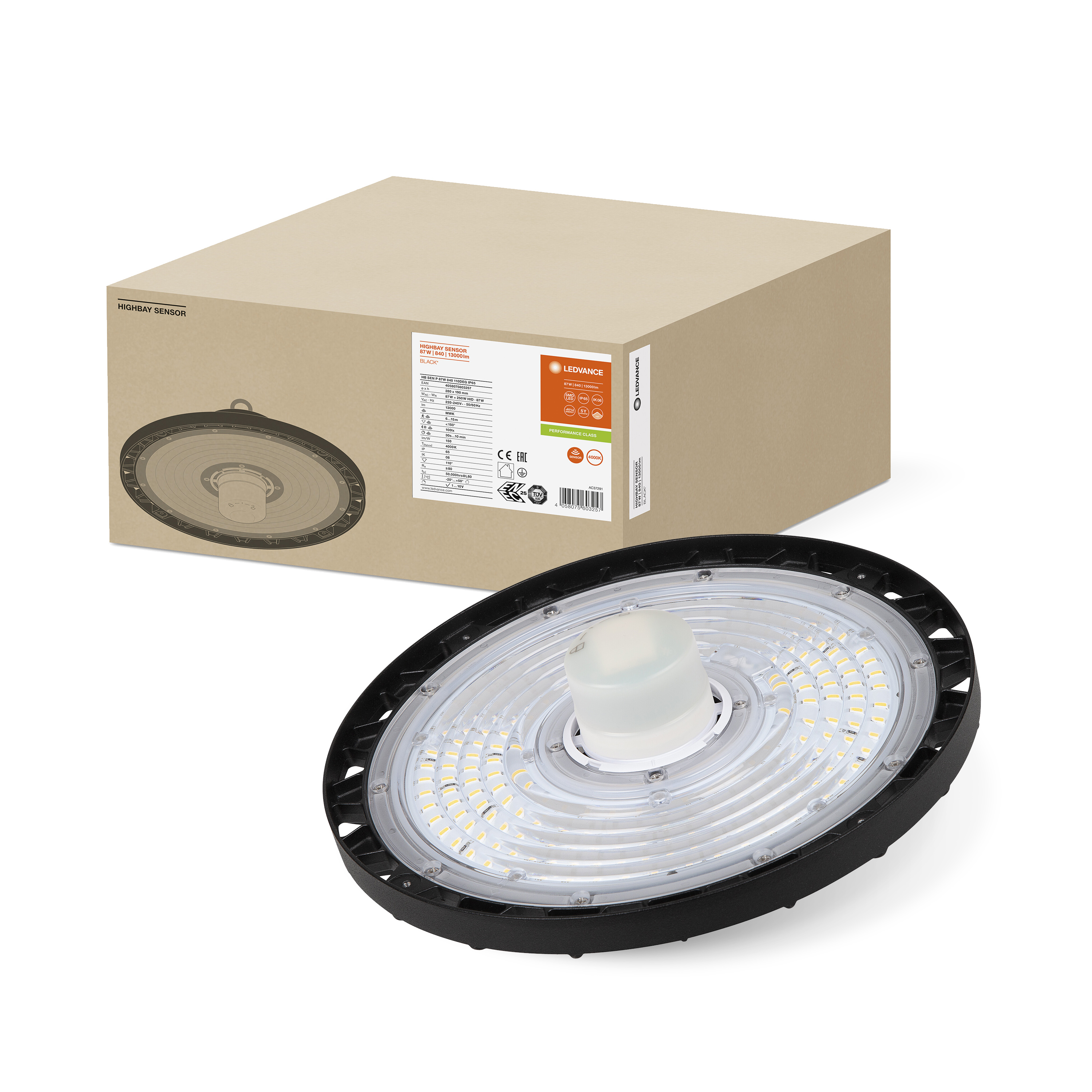

HB SEN P 87W 840 110DEG IP65

Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • High luminous efficacy
  • Energy savings of up to 64 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Suitable for use in dusty and damp locations thanks to high IP rating

PRODUCT DETAILS

Electrical data

Nominal wattage 87.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 400 mA
Inrush current 44 A
Inrush current time Th50 380 µs
Max. no. of lum. on circuit break. B16 A 5
Max. no. of lum. on circuit break. C16 A 8
Max. no. of lum. on circuit break. C10 A 5
Power factor λ > 0.95
Total harmonic distortion < 20 %
Protection class I
Operating mode Mains voltage

Photometrical data

Luminous flux 13000 lm
Luminous efficacy 150 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 110 °

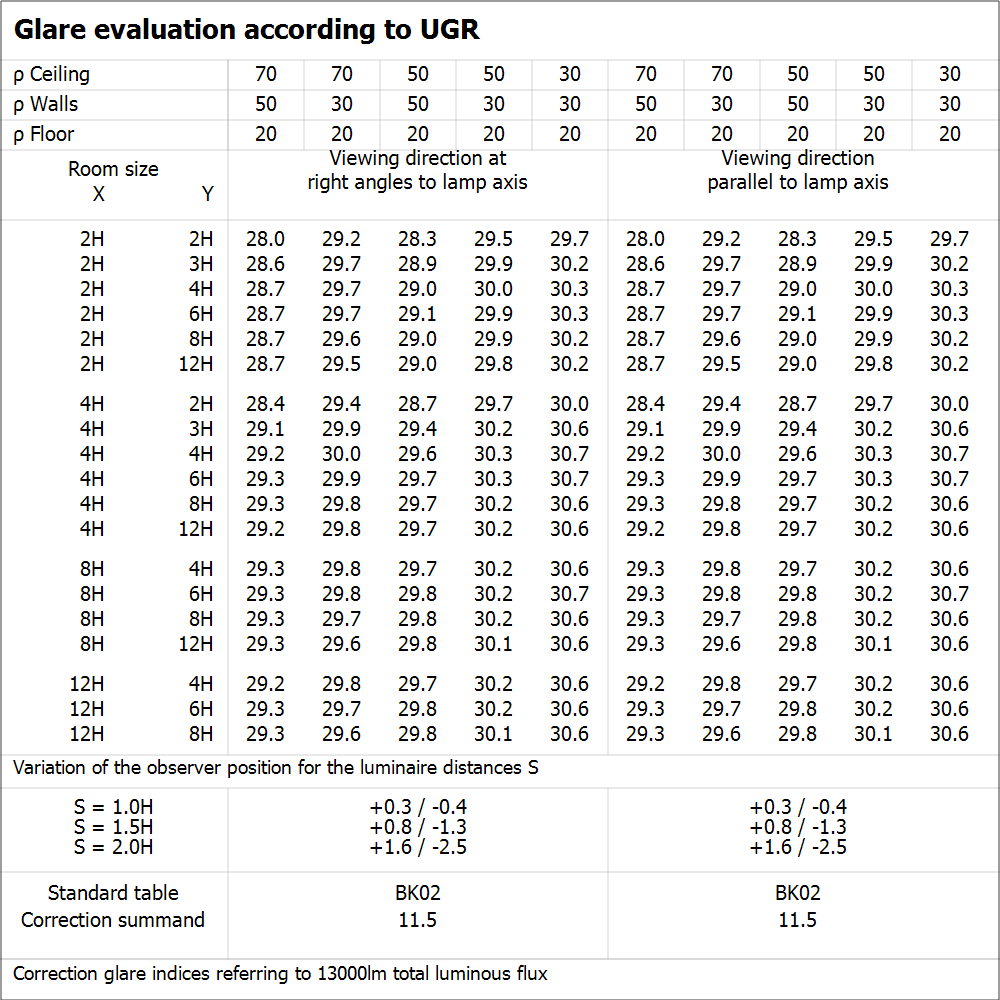

UGR ≤ 29

Dimensions & Weight

Diameter 280.00 mm
Height 190.00 mm
Product weight 2242.00 g
Cable length 1500 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cables
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h
Lifespan L80/B10 at 25 °C 50000 h
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 200000

Control gear

ECG - Output ripple current < 10 %

Sensor

Type of sensor Motion, Light
Sensor technology Microwave
Sensor detection angle < 150 °
Sensor controlled switching time 30s…10 min

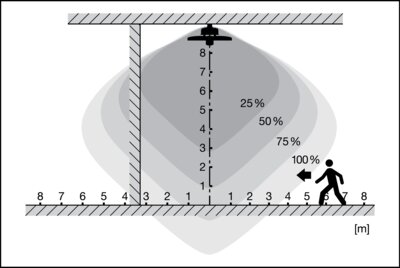

Detection range of motion sensor 6...15 m
Detection threshold of daylight sensor 100 lx

Certificates & Standards

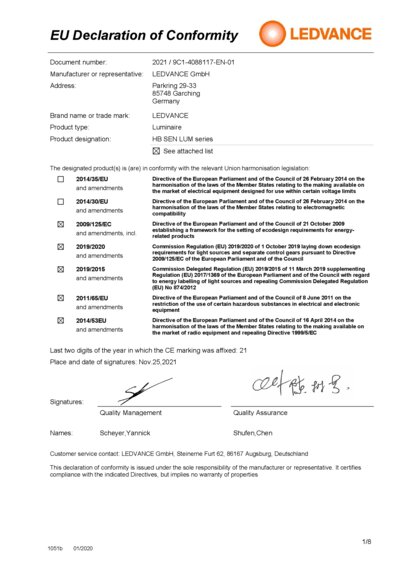

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No

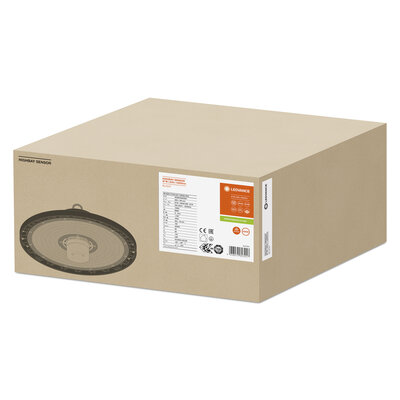

Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075603257 Shipping box
1
328 mm x 328 mm x 171 mm 2838.00 g 18.40 dm³
EAN SEG number STK number
4058075603257 7216721 4324700
Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • High luminous efficacy
  • Energy savings of up to 64 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Suitable for use in dusty and damp locations thanks to high IP rating

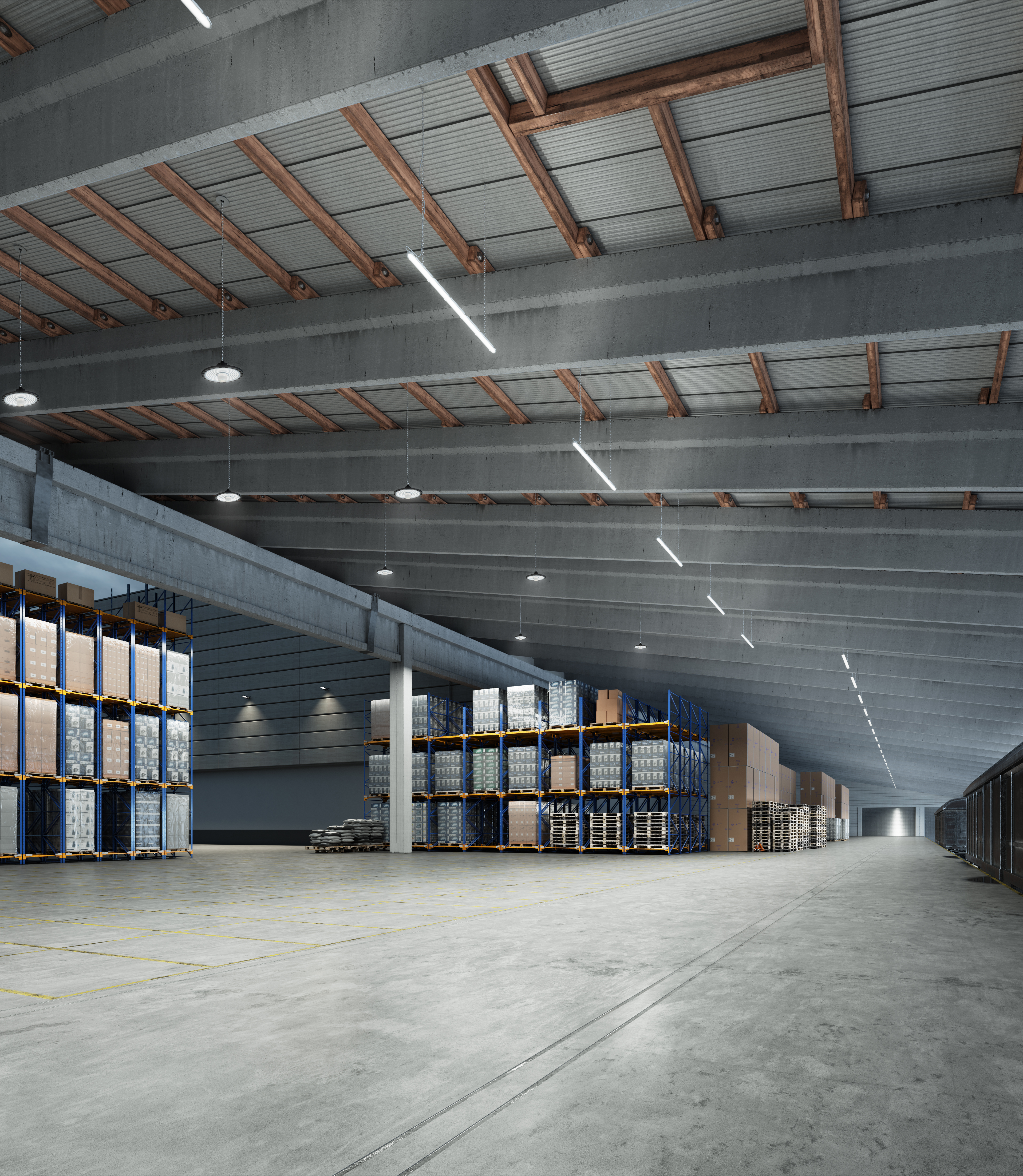

Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • High frequency sensor for daylight and motion detection
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 10 m in 4000 K
Equipment / Accessories
  • Sensor, mounting hook and mounting bracket included
  • Reflectors, refractors and remote control available as separate accessory
References / Links
  • For Guarantee see www.ledvance.com/guarantee
