FLOODLIGHT 20 W

FLOODLIGHT 20 W

Choose your product version

3000 K SYM 100 WT

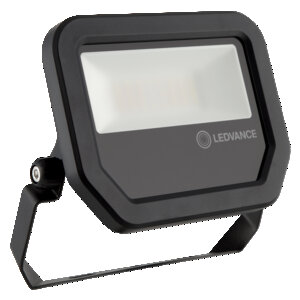

3000 K SYM 100 BK

4000 K SYM 100 BK

4000 K SYM 100 WT

6500 K SYM 100 WT

6500 K SYM 100 BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL PFM 20 W 3000 K SYM 100 WT 20.00 W 100000 100 ° x 100 ° 2200 lm No
FL PFM 20 W 3000 K SYM 100 BK 20.00 W 100000 100 ° x 100 ° 2200 lm No
FL PFM 20 W 4000 K SYM 100 BK 20.00 W 100000 100 ° x 100 ° 2400 lm No
FL PFM 20 W 4000 K SYM 100 WT 20.00 W 100000 100 ° x 100 ° 2400 lm No
FL PFM 20 W 6500 K SYM 100 WT 20.00 W 100000 100 ° x 100 ° 2400 lm No
FL PFM 20 W 6500 K SYM 100 BK 20.00 W 100000 100 ° x 100 ° 2400 lm No

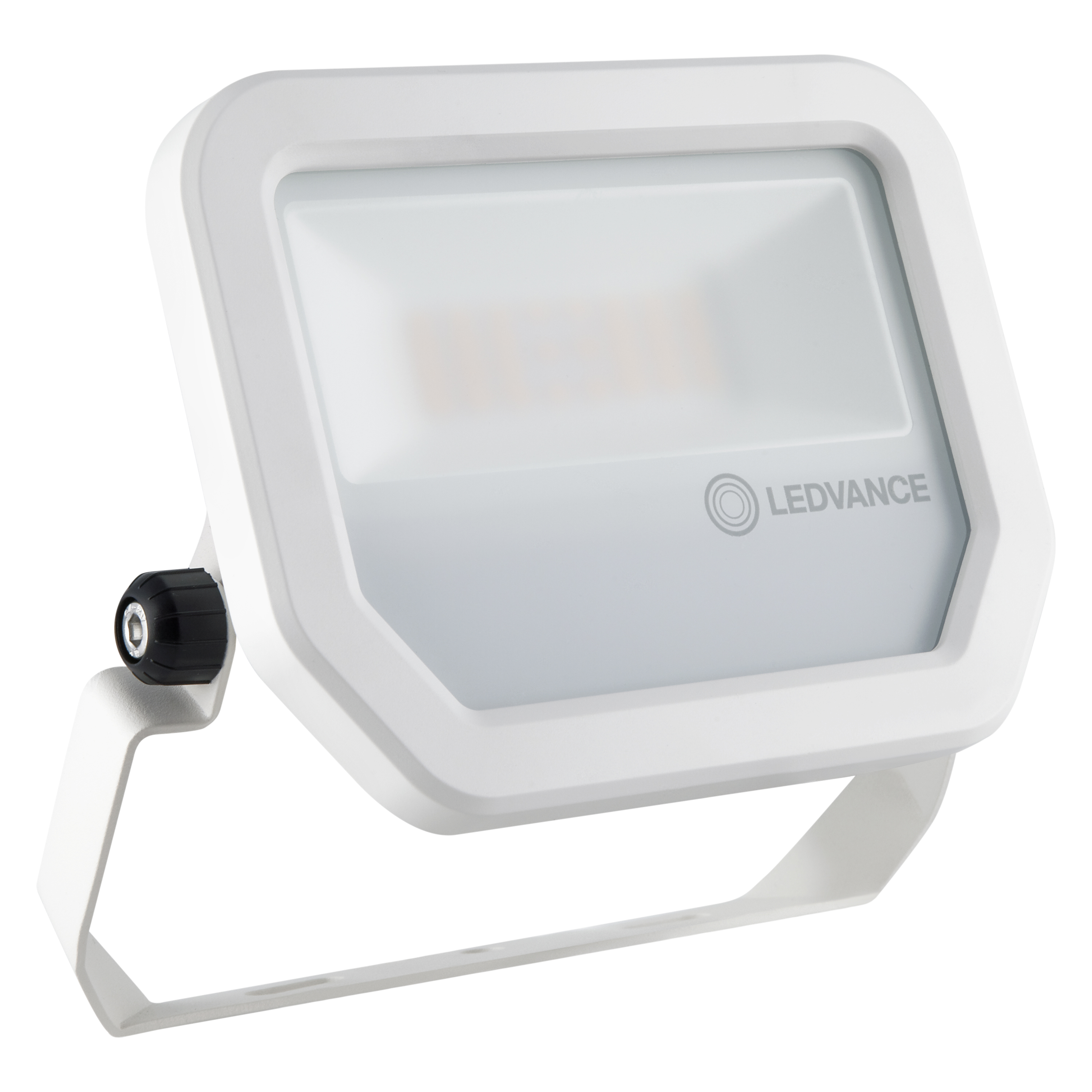

FL PFM 20 W 3000 K SYM 100 WT

Product benefits
  • Bright, robust and durable
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 20.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Nominal current 98 mA
Inrush current 5.68 A
Inrush current time Th50 35 µs
Max. number of luminaires per miniature circuit breaker B16 93
Max. number of luminaires per miniature circuit breaker C10 67
Max. number of luminaires per miniature circuit breaker C16 108
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2200 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤5 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 100 ° x 100 °

Dimensions & Weight

Length 144.00 mm
Height 42.00 mm
Width 156.00 mm
Product weight 520.00 g
Cable length 1000 mm

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK07
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling, Floor
Application environment Outdoor
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 55000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 230 mA
ECG - Output ripple current < 50 %

Certificates & Standards

Standards CE, CB, ENEC, EAC, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Bright, robust and durable
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • 5 years guarantee
Areas of application
  • Replacement for floodlights with halogen lamps
  • Outdoor use (IP65)
  • Public areas
  • Building facades
  • Construction areas
  • Gardens, balconies and other outdoor areas
Product features
  • Reflector-based, symmetric light distribution with 100° x 100° beam angle
  • Integrated wide voltage driver, suitable for 100 - 277 VAC
  • Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
  • Mounting bracket with 30° angle and wide rotation area
  • Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075420991 Folding box
1		 161 mm x 62 mm x 135 mm 572.00 g 1.35 dm³
4058075421004 Shipping box
12		 396 mm x 336 mm x 161 mm 7510.00 g 21.42 dm³

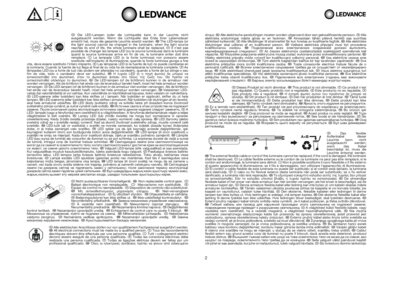

User instruction
FL PFM SYM PDF (3.64 MB)
Addon Technical Information
FL PFM SYM PDF (2.77 MB)
Addon Technical Information
LSI FL PFM SYM PDF (2.93 MB)

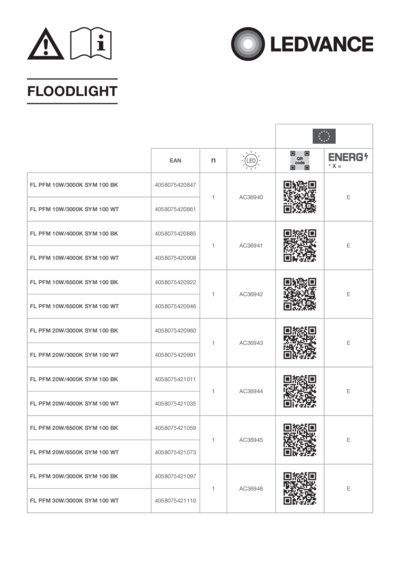

Packaging insert
FL PFM SYM PDF (2.59 MB)

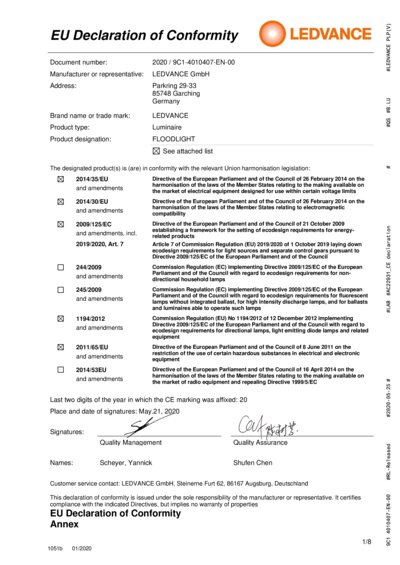

Declarations Of Conformity CE
FL PFM PDF (325.66 KB)

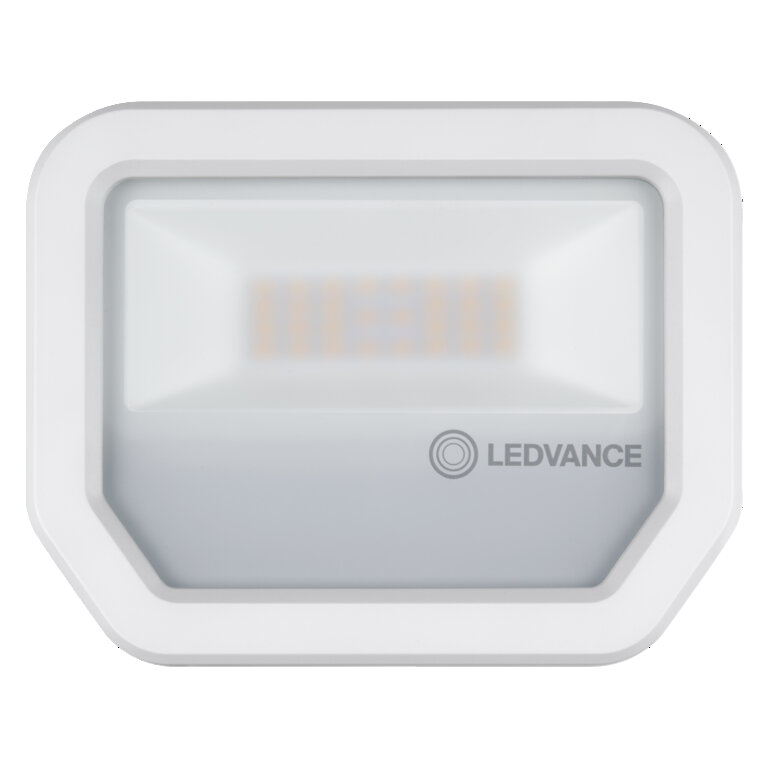

Background: white, diagonal
FL PFM 20W SYM 100 WT    JPG (1.86 MB)

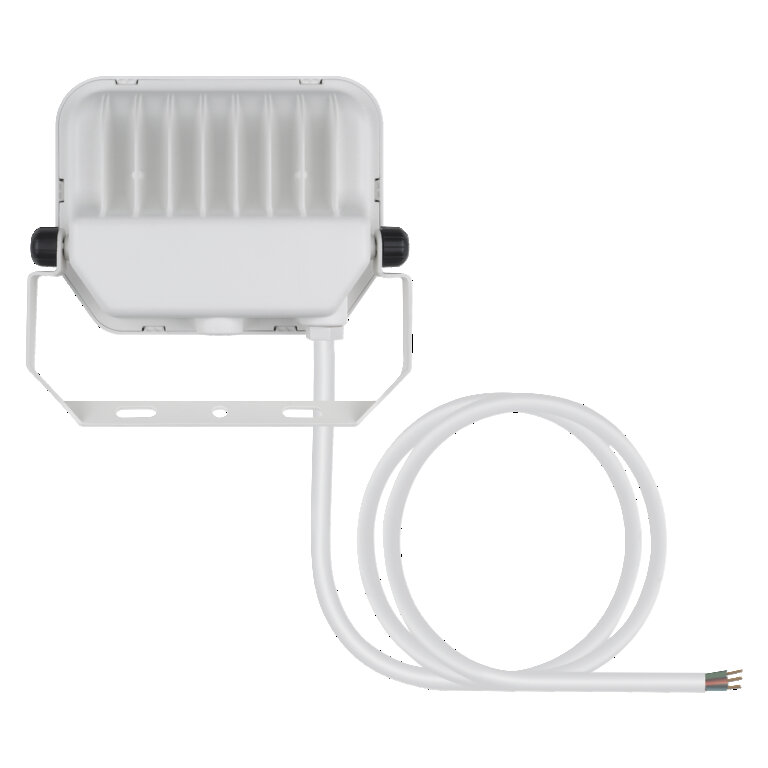

Background: white, upright
FL PFM 20W SYM 100 WT    JPG (1.98 MB)
Product line drawing with letters
FL PFM 20W SYM 100 SVG (30.22 KB)
Product line drawing with letters
FL PFM 20W SYM 100 SVG (31.96 KB)
Product line drawing with numbers
FL PFM 20W SYM 100 SVG (37.15 KB)
Product line drawing with numbers
FL PFM 20W SYM 100 SVG (35.42 KB)
Prod.line drw, front, no dimensions
FL PFM 20W SYM 100 SVG (27.76 KB)
Prod.line drw, front, no dimensions
FL PFM 20W SYM 100 SVG (29.5 KB)

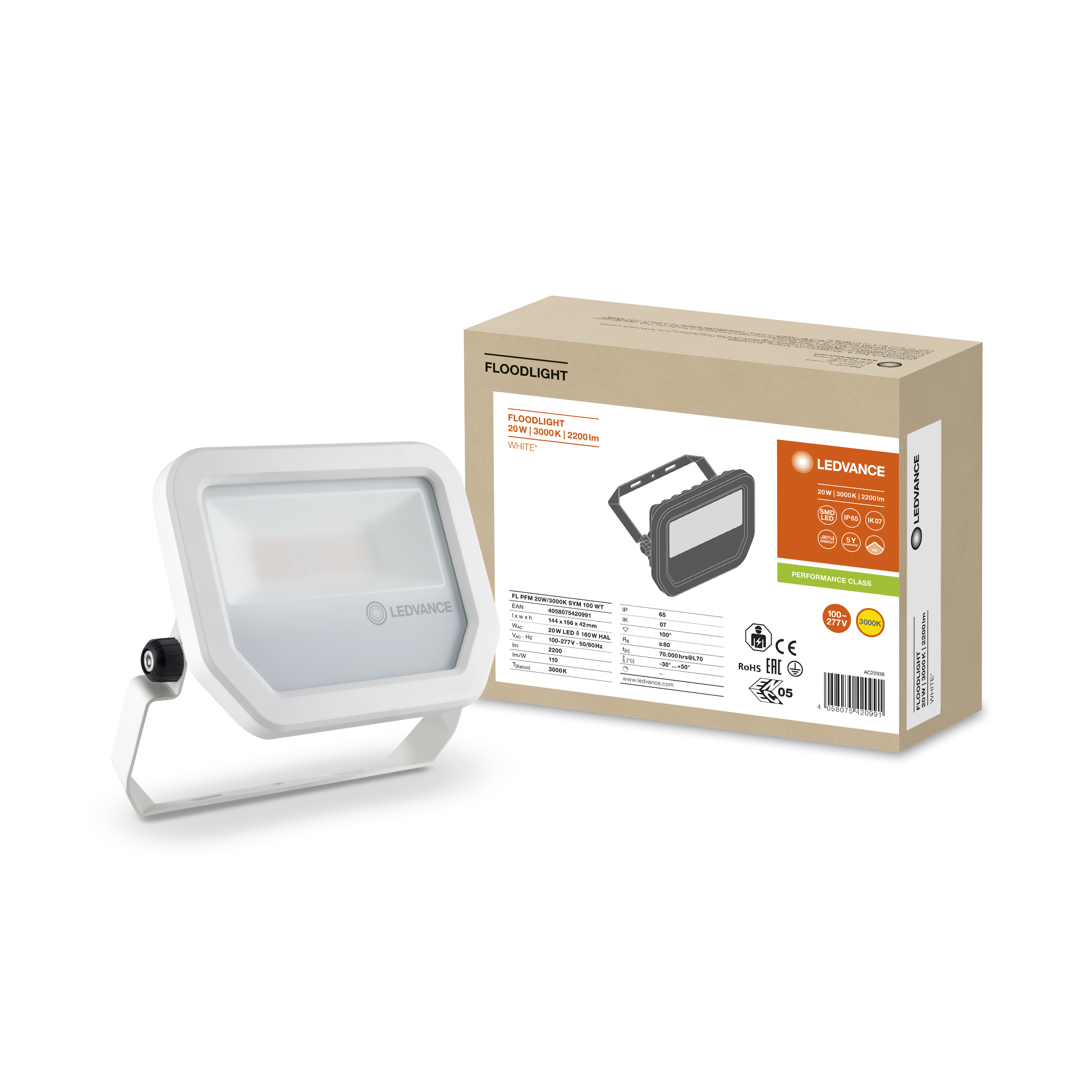

Combo Shot = Product Beauty Shot + Packaging Image
Floodlight PFM SYM 20W 830 WT MiCh JPG (1.46 MB)
Packaging image, spacial
Floodlight PFM SYM 20W 830 WT MiCh TIF (18.56 MB)

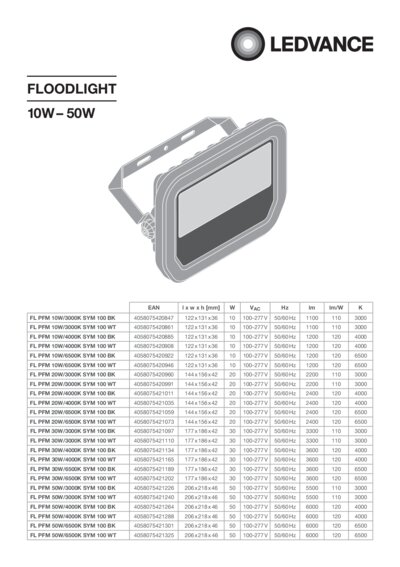

Catalog info 1
Floodlight_10W-50W SVG (52.22 KB)
Catalog info 3
Floodlight_10W-50W SVG (65.5 KB)
Catalog info 4
Floodlight_10W-50W SVG (21.53 KB)
Catalog info 5
Floodlight_10W-50W SVG (59.86 KB)
IES file (IES)
FL PFM 20W3000K SYM 10 0 WT IES (5.25 KB)
LDT file (Eulumdat)
FL PFM 20W3000K SYM 10 0 WT LDT (5.71 KB)
ULD file (DIALux)
FL PFM 20W-3000K SYM 1 00 WT ULD (275.46 KB)
ROLF file (RELUX)
FL PFM 20W-3000K SYM ROLF (852.55 KB)

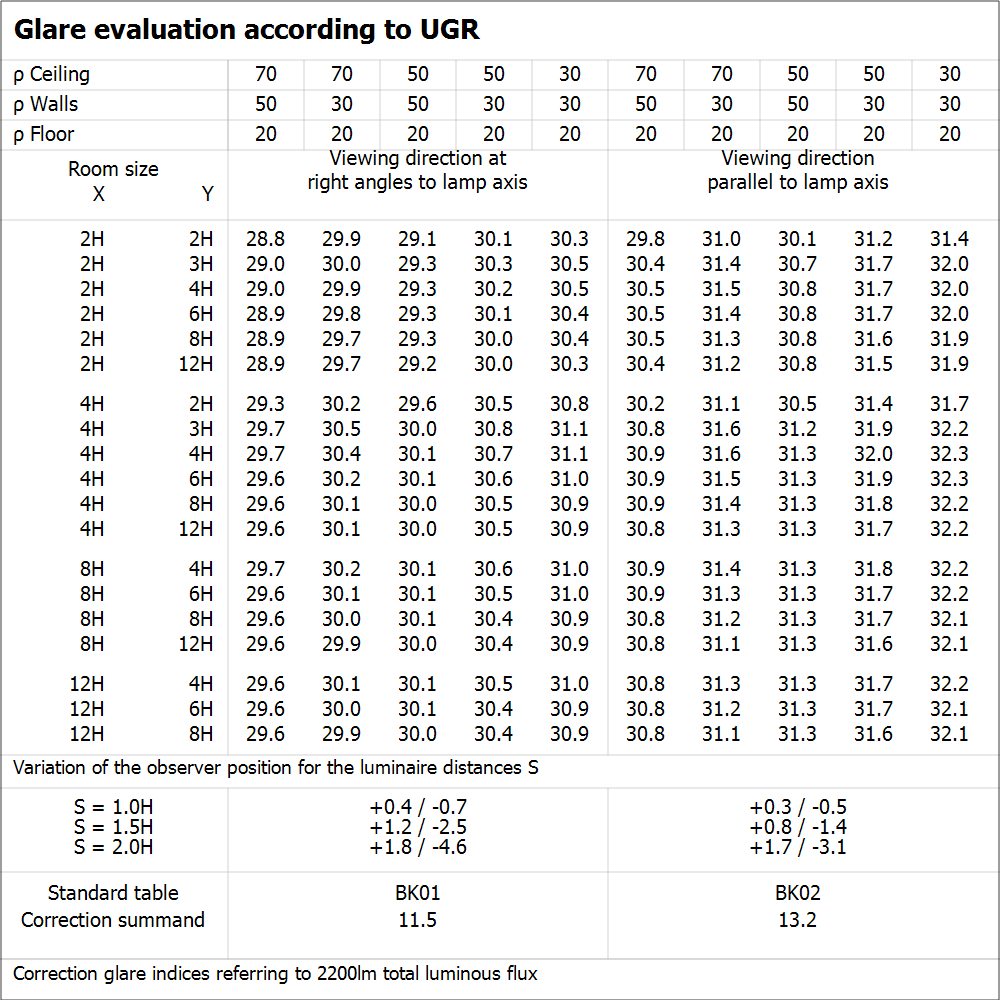

UGR file (UGR table)
FL PFM 20W3000K SYM 10 0 WT PNG (63.68 KB)
LDC typ cone
FL PFM 20W3000K SYM 10 0 WT SVG (90.62 KB)
LDC typ polar
FL PFM 20W3000K SYM 10 0 WT SVG (245.3 KB)
CAD_STEP_3D
FL G3 20W STEP (3.43 MB)
Tender documents
FLOODLIGHT 20 W 3000 K SYM 100 WT-EN TXT (1.44 KB)
Application Pictures

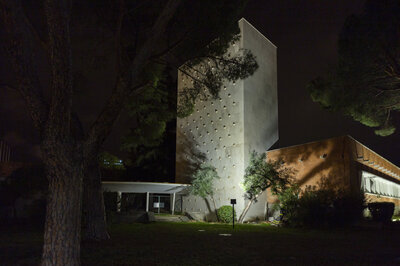

Instituto Eduardo Torr oja lighting renovati on Case Study - Torroj a 50 JPG (5.15 MB)
EAN SEG number STK number EFO number ELDAS number
4058075420991 7766590 4508123 3242458 941500970
