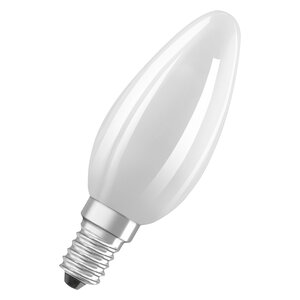

PARATHOM® Retrofit CLASSIC B

PARATHOM Retrofit CLASSIC B

Choose your product version

25 2.5 W/2700 K B22d

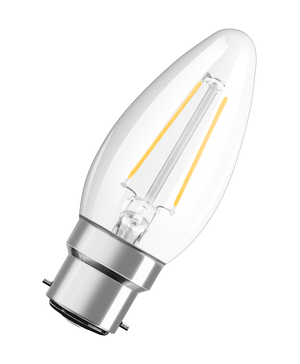

2.5W 827 Clear B22d

25 FR 2.5 W/2700 K E14

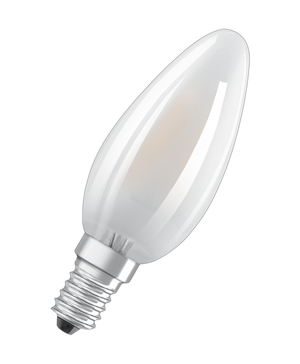

2.5W 827 Frosted E14

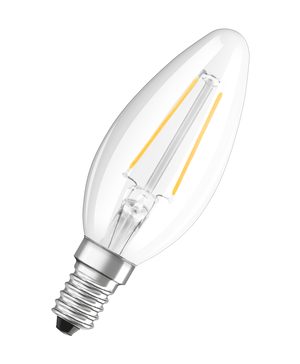

25 2.5 W/2700 K E14

25 2.5 W/2700 K E14

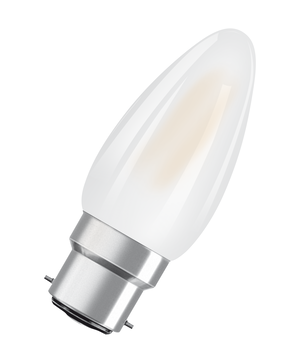

4W 827 Frosted B22d

40 4 W/2700 K E14

40 4 W/2700 K E14

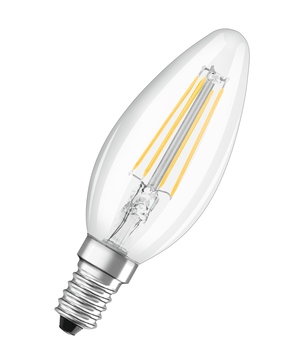

4W 827 Clear E14

40 4 W/2700 K E14

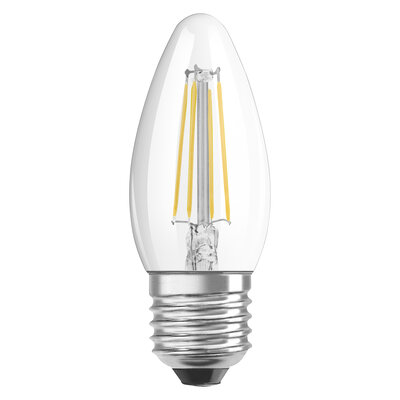

40 4 W/2700 K E27

40 4 W/4000 K E14

5.5W 827 Clear E14

5.5W 827 Frosted E14

60 6 W/2700 K E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P CLAS B 25 2.5 W/2700 K B22d B22d 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Classic B 25 Filament P 2.5W 827 Clear B22d B22d 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
P RF CLAS B 25 FR 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Classic B 25 P 2.5W 827 Frosted E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
P RF CLAS B 25 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
P CLAS B 25 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Classic B 40 P 4W 827 Frosted B22d B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic B 40 Filament P 4W 827 Clear E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
P CLAS B 40 4 W/4000 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic B 60 Filament P 5.5W 827 Clear E14 E14 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic B 60 P 5.5W 827 Frosted E14 E14 5.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
P CLAS B 60 6 W/2700 K E14 E14 6 W 220…240 V 15000 h 806 lm 60 W 300 ° No


P CLAS B 40 4 W/2700 K E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 32 mA
Type of current AC
Inrush current 2.7 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp no. on circuit break. 10 A (B) 156
Max. lamp no. on circuit break. 16 A (B) 250
Power factor λ > 0.50

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 92.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 20.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C

Lifespan

Lifespan 15000 h 1)
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

1) L70/B50

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLB40 4W/82

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 92.00 mm
Height 35.00 mm
Width 35.00 mm
EPREL ID 1403411
Model number AC24337
Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Beam angle: up to 300°
  • Not dimmable
  • Base: E14
  • Lifetime: up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075439511 Folding box
1		 39 mm x 39 mm x 109 mm 34.00 g 0.17 dm³
4058075439528 Shipping box
10		 205 mm x 87 mm x 123 mm 388.00 g 2.19 dm³

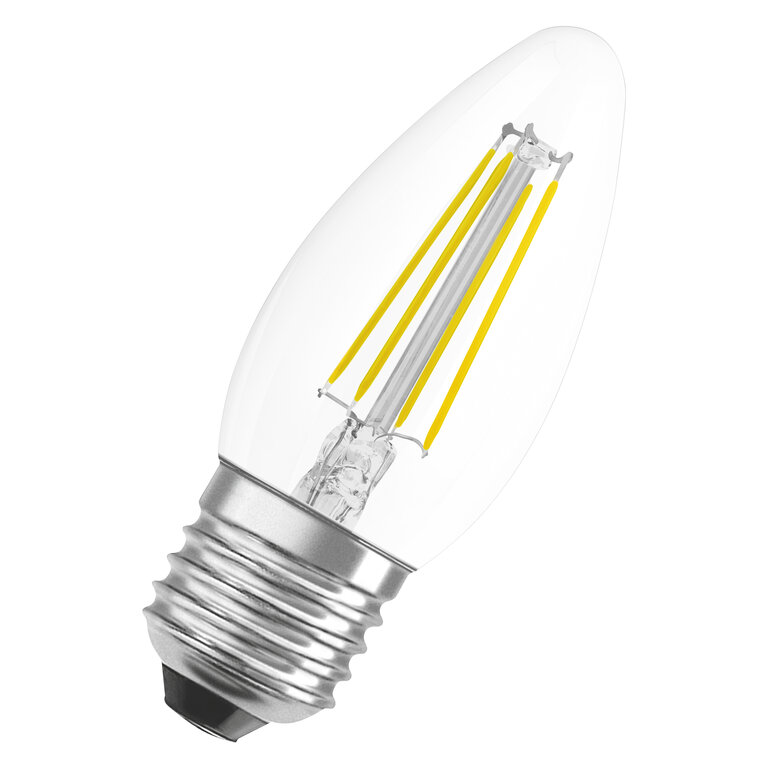

Background: white, diagonal
LED CLB40 FIL E27 JPG (1.24 MB)

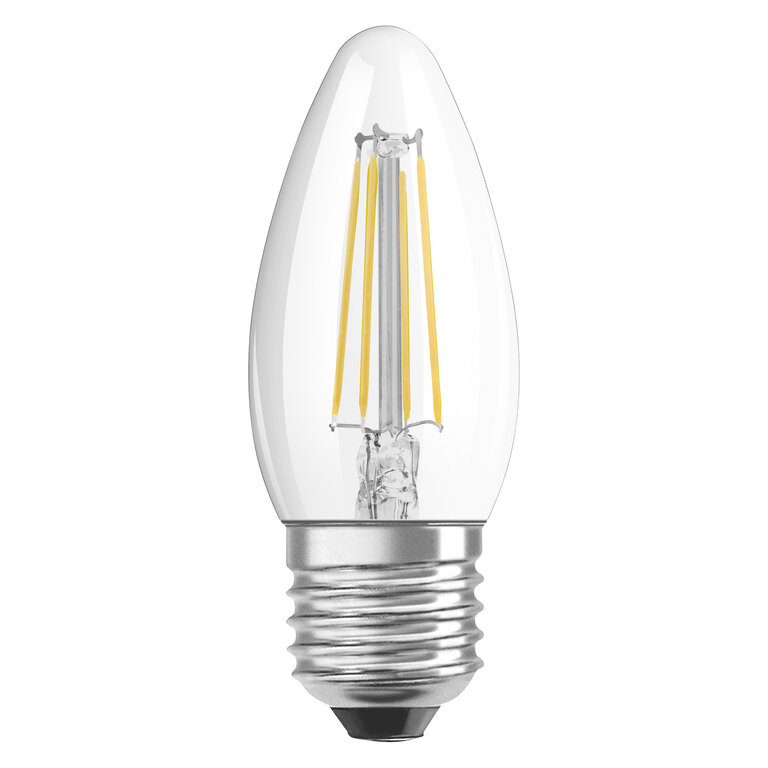

Background: white, upright
LED CLB40 FIL E27 JPG (1.11 MB)
Product line drawing with letters
LED CLB40 FIL E27 SVG (12.01 KB)
Product line drawing with numbers
LED CLB40 FIL E27 SVG (13.68 KB)
Prod.line drw, front, no dimensions
LED CLB40 FIL E27 SVG (9.09 KB)
Logos and Pictos
E left SVG (1.9 KB)
Logos and Pictos
E left BW SVG (1.07 KB)
Logos and Pictos
E right SVG (1.86 KB)
Logos and Pictos
E right BW SVG (1.07 KB)
EAN SEG number STK number EFO number ELDAS number
4058075439511 8295380 4731423 3733669 941805120
