tapTronic™ NFC LED Driver Constant Current Linear
LED NCF PROGRAMMABLE DRIVER LINEAR 36W UNV 1000mA DIM1 AUX12
NAED: 75856
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Wall and ceiling
- Recessed and surface-mounted ceiling luminaires
- Suspended luminaires
Product features
- Field-programmable via free app
- Dim to off – dim range 1-100 %
- Constant lumen output
- Soft start
- End of life
- Thermal protection
- DC Auxiliary output
- cULus Class 2 and Class P
- App is multi-lingual: English/French/Spanish/Portuguese
Safety advice
- Suitable for dry and damp environments.
Electrical data
| Nominal wattage | 36.00 W |
| Nominal voltage | 120…277 V |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 241.30 mm |
| Width | 31.10 mm |
| Height | 28.00 mm |
| Product weight | 550.00 g |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Protection class | I |
| Type of protection | IP20 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854010668 | Unpacked 1 |
|||
| 4058075794313 | Shipping box 24 |
330 mm x 260 mm x 195 mm | 13555.00 g | 16.73 dm³ |
Extended installation guide
Installation Guide-tapTronic Linear
Installation Guide-tapTronic Linear
Product information bulletin
NFC LED Drivers
NFC LED Drivers
Product information bulletin
NFC LED Drivers
NFC LED Drivers
Product information bulletin
NFC LED Drivers
NFC LED Drivers
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
LEDVANCE Product Launch Flyer NOV 2022
Other documents / promotion
LEDVANCE tapTronic Drivers Sales Flyer
LEDVANCE tapTronic Drivers Sales Flyer
Other documents / promotion
How to Sell LEDVANCE tapTronic NFC LED DRIVERS - INTERNAL ONLY
How to Sell LEDVANCE tapTronic NFC LED DRIVERS - INTERNAL ONLY
Other documents / promotion
LEDVANCE tapTronic FAQ
LEDVANCE tapTronic FAQ
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
LEDVANCE Product Launch Flyer NOV 2022
Other documents / promotion
Tap Tronic quick start
Tap Tronic quick start
Product image: white background, diagonal

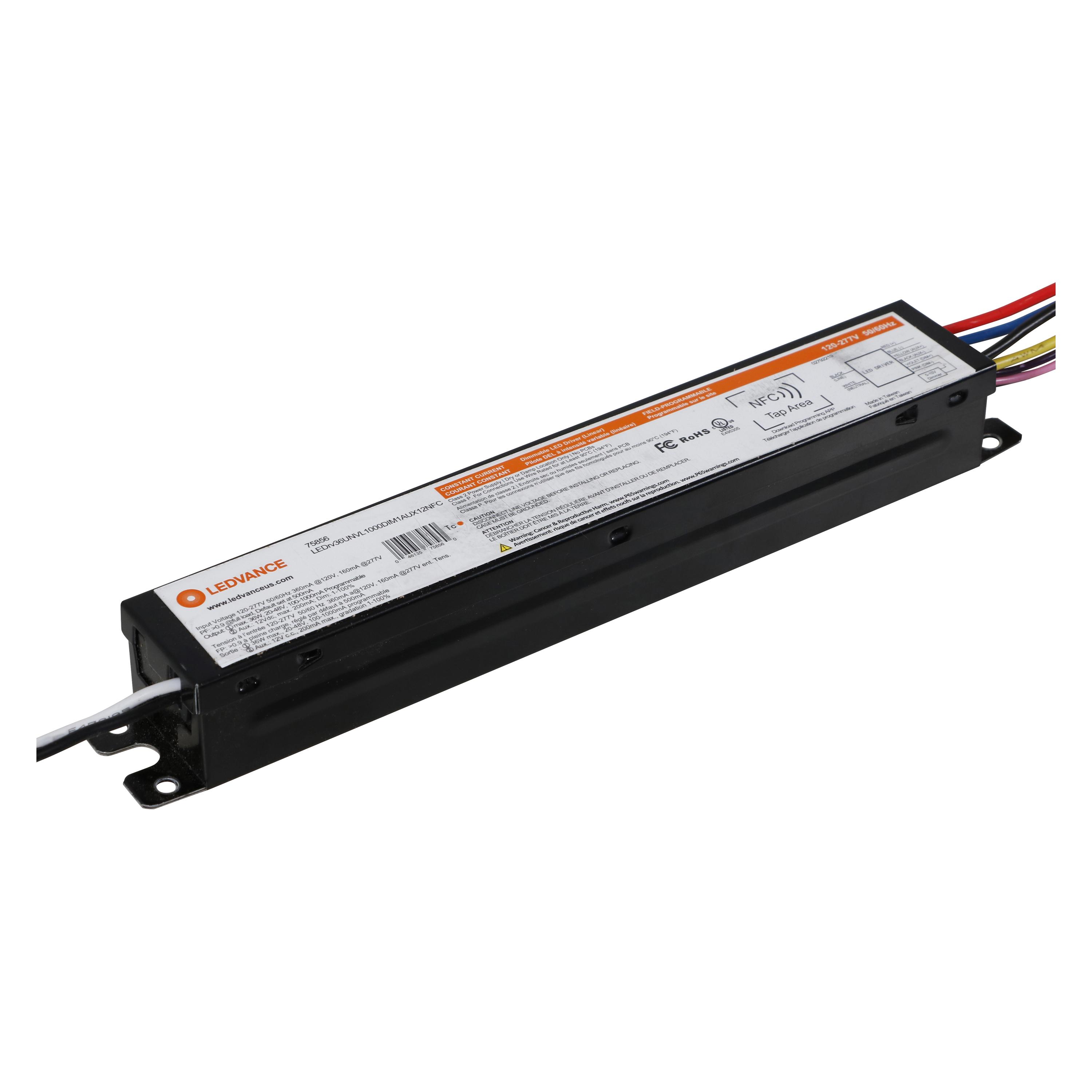

tapTronic 36W LED Driver
tapTronic 36W LED Driver
Product image: white background, diagonal

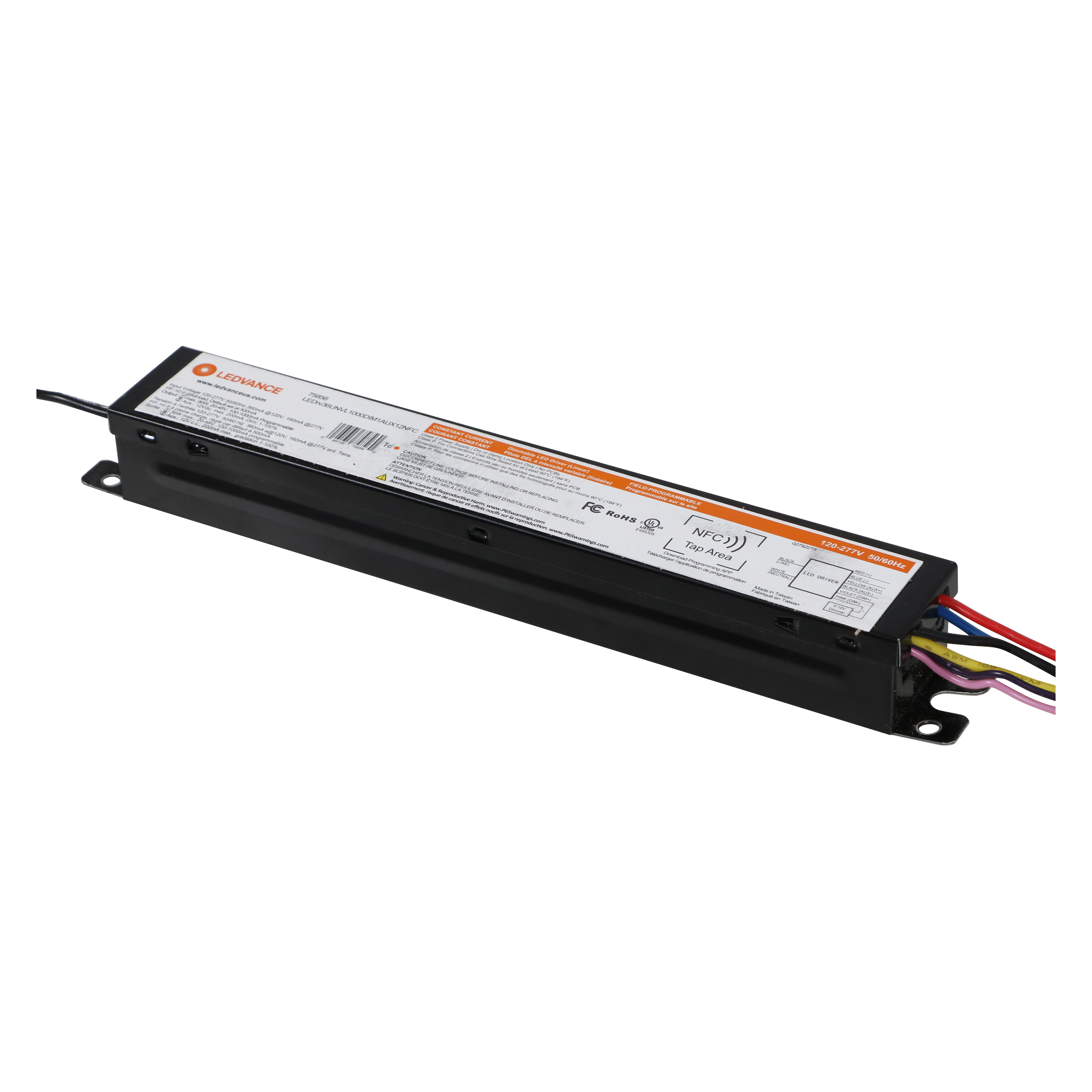

tapTronic 36W LED Driver
tapTronic 36W LED Driver
Product image: white background, horizontal

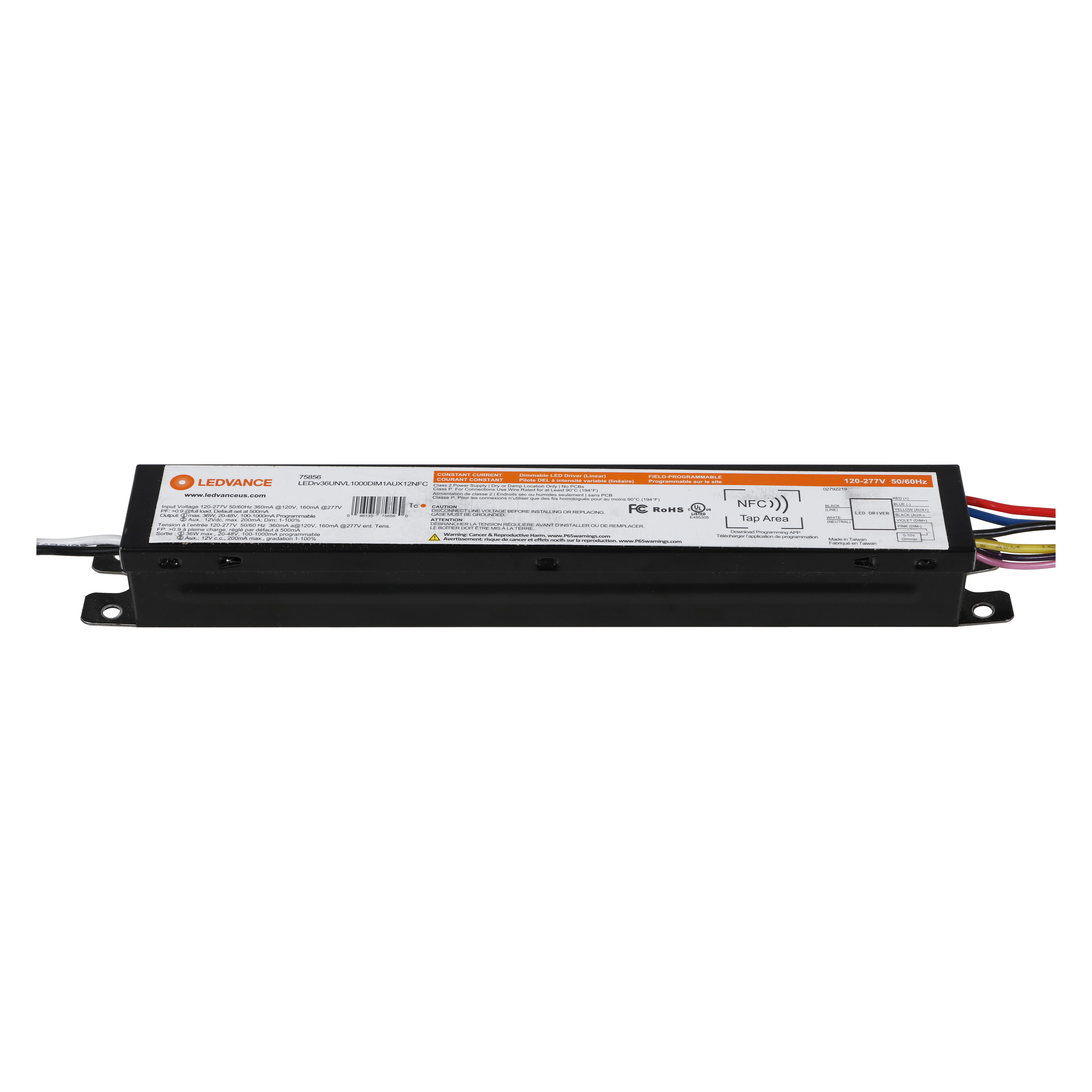

tapTronic 36W LED Driver
tapTronic 36W LED Driver
Product image: white background, horizontal
tapTronic 36W LED Driver
tapTronic 36W LED Driver
Product image: white background, horizontal

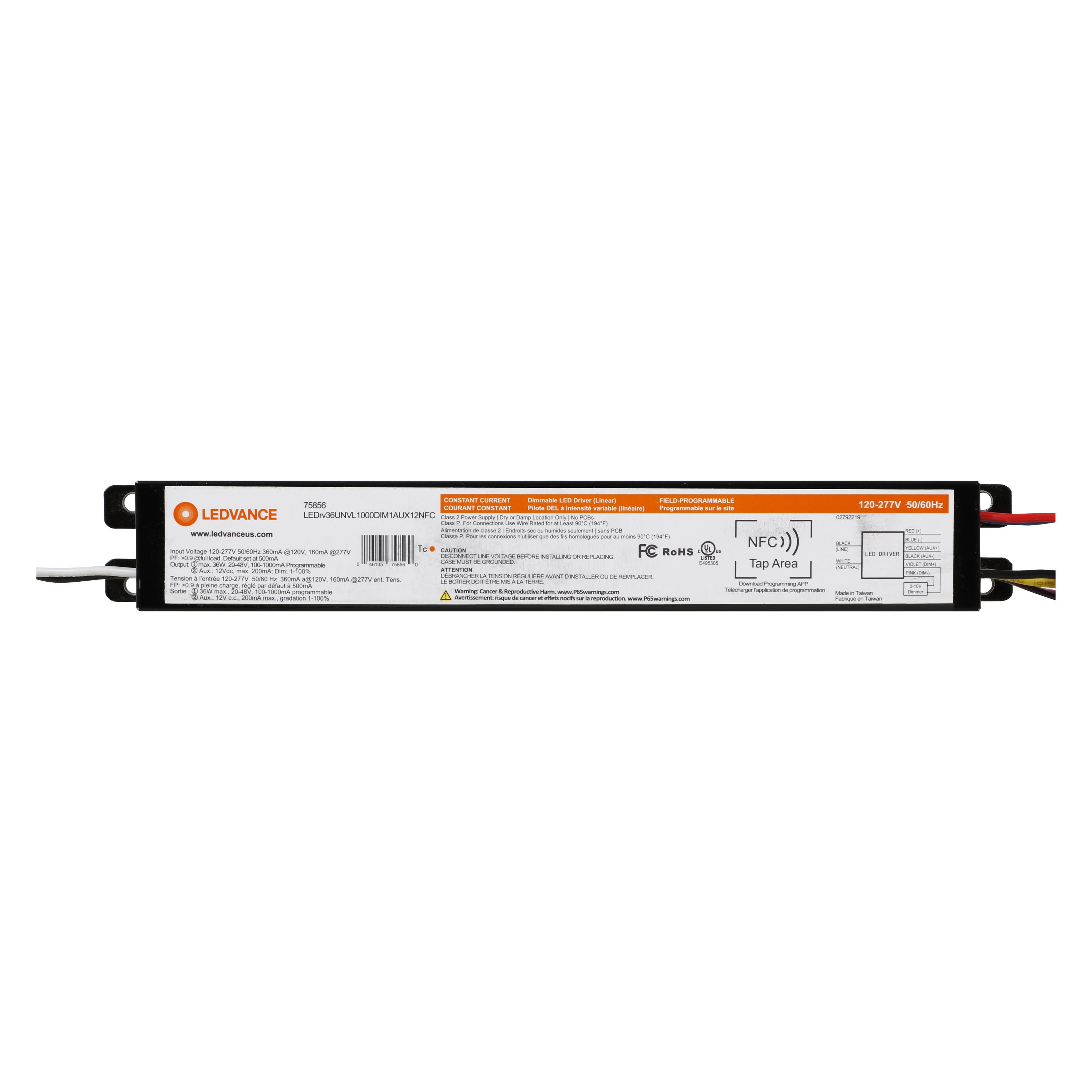

tapTronic 36W LED Driver front
