tapTronic™ NFC LED Driver Constant Current Compact
LED NCF PROGRAMMABLE DRIVER COMPACT 25W UNV 1250mA DIM1 AUX12 F-CAN
NAED: 75850
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Pendants
- Home and décor
- Spotlights
- Downlights
Product features
- Field-programmable via free app
- Dim to off – dim range 1-100 %
- Constant lumen output
- Soft start
- End of life
- Thermal protection
- F-can and J-can
- DC Auxiliary output
- cULus Class 2 and Class P
- App is multi-lingual: English/French/Spanish/Portuguese
Safety advice
- Suitable for dry and damp environments.
- Use only within an enclosure or equivalent.
- Compact drivers may get overloaded.
Electrical data
| Nominal wattage | 25.00 W |
| Nominal voltage | 120…277 V |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 129.60 mm |
| Width | 59.00 mm |
| Height | 27.50 mm |
| Product weight | 250.00 g |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Type of protection | IP20 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135758508 | Unpacked 1 |
130 mm x 59 mm x 28 mm | 250.00 g | 0.21 dm³ |
| 4058075792241 | Shipping box 20 |
391 mm x 333 mm x 90 mm | 5352.00 g | 11.72 dm³ |
Extended installation guide
installation guide 100W NFC Outdoor Constant Current LED Driver
installation guide 100W NFC Outdoor Constant Current LED Driver
Product information bulletin
NFC LED Drivers
NFC LED Drivers
Product information bulletin
NFC LED Drivers
NFC LED Drivers
Product information bulletin
NFC LED Drivers
NFC LED Drivers
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
LEDVANCE Product Launch Flyer NOV 2022
Other documents / promotion
LEDVANCE tapTronic Drivers Sales Flyer
LEDVANCE tapTronic Drivers Sales Flyer
Other documents / promotion
How to Sell LEDVANCE tapTronic NFC LED DRIVERS - INTERNAL ONLY
How to Sell LEDVANCE tapTronic NFC LED DRIVERS - INTERNAL ONLY
Other documents / promotion
LEDVANCE tapTronic FAQ
LEDVANCE tapTronic FAQ
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
LEDVANCE Product Launch Flyer NOV 2022
Other documents / promotion
Tap Tronic quick start
Tap Tronic quick start
Product image: white background, diagonal

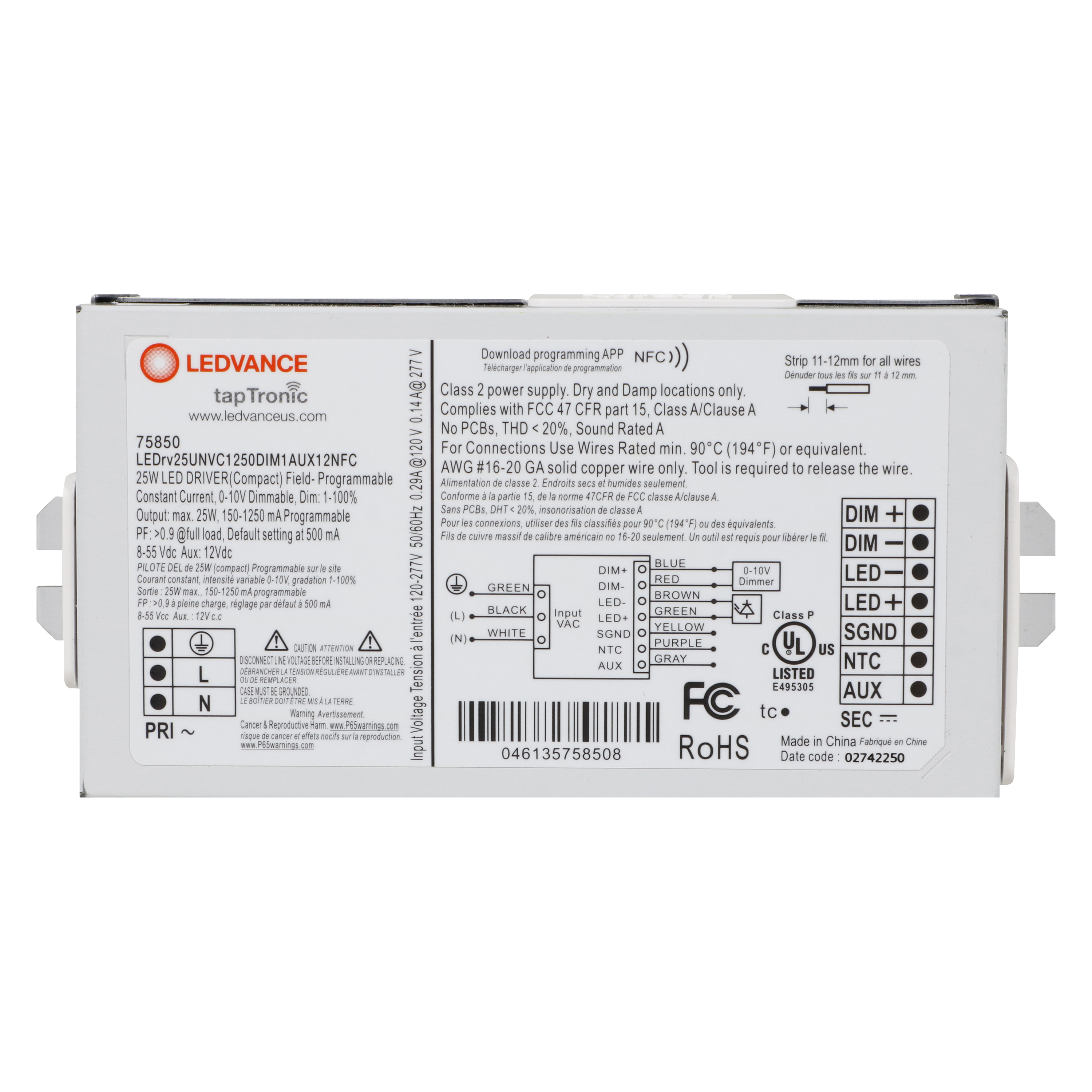

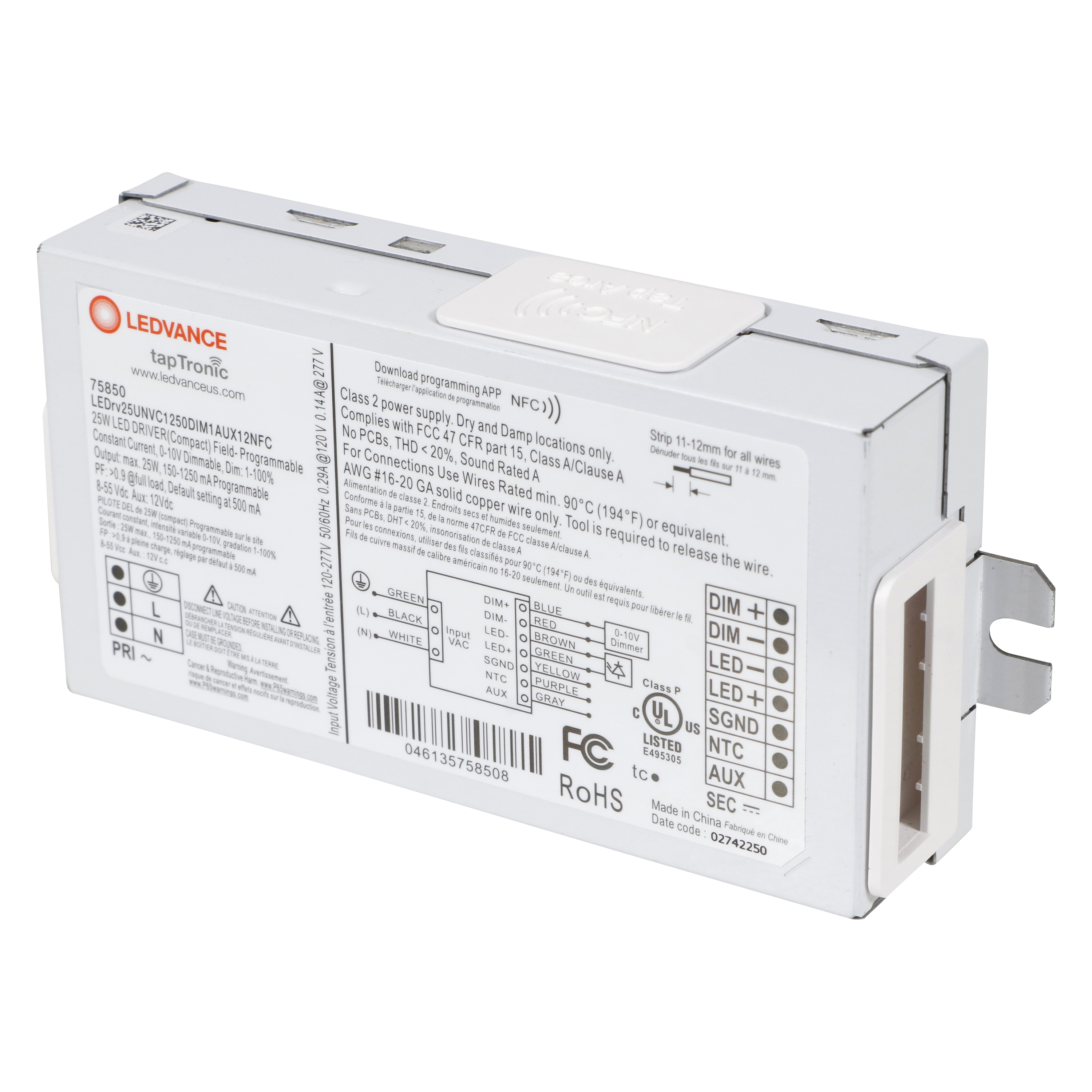

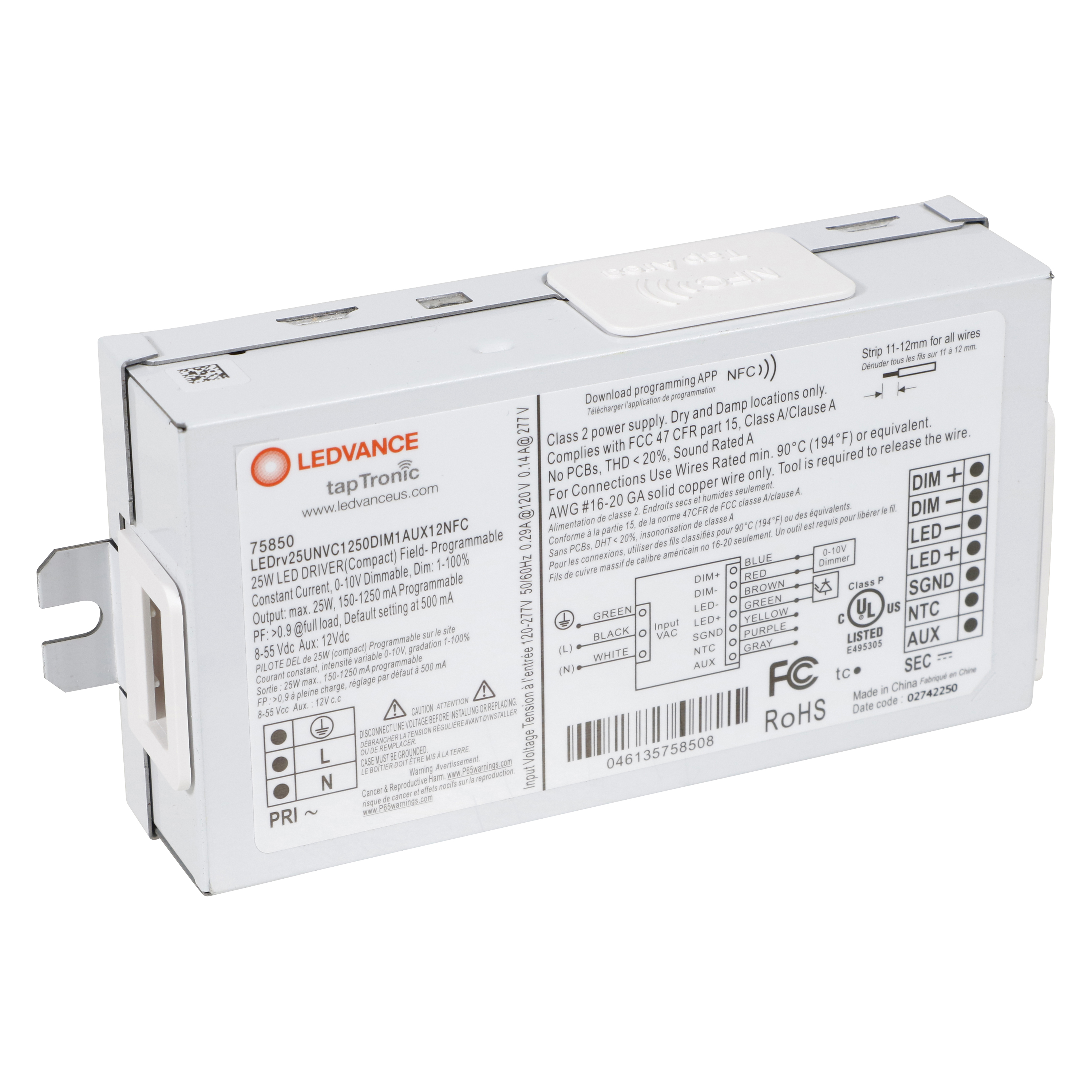

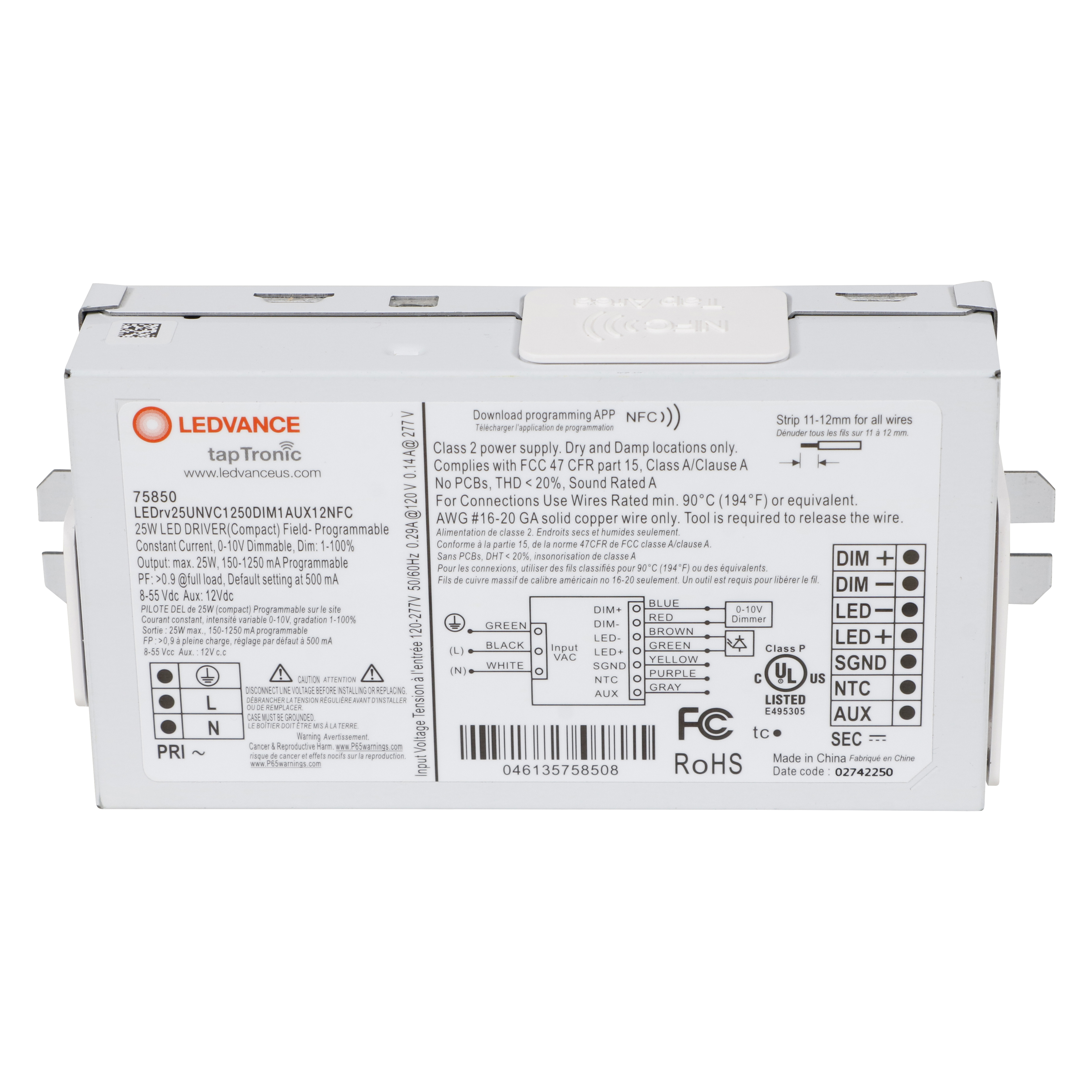

tapTronic Compact 25W F-Can
