EXIT SIGNS SELF DIAGNOSTIC
EXIT V RM THR WH R SD
NAED: 66071
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Offices, education, public buildings
Product features
- Slim profile, lightweight, easy to install exit sign that replaces traditional incandescent and fluorescent exit signs
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Injection-molded thermoplastic housing
- Universal mounting
- 6500K color temperature
- CRI > 80
- Offered in watts up to 3.2W
- Optional self-diagnostic and remote capable
- Both Red and Green letters shipped in exit box (running man is green only)
Electrical data
| Nominal wattage | 2.80 W |
| Nominal voltage | 120…347 V |
Photometrical data
| Luminous flux | 200 lm |
| Luminous efficacy | 71 lm/W |
| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
Dimensions & Weight
| Length | 345.00 mm |
| Height | 230.00 mm |
| Width | 50.00 mm |
| Product weight | 1850.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | No |
| Mounting type | Surface |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135660719 | Folding box 1 |
358 mm x 241 mm x 70 mm | 2048.00 g | 6.04 dm³ |
| 4099854335044 | Shipping box 6 |
435 mm x 370 mm x 265 mm | 12693.00 g | 42.65 dm³ |
Extended installation guide
EXIT & EMERGENCY LIGHT
EXIT & EMERGENCY LIGHT
Product information bulletin
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
LEDVANCE Product Launch Flyer August 2025

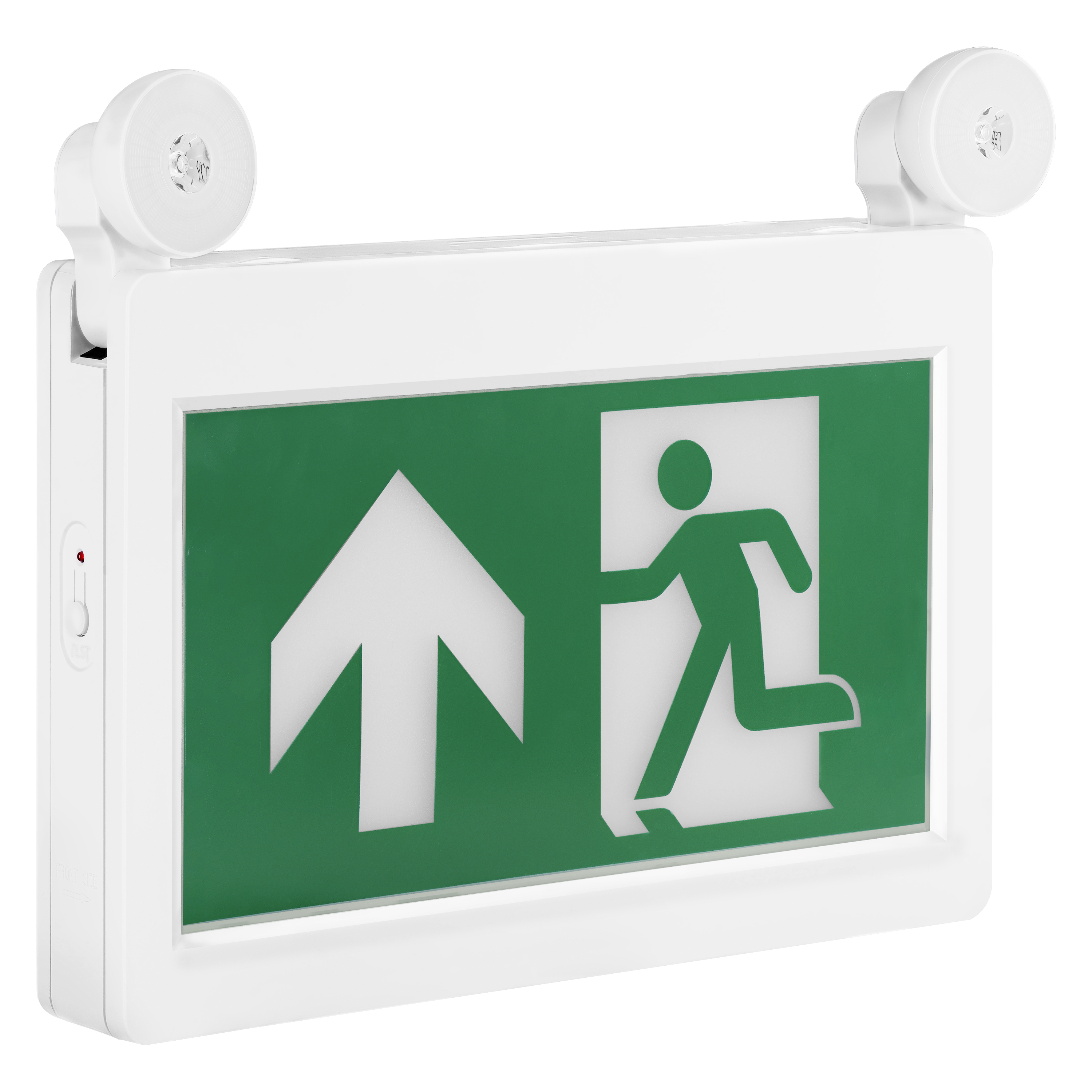

Product image: white background, diagonal
EXIT AND EMERGENCY LIGHTING
EXIT AND EMERGENCY LIGHTING

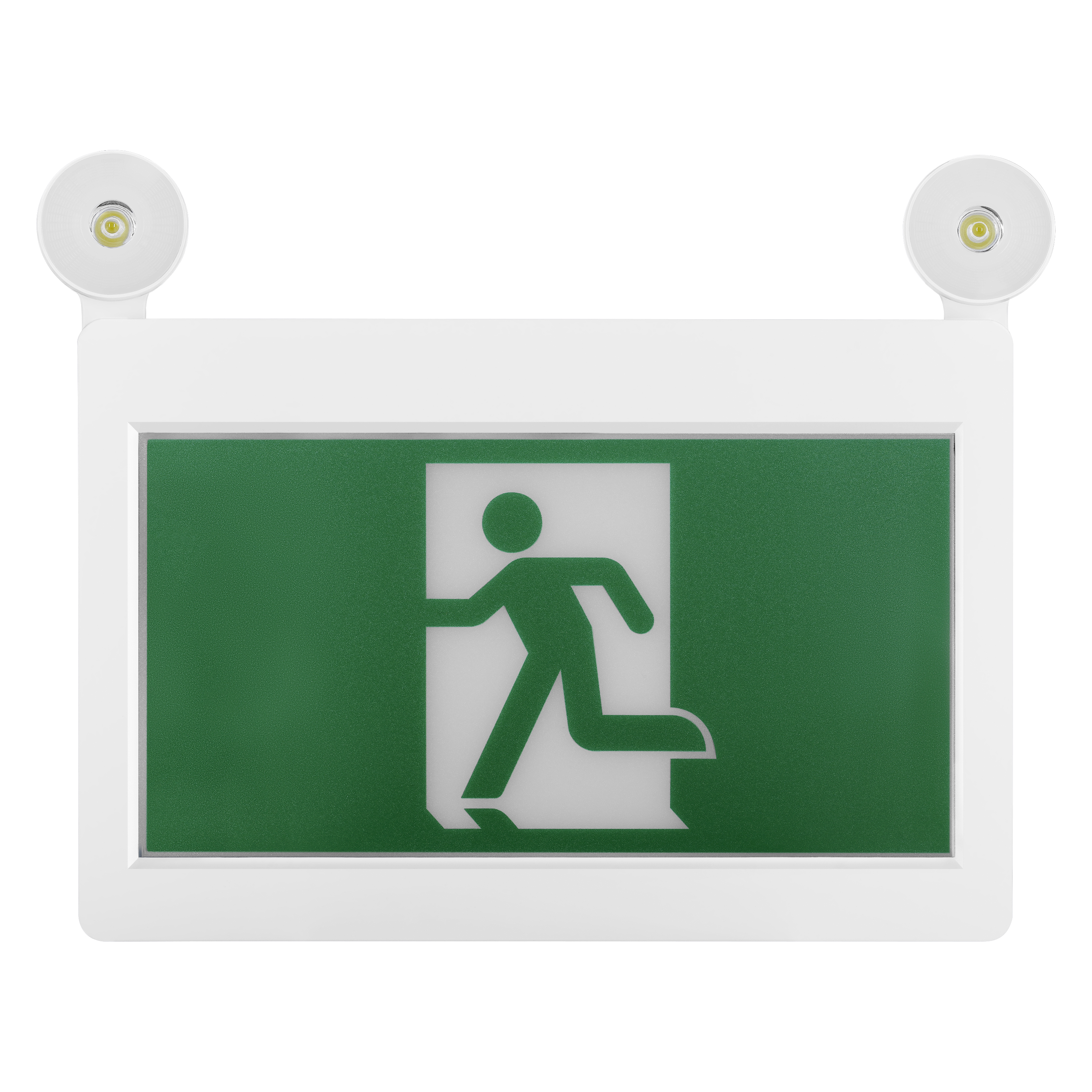

Product image: white background, horizontal
