DOWNLIGHT GIMBAL
LEDRT GIMBAL 6" 5CCT 950LM 120V BLACK
NAED: 65796
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Commercial applications
- Closets
- Cabinet lighting
Product features
- Canless recessed adjustable accent downlight with remote driver design for easy installation
- Modern styling and slim form
- Selectable CCTs: 2700/3000/3500/4000K
- Flicker-free dimming, Phase-cut
- Up to 79 LPW
- Energy savings up to 88 %
- Available in 120VAC
- Full 90° omnidirectional aiming delivers uniform glare free illumination
- Precise illumination with a beam angle of 45° FWHM
- 90 CRI, R9>50
Equipment / Accessories
- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via FT4 cable
- 3 Wire Nuts
Safety advice
- Suitable for wet locations.
- Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
- Ceiling Thickness 0.5"-1.5" (12.7-38.1 mm).
Electrical data
| Nominal wattage | 13.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 950 lm |
| Luminous efficacy | 73 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 156.00 mm |
| Height | 38.10 mm |
| Product weight | 580.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135657962 | Folding box 1 |
162 mm x 92 mm x 162 mm | 690.00 g | 2.41 dm³ |
| 10046135657969 | Shipping box 4 |
380 mm x 177 mm x 174 mm | 3159.00 g | 11.70 dm³ |
| Product image | Product name | EAN |
|---|---|---|
| MD EXT CABLE 6FT WH | 0046135608988 | |
| MD EXT CABLE 10FT WH | 0046135608995 | |
| MD EXT CABLE 20FT WH | 0046135609008 | |
|
SLIM MD FRAME | 0046135629594 |
|
MD FRAME T-GRID | 0046135637438 |
Extended installation guide
CCT SELECTABLE DOWNLIGHT GIMBAL
CCT SELECTABLE DOWNLIGHT GIMBAL
Product information bulletin
CCT SELECTABLE DOWNLIGHT GIMBAL
CCT SELECTABLE DOWNLIGHT GIMBAL
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
LEDVANCE Product Launch Flyer May 2023

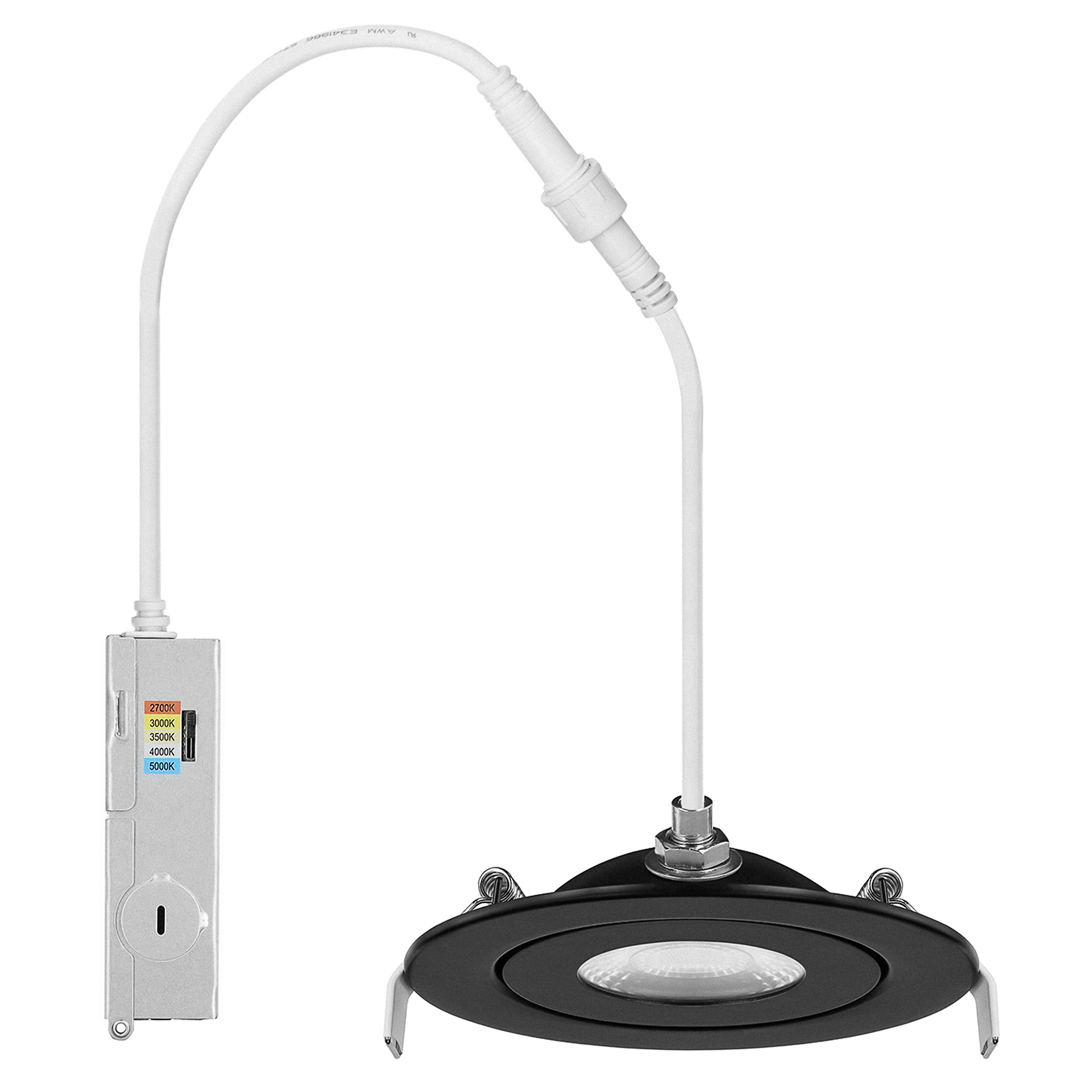

Product image: white background, diagonal
CCT SELECTABLE DOWNLIGHT GIMBAL black
CCT SELECTABLE DOWNLIGHT GIMBAL black

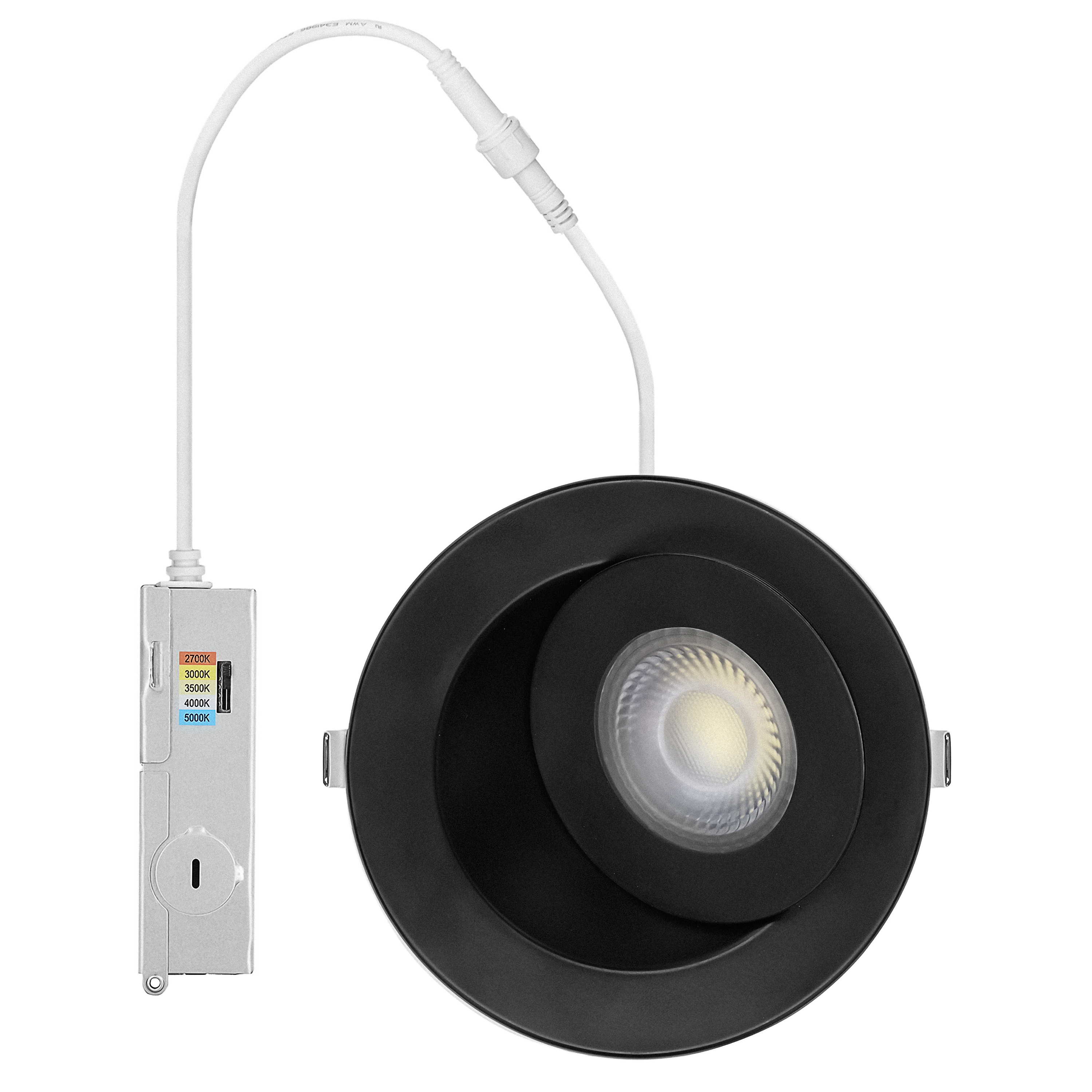

Product image: white background, diagonal
