ARCHITECTURAL LINEAR VALUE

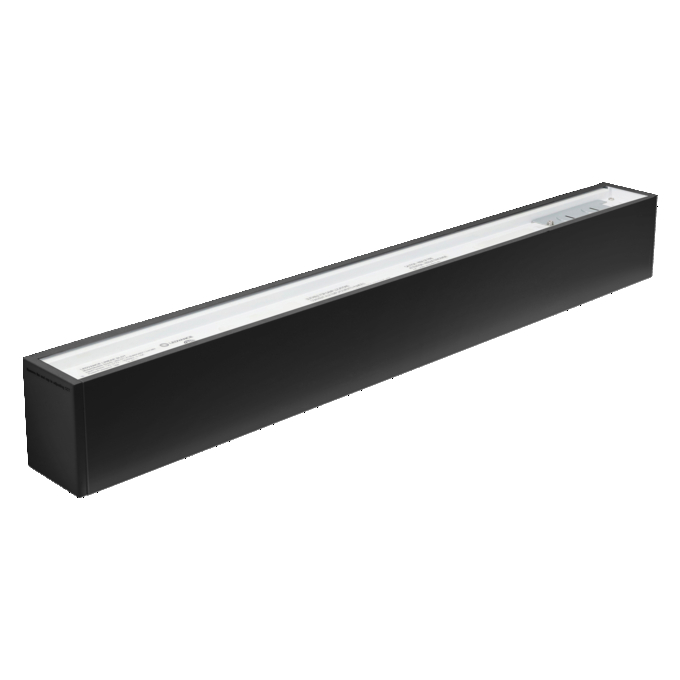

ARCHITECTURAL LINEAR VALUE 2 ft BL Direct Light Ceiling/Suspended/Recessed
NAED: 63728
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Offices
- Lobbies
- Waiting rooms
- Hospitality
- Retail
Product features
- Selectable CCT: 3000/4000/5000K
- Direct or Direct/Indirect
- Accessories available for suspended, surface or recessed mounting are available
- Linkable
- Sleek and modern design
- Two different finishes
- CRI > 80
Equipment / Accessories
- Suspended Mount Kit - available with all SKUs aside wall mount version
- Wall Mount Kit - available for all wall mounting version only
Safety advice
- Connect up to 700W
Installation Guide
VALUE CLASS Linear Slot
VALUE CLASS Linear Slot
Installation Guide
Value Class Linear Slot
Value Class Linear Slot
Installation Guide
Value Class Linear Slot Installation Guide
Value Class Linear Slot Installation Guide
Product Family Spec Sheet
LEDLUM154 CCT SELECTABLE LINEAR SLOT
LEDLUM154 CCT SELECTABLE LINEAR SLOT
Other documents / promotion
LEDVANCE Product Launch Flyer August 2023
LEDVANCE Product Launch Flyer August 2023
Other documents / promotion
LEDVANCE Value Class CCT Selectable Linear Slot Sales Flyer
LEDVANCE Value Class CCT Selectable Linear Slot Sales Flyer
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 18.00 W |
| Nominal voltage | 120.00…277.00 V |
| Power factor | ≥ 0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 1800 lm |
| Efficacy | 100 lm/W |
| Color Temperature/CCT | 3000/3500/4000 K |
| Color Rendering Index (CRI) | > 80 |
Dimensions & Weight
| Length | 25.98 in |
| Height | 10.04 in |
| Width | 12.2 in |
| Product weight | 2.98 lb |
Materials & Colors
| Luminaire Finish | Black |
| Housing color | Black |
| Housing | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | -4 °F |
| Dimming | Yes |
| Type of Dimming | 0-10V |
| Mounting | Surface |
| Indoor/Outdoor | Indoor |
| Replaceable light source | No |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | cETLus; FCC |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | LNSLOT1A18UNVD8SC124CBL |
| Abbrev. With Packaging Info. | LNSLOT1A18UNVD8SC124CBL 6/CS 1/SKU |
| SKU UPC | 0046135637285 |
| General Description | 18W 2ft linear slot 1A, 120-277V and 0-10V dimmable. CCT selectable, ceiling mount and black finish |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 25.984 |
| Case Width (in) | 12.205 |
| Case Depth (in) | 10.039 |
| Case Cube (ft) | 1.842 |
| Case Weight (lbs) | 23.845 |
| SKU UPC | 0046135637285 |
| Pallet Qty | 144 |
| SKU's/Case | 6 |
| SKU's/Pallet | 144 |
| Cases/Pallet | 24 |
Product image: white background, with accessory, alternative image

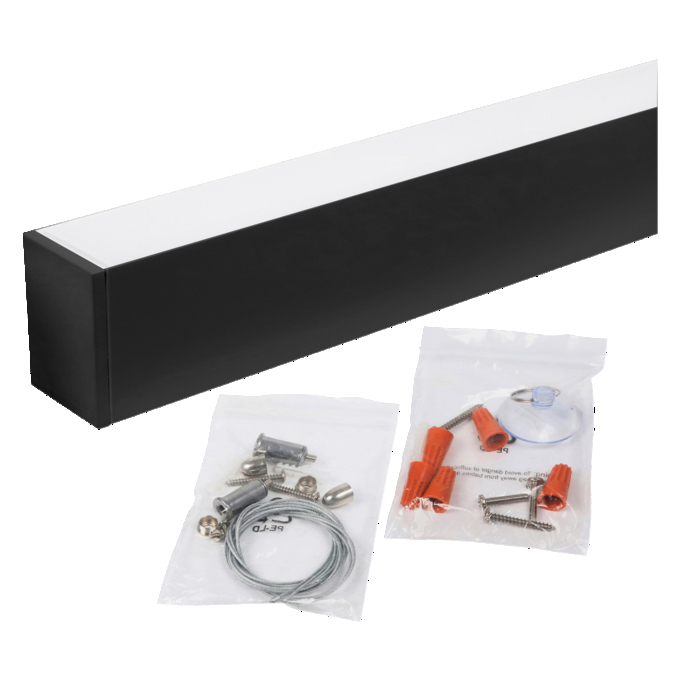

Value Class Linear Slot 2ft accessory
