SMART+ ROUND CAMERA
SMART+ Wifi Camera Round
GTIN: 4058075564480
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Increased perception of safety thanks to high brightness
Areas of application
- Garages
- Entrance areas
- Outdoor use (IP44)
Product features
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Type of protection: IP44
- HD Live view camera
- Built in programable daylight sensor
- Luminous flux: 950 lm
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Complete mounting and connecting accessories included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 109.000 mA |
| Inrush current | 3.6 A |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 950 lm |
| Total luminous flux of contained light sources | 1350 lm |
| Luminous efficacy | 63 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 180.00 mm |
| Length | 105.00 mm |
| Height | 105.00 mm |
| Product weight | 730.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Plastic |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |
Sensor
| Type of sensor | Infrared sensor |
Emergency lighting
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, UKCA |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075564480 | Folding box 1 |
197 mm x 197 mm x 127 mm | 1074.00 g | 4.93 dm³ |
| 4058075564497 | Shipping box 4 |
410 mm x 270 mm x 225 mm | 4791.00 g | 24.91 dm³ |
User instruction / safety instructions
SMART OUTD WIFI ROUND CAMERA DG
SMART OUTD WIFI ROUND CAMERA DG
Declarations of conformity
EC_SMART OUTD WIFI ROUND CAMERA DG
EC_SMART OUTD WIFI ROUND CAMERA DG

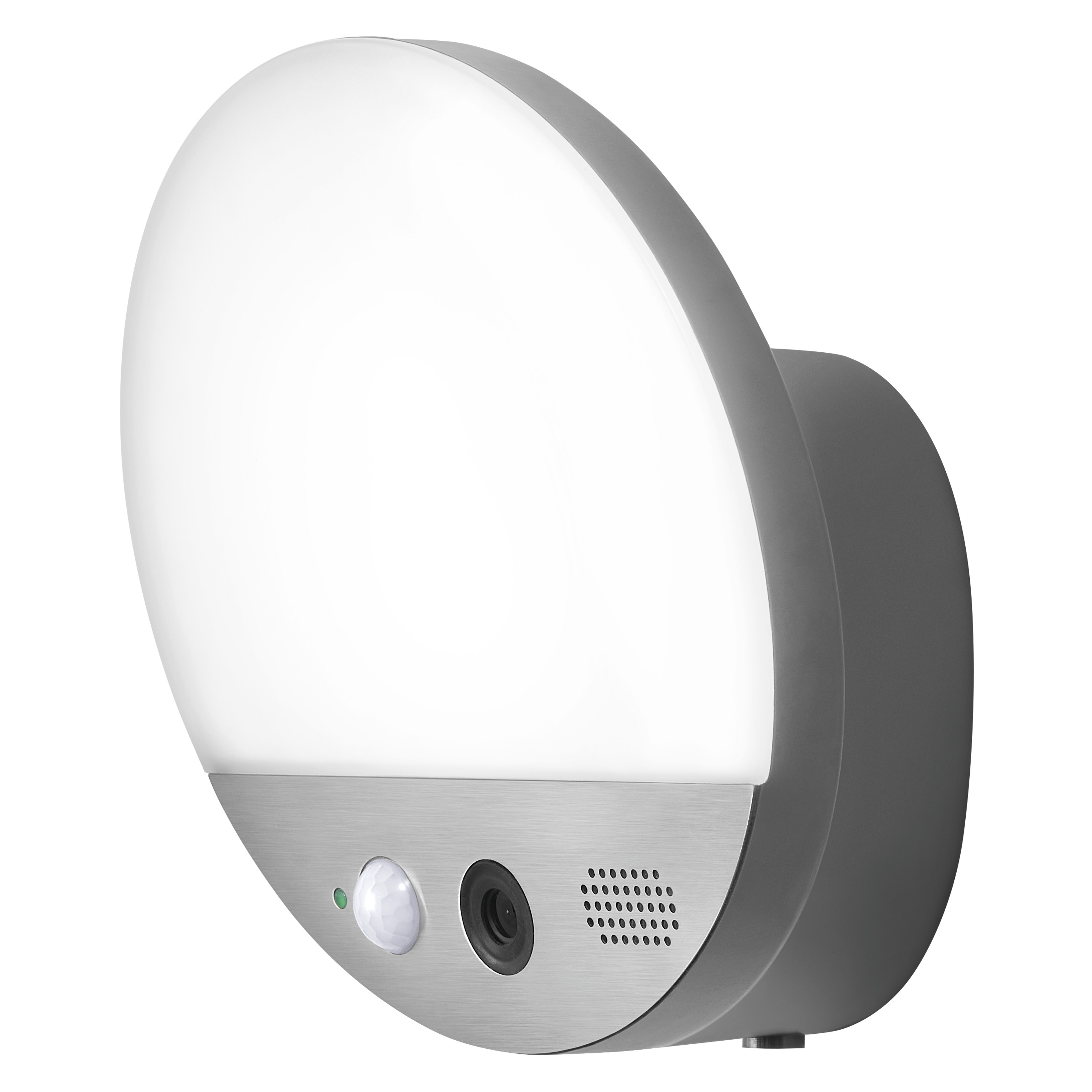

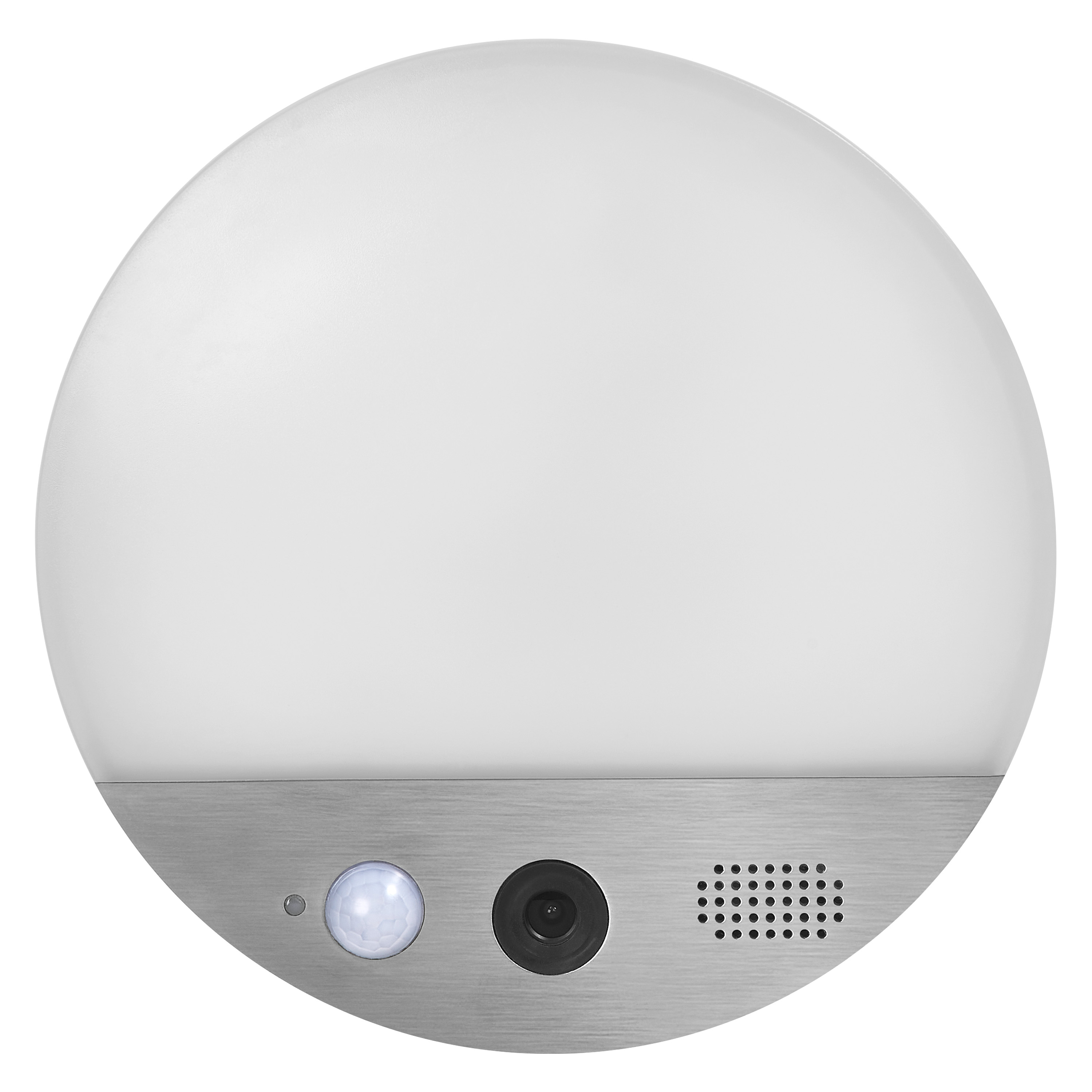

Product image: white background, upright
SMART OUTD WIFI ROUND CAMERA DG
SMART OUTD WIFI ROUND CAMERA DG
Product image: white background, upright, alternative image
SMART OUTD WIFI ROUND CAMERA DG
SMART OUTD WIFI ROUND CAMERA DG
Product image: white background, upright, switched on
SMART OUTD WIFI ROUND CAMERA DG
SMART OUTD WIFI ROUND CAMERA DG
Product infographic (application image with text and graphic)
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
Product line drawing with letters
SMART OUTD WIFI ROUND CAMERA DG
SMART OUTD WIFI ROUND CAMERA DG
Product line drawing with numbers
SMART OUTD WIFI ROUND CAMERA DG
SMART OUTD WIFI ROUND CAMERA DG
Product line drawing, front, no dimensions
SMART OUTD WIFI ROUND CAMERA DG
SMART OUTD WIFI ROUND CAMERA DG

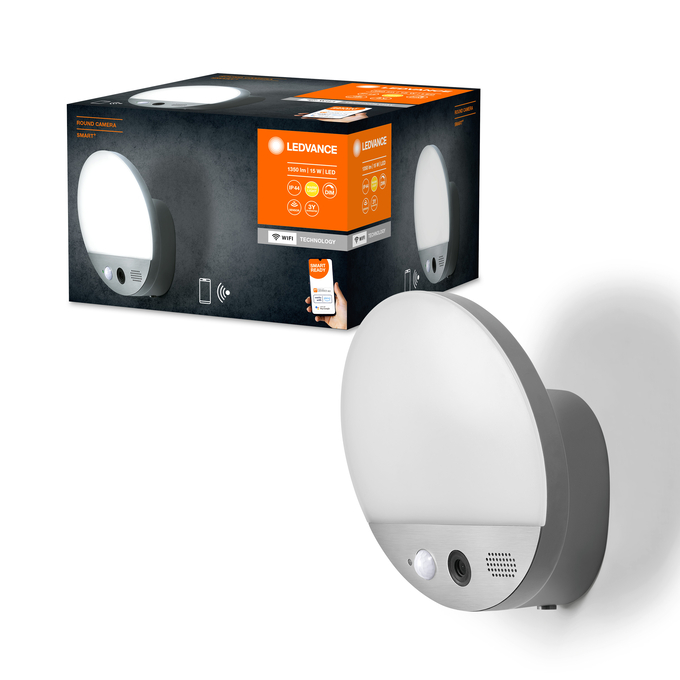

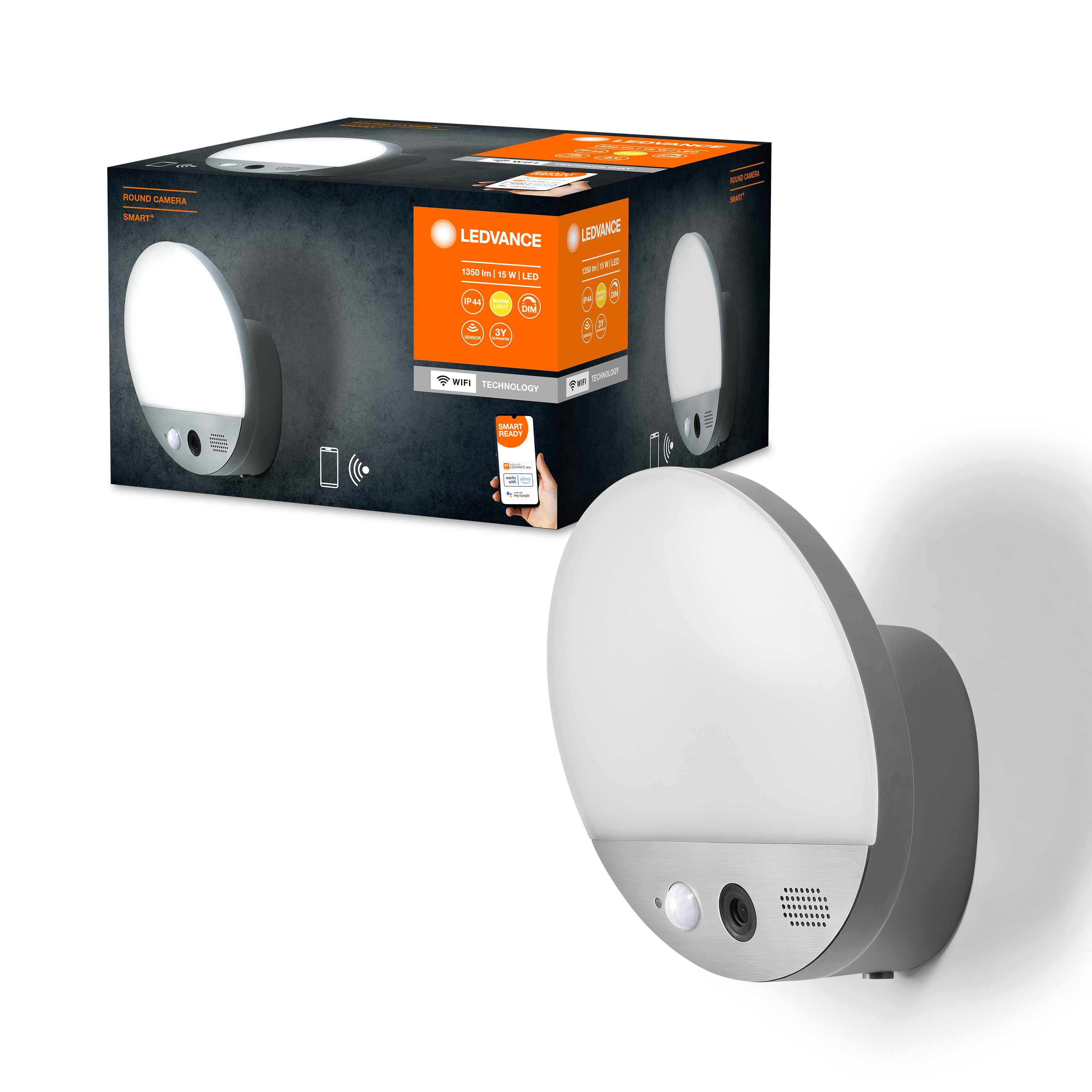

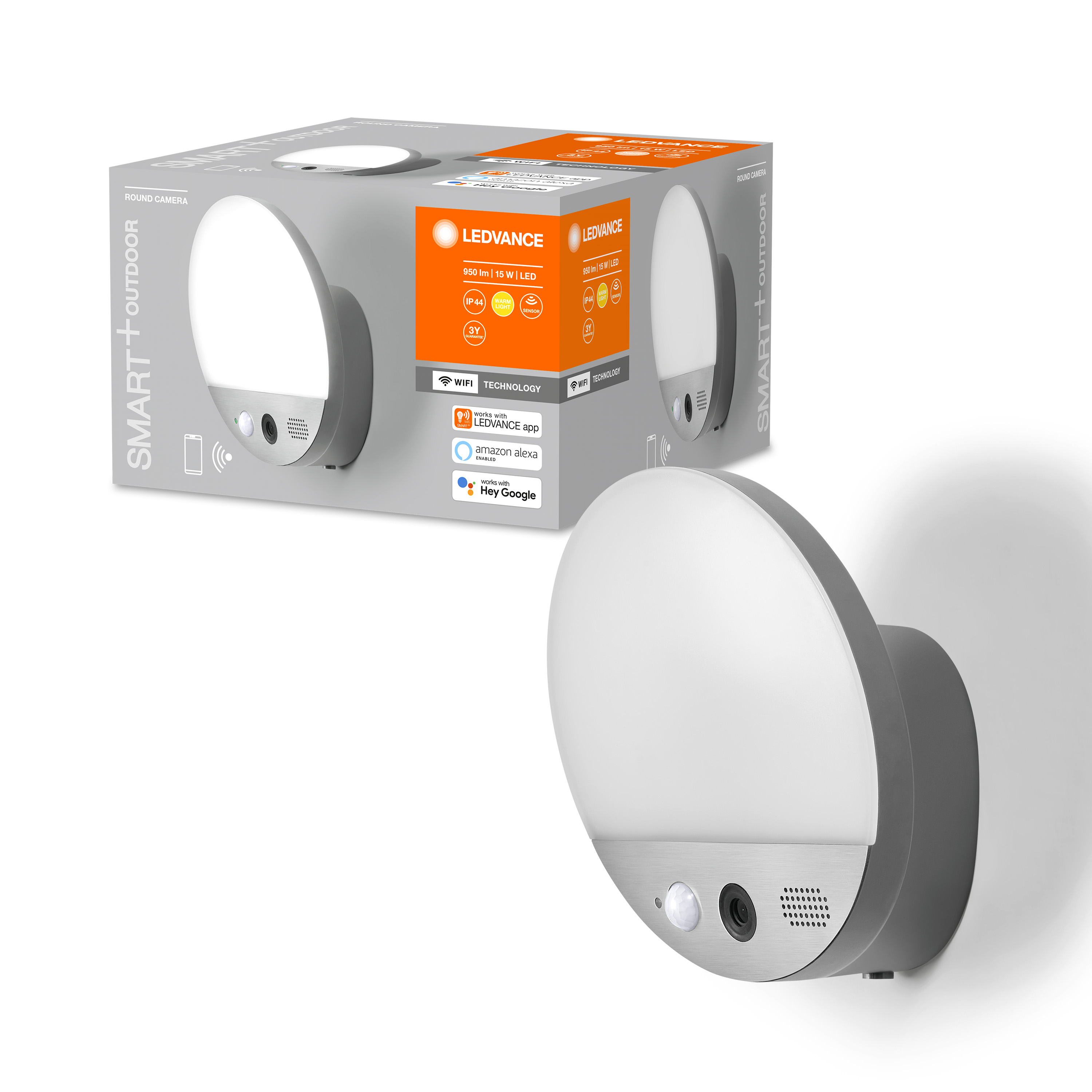

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI ROUND CAMERA DG MiPRC
SH FC WIFI ROUND CAMERA DG MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI ROUND CAMERA DG MiPRC
SH FC WIFI ROUND CAMERA DG MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI ROUND CAMERA DG MiPRC
SH FC WIFI ROUND CAMERA DG MiPRC
Packaging image, frontal
SH FC WIFI ROUND CAMERA DG MiPRC
SH FC WIFI ROUND CAMERA DG MiPRC

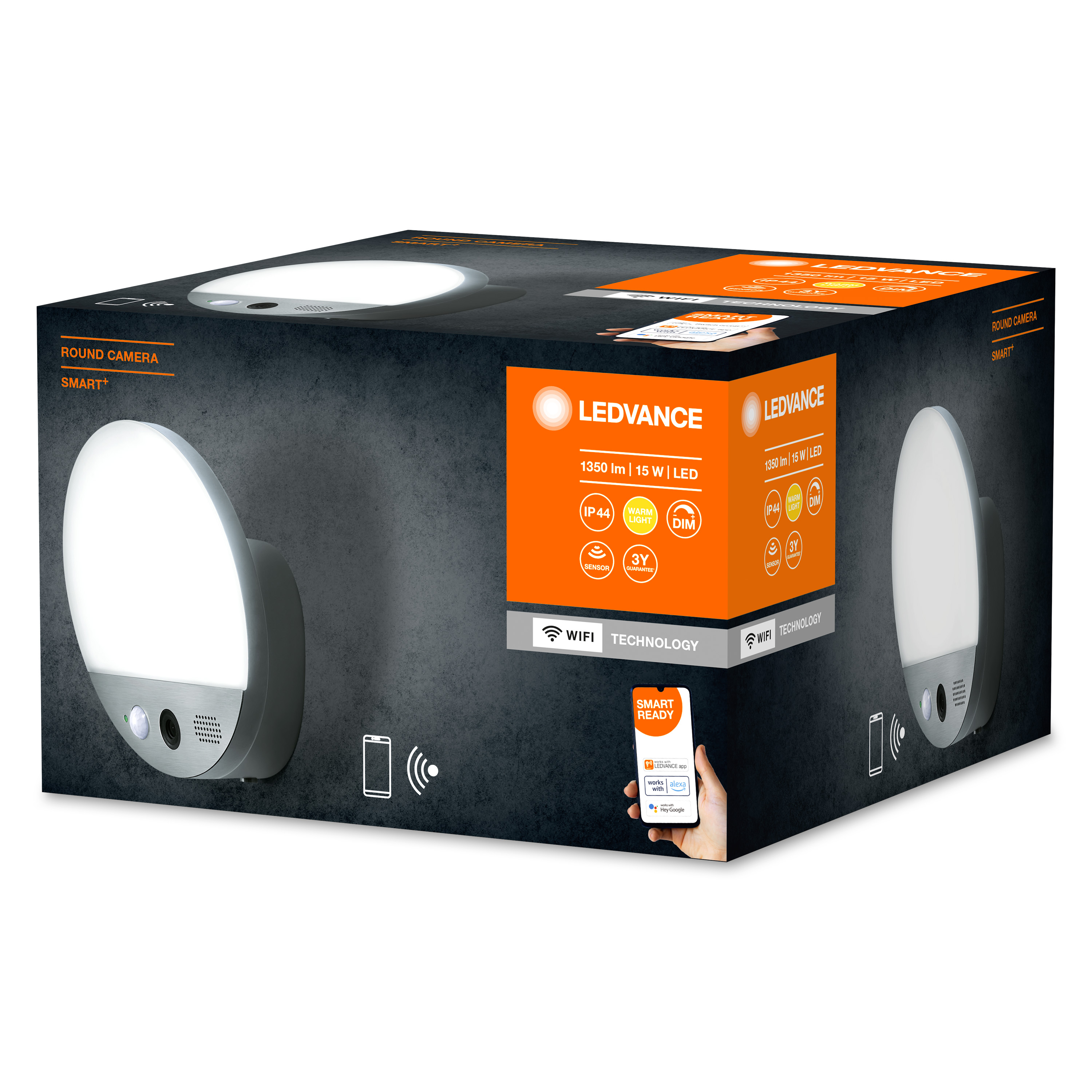

Packaging image, spacial
SH FC WIFI ROUND CAMERA DG MiPRC
SH FC WIFI ROUND CAMERA DG MiPRC

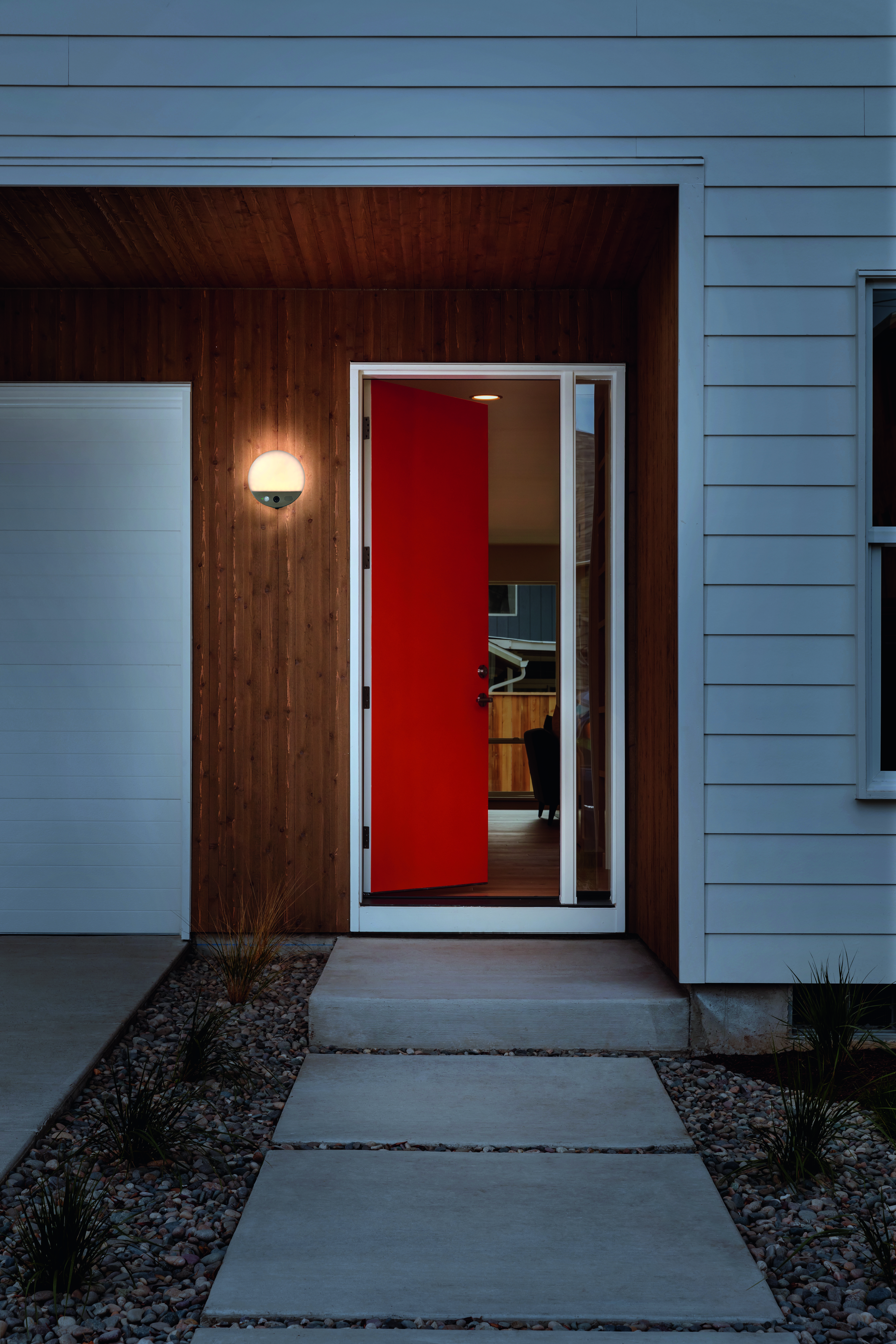

Application pictures

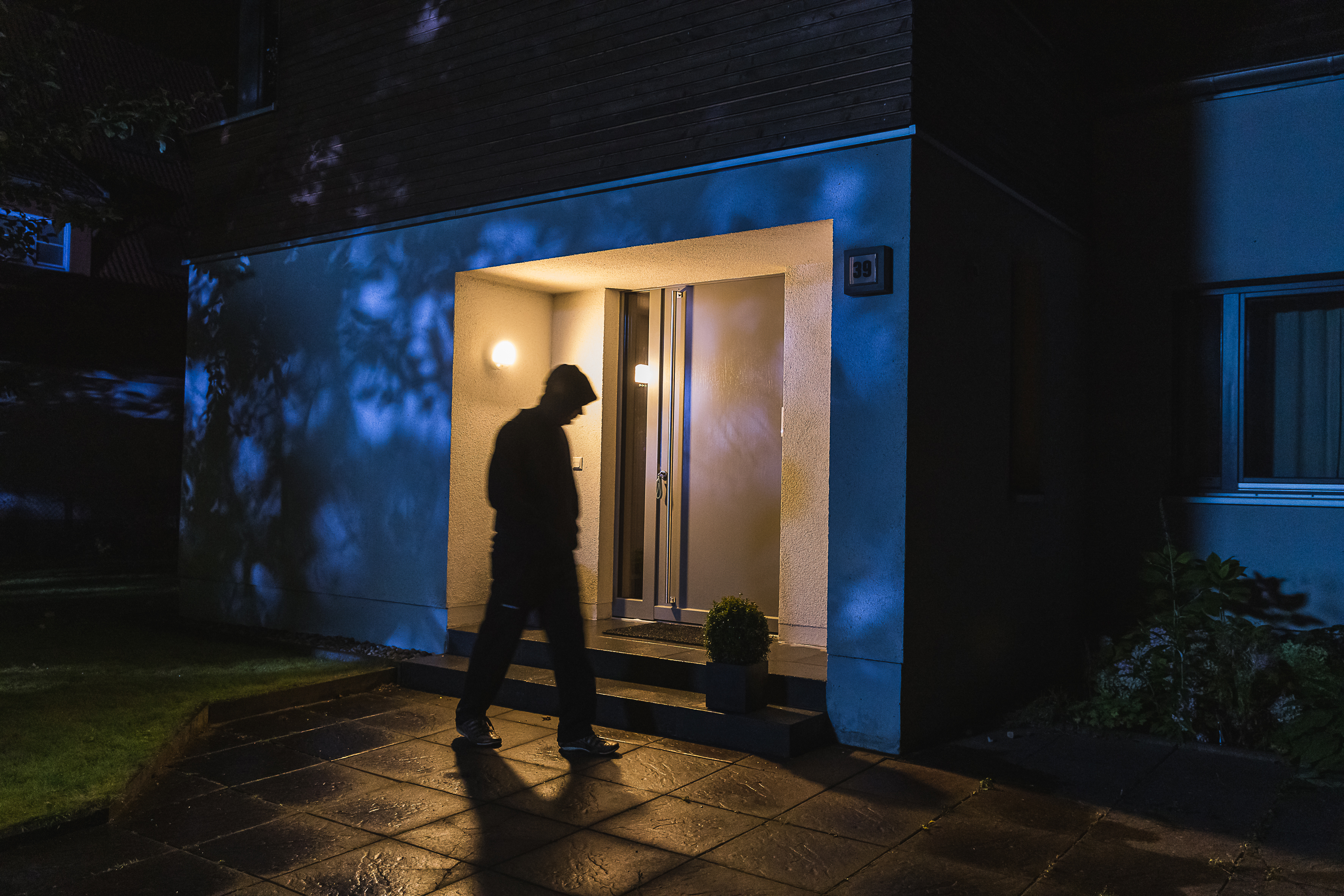

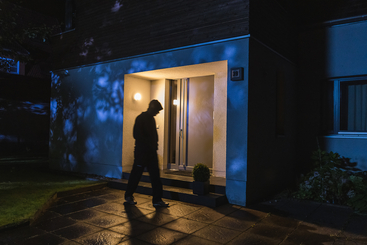

Smart WIFI Round Camera with Dark Man Leaving
Smart WIFI Round Camera with Dark Man Leaving
Application pictures

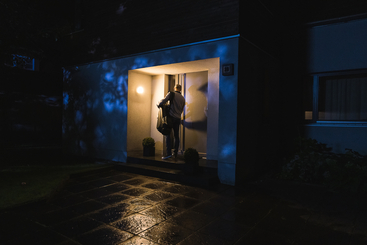

Smart WIFI Round Camera with Man returning Home
Smart WIFI Round Camera with Man returning Home
Application pictures

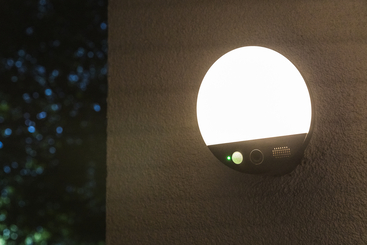

Smart WIFI Round Camera Close-Up
