SMART+ DAMP PROOF SUBMARINE TUNABLE WHITE

SMART+ Wifi Submarine 120cm TW

GTIN: 4058075576353 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app or voice control
  • Easy installation thanks to improved space for mounting brackets and easy to open tray
  • Quick and easy lamp replacement
  • Good, even illumination
  • The included Wifi Tube makes your basements, garages, warhouses smart
Areas of application
  • Basements, garages, warehouses
  • For indoor use only
Product features
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Dimmable
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Network protocol: WiFi
  • Damp-proof luminaire with Smart Wifi LED tube for mains voltage operation
  • Durable and energy-saving LED luminaire
  • Dust-protected and jet-proof (IP65)
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Smart Wifi LED Tube is delivered with the product
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 18.00 W
Nominal voltage 220…240 V
Inrush current 5.1 A
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Mains voltage
Photometrical data
Luminous flux 1900 lm
Total luminous flux of contained light sources 2300 lm
Luminous efficacy 105 lm/W
Color temperature 2700…6500 K
Light color (designation) Tunable White
Color rendering index Ra ≥80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 140 °
Dimensions & Weight
Length 1261.00 mm
Height 75.00 mm
Width 66.00 mm
Product weight 1150.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Plastic
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+35 °C
Temperature range at storage -20…+80 °C
Type of protection IP65
Protection class IK (shock resistance) IK06
Dimmable Yes
Mounting type Surface
Mounting location Ceiling
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Lifespan L80/B10 at 25 °C 30000 h
Number of switching cycles 100000
Emergency lighting
Type of emergency operation test None
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Additional product data
Number of illuminants 1
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075576353 Folding box
1		 77 mm x 71 mm x 1,265 mm 1249.00 g 6.92 dm³
4058075576360 Shipping box
9		 1,282 mm x 236 mm x 265 mm 11680.00 g 80.18 dm³
User instruction / safety instructions
SMART WIFI SUBMARINE 120CM
PDF (922.16 KB)
Declarations of conformity
SMART WIFI SUBMARINE 120CM
PDF (297.95 KB)

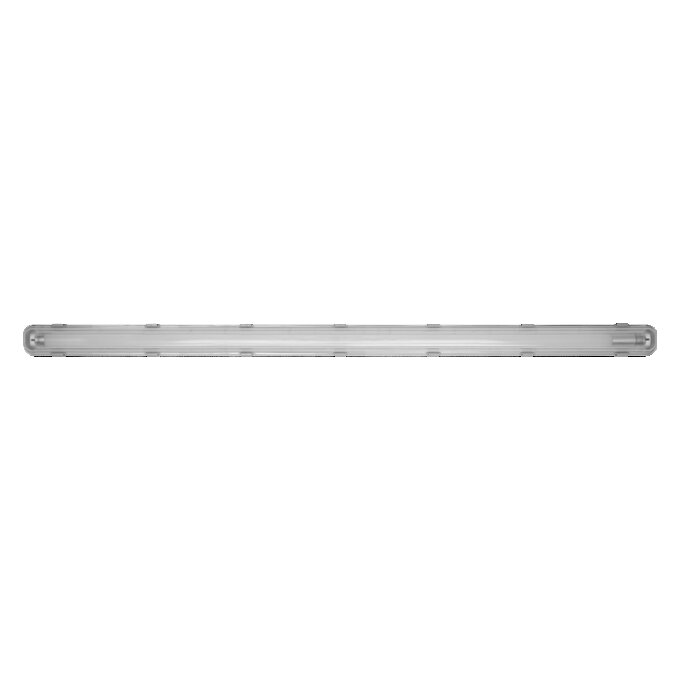

Product image: white background, upright
SUBMARINE THRUWIRING120CM 15W 840GR
JPG (412.57 KB)

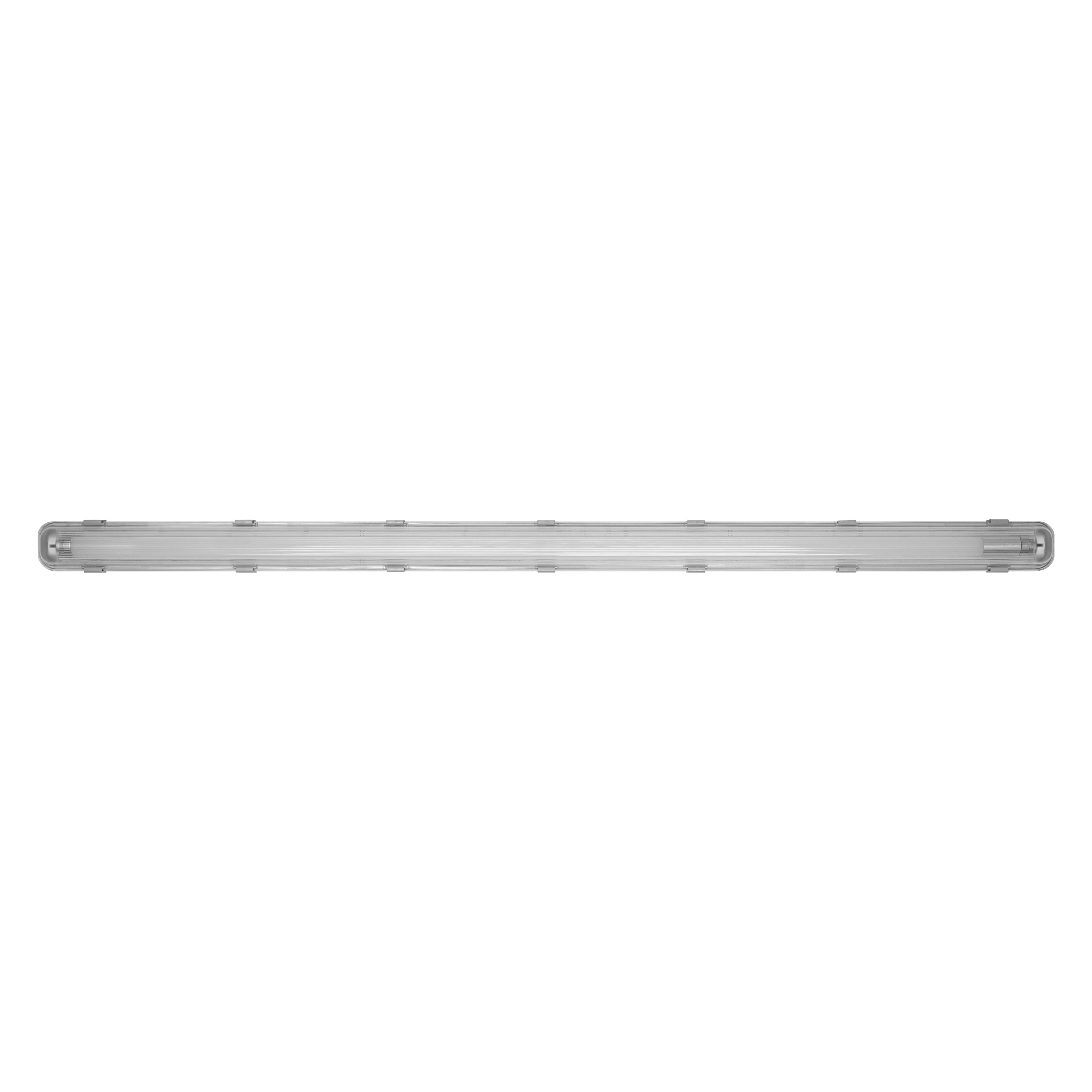

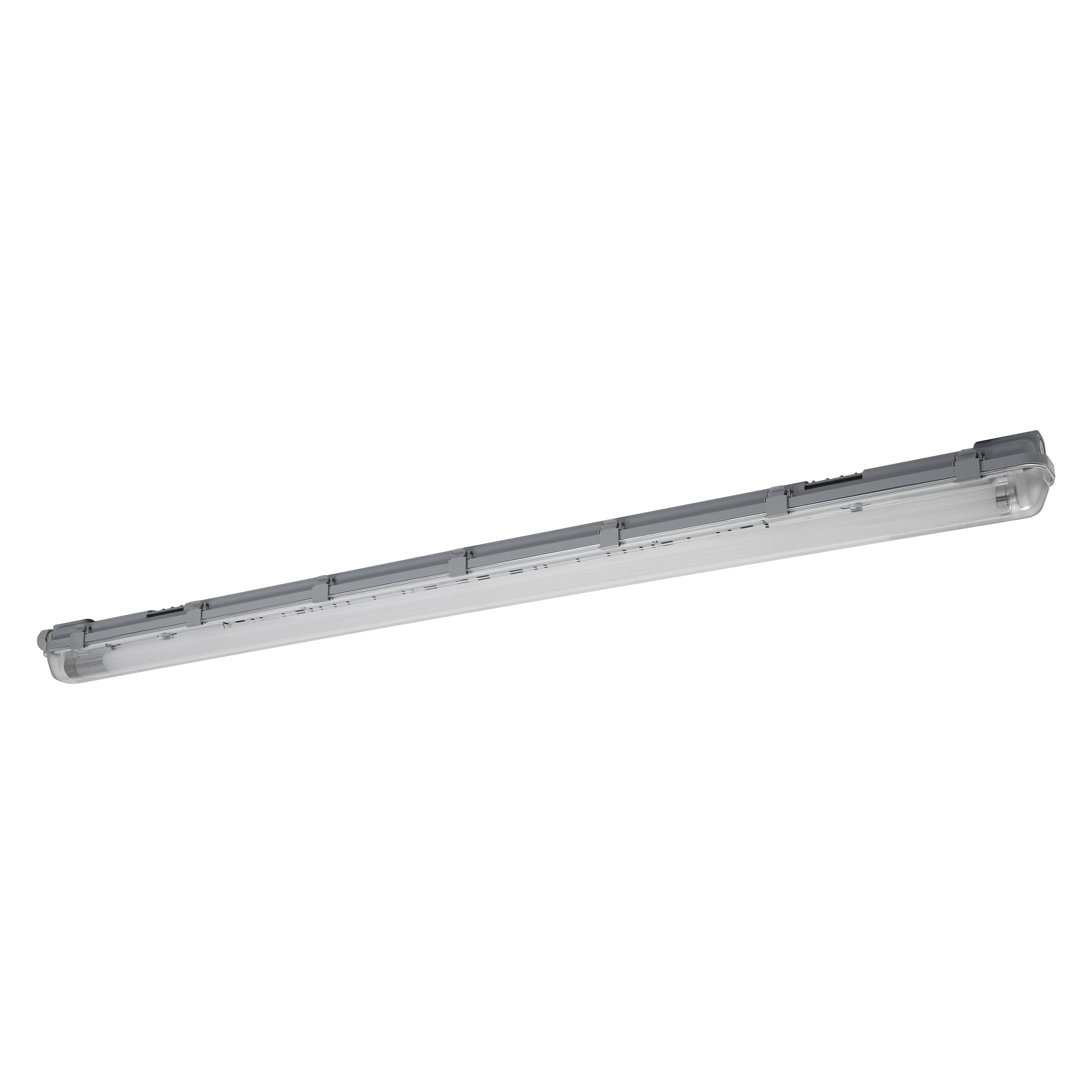

Product image: white background, upright, alternative image
SUBMARINE THRUWIRING120CM 15W 840GR
JPG (358.42 KB)

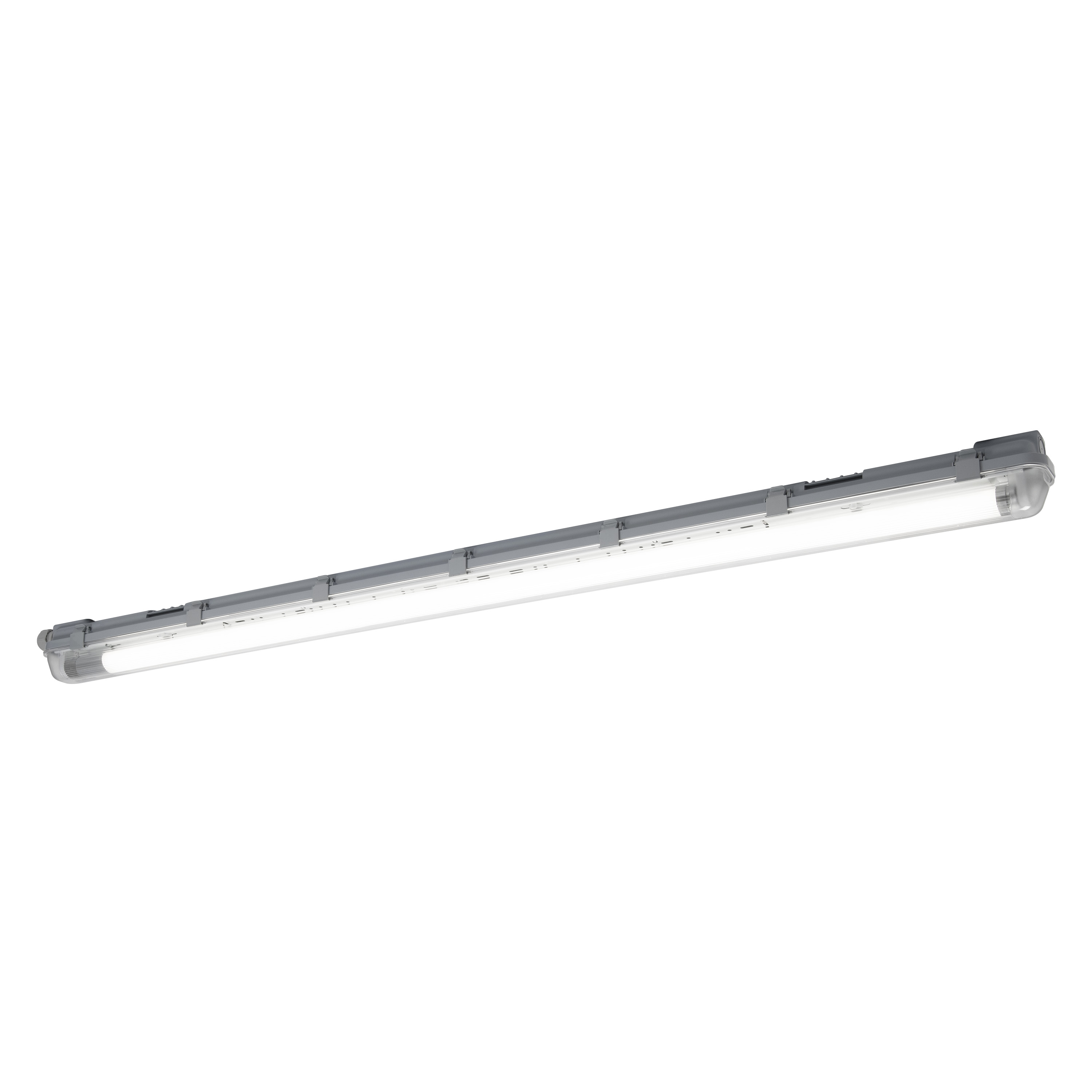

Product image: white background, upright, switched on
SUBMARINE THRUWIRING120CM 15W 840GR
JPG (376.09 KB)
Product line drawing with letters
SUBMARINE 120CM
SVG (6.81 KB)
Product line drawing with letters
SUBMARINE 120CM
SVG (9.08 KB)
Product line drawing with letters
SUBMARINE 120CM
SVG (4.38 KB)
Product line drawing with numbers
SUBMARINE 120CM
SVG (8.06 KB)
Product line drawing with numbers
SUBMARINE 120CM
SVG (10.39 KB)
Product line drawing with numbers
SUBMARINE 120CM
SVG (5.68 KB)
Product line drawing, front, no dimensions
SUBMARINE 120CM
SVG (4.8 KB)
Product line drawing, front, no dimensions
SUBMARINE 120CM
SVG (7.03 KB)
Product line drawing, front, no dimensions
SUBMARINE 120CM
SVG (2.34 KB)

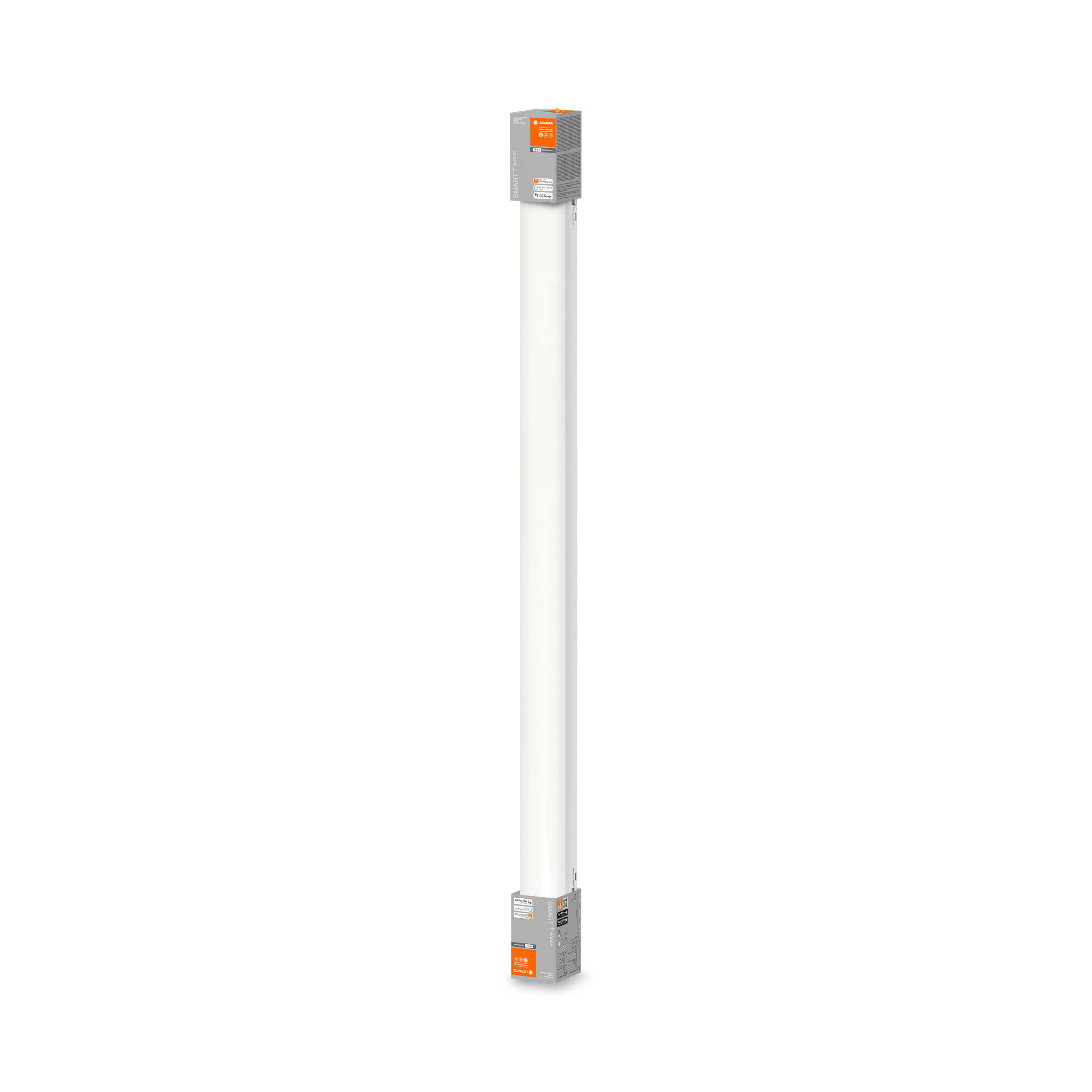

Combo Shot = Product Beauty Shot + Packaging Image
SH EC WIFI SUBM 120 1X18W TW MiPRC
JPG (323.95 KB)

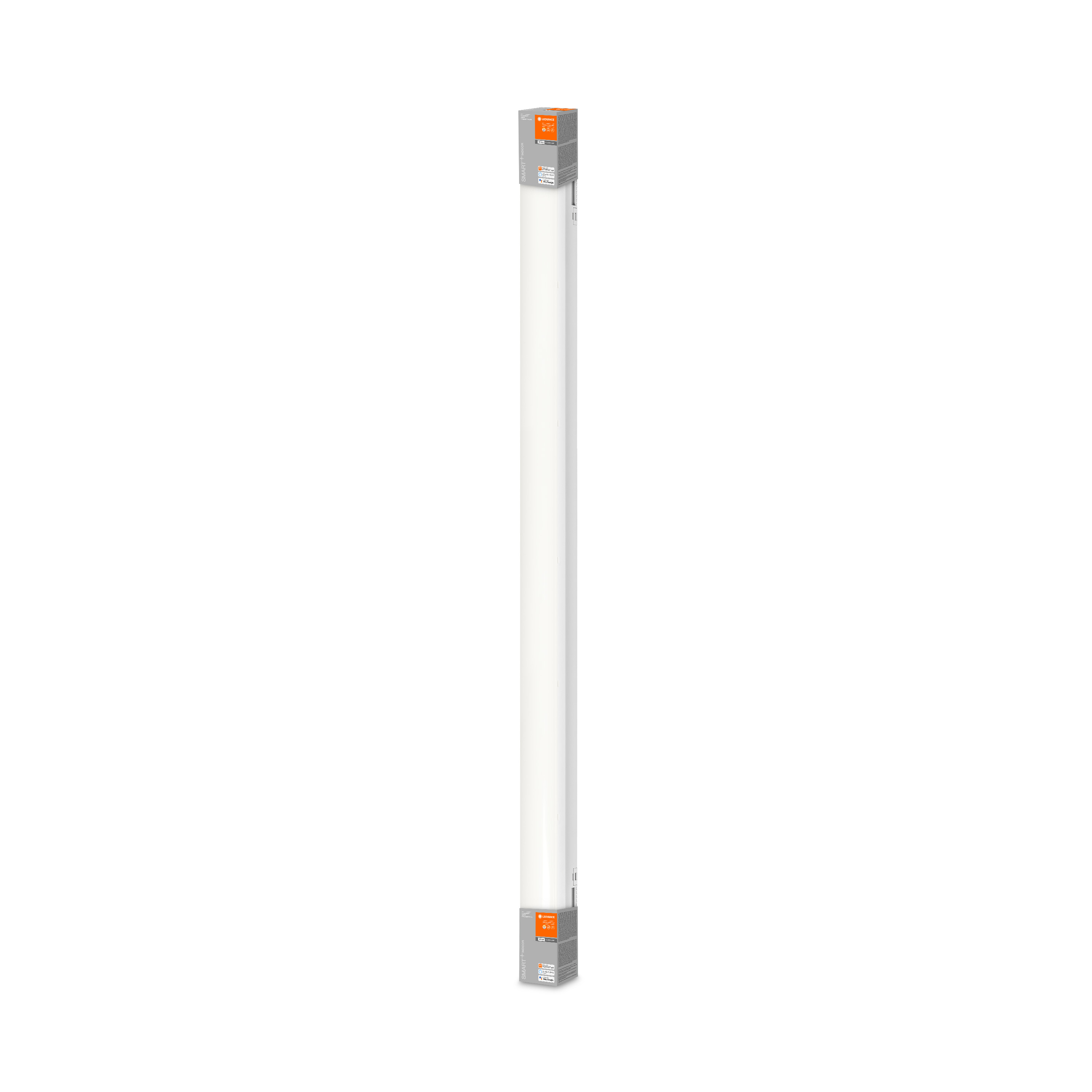

Combo Shot = Product Beauty Shot + Packaging Image
