Kurt
SMART+ Wifi Orbis Kurt 450mm TW
GTIN: 4058075754799
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Elegant design
- Easy and quick installation
Areas of application
- Kitchens, living rooms, children's rooms or home offices
- Entrance areas
Product features
- Ceiling luminaire with advanced LED technology
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 30.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Inrush current time Th50 | 350 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 5 |
| Max. number of luminaires per miniature circuit breaker C16 | 8 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
Photometrical data
| Luminous flux | 1750 lm |
| Total luminous flux of contained light sources | 3550 lm |
| Luminous efficacy | 58 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 360 ° |

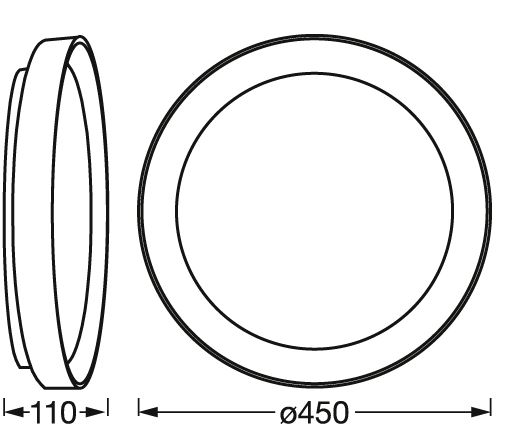

Dimensions & Weight
| Diameter | 450.00 mm |
| Height | 110.00 mm |
| Product weight | 2200.00 g |
Materials & Colors
| Product color | Black/Gold |
| Housing color | Black/Gold |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h |
| Number of switching cycles | 25000 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075754799 | Folding box 1 |
117 mm x 472 mm x 473 mm | 2591.00 g | 26.12 dm³ |
| 4058075754805 | Shipping box 4 |
490 mm x 490 mm x 495 mm | 11785.00 g | 118.85 dm³ |
User instruction / safety instructions
ORBIS
ORBIS
Extended installation guide
SMART+ WIFI INSTALLATION GUIDE
SMART+ WIFI INSTALLATION GUIDE
Declarations of conformity
SMART WIFI ORBIS
SMART WIFI ORBIS

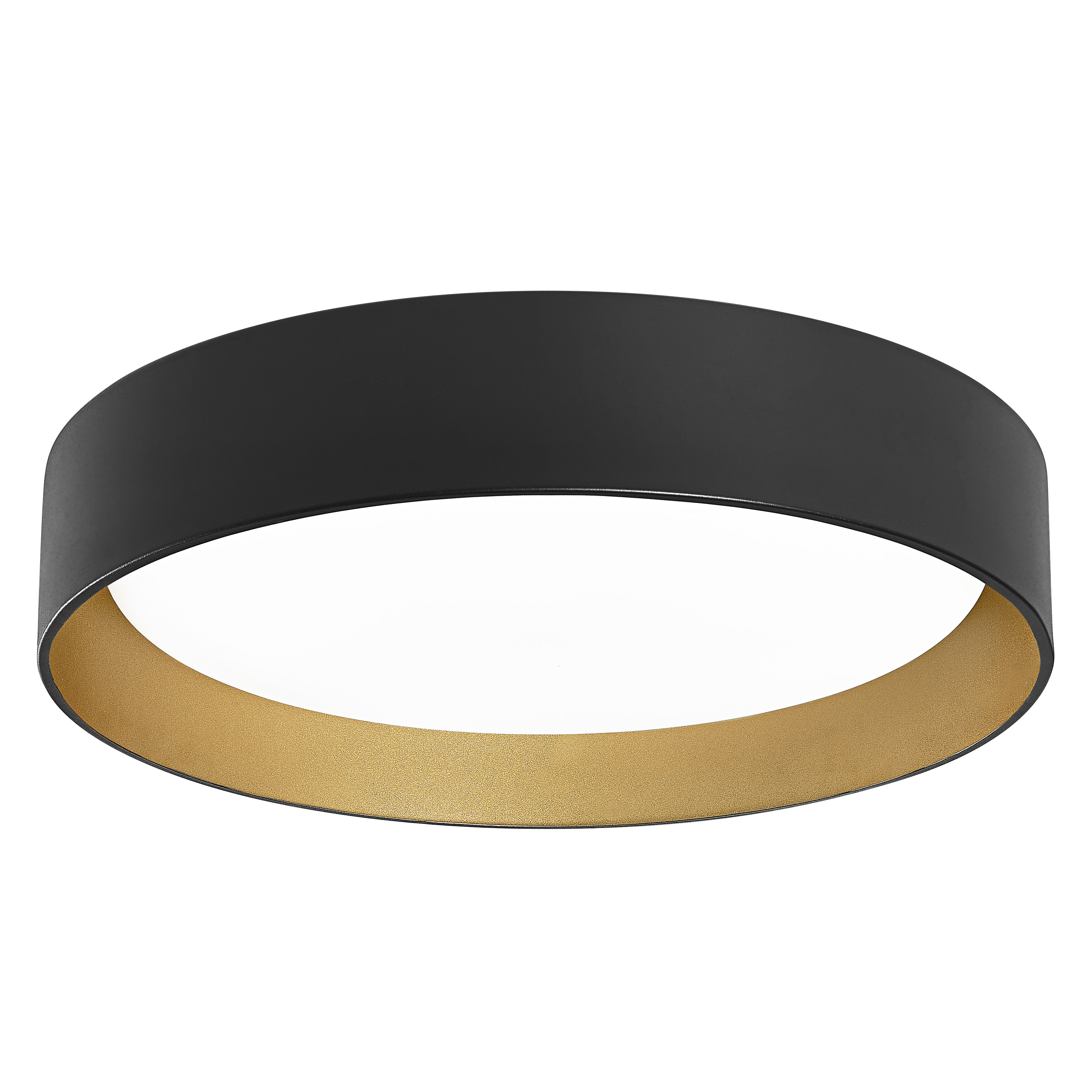

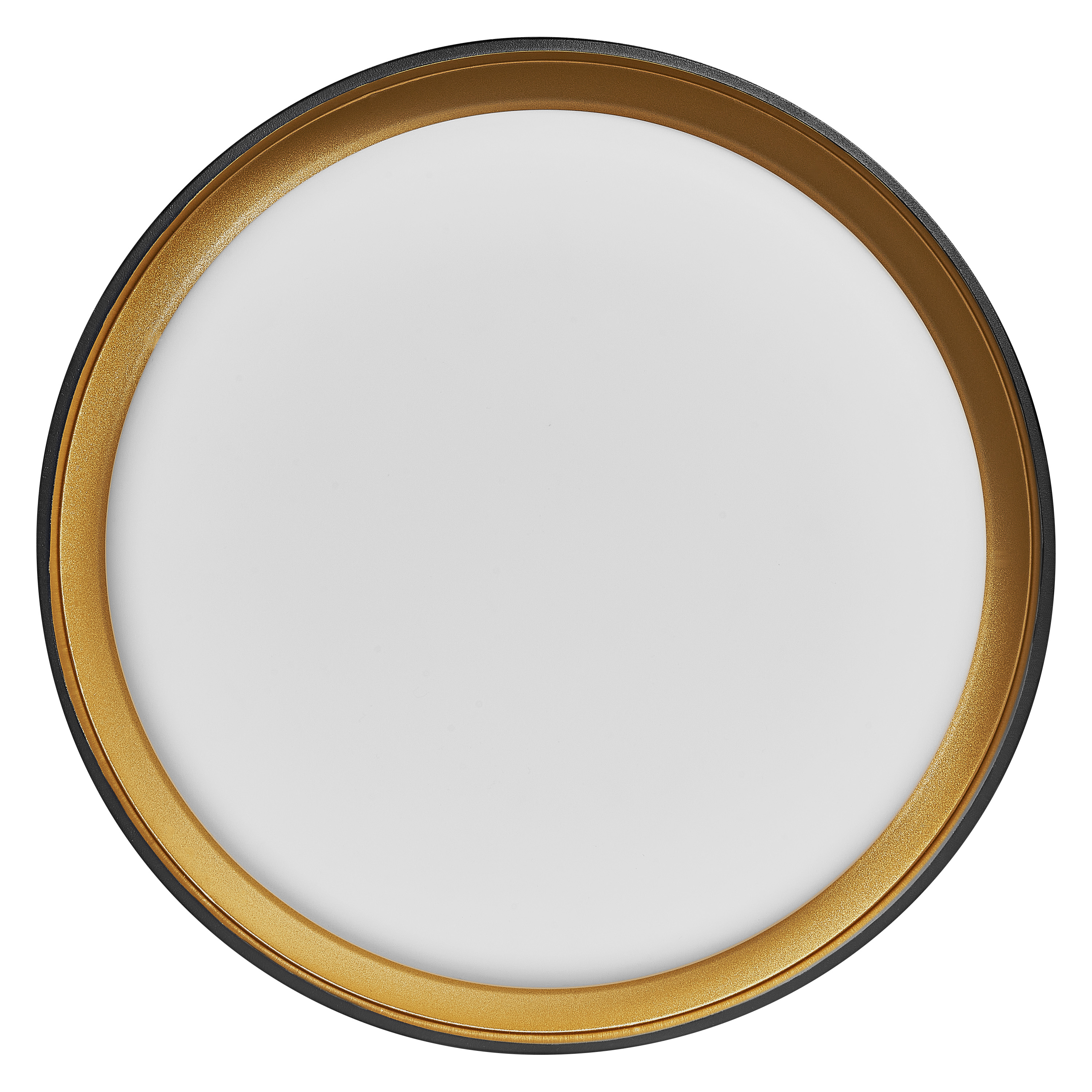

Product image: white background, upright
SMART WIFI ORBIS KURT
SMART WIFI ORBIS KURT

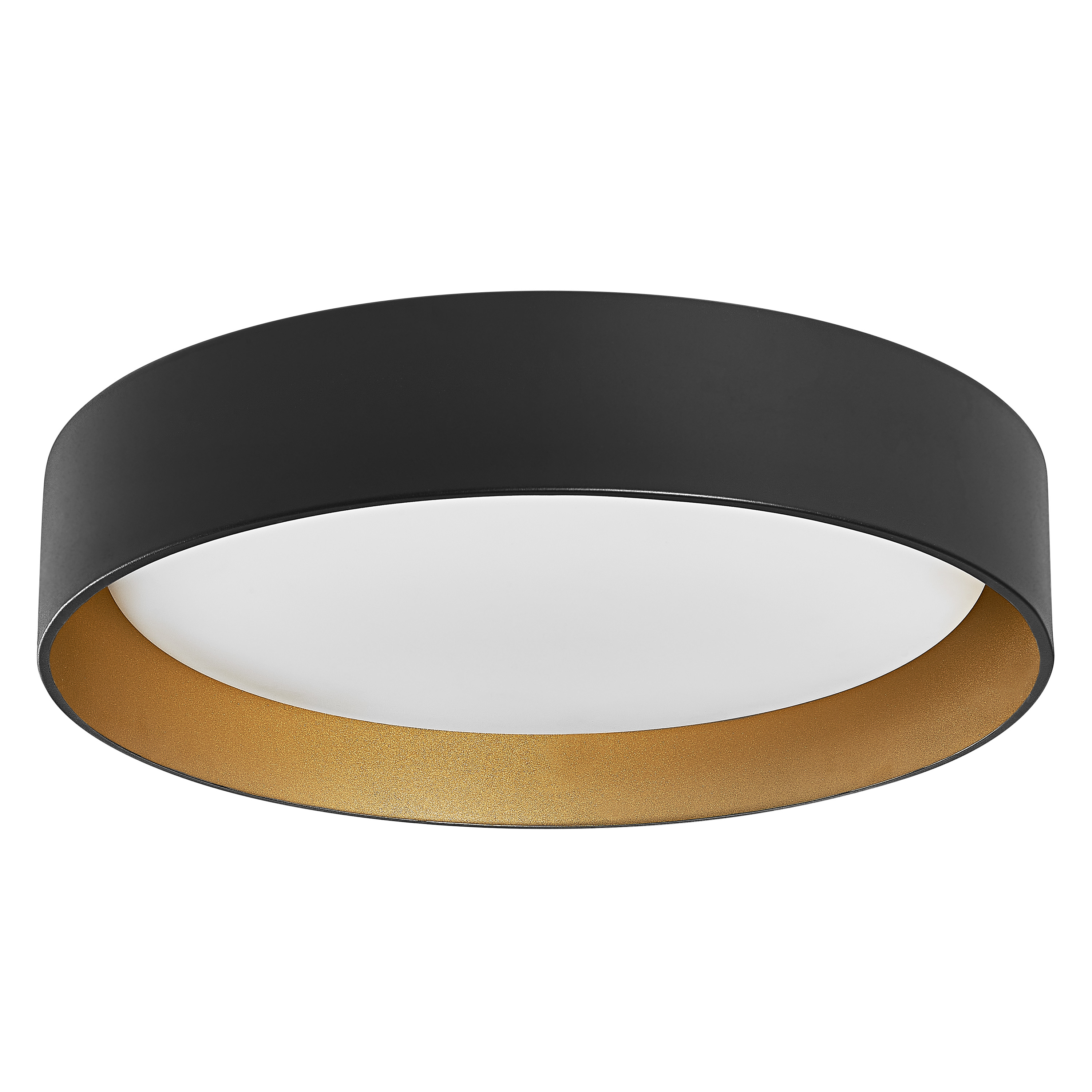

Product image: white background, upright, alternative image
SMART WIFI ORBIS KURT
SMART WIFI ORBIS KURT
Product image: white background, upright, switched on
SMART WIFI ORBIS KURT
SMART WIFI ORBIS KURT
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN

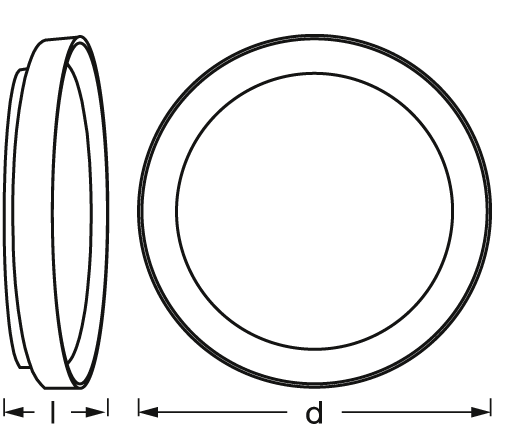

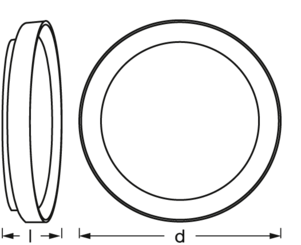

Product line drawing with letters
SMART WIFI ORBIS KURT
SMART WIFI ORBIS KURT

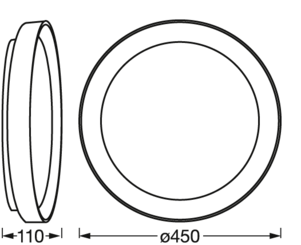

Product line drawing with numbers
SMART WIFI ORBIS KURT
SMART WIFI ORBIS KURT

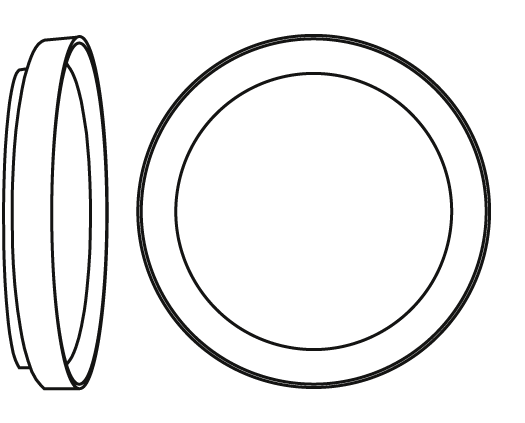

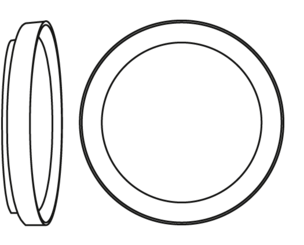

Product line drawing, front, no dimensions
SMART WIFI ORBIS KURT
SMART WIFI ORBIS KURT

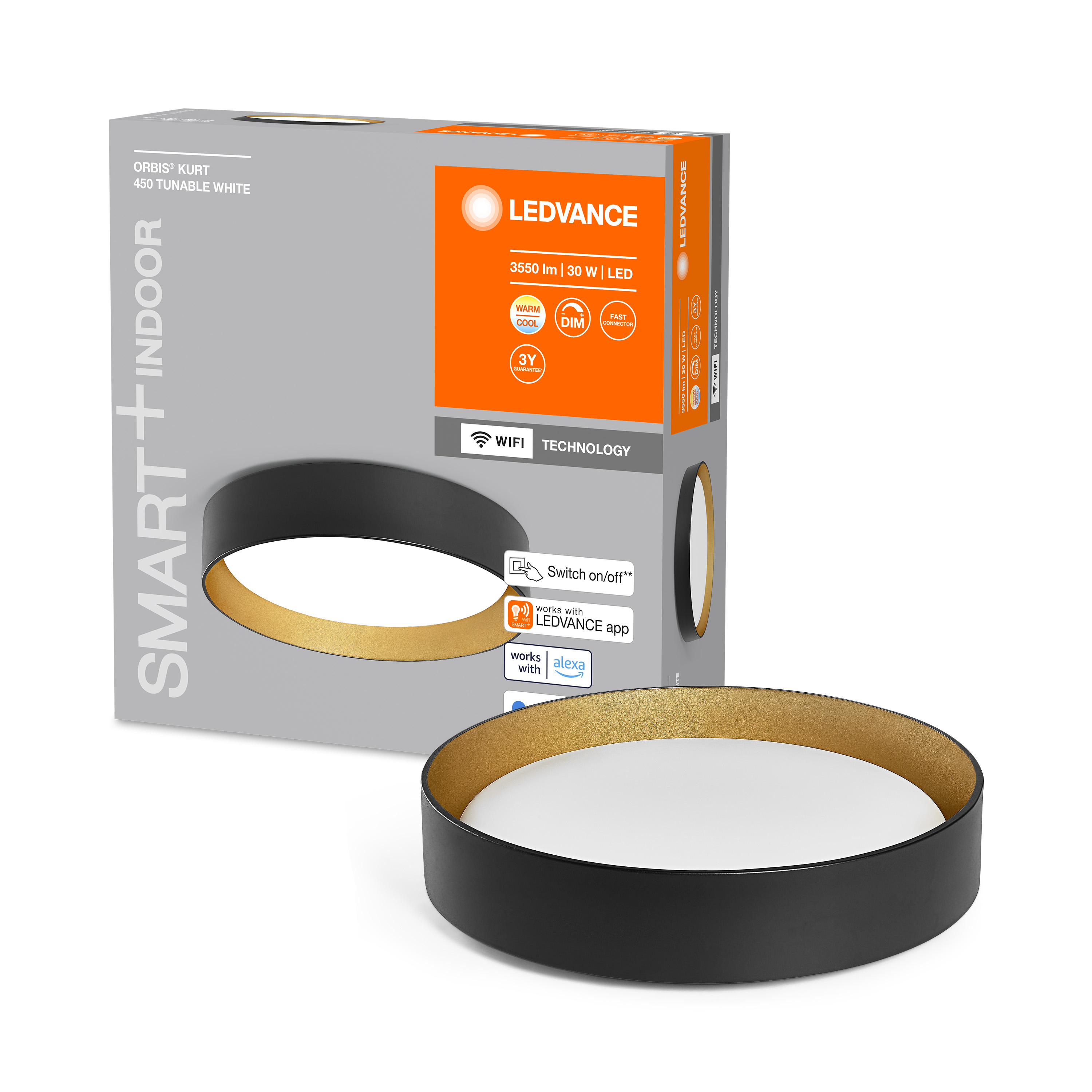

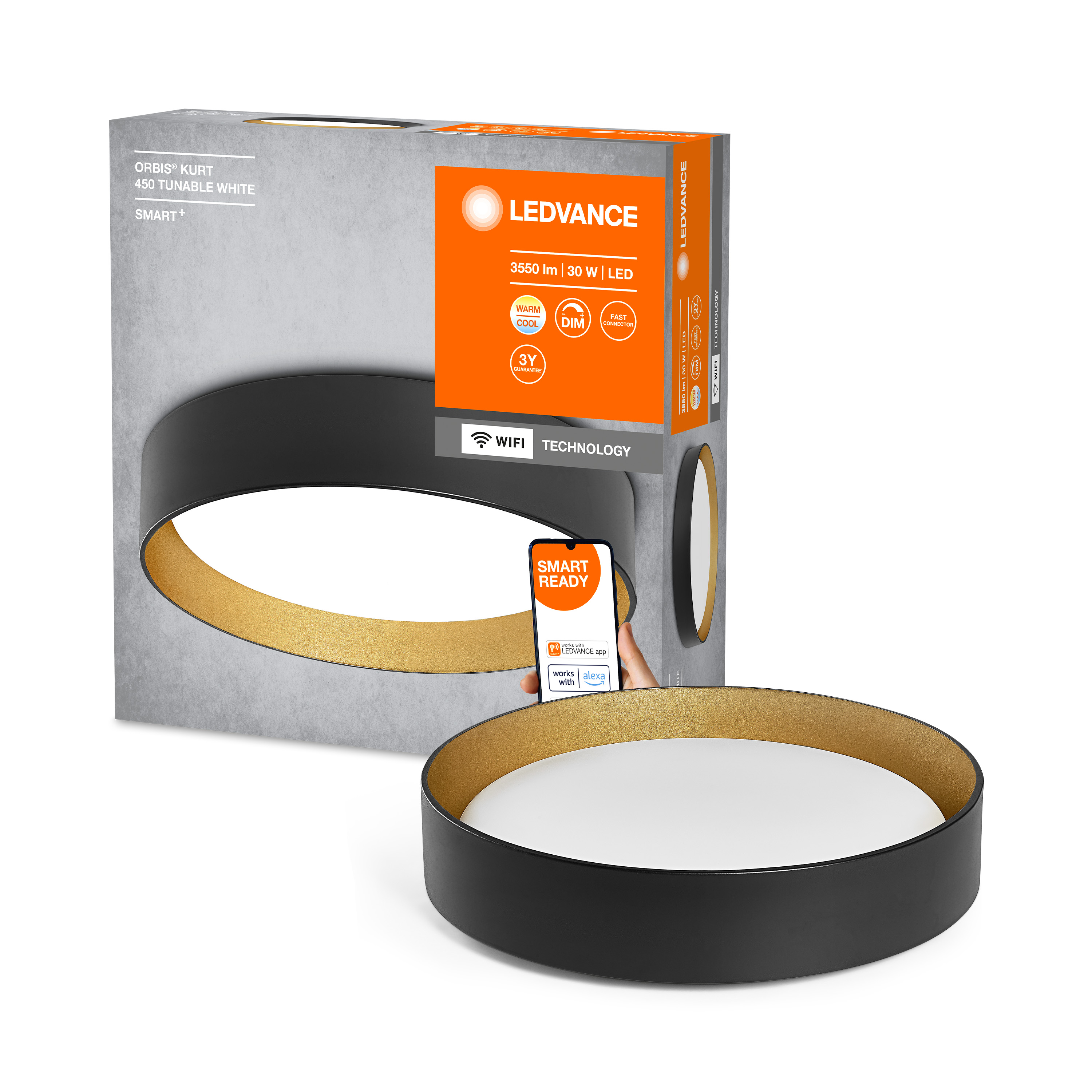

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI KURT 450 TW MiPRC
SH FC WIFI KURT 450 TW MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI KURT 450 TW MiPRC
SH FC WIFI KURT 450 TW MiPRC

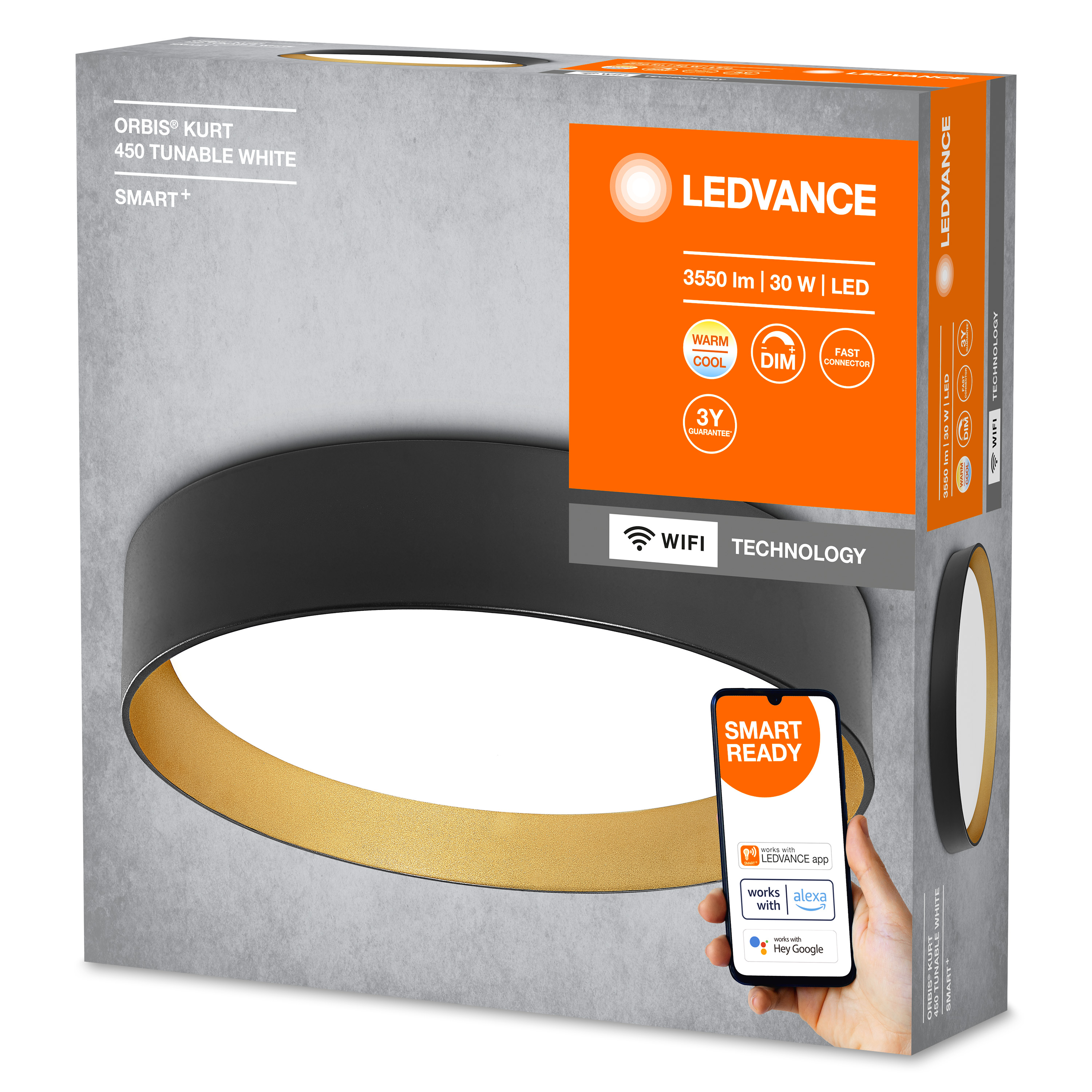

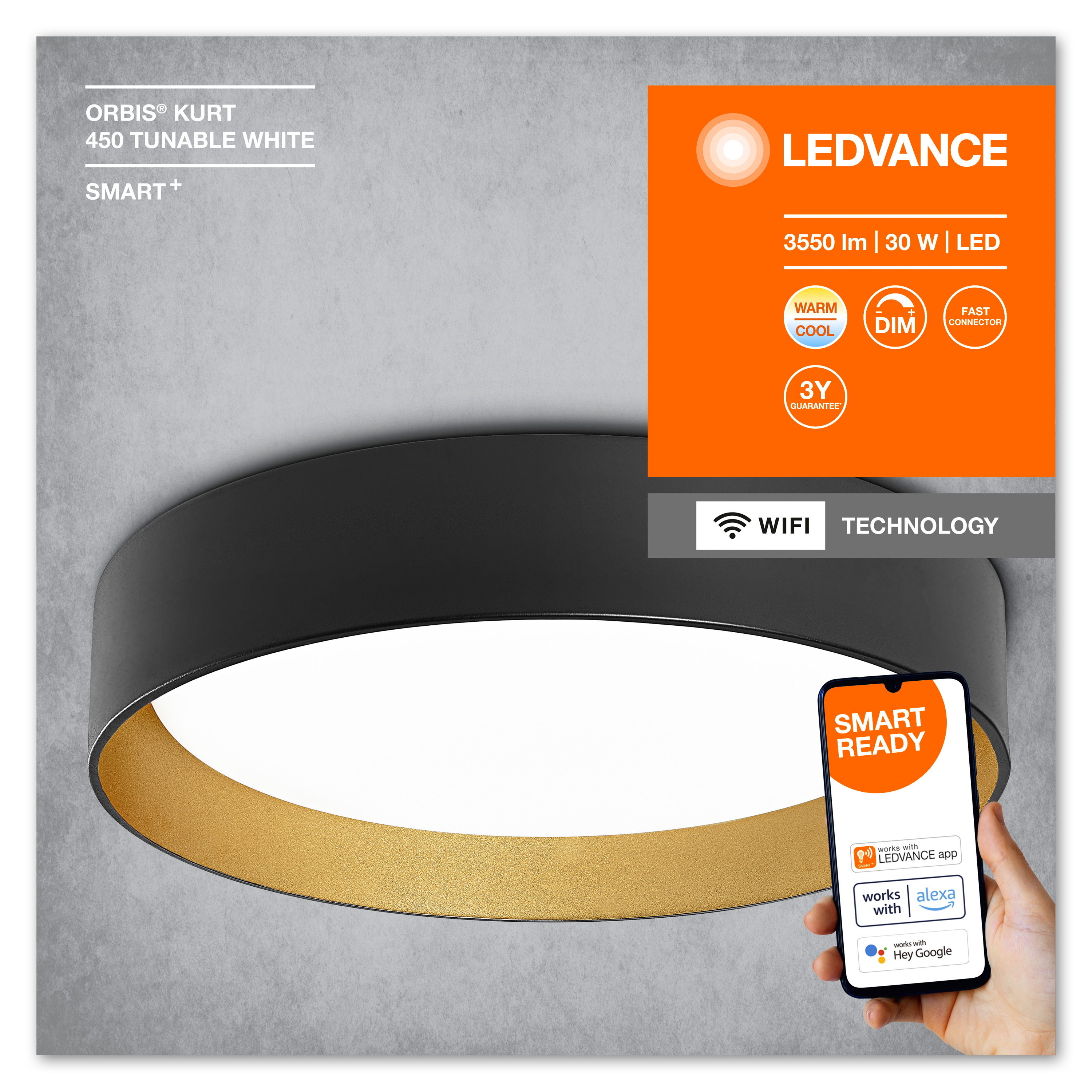

Packaging image, frontal
SH FC WIFI KURT 450 TW MiPRC
SH FC WIFI KURT 450 TW MiPRC
Packaging image, spacial
SH FC WIFI KURT 450 TW MiPRC
SH FC WIFI KURT 450 TW MiPRC

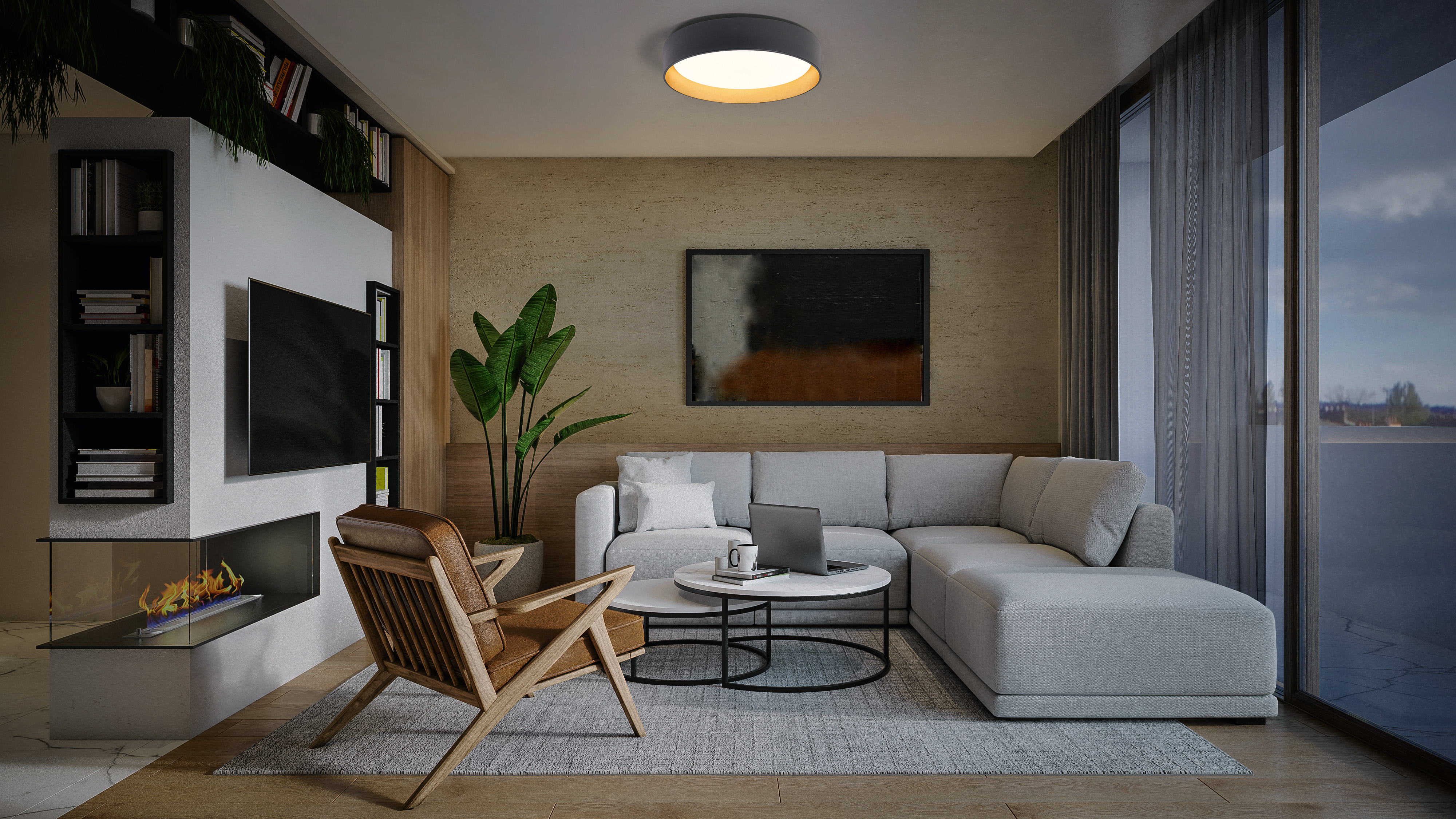

Application pictures Getty
SMART WIFI ORBIS KURT 450 WARM LIGHT
SMART WIFI ORBIS KURT 450 WARM LIGHT

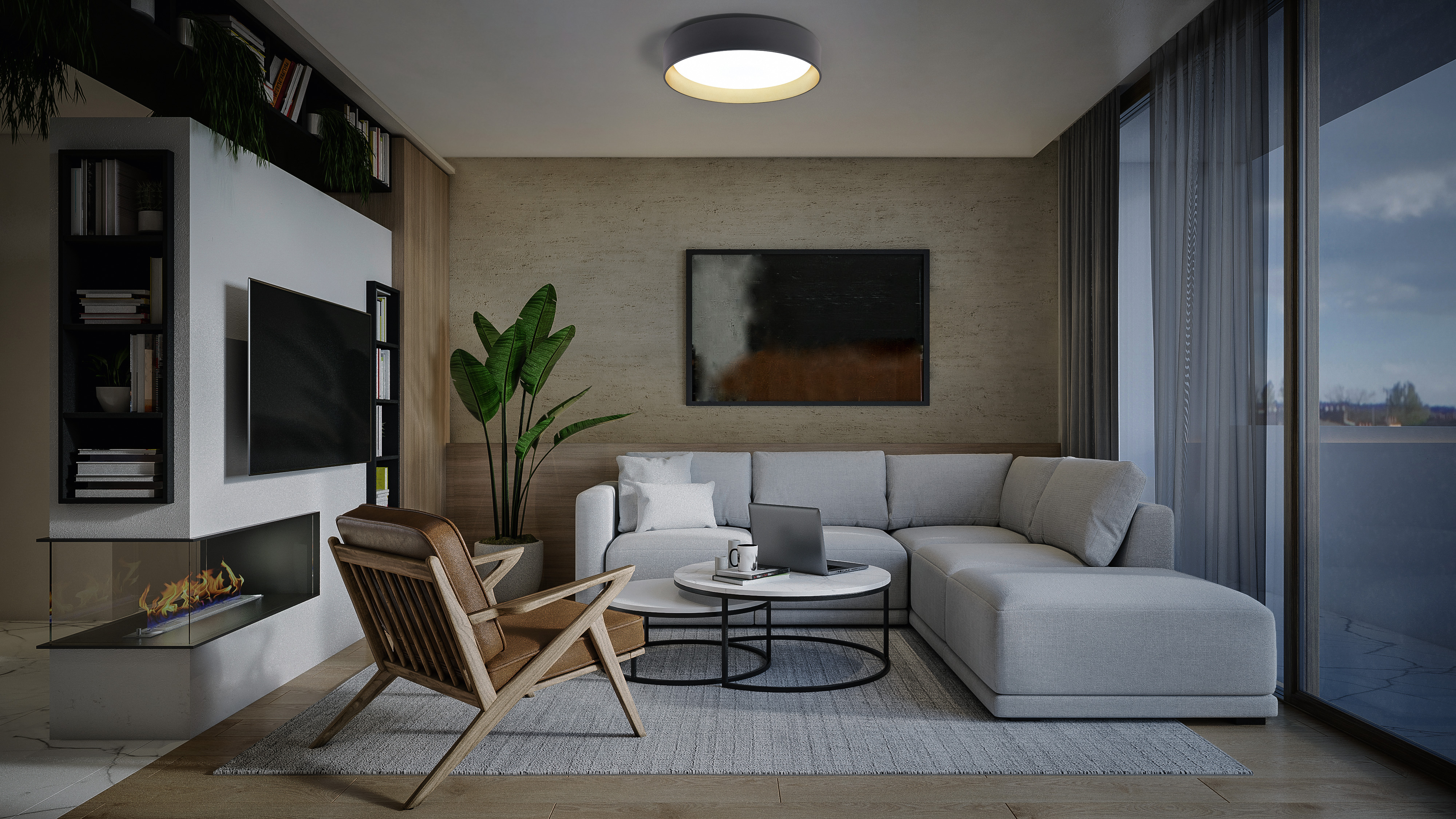

Application pictures Getty
