STRING INVERTER THREE PHASE COMFORT 50 - 60 K
LT 50K F2-DC-AFCI-WIET
GTIN: 4099854168062
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- 10 years of product guarantee
- Built-in LCD display
- Wide voltage range and low startup voltage
- AFCI protection, proactively reduces fire risk
- Level II surge protection on AC and DC side
- Automatic voltage stabilization technology in weak grid conditions
- Easy installation
Areas of application
- Commercial and industrial installations
- Utility installations
Product features
- Smart fan cooling
- Integrated DC switch
- Protection rating: IP66
- Original Stäubli MC4 connectors
Equipment / Accessories
- Mounting bracket included
- Data logger included
- AC terminal cover included
- Supplied with user manual
- Additional DC connectors for the outlets on the inverter
- Supplied with 16-pin COM connector and unlocking tool
- Cross bolts and screws included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Output phases | 3-phase |
| Max. input power DC | 75 kW |
| Input voltage DC | 600 V |
| MPP voltage | 180 - 1000 V |
| Max. input current DC | 32 A |
| Max. input current DC per string input | 16 A |
| Max. input current DC per MPP tracker | 32 A |
| Max. short circuit current per MPPT | 40 A |
| Number of independent MPPT inputs | 5 |
| String connections per MPPT input | 2 |
| Nominal output power AC | 50 kW |
| Power consumption | <1 W |
Dimensions & Weight
| Length | 691 mm |
| Width | 338 mm |
| Height | 578 mm |
| Product weight | 54500.000 g |
Additional product data
| Integrated DC switch | Yes |
| Connection DC for battery | No |
| Suitable for emergency power | No |
| Charging controller integrated | No |
| With data logging | Yes |
| Wireless | Yes |
| Display | Standard |
| Ethernet | Yes |
| Integrated transformer | No |
| Type of connection | Staubli MC4 |
| Temperature range in operation | -25…+60 °C |
| Ambient temperature range | -25…+60 °C |
| Outdoor application | No |
| Type of protection | IP66 |
| Product color | White |
Efficiency
| Maximum efficiency | 98.70 % |
| European efficiency | 98.30 % |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Bisphenol A (BPA) (80-05-7) Tetraboron disodium heptaoxide, hydrate (12267-73-1) Boric Acid Orthoboric acid, sodium salt (13840-56-7) Lead (7439-92-1) 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (71868-10-5 ) Dodecamethylcyclohexasiloxane [D6] (540-97-6) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854168062 | Shipping box 1 |
855 mm x 755 mm x 446 mm | 58436.00 g | 287.90 dm³ |
User instruction / safety instructions
Three Phased String Inverter 50-60K F2 User Manual
Three Phased String Inverter 50-60K F2 User Manual
Declarations of conformity
CE declaration_LT50-60K
CE declaration_LT50-60K
Product family datasheet
LT 50-50K F2
LT 50-50K F2

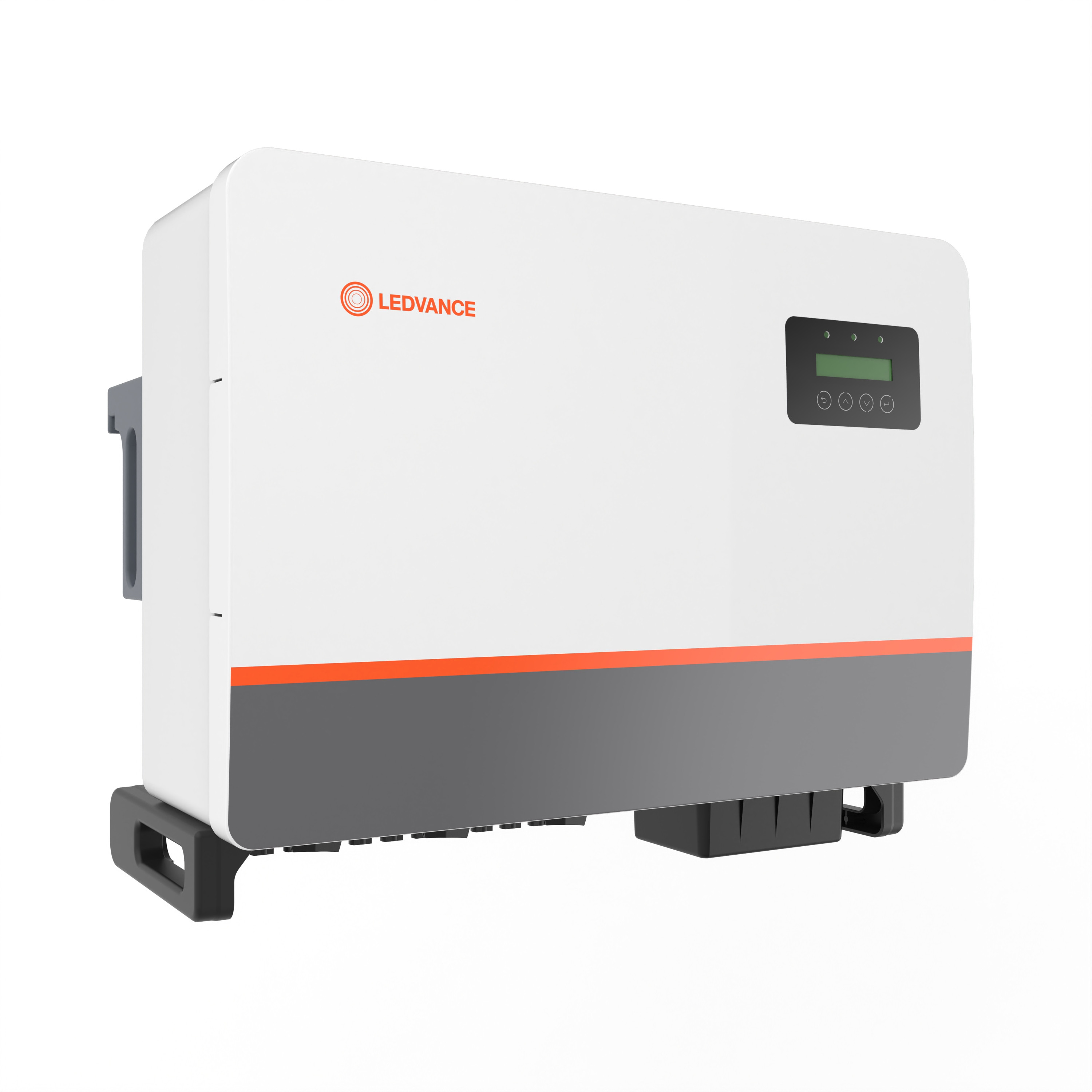

Product image: white background, diagonal
LT-50K F2-DC-AFCI-WIET-MTR
LT-50K F2-DC-AFCI-WIET-MTR

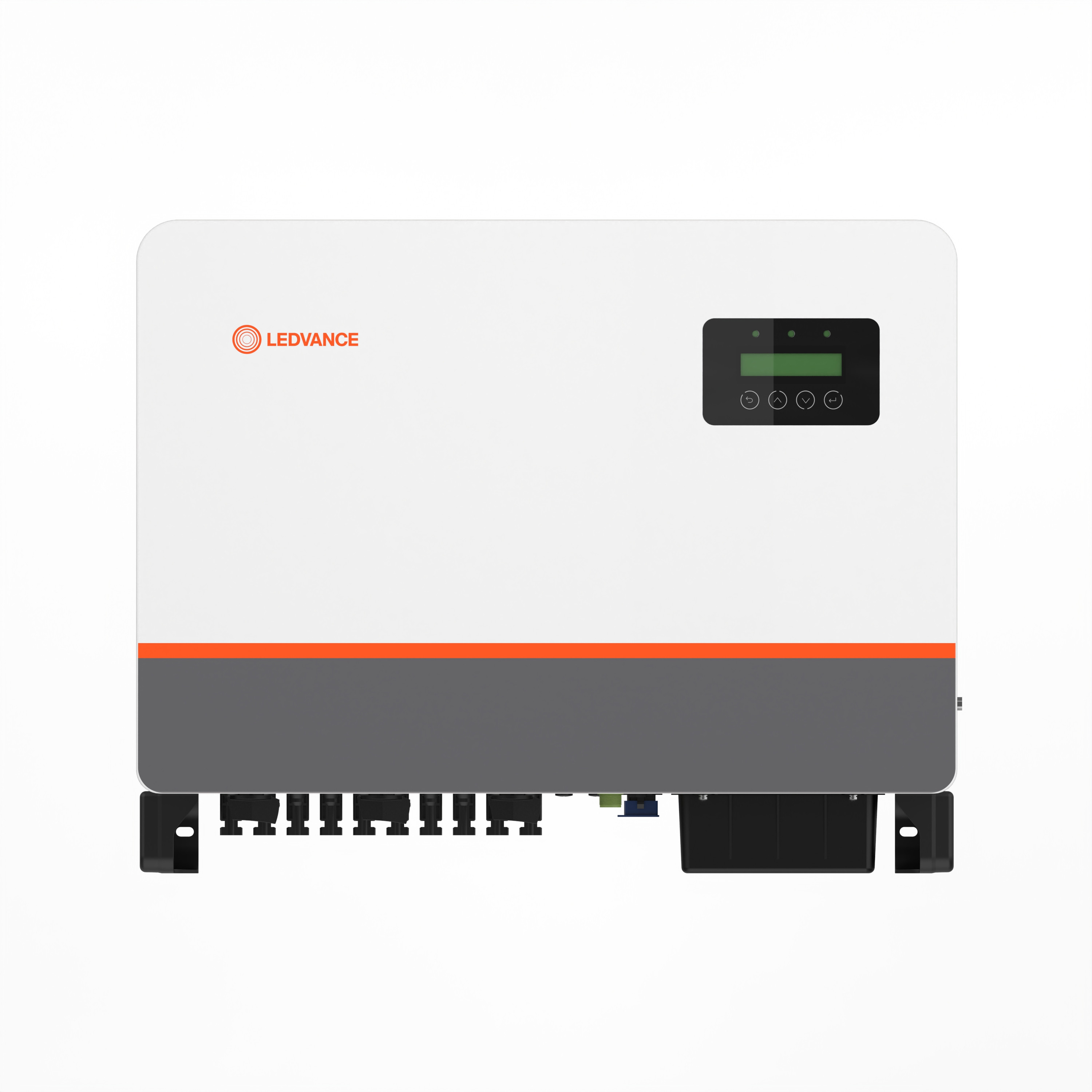

Product image: white background, upright
LT-50K F2-DC-AFCI-WIET
LT-50K F2-DC-AFCI-WIET
| EAN | SEG number | STK number |
|---|---|---|
| 4099854168062 | 2741832 | 8010053 |
