CEILING MOIA
Orbis Slim Moia 280mm 20W White
GTIN: 4099854092428
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very homogenous light
- Elegant design
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Decorative domestic lighting
- Ceiling luminaire with advanced LED technology
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 104.000 mA |
| Inrush current | 3 A |
| Inrush current time Th50 | 100 µs |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 70 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1500 lm |
| Total luminous flux of contained light sources | 2200 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 280.00 mm |
| Height | 40.00 mm |
| Product weight | 787.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+60 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854092428 | Folding box 1 |
48 mm x 290 mm x 290 mm | 911.00 g | 4.04 dm³ |
| 4099854092435 | Shipping box 4 |
310 mm x 215 mm x 320 mm | 4093.00 g | 21.33 dm³ |
User instruction / safety instructions
UI Orbis Moia
UI Orbis Moia
Legal information
Legal insert Orbis Moia
Legal insert Orbis Moia
Declarations of conformity
CE Declaration Orbis Moia 280 and 480
CE Declaration Orbis Moia 280 and 480

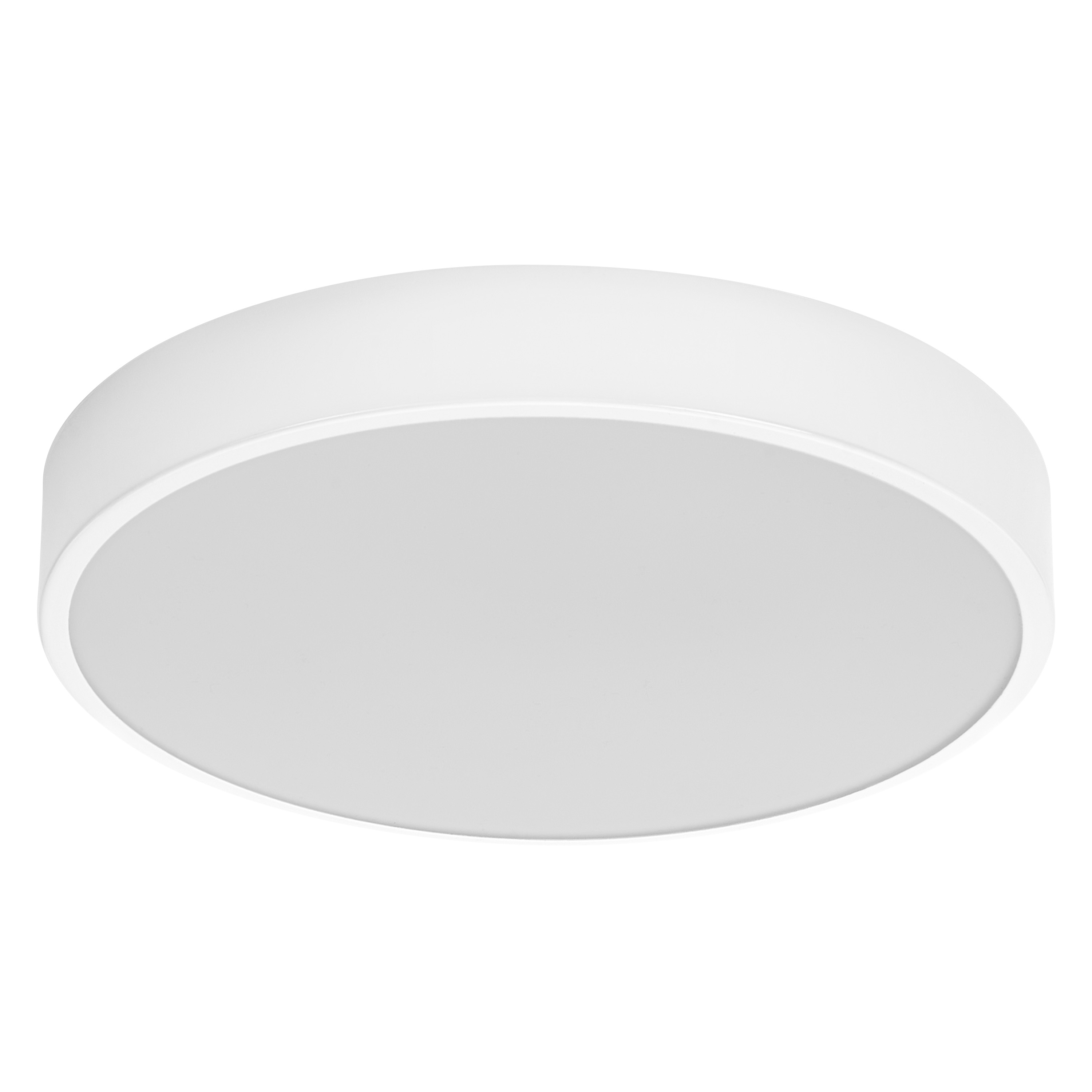

Product image: white background, upright
ORBIS SLIM MOIA 280MM 20W 830 WT
ORBIS SLIM MOIA 280MM 20W 830 WT

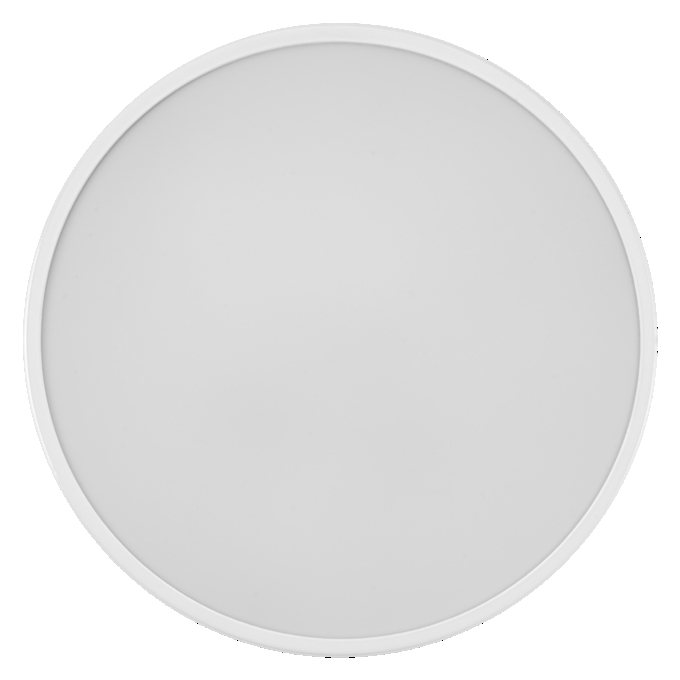

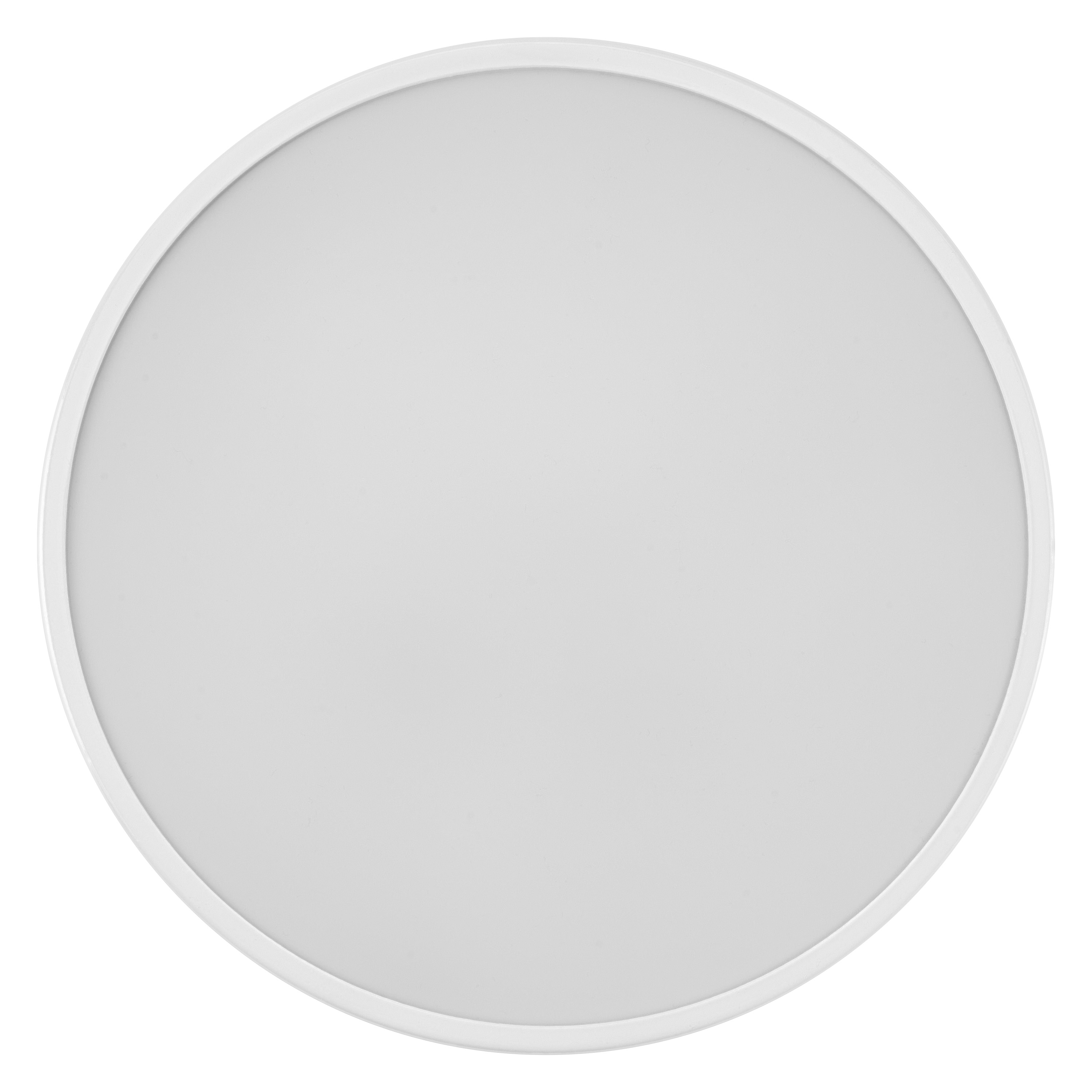

Product image: white background, upright, alternative image
ORBIS SLIM MOIA 280MM 20W 830 WT
ORBIS SLIM MOIA 280MM 20W 830 WT

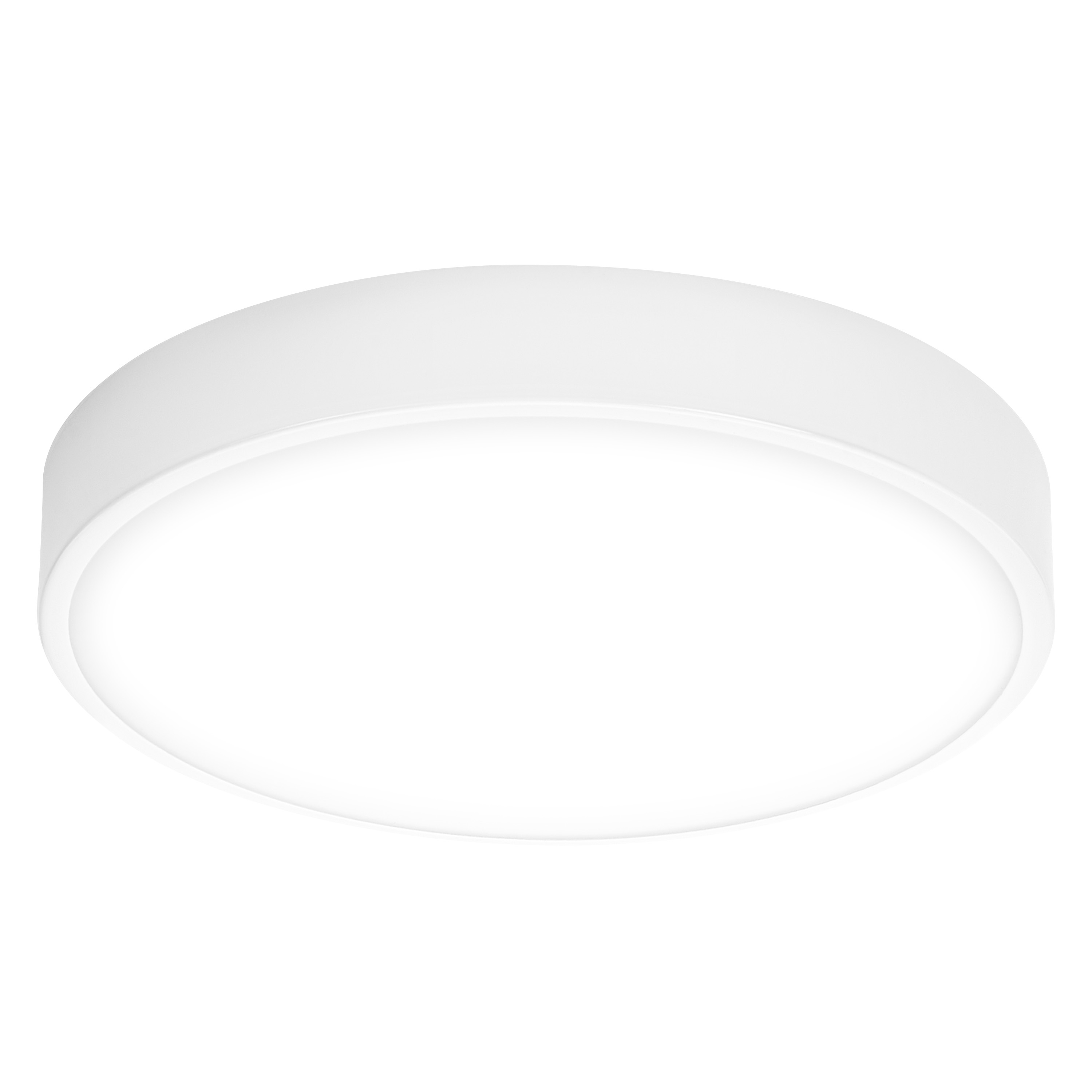

Product image: white background, upright, switched on
ORBIS SLIM MOIA 280MM 20W 830 WT
ORBIS SLIM MOIA 280MM 20W 830 WT
Product infographic (application image with text and graphic)
ORBIS non-smart e-Com graphic 1200x1200px 2025 EN
ORBIS non-smart e-Com graphic 1200x1200px 2025 EN
Product line drawing with letters
ORBIS SLIM MOIA 480MM 36W 830
ORBIS SLIM MOIA 480MM 36W 830

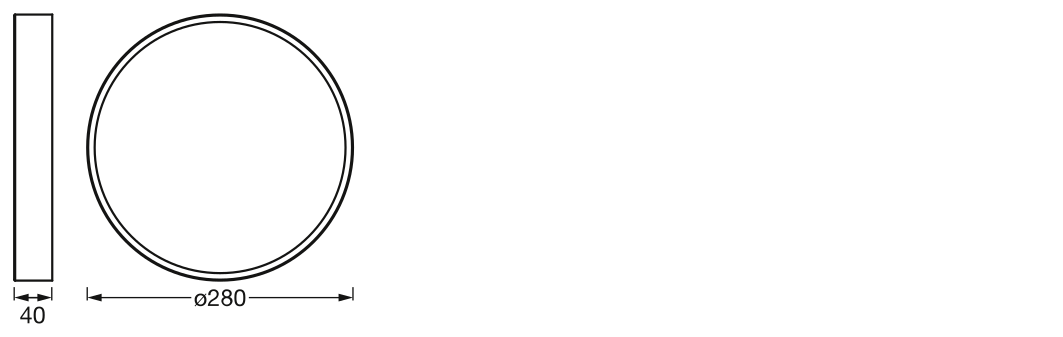

Product line drawing with numbers
ORBIS SLIM MOIA 280MM 20W 830
ORBIS SLIM MOIA 280MM 20W 830
Product line drawing, front, no dimensions
ORBIS SLIM MOIA 480MM 36W 830
ORBIS SLIM MOIA 480MM 36W 830

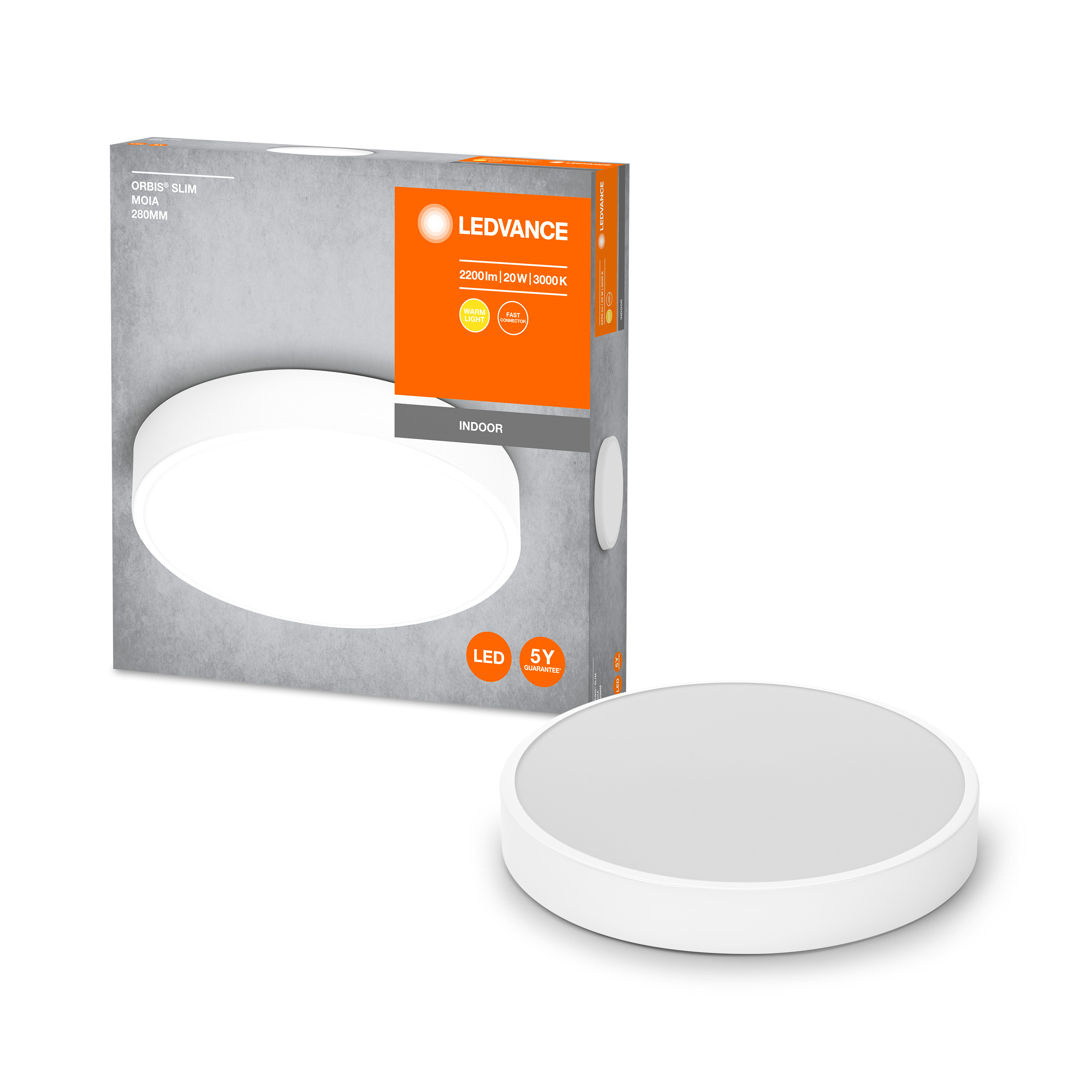

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ORBIS SL MOIA 280 20 WT MiPRC
LUM FC ORBIS SL MOIA 280 20 WT MiPRC

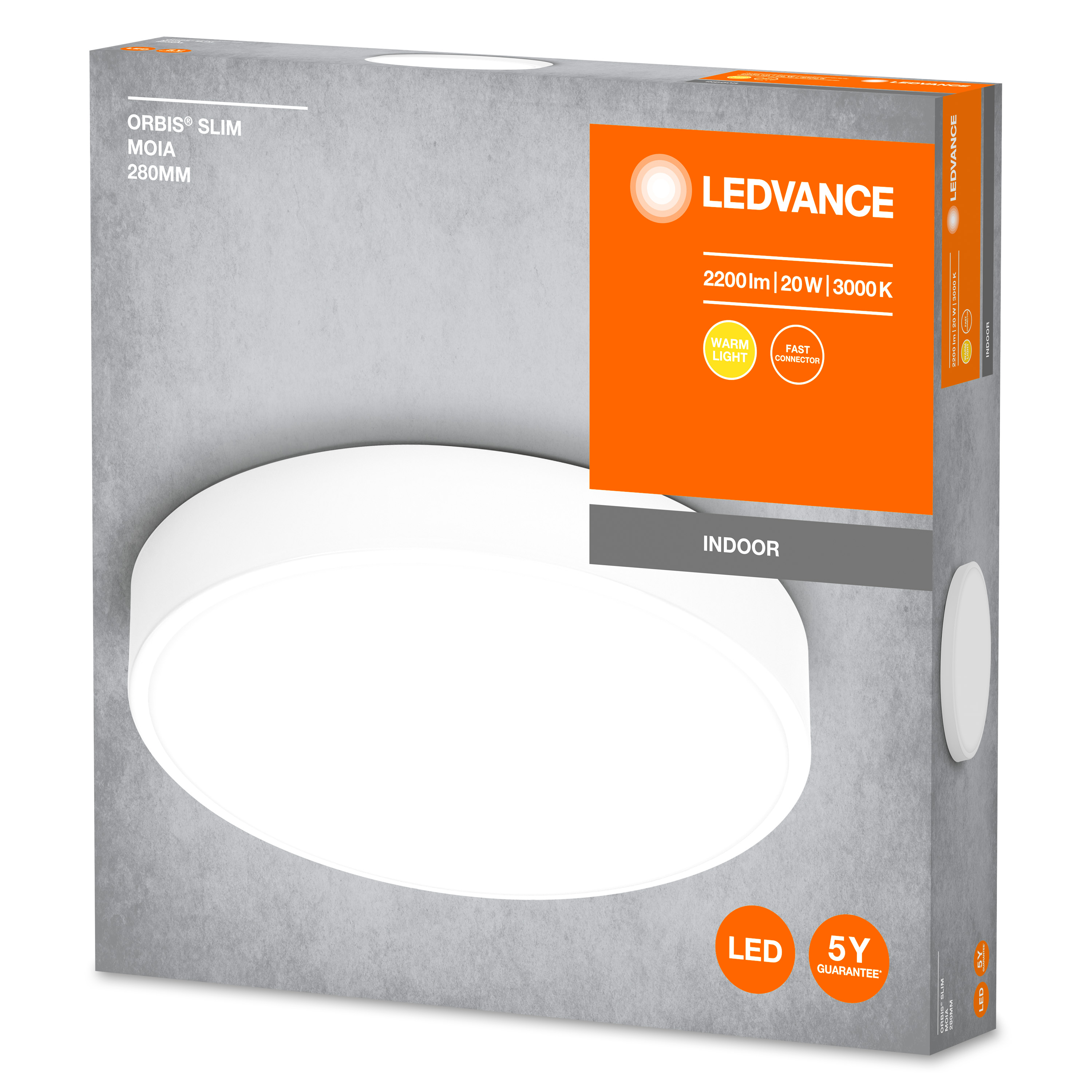

Packaging image, frontal
LUM FC ORBIS SL MOIA 280 20 WT MiPRC
LUM FC ORBIS SL MOIA 280 20 WT MiPRC
Packaging image, spacial
LUM FC ORBIS SL MOIA 280 20 WT MiPRC
LUM FC ORBIS SL MOIA 280 20 WT MiPRC

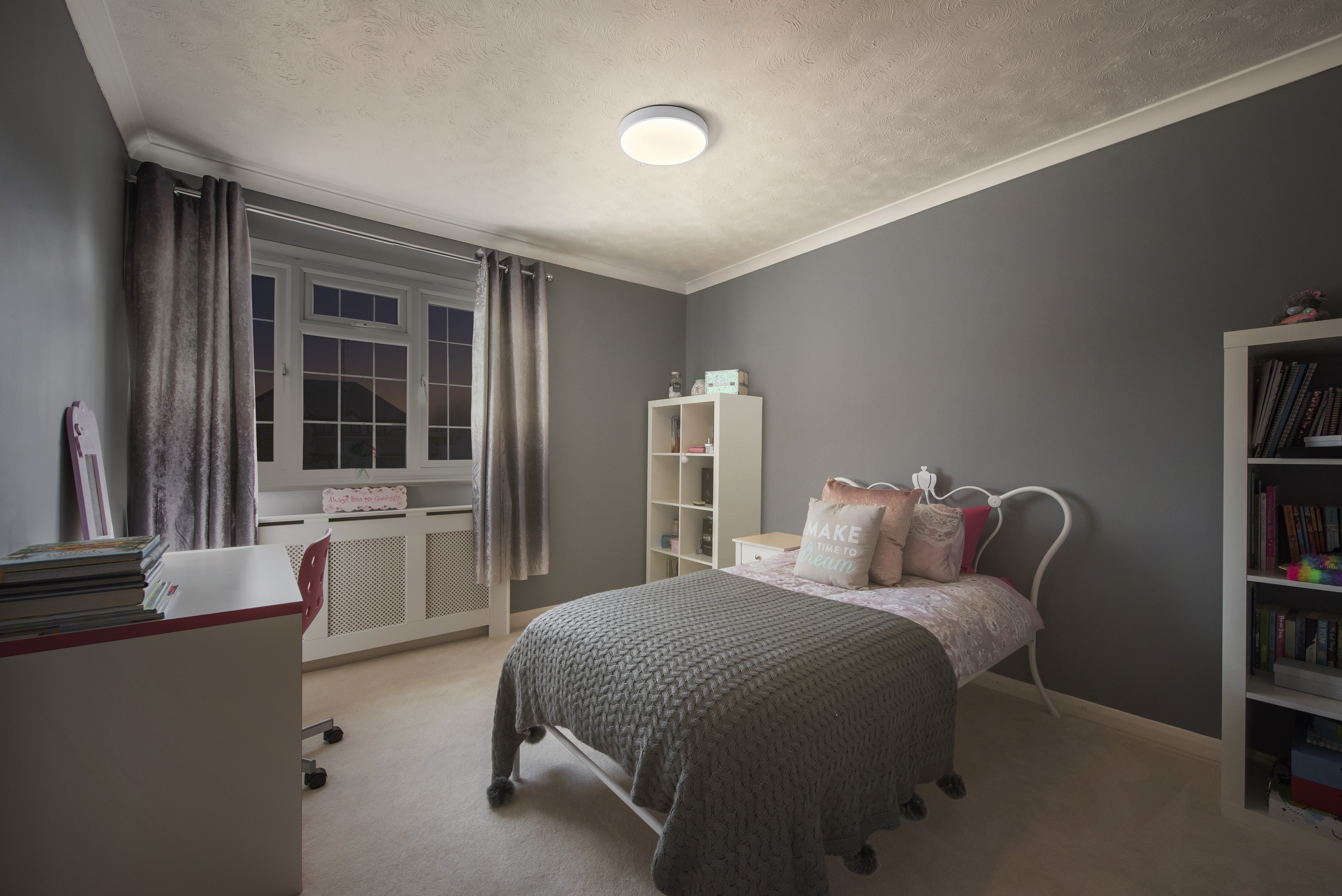

Application pictures Getty
