ESSENTIALS CEILING RETROFIT LUMINAIRE
Ceiling Essential 350mm 2xE27
GTIN: 4099854094583
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Simple installation thanks to light-weight design
- Decorative wall light
Areas of application
- Living areas
Product features
- Wall and ceiling luminaire with E27 socket
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Diameter | 350.00 mm |
| Height | 115.00 mm |
| Product weight | 560.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Metal |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 2 x 25 W (10 LED) |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854094583 | Folding box 1 |
120 mm x 386 mm x 386 mm | 879.00 g | 17.88 dm³ |
| 4099854094590 | Shipping box 5 |
625 mm x 410 mm x 410 mm | 5411.00 g | 105.07 dm³ |
User instruction / safety instructions
CEILING ESSENTIAL E27 WT
CEILING ESSENTIAL E27 WT
Legal information
Ceiling Essentials E27 WT
Ceiling Essentials E27 WT
Declarations of conformity
CE Declaration Ceiling Essential
CE Declaration Ceiling Essential

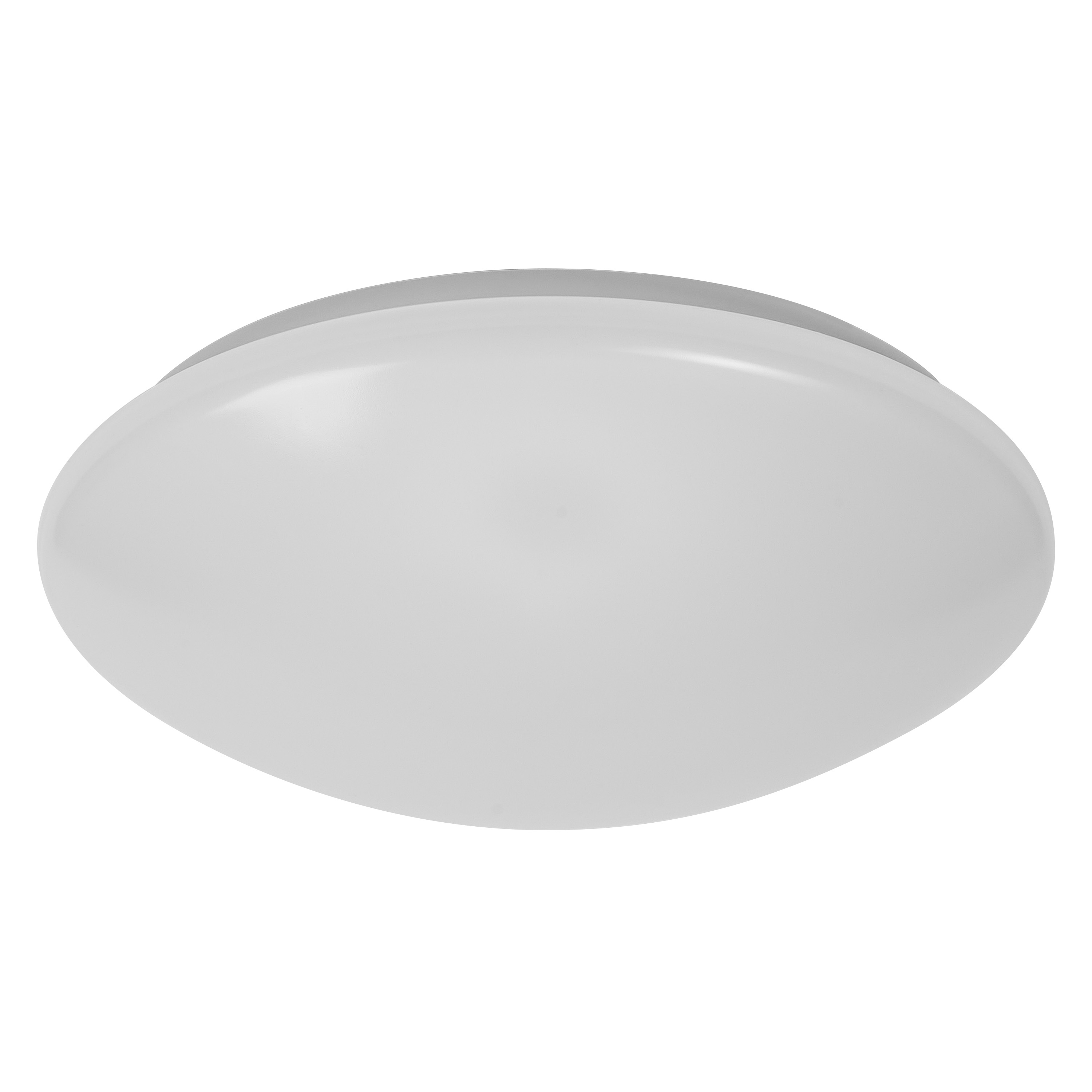

Product image: white background, upright
CEILING ESSENTIAL 35CM 2XE27 WT
CEILING ESSENTIAL 35CM 2XE27 WT

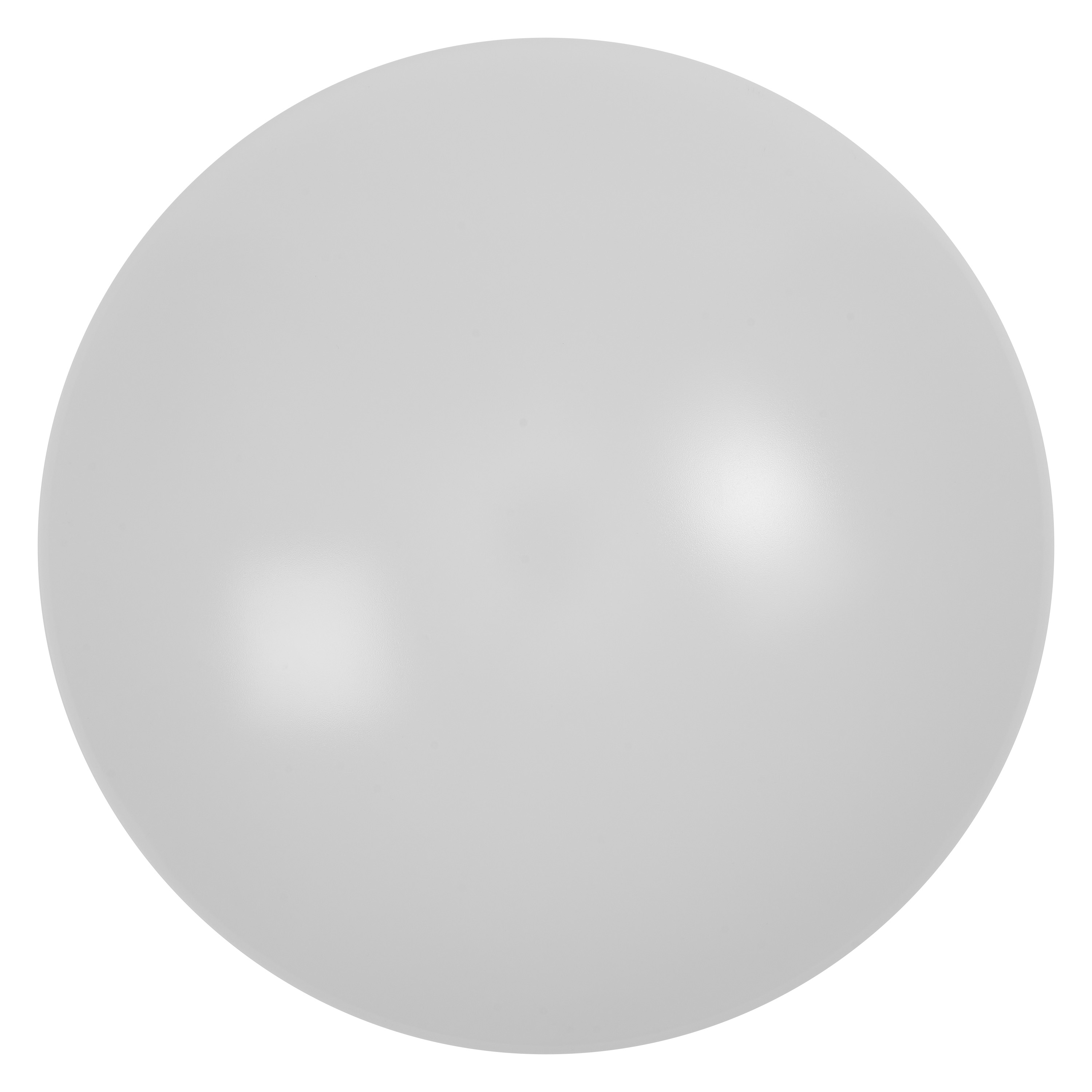

Product image: white background, upright, alternative image
CEILING ESSENTIAL 35CM 2XE27 WT
CEILING ESSENTIAL 35CM 2XE27 WT

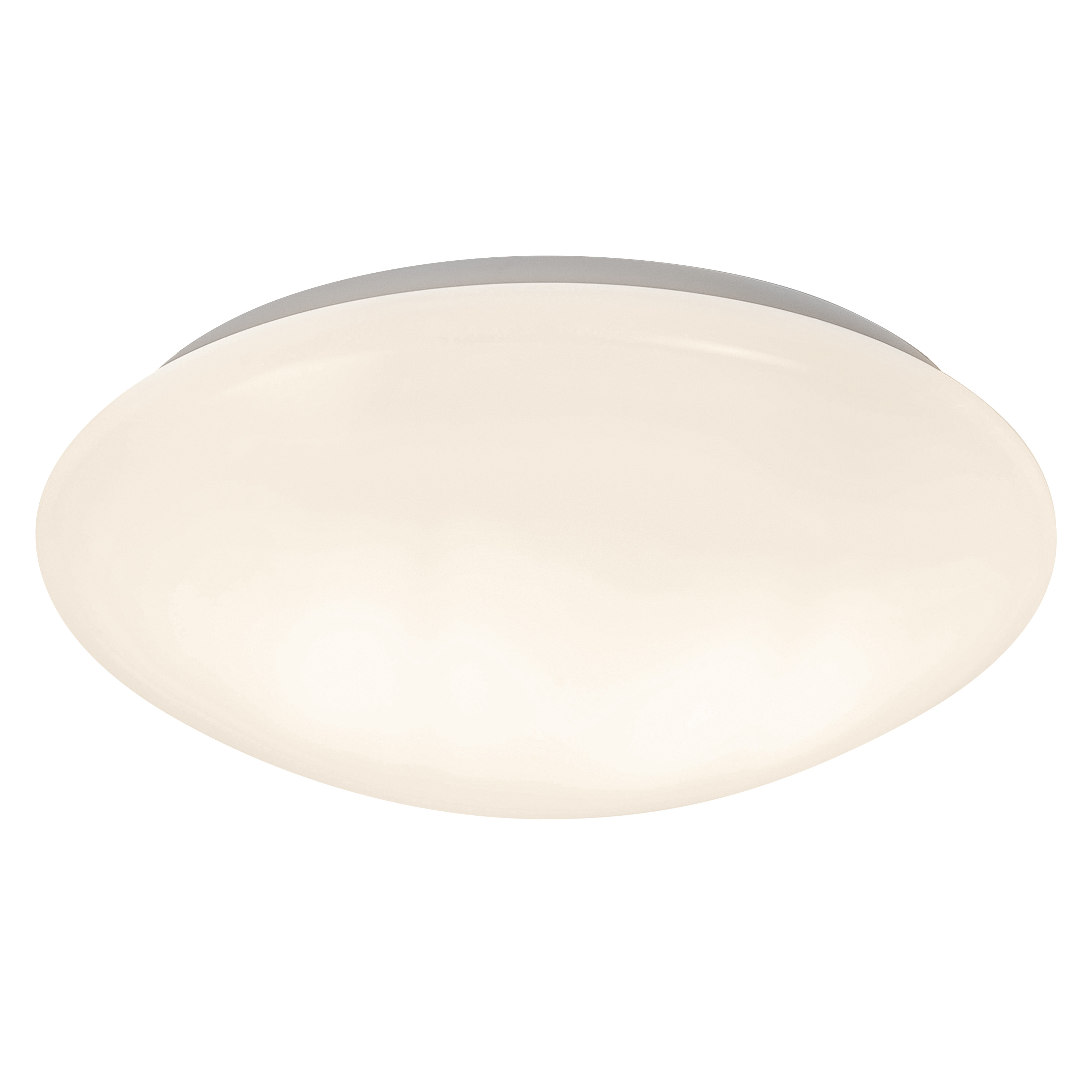

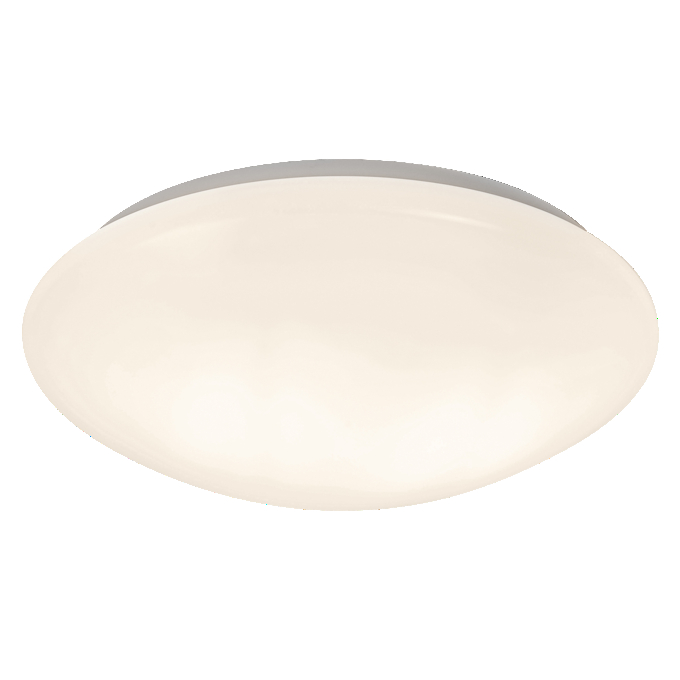

Product image: white background, upright, switched on
CEILING ESSENTIAL 35CM 2XE27 WT
CEILING ESSENTIAL 35CM 2XE27 WT

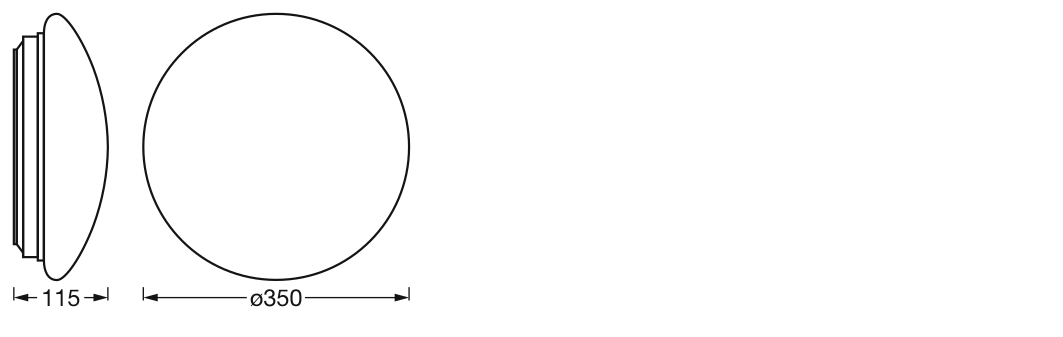

Product line drawing with letters
CEILING ESSENTIAL 35CM 2XE27 WT
CEILING ESSENTIAL 35CM 2XE27 WT
Product line drawing with numbers
CEILING ESSENTIAL 35CM 2XE27 WT
CEILING ESSENTIAL 35CM 2XE27 WT
Product line drawing, front, no dimensions
CEILING ESSENTIAL 35CM 2XE27 WT
CEILING ESSENTIAL 35CM 2XE27 WT

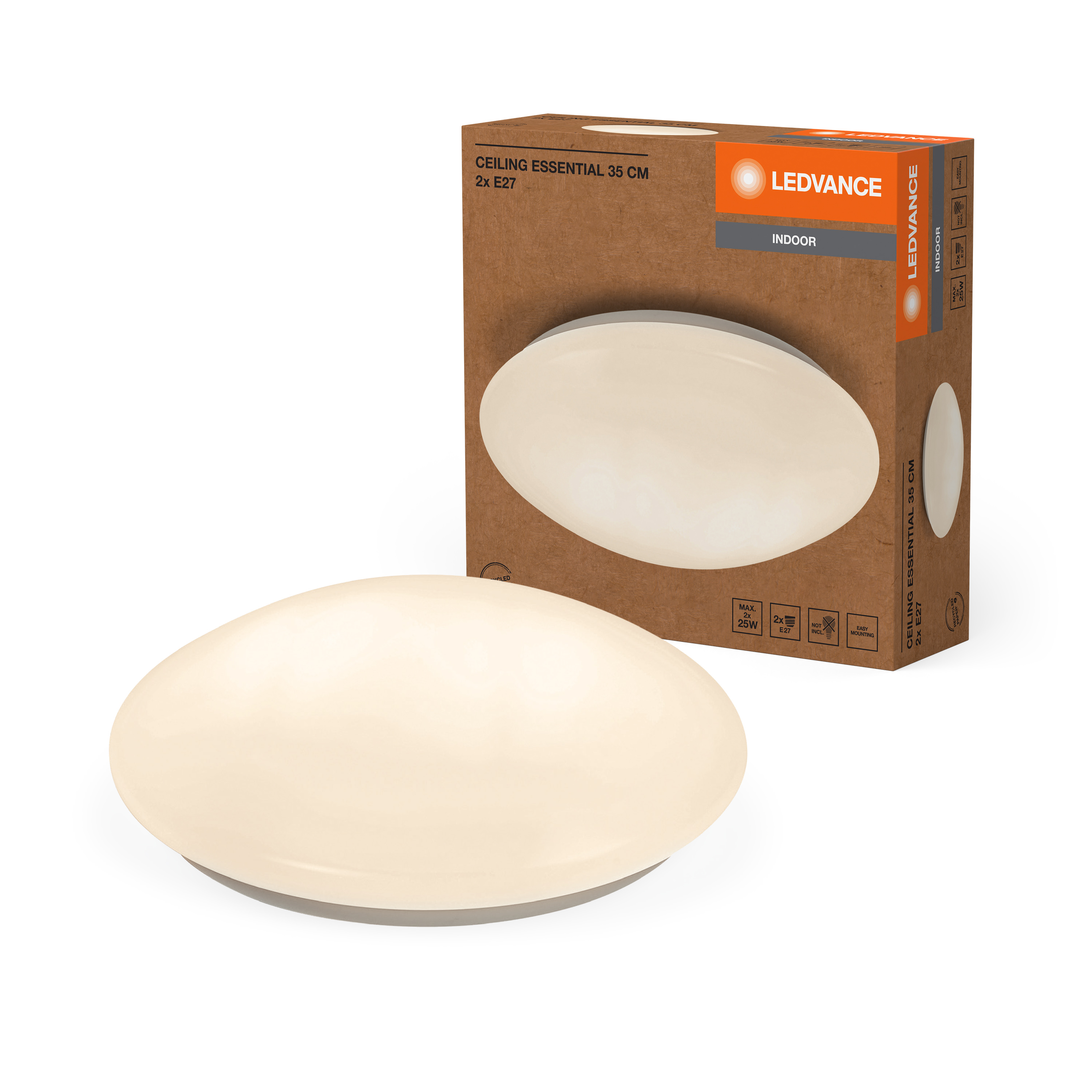

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ESS CEILING 35 2XE27 WT MiPRC
LUM FC ESS CEILING 35 2XE27 WT MiPRC

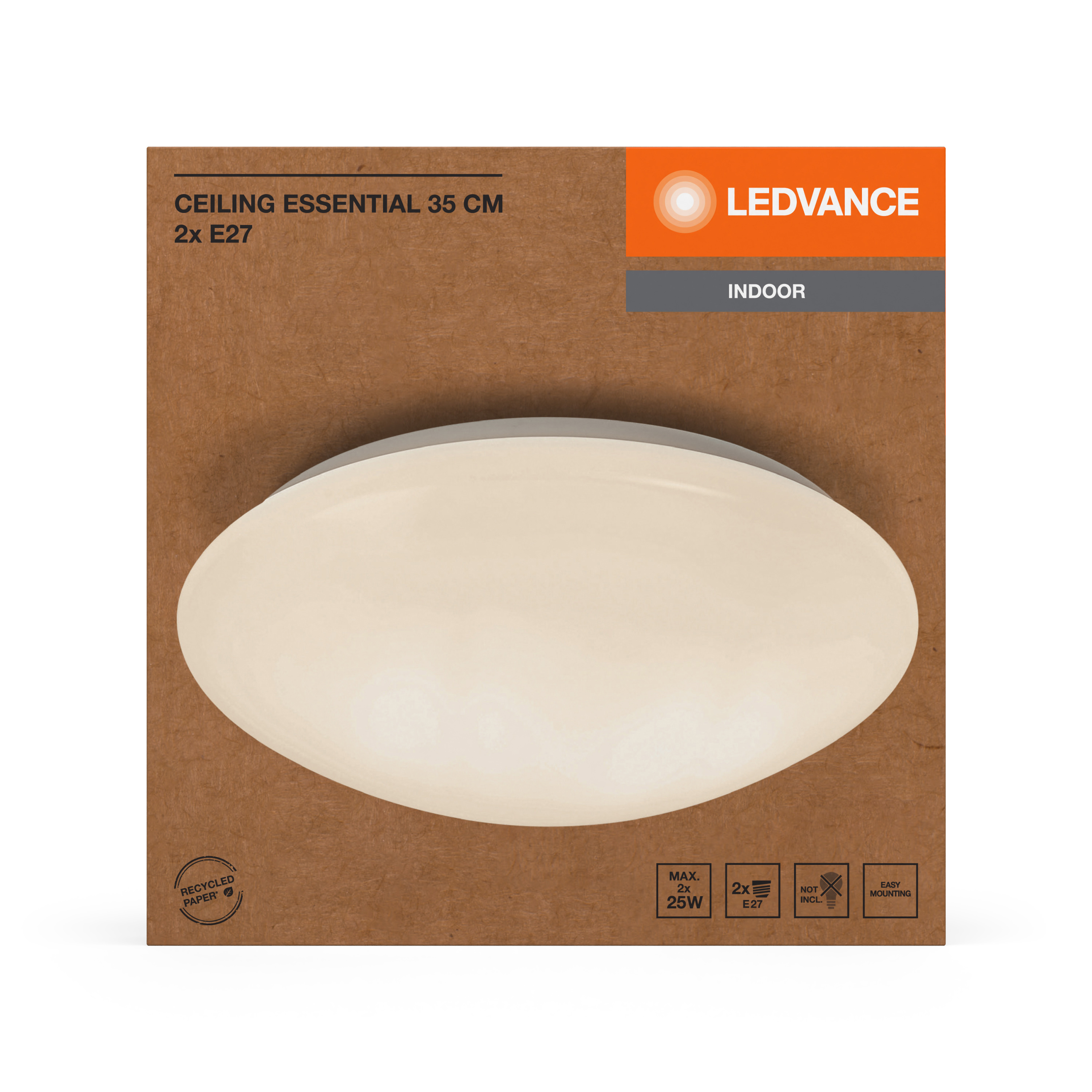

Packaging image, frontal
LUM FC ESS CEILING 35 2XE27 WT MiPRC
LUM FC ESS CEILING 35 2XE27 WT MiPRC

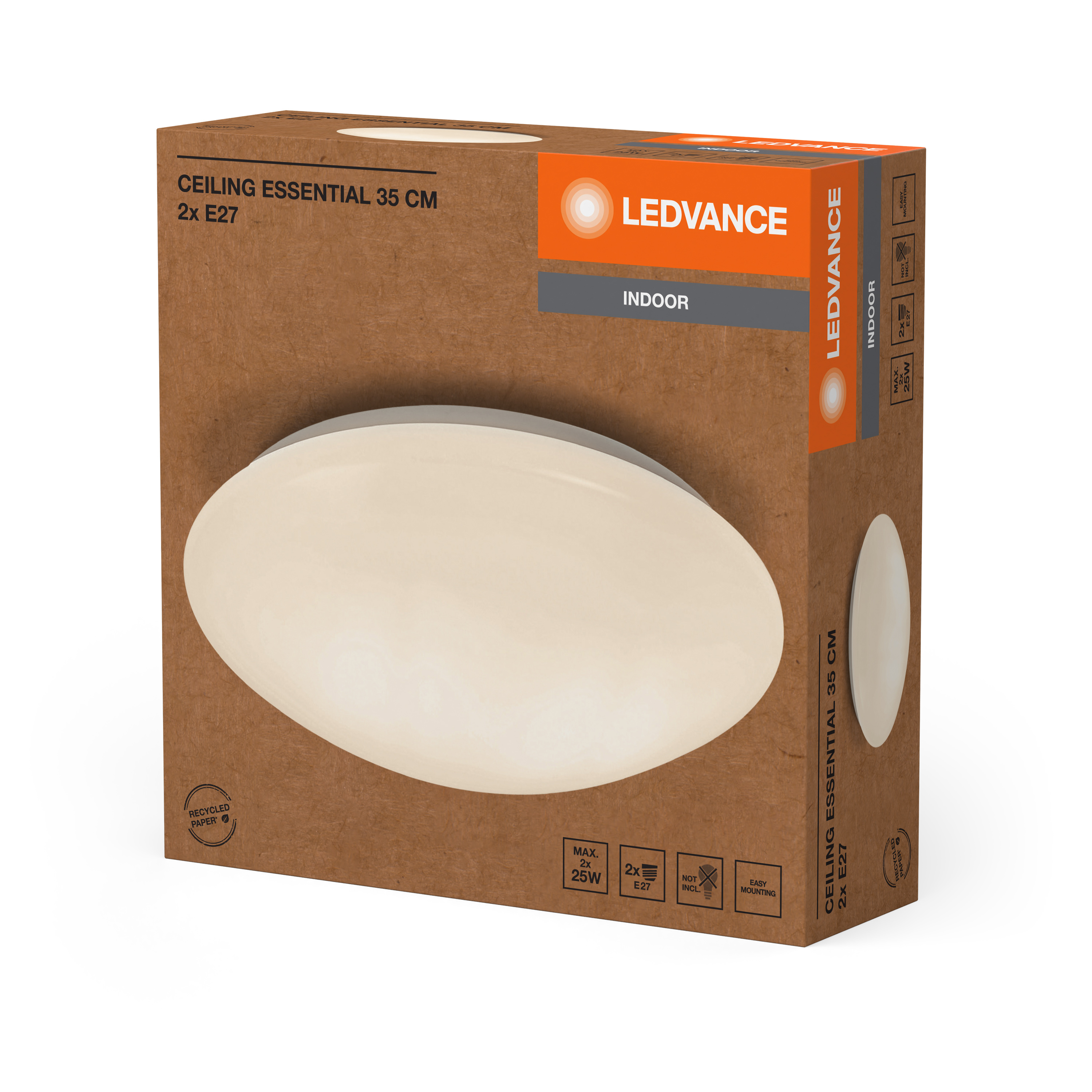

Packaging image, spacial
LUM FC ESS CEILING 35 2XE27 WT MiPRC
LUM FC ESS CEILING 35 2XE27 WT MiPRC
Application pictures
CEILING ESSENTIAL 25CM 13W 830 WT
CEILING ESSENTIAL 25CM 13W 830 WT

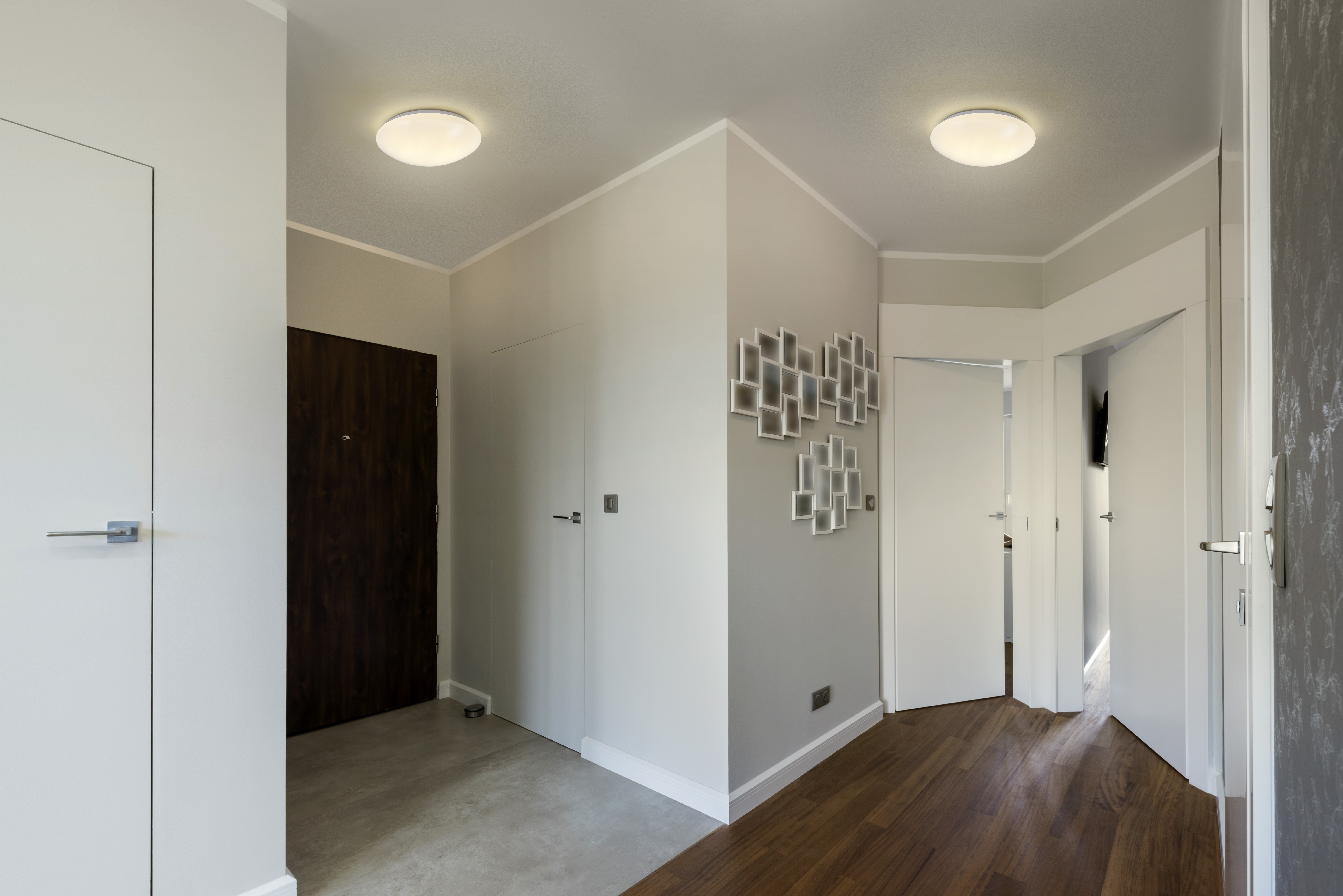

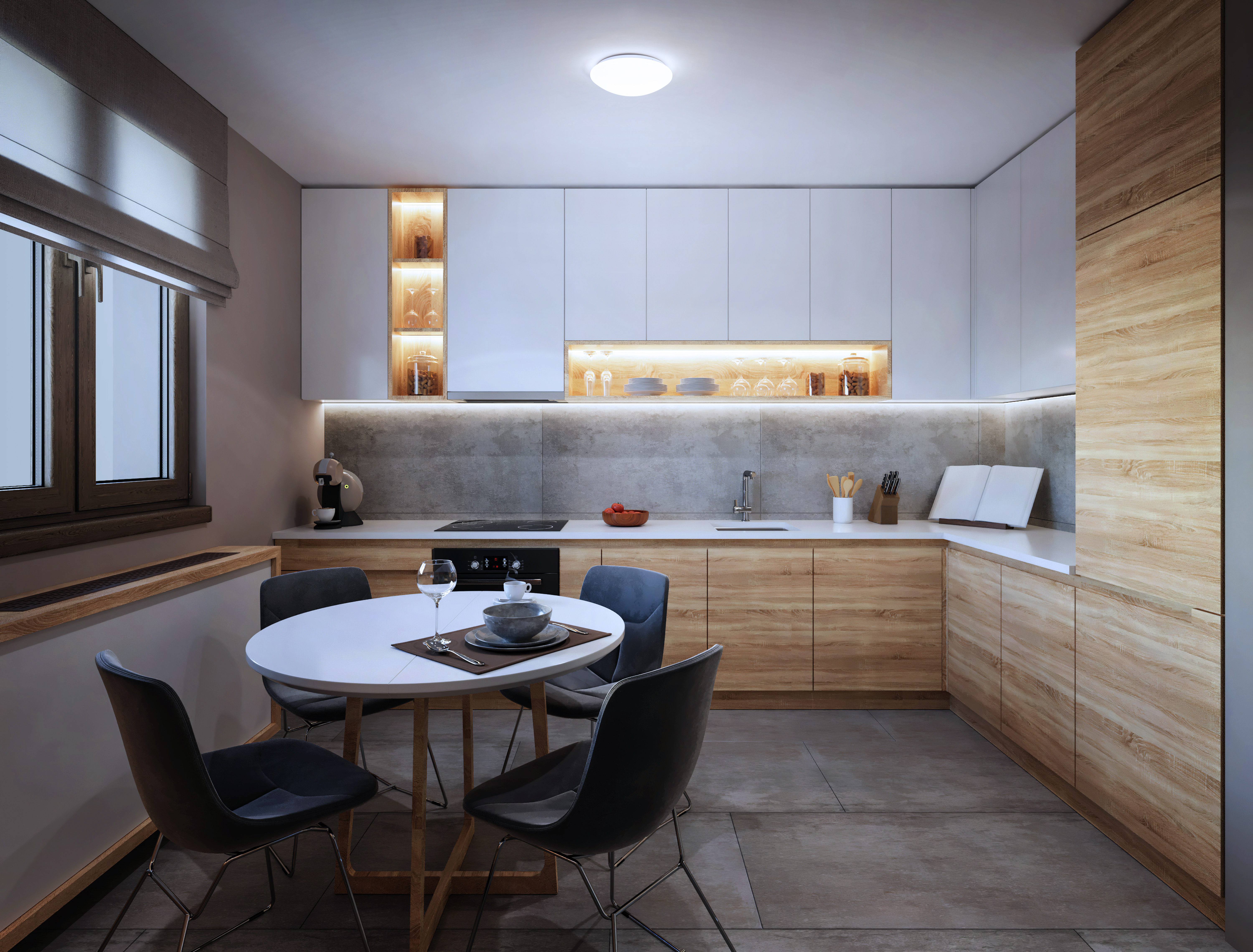

Application pictures Getty
