SF DISC EL SNM 300 V 21W ML 83040SURFACE DISC EMERGENCY SENSOR MICROWAVE

Coming soon

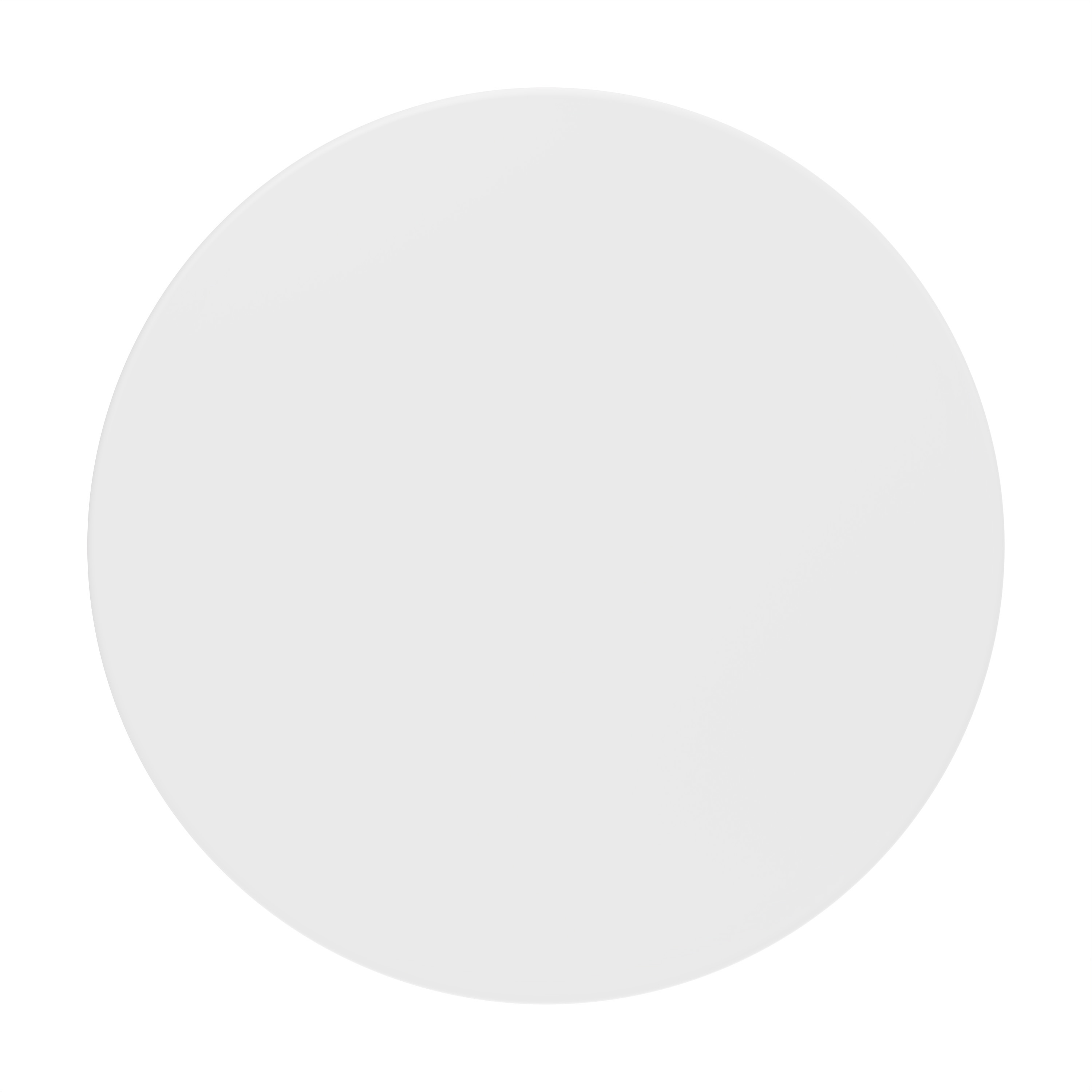

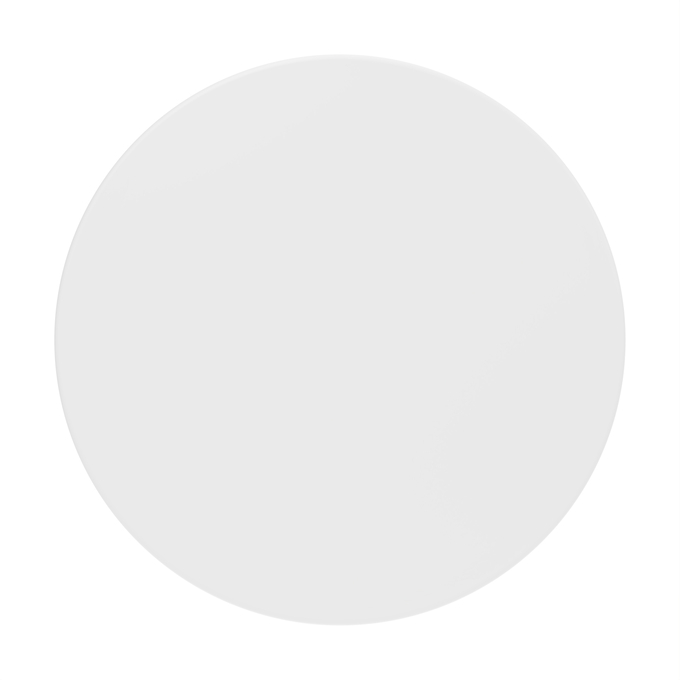

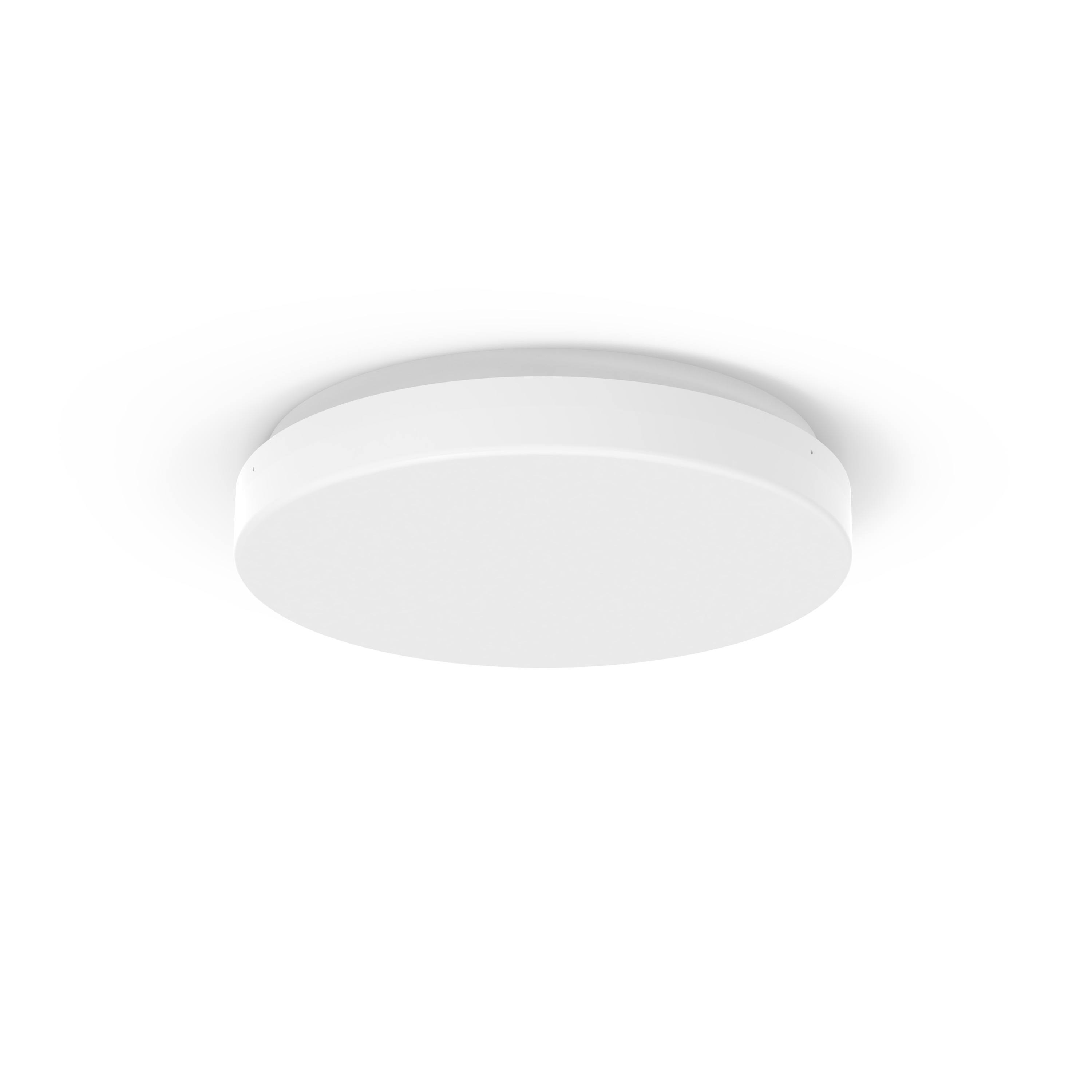

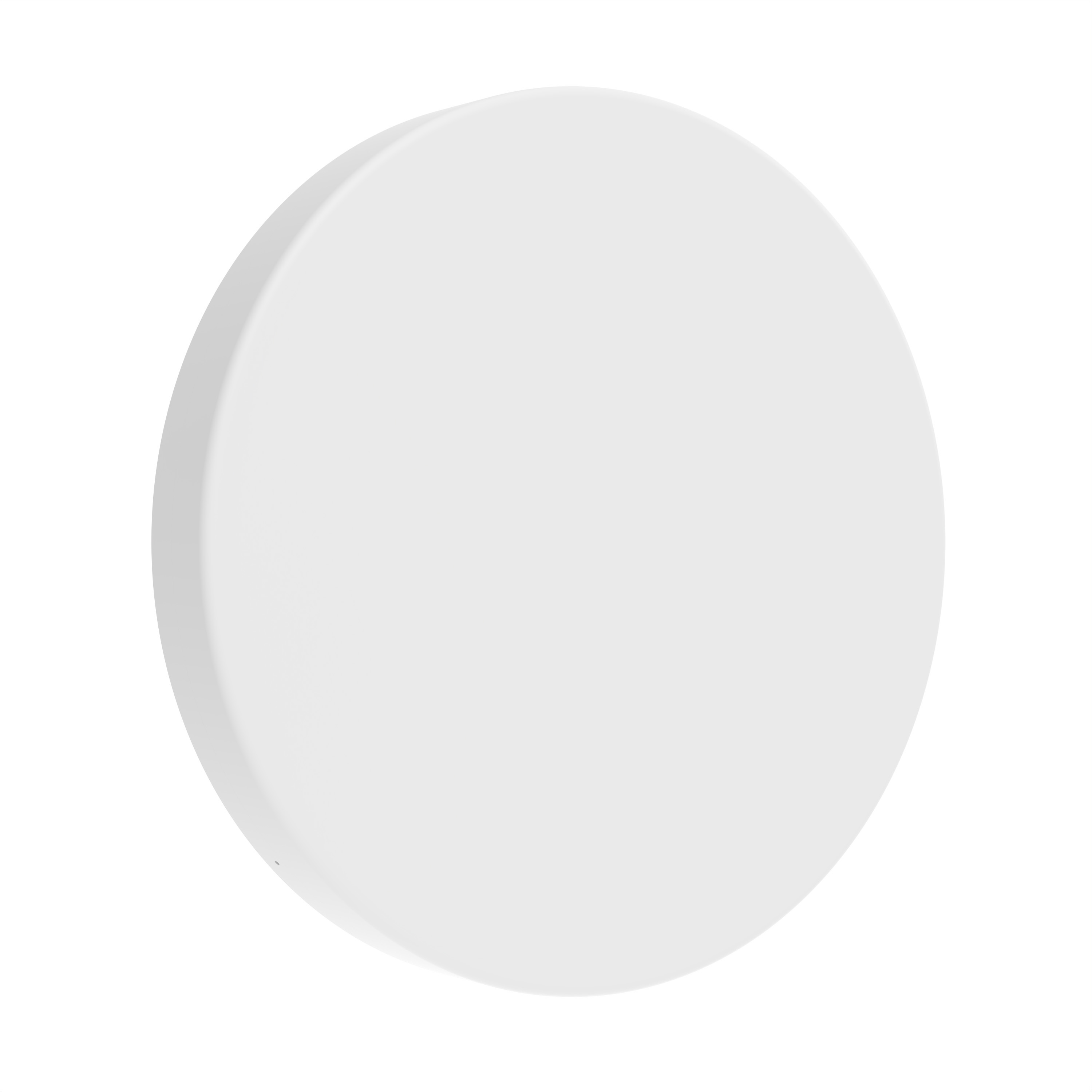

SURFACE DISC EMERGENCY SENSOR MICROWAVE

SF DISC EL SNM 300 V 21W ML 83040

GTIN: 4099854640582 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Multiple sensor settings by DIP switch: range, daylight detection, hold time and DIM-level /-period
Optional wired leader/follower function
Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
Indoor luminaire with high luminous efficacy up to 120 lm/W
High color consistency with SDCM 3
Tool-free electrical connection due to push button connector
Easy locking system to prevent unauthorized access

Areas of application

Emergency illumination of escape routes
Antipanic lighting
Direct replacement for surface luminaires with integrated CFLni lamps
Corridors
Stairways
Bathrooms
Foyers

Product features

Luminaire suitable for normal lighting and emergency lighting
Suitable for central battery emergency installations acc. to EN 60598-2-22
High frequency sensor for daylight, motion detection and corridor function
Type of protection: IP54 (wall and ceiling)
Impact resistance: IK10
Lifetime (L80/B10): up to 75,000 h (at 25 °C)
Polycarbonate (PC) housing, PC-diffuser
Ambient temperature in operation: -20…+45 °C
Glow Wire Test according to IEC 60695-2-12: 850 °C
Through-wiring possible
Indoor use only, not suitable for outdoor use
SF DISC family versions available: dimmable, on/off, DALI-2, sensor and/or emergency lighting function

Equipment / Accessories

Mounting screws and dowels included

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	21 W / 15 W / 9 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Nominal current	100 mA
Inrush current	10 A
Inrush current time T_h50	250 µs
Max. number of luminaires per miniature circuit breaker B16	25
Max. number of luminaires per miniature circuit breaker C10	25
Max. number of luminaires per miniature circuit breaker C16	40
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	II
Surge capability (L-N)	1000 V
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	2520 lm / 1800 lm / 1080 lm ¹⁾
Luminous efficacy	120 lm/W
Color temperature	3000 K / 4000 K
Reference control setting of contained light source (Kelvin)	4000 K
Light color (designation)	Warm White, Cool White
Color rendering index Ra	> 80
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	125 °

¹⁾ 2394 lm / 1710 lm / 1030 lm @3000K

Adjustable attributes

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
9 W	3000 K	1030 lm	114 lm/W
9 W	4000 K	1080 lm	120 lm/W
15 W	3000 K	1710 lm	114 lm/W
15 W	4000 K	1800 lm	120 lm/W
21 W	3000 K	2394 lm	114 lm/W
21 W	4000 K	2520 lm	120 lm/W

Dimensions & Weight

Diameter	300.00 mm
Height	56.00 mm
Product weight	1330.00 g

Materials & Colors

Product color	White
Housing color	White
RAL-Number	RAL 9003
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+45 °C
Temperature range at storage	-20…+80 °C
Type of connection	Push-in clamp
Type of protection	IP54
Protection class IK (shock resistance)	IK10
Dimmable	No
Mounting type	Surface
Mounting location	Ceiling, Wall
Application environment	Indoor
Adjustable	No
With light source	Yes
Replaceable light source	No

Lifespan

Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	75000 h ¹⁾
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	500 mA
ECG - Output ripple current	< 5 %

Sensor

Type of sensor	Motion
Sensor technology	Microwave
Sensor detection angle	120 °
Sensor controlled switching time	5 s…20 s
Detection range of motion sensor	2…6 m
Detection threshold of daylight sensor	5…170 lx

BATTERY

Type of Battery	LiFePO4
Battery size [GMS]	Others
Nominal voltage of battery	3.2 V
Nominal capacity of battery	3000 mAh
Battery charging time	24 h

Emergency lighting

Type of Emergency Lighting (EL)	EL unit (battery and controller) for decentral operation included
Area of emergency application	Anti-panic lighting, Escape route lighting
Type of emergency light operation	Non-maintained, Maintained
Type of emergency operation test	Automatic
Wattage in maintained operation mode	1.5 W
Wattage in emergency operation mode	1.5 W
Luminous flux in maintained operation mode	180 lm
Luminous flux in emergency operation mode	180 lm
Battery life in emergency operation mode	3 h

Certificates & Standards

Standards	CE, CB, UKCA, EAC, ENEC, EL, RED
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Only by an expert

Additional product data

Product remark

Available from December 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Octamethylcyclotetrasiloxane (D4) - (556-67-2)
