LINEAR INDIVILED LIGHT SOURCES ASYMMETRIC

LISOEV 1074x29 43 40W 930 A55x55 GY

GTIN: 4099854652172 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Easy installation, no tools required for connection
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • High performance with CRI90
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
Product features
  • Asymmetric light distribution
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
  • Beam angle: 90°
Safety advice
  • All electrical connections must be made by a qualified person.
References / Links
Electrical data
Nominal wattage 40.00 W
Nominal voltage 45 V
Nominal current 800.000 mA
Photometrical data
Luminous flux 4350 lm
Luminous efficacy 109 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥90
Standard deviation of color matching 3 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 55 ° x 55 °
UGR 19
Dimensions & Weight
Length 1074.00 mm
Height 19.00 mm
Width 29.00 mm
Product weight 369.00 g
Materials & Colors
Product color Grey
Housing color Grey
Application & Mounting
Ambient temperature range -20…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Push-in clamp
Type of protection IP20
Dimmable No
Lifespan
Lifespan L70/B50 at 25 °C 100000 h
Lifespan L80/B10 at 25 °C 70000 h
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000
Certificates & Standards
Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Additional product data
Product remark Available from September 2025
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854652172 Folding box
1		 36 mm x 1,082 mm x 26 mm 455.00 g 1.01 dm³
4099854652189 Shipping box
10		 1,094 mm x 184 mm x 67 mm 5104.00 g 13.49 dm³
4099854652196 Shipping box
20		 1,114 mm x 204 mm x 158 mm 11316.00 g 35.91 dm³
User instruction / safety instructions
User instruction G11244437
PDF (2.94 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11218810
PDF (244.72 KB)
Legal information
Legal Insert G11244392
PDF (828.15 KB)
Legal information
LSI insert G11244301
PDF (2.6 MB)

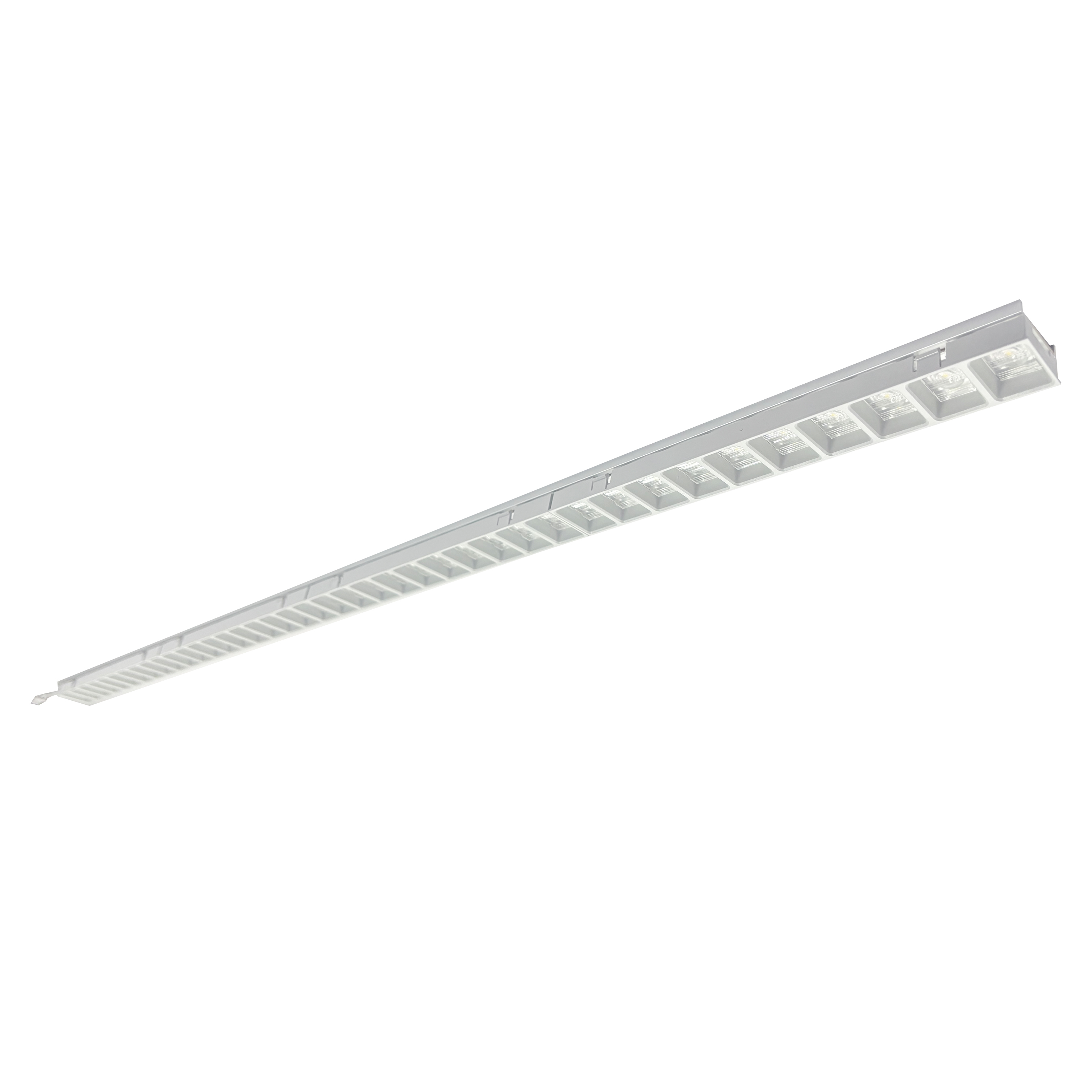

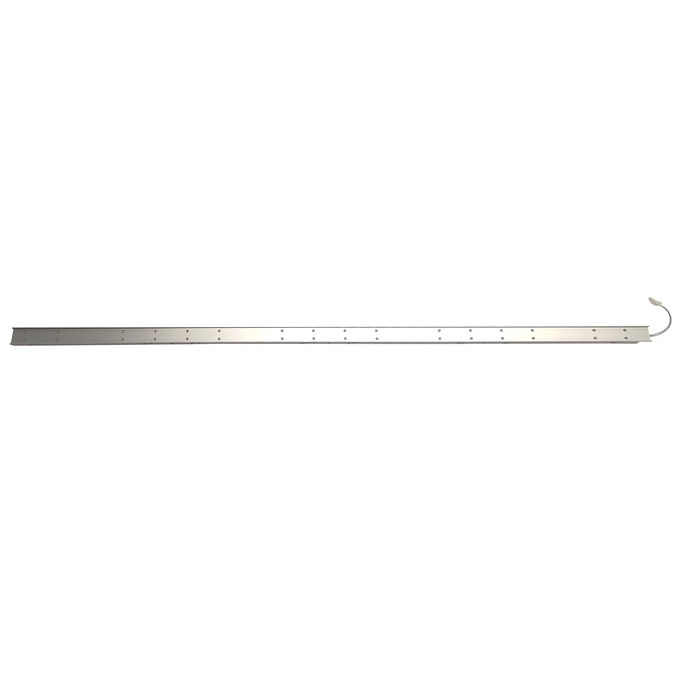

Product image: white background, diagonal
1.2m DIRECT LED MODULE ASYM
JPG (841.96 KB)

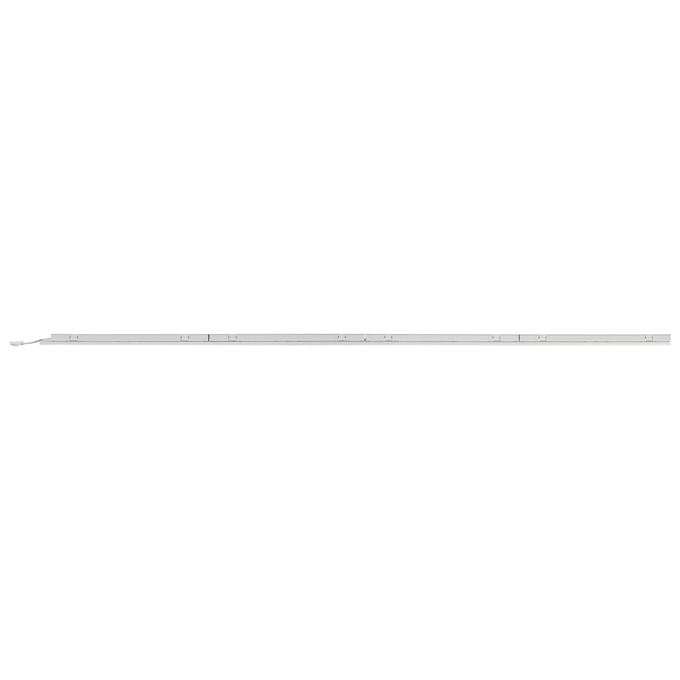

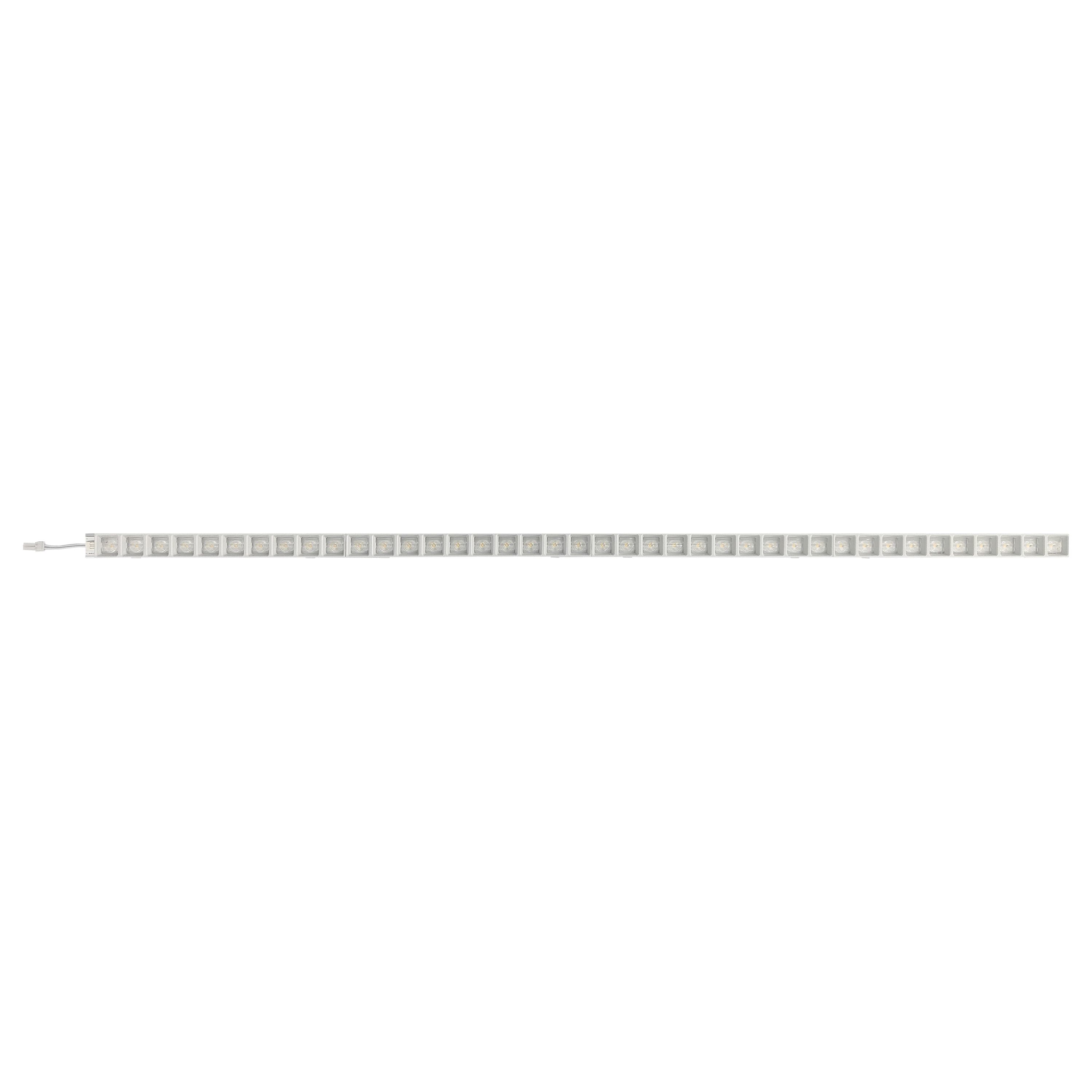

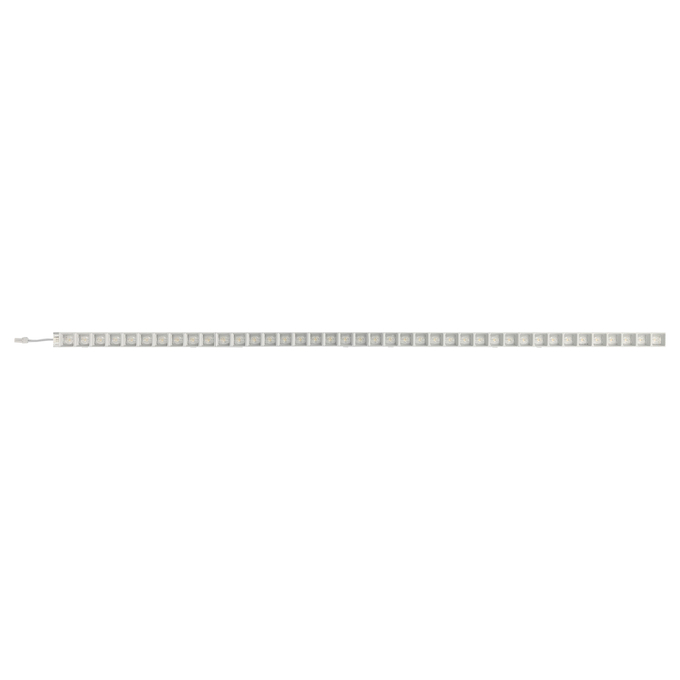

Product image: white background, horizontal
1.2m DIRECT LED MODULE ASYM
JPG (729.16 KB)
Product line drawing with letters
1 2m DIRECT LED MODULE
SVG (314.31 KB)

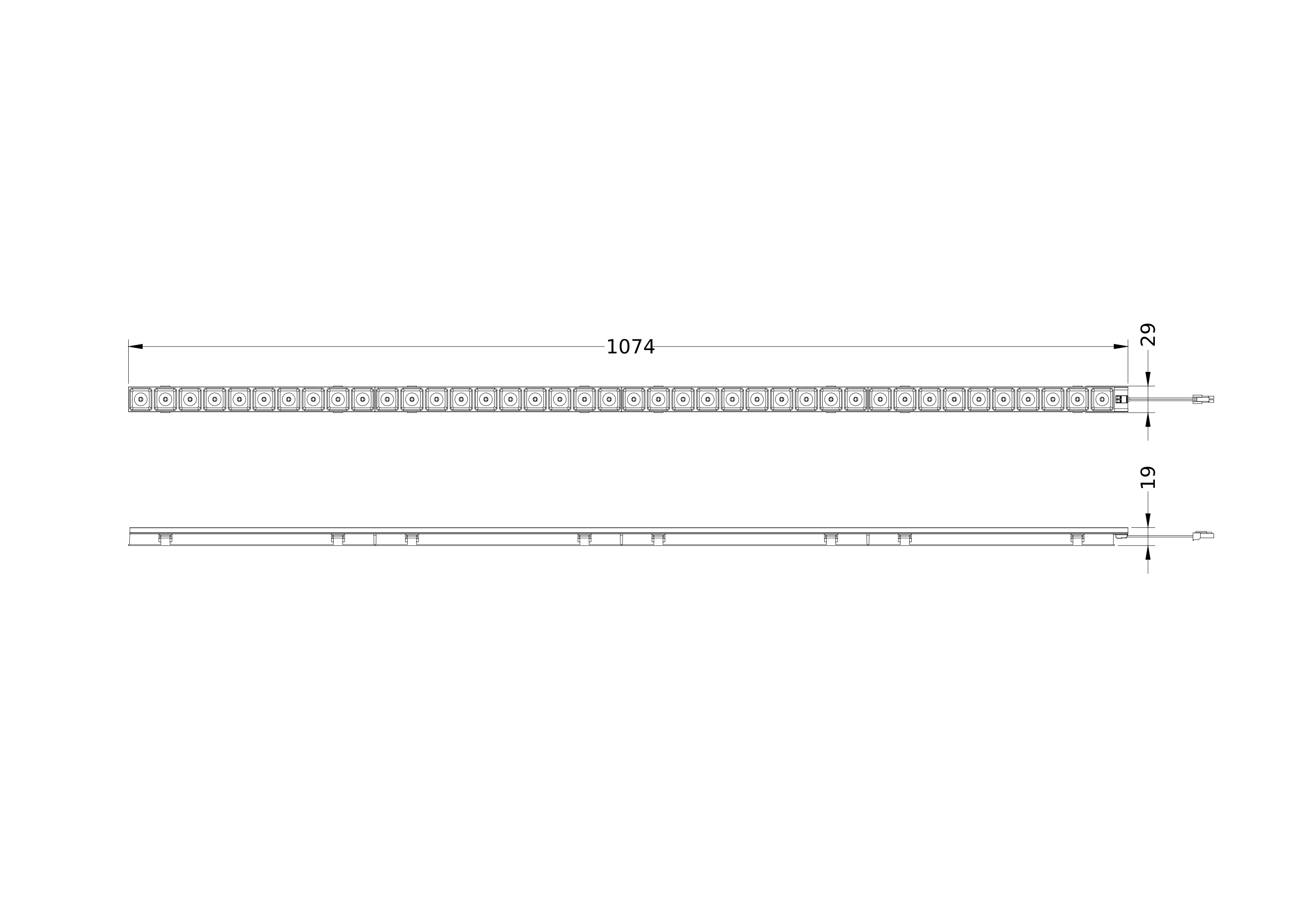

Product line drawing with numbers
1 2m DIRECT LED MODULE
PNG (95.07 KB)
Product line drawing - technical
1 2m DIRECT LED MODULE
SVG (312.08 KB)

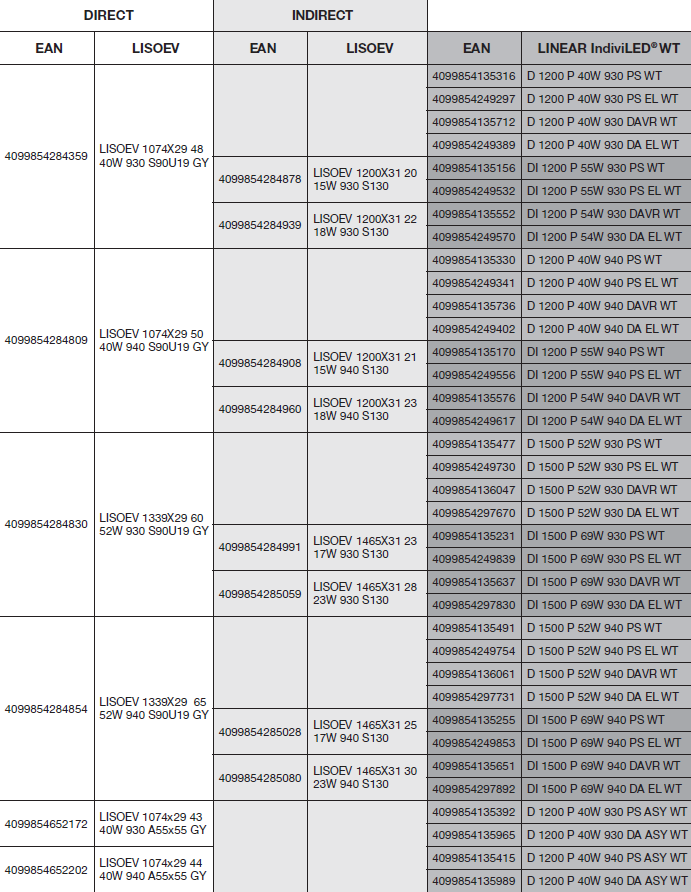

Catalog info 1
