STREETLIGHT FLEX MEDIUM RV25ST
SL FLEX MD RV25ST P 58W 740 WAL
GTIN: 4058075552340
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Durable design and highest quality component selection for long lasting performance
- Quick and easy wiring, due to tool-free housing opening and push button terminal
- High light uniformity
- 3 light colors available, perfectly suited to illuminate highly diverse surroundings
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Automatic mains disconnection when opening the housing
- 5 years guarantee
Areas of application
- Outdoor use (IP66)
- M-, C- and P-class roads acc. to EN 13201
- Parking
- Public areas
- Industry
Product features
- Light distributions optimized for streets of similar width to the pole height
- Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
- Spigot for 48-60 mm poles included
- Additional reduction for 42 mm and adapter for 76 mm poles available separately
- Adjustable spigot for both side-entry and post-top installation
- +/- 15° tilt angle adjustment without opening the housing
- High luminous efficacy: up to 147 lm/W
- Operating temperature: -40...50 °C
- High surge protection: up to 10 kV (L/N-GND)
- Protection class: II
Equipment / Accessories
- Spigot for 42 and 76 mm poles available separately
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 58.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 277 mA |
| Inrush current | 54 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 10 |
| Max. number of luminaires per miniature circuit breaker C10 | 13 |
| Max. number of luminaires per miniature circuit breaker C16 | 21 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 10 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 8500 lm |
| Luminous efficacy | 147 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | 70 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 25 ° x 145 ° |
Dimensions & Weight
| Length | 496.00 mm |
| Height | 90.00 mm |
| Width | 250.00 mm |
| Product weight | 5100.00 g |
Materials & Colors
| Product color | White aluminum |
| Housing color | White aluminum |
| RAL Color (most similar) | RAL 9006 |
| Body material | Aluminum |
| Cover material | Tempered glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -40…+50 °C |
| Temperature range at storage | -30…+80 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Post top |
| Mounting location | Pole |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 100000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 520 mA |
| ECG - Output ripple current | ≤ 10 % |
Certificates & Standards
| Standards | CE, ENEC, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00023-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075552340 | Shipping box 1 |
553 mm x 328 mm x 235 mm | 5869.00 g | 42.63 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
SL FLEX SPIGOT 76MM WAL | 4058075552531 |
|
SL FLEX REDUCTION 60 TO 42MM WAL | 4058075552579 |
User instruction / safety instructions
SL FLEX WAL
SL FLEX WAL
Legal information
LSI SL FLEX LA P
LSI SL FLEX LA P
Legal information
Legal insert SL FLEX WAL
Legal insert SL FLEX WAL
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11218810
Safety Insert G11218810
Declarations of conformity
SL FLEX MD
SL FLEX MD
EPD
EPD EN STREETLIGHT FLEX
EPD EN STREETLIGHT FLEX
Product image: white background, horizontal
SL FLEX MD P WAL
SL FLEX MD P WAL
Product image: white background, upright
SL FLEX MD P WAL
SL FLEX MD P WAL
Product image: white background, upright, alternative image
SL FLEX MD P WAL
SL FLEX MD P WAL
Product image: white background, spacial
SL FLEX MD P WAL
SL FLEX MD P WAL
Product line drawing with letters
SL FLEX MD P WAL
SL FLEX MD P WAL
Product line drawing with numbers
SL FLEX MD P WAL
SL FLEX MD P WAL
Product line drawing - technical
SL FLEX MD P WAL
SL FLEX MD P WAL

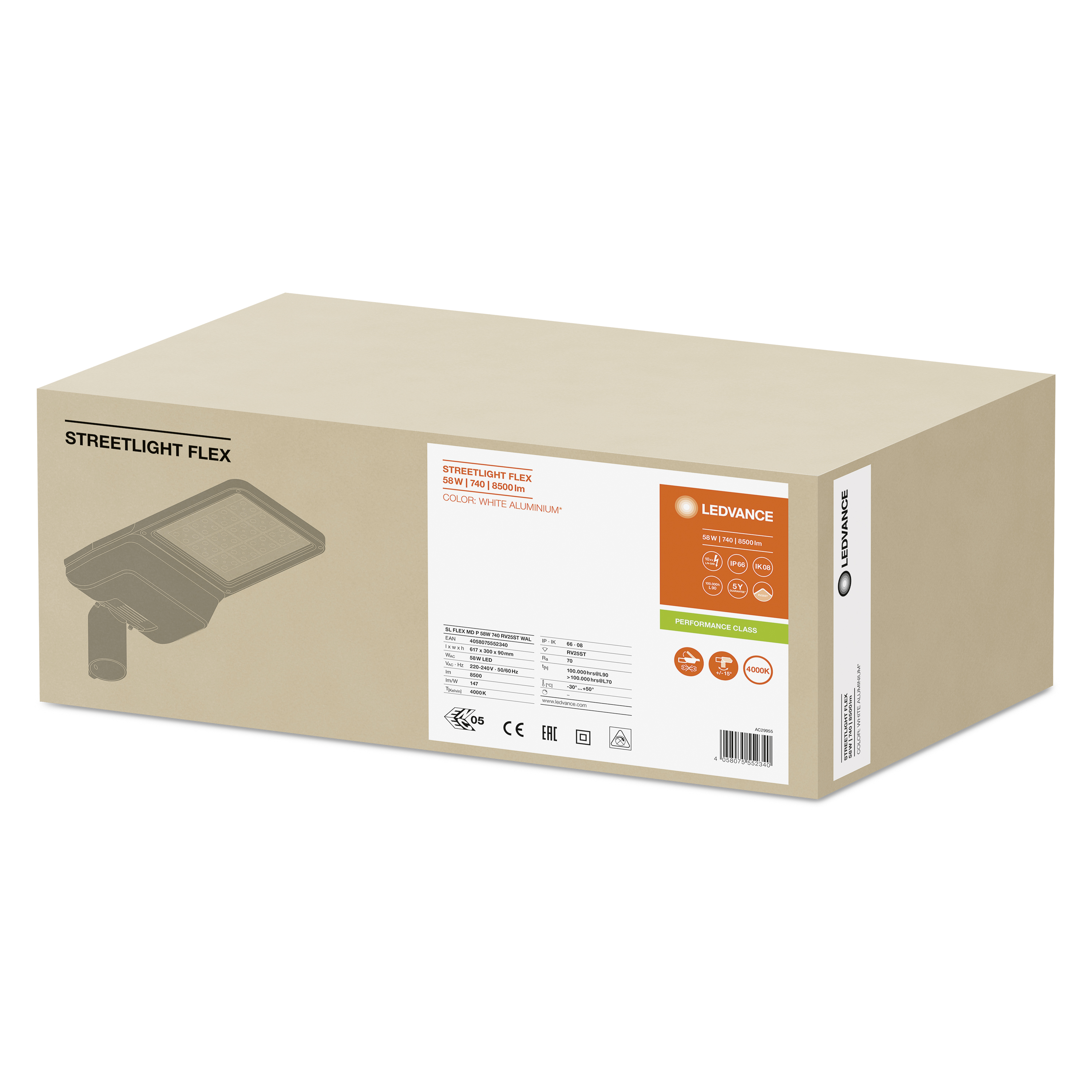

Packaging image, spacial
