HB PC REFRACTOR 147 190 210WHIGH BAY REFRACTOR GEN 4

HIGH BAY REFRACTOR GEN 4

HB PC REFRACTOR 147 190 210W

GTIN: 4058075699373 BAG / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product features

High quality polycarbonate refractor

References / Links

For Guarantee see www.ledvance.com/guarantee

Photometrical data

Beam angle

70 °

Dimensions & Weight

Diameter	480 mm
Height	250 mm
Product weight	1000.00 g

Materials & Colors

Product color	Transparent
Body material	Polycarbonate (PC)

Application & Mounting

Protection class IK (shock resistance)	IK08
Mounting location	Luminaire
Replaceable light source	No

Certificates & Standards

Ball shot safe

No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075699373	BAG 1		1102.00 g
4058075699380	Shipping box 2	482 mm x 352 mm x 462 mm	3220.00 g	78.38 dm³

User instruction / safety instructions
UI HIGHBAY GEN 4

Product image: white background, upright
HB PC REFRACTOR 87W

Product line drawing with letters
HB PC REFRACTOR 147 190 210W

Product line drawing with numbers
HB PC REFRACTOR 147 190 210W

Product line drawing, front, no dimensions
HB PC REFRACTOR 147 190 210W

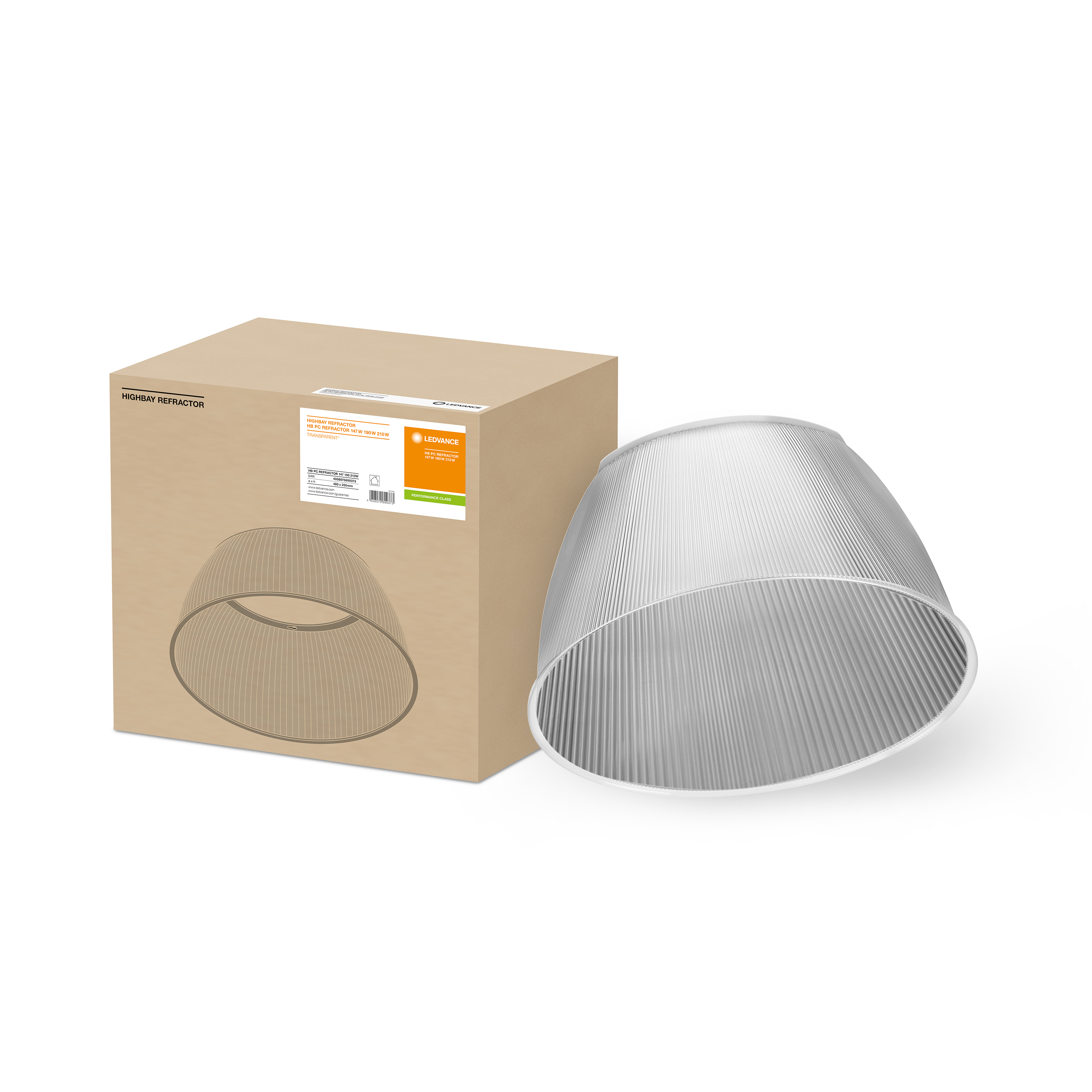

Combo Shot = Product Beauty Shot + Packaging Image
HB PC REFRACTOR 147 190 210W

Packaging image, spacial
HighBay Refractor 147W 190W 210W MiCh

Tender documents
HIGH BAY REFRACTOR GEN 4 147 190 210W-EN

EAN	SEG number	STK number	EFO number	ELDAS number
4058075699373	7216728	4324709	3004885	941964410
