DP MAX EL SN 1200 S 31W 840 VW IP69DAMP PROOF MAX EMERGENCY SENSOR

GTIN: 4099854538322 Shipping box / 1 Show all packages

Tools

Multiple adjustments of sensor range, daylight detection and hold time
Seamless integration of luminaires with emergency lighting function into general lighting
Easy wiring thanks to included prewired driver and battery for Emergency lighting function

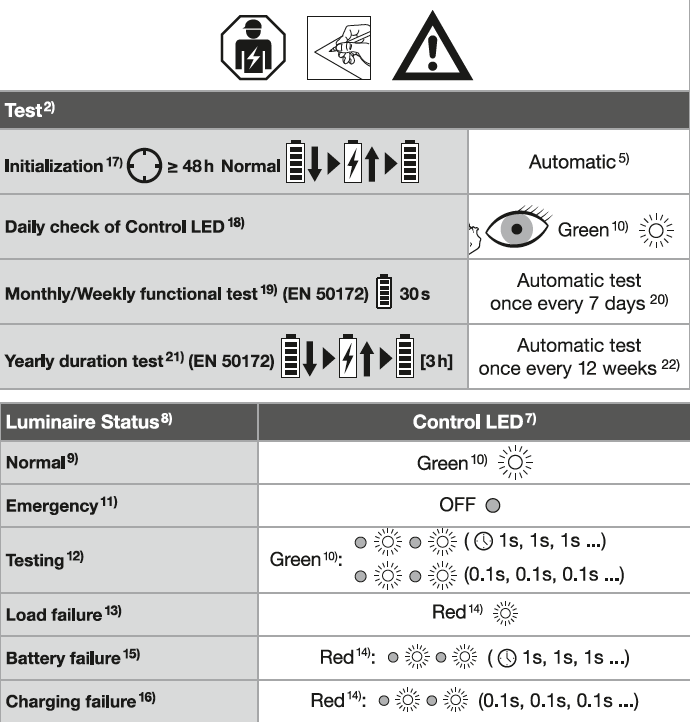

Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
Convenient visualization of results of automatic test with an included control LED

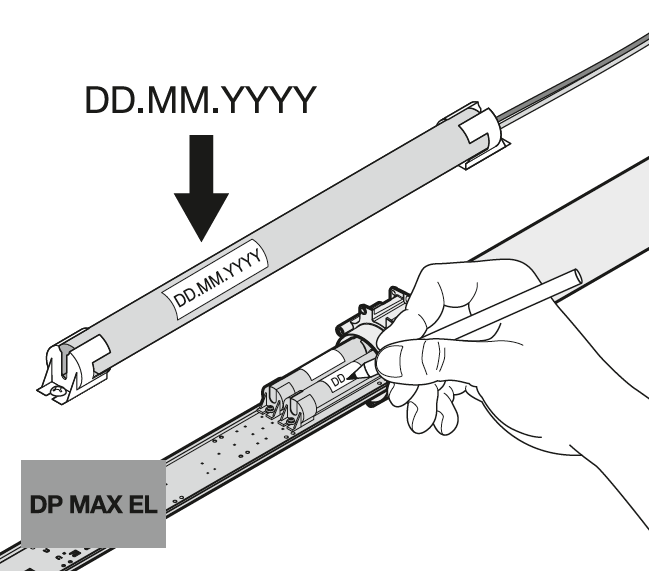

Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Uniform light distribution in normal operation
Versatile applications due to resistance to many chemicals and UV light

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Nominal wattage	31.00 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	117.000 mA
Inrush current	22.64 A
Inrush current time T_h50	203 µs
Max. number of luminaires per miniature circuit breaker B16	27
Max. number of luminaires per miniature circuit breaker C10	28
Max. number of luminaires per miniature circuit breaker C16	45
Power factor λ	0.92
Total harmonic distortion	< 10 %
Protection class	I
Surge capability (L-N)	1 kV
Surge capability (L/N-Ground)	2 kV
Operating mode	Integrated LED driver

Luminous flux	4000 lm
Total luminous flux of contained light sources	4430 lm
Luminous efficacy	129 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	> 80
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤ 0.4
Photobiological safety group acc. to EN62778	RG1
Beam angle	133 ° x 107 °
UGR	< 25

Product color	Gray
Housing color	Gray
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	0…+35 °C
Temperature range at storage	-20…+35 °C
Type of connection	Screwless terminal, 5-Pole
Type of protection	IP66/IP69K
Protection class IK (shock resistance)	IK10
Dimmable	No
Mounting type	Surface/Suspended
Mounting location	Ceiling, Wall
Application environment	Outdoor
With light source	Yes
Replaceable light source	No

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L80 / B50 @ 35 °C (Ta)

Type of sensor	Motion, Light
Sensor technology	Microwave
Sensor controlled switching time	10 s … 30 min
Detection range of motion sensor	1.0…8 m

Area of emergency application	Anti-panic lighting, Escape route lighting
Type of emergency light operation	Maintained, Non-maintained
Type of emergency operation test	Automatic
Wattage in maintained operation mode	31 W
Wattage in emergency operation mode	2.3 W
Luminous flux in maintained operation mode	4000 lm
Luminous flux in emergency operation mode	500 lm
Battery life in emergency operation mode	3 h

Standards	CE, CB, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
