DALI PRO 2 IOTDALI PRO 2 IOT

DALI PRO 2 IOT

GTIN: 4052899627079 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

BIOLUX Human Centric Lighting for high quality daylight course in office spaces
Remote access for changes in the installation from every location
LAN Interconnect to connect up-to 8 Controller into one network
Cloud API for direct connection of a 3rd party Cloud with the DALI Pro2 IoT Controller
Automated testing and reporting of emergency lighting installations
Ready for optional VIVARES Cloud Services

Areas of application

Suitable for indoor installations
Room control, floor control, daylight-dependent control
Connection of light and-or presence sensors in DALI systems
LEDVANCE BIOLUX Human Centric Lighting for biological effective light in interior rooms
RGB and Tunable white applications
LED Strip lighting

Product features

DALI-2 certified
IoT ready with built-in gateway for remote data access
Compatible with PC Tool software and WebGui
Building Management System integration via optional KNX interface
Commissioning process via Ethernet/WLAN
Small form factor: only 6 TE (DIN rail)

Electrical data

Nominal wattage	20.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz

Dimensions & Weight

Length	91.00 mm
Width	106.00 mm
Height	62.00 mm
Product weight	247.00 g

Colors & materials

Product color

Light grey

Temperatures & operating conditions

Ambient temperature range

0…+40 °C

Capabilities

Dimmable	Yes
Dimming interface	DALI-2
Type of installation	Din Rail

Certificates & Standards

Approval marks – approval	CE
Protection class	II
Type of protection	IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4052899627079	Folding box 1	112 mm x 94 mm x 72 mm	272.00 g	0.76 dm³
4052899627086	Shipping box 20	235 mm x 199 mm x 372 mm	5905.00 g	17.40 dm³

User instruction / safety instructions
DALI Pro 2 IoT

PDF (3.48 MB)

Declarations of conformity
DALI PRO 2 IOT 20X1 LDVV

PDF (484.66 KB)

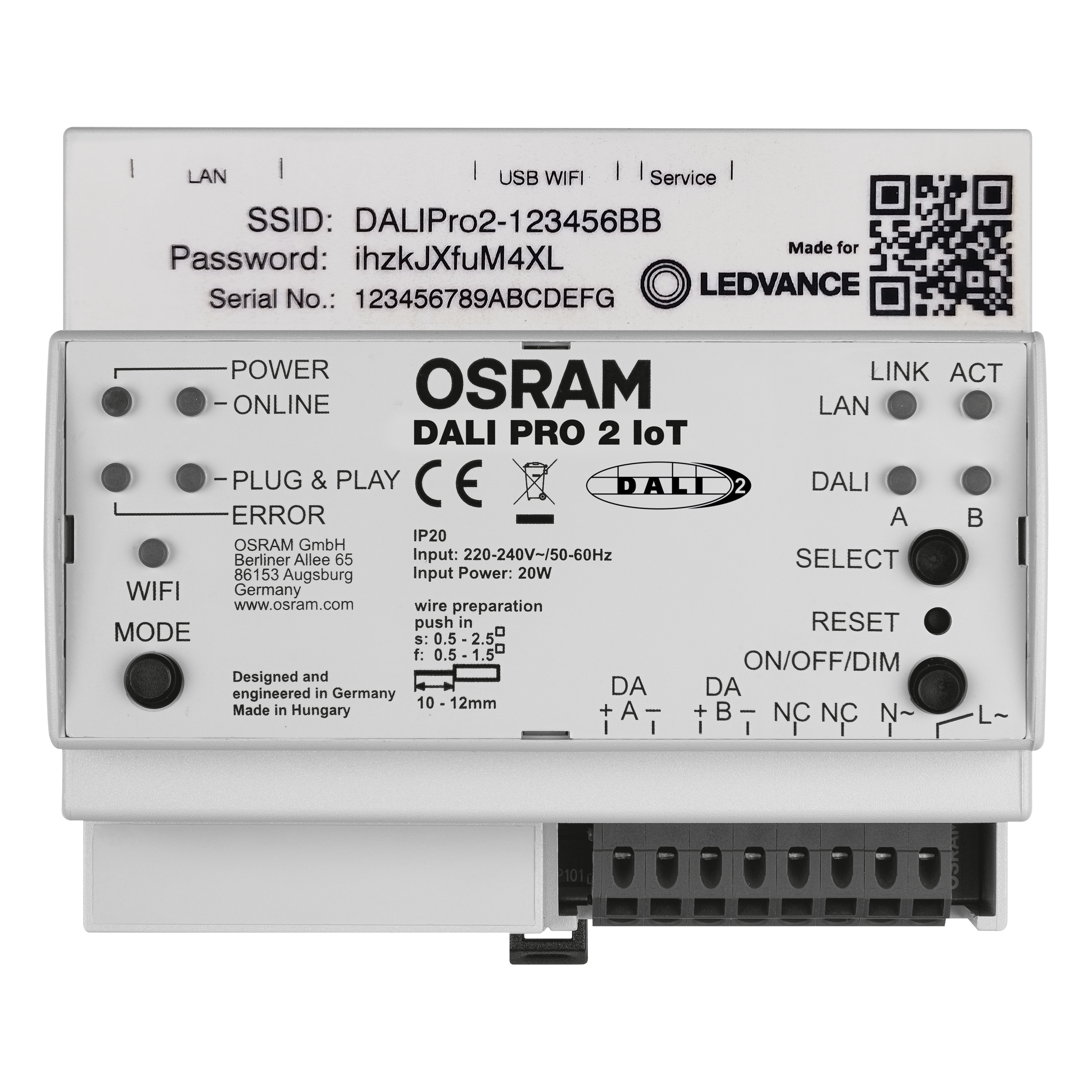

Product image: white background, horizontal
Dali pro 2 iot new SSID

JPG (3.3 MB)

Product line drawing with letters
DALI PRO 2 IoT

SVG (34.73 KB)

Product line drawing with numbers
DALI PRO 2 IoT

SVG (36.62 KB)

Product line drawing, front, no dimensions
DALI PRO 2 IoT

SVG (29.74 KB)

Tender documents
DALI PRO 2 IOT LDVV-EN

TXT (5.62 KB)

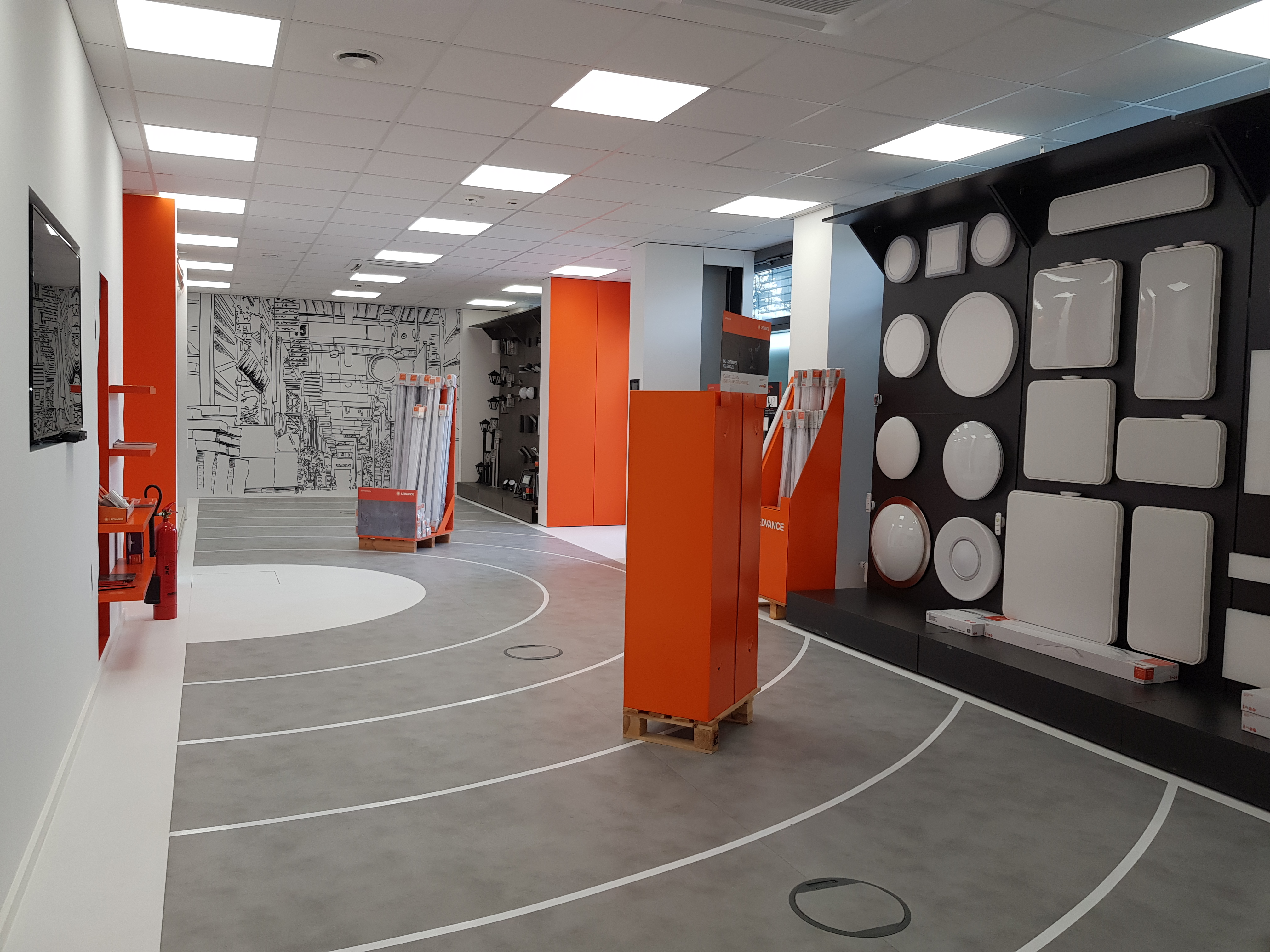

Application pictures
Show: Lab with VIVARES DALI

JPG (3.41 MB)

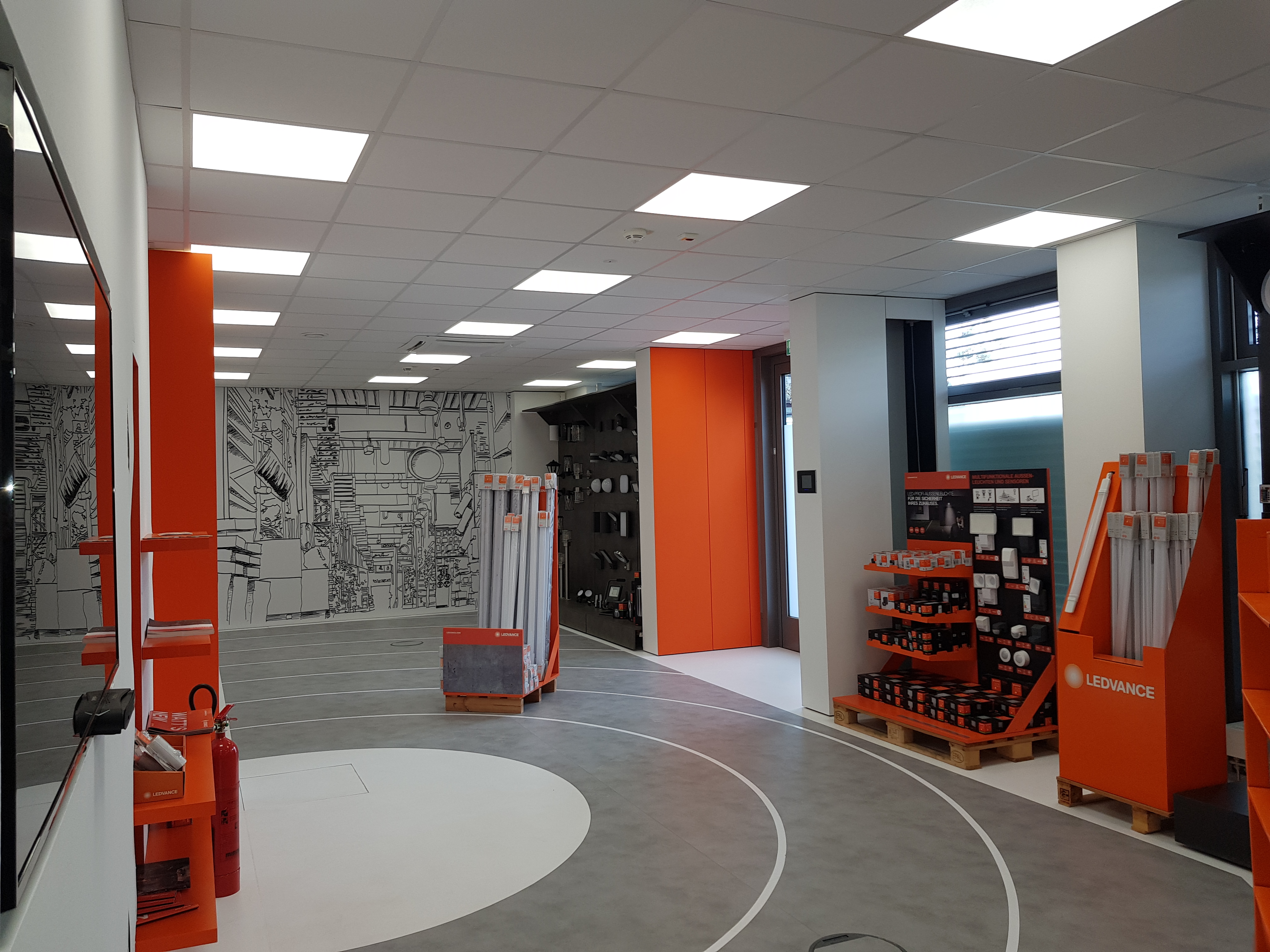

Application pictures
