CV dimmers with Bluetooth

OT BLE DIM

GTIN: 4052899557833 Unpacked / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Control of white, Tunable White, RGB and RGBW LED modules
  • Independent housing for ceiling installation
  • Support of systems based on CASAMBI lighting control solutions
  • Minimal installation effort
  • Dry contacts for optional connection to any commercial pushbutton
Areas of application
  • Suitable for indoor installations
  • Shops and hospitality: retail, hotels, restaurants
  • Museums, residential buildings
Product features
  • Wireless 4-channel dimmer, with a output voltage of 12 V and 24 V
  • Control of LED loads of up to 240 W
  • Wireless module based on Bluetooth Low Energy
Electrical data
Nominal wattage 240.00 W
Nominal output power 240 W
Nominal voltage 12…24 V
Nominal output voltage 12…24 V
Input voltage DC 12/24 V
U-OUT (working voltage) 24 V
Mains frequency 0/50 Hz
ECG efficiency 98 % 1)
Device power loss < 0.5 W
Galvanic isolation Non isolated
Operating frequency 600 Hz
Power loss in stand-by mode < 0.5 W
1) At full load
Dimensions & Weight
Length 172.00 mm
Mounting hole spacing, length 164,0 mm
Width 42.00 mm
Height 20.00 mm
Cable cross-section, input side 0.5…1.5 mm²
Cable cross-section, output side 0.5…1.5 mm²
Wire preparation length, input side 10 mm
Wire preparation length, output side 10 mm
Product weight 200.00 g
Colors & materials
Product color White
Casing material Plastic
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 65 °C
Max.housing temperature in case of fault 115 °C
Permitted rel. humidity during operation 5…85 % 1)
1) Maximum 56 days/year at 85 %
Lifespan
ECG lifetime 50000 h 1)
1) At Tcase = 65°C at Tc point / 10% failure rate
Additional product data
Encapsulated No
Number of control outputs 4
Capabilities
Dimmable Yes
Dimming interface Bluetooth Low Energie
Dimming range 0…100 %
Overheating protection Yes
Overload protection Yes
No-load proof Yes
Suitable for fixtures with prot. class III
Type of connection, output side Screw terminal
Number of control outputs 4
Type of installation Luminaire integration/Ceiling integration
Certificates & Standards
Approval marks – approval CE
Standards Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61347-2-11, Acc. to ETSI EN 300 328, Acc. to ETSI EN 301 489-17
Protection class III
Type of protection IP20
Energy efficiency class A1
LOGISTICAL DATA
Temperature range at storage -40…+85 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899557833 Unpacked
1		 331.00 g
4052899557840 Shipping box
20		 351 mm x 222 mm x 68 mm 4530.00 g 5.30 dm³
User instruction / safety instructions
OPTOTRONIC LED Power Supply
PDF (3.33 MB)
Declarations of conformity
EU Declaration of Conformity 3595862
PDF (220.38 KB)
PRODUCT DATASHEET
Product datasheet OT BLE DIM (EN)
PDF (416.09 KB)

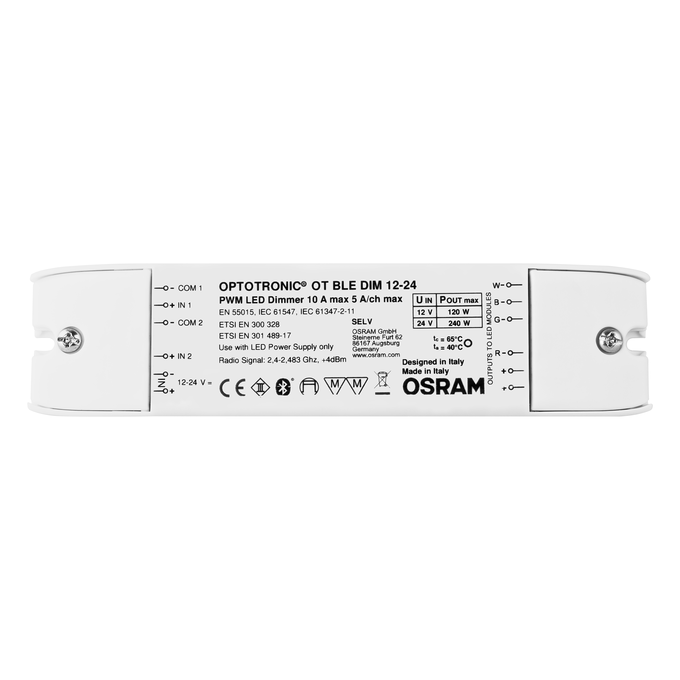

Product image: white background, diagonal
